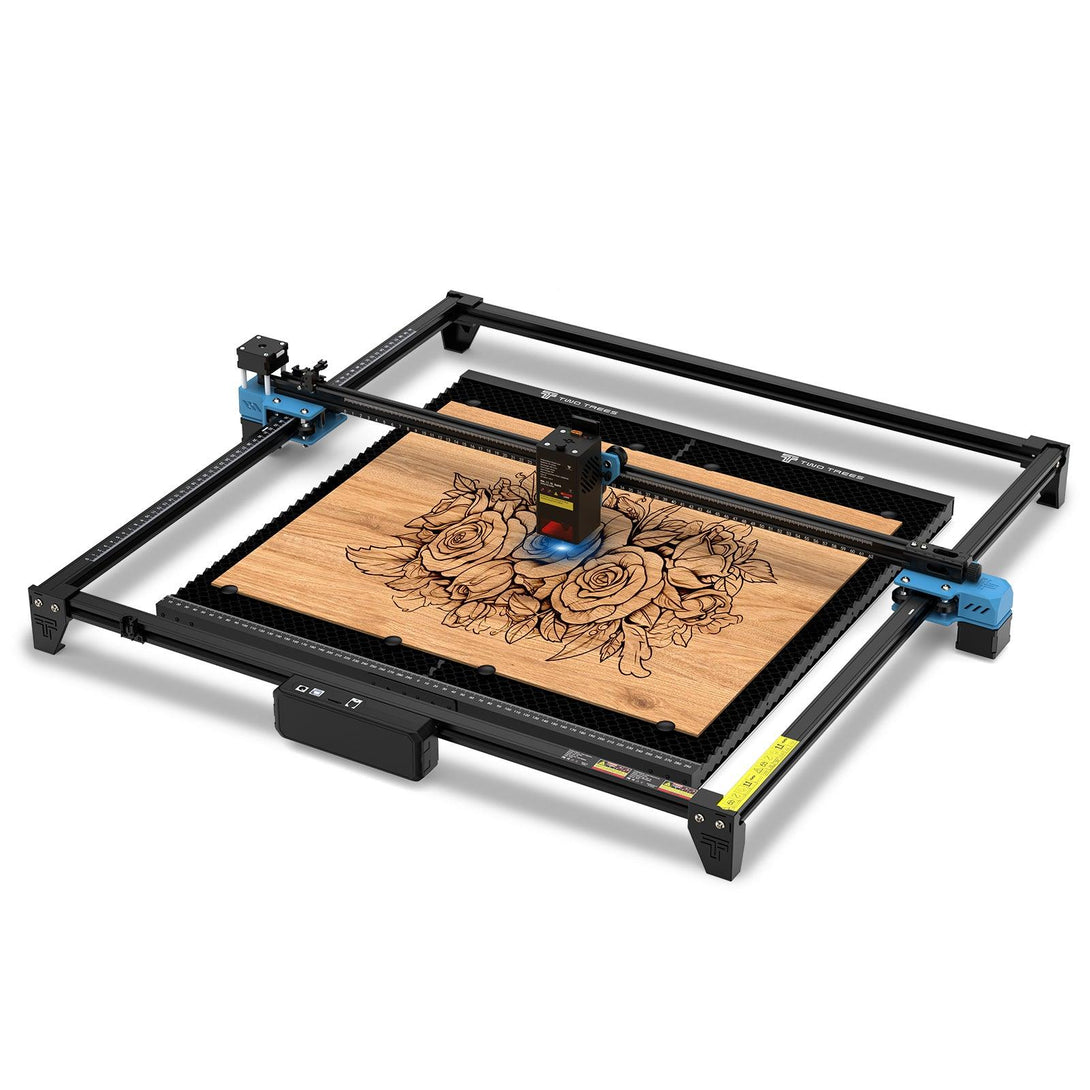

Twotrees TTS-20 Max Laser Engraver
$479.20$599.00
EU Plug
Specification:
| Parameter | Details |
|---|---|
| Brand | Twotrees Official Shop |
| Color | Black & Lake Blue |
| Spot Compression Technology | Yes |
| Spot Size | 0.08*0.08mm |
| Machine Size | 787x770x124mm |
| Engraving Precision | ±0.1mm |

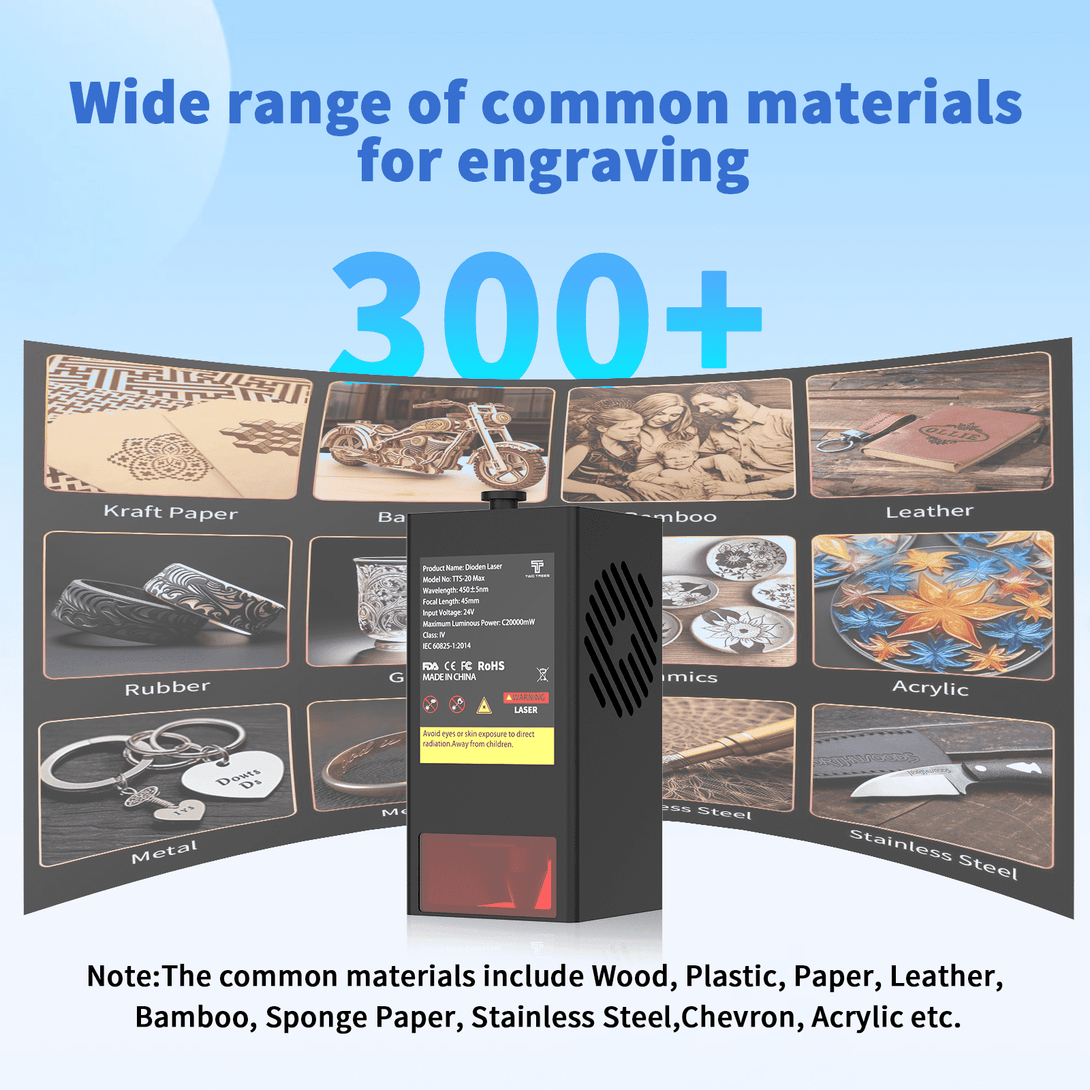

| Carving Materials | Wood, Plastic, Paper, Leather, Bamboo, Sponge Paper, Stainless Steel, Chevron, Acrylic |
| Spot Shape | Rectangle |
| Machine Weight | 3.6KG |

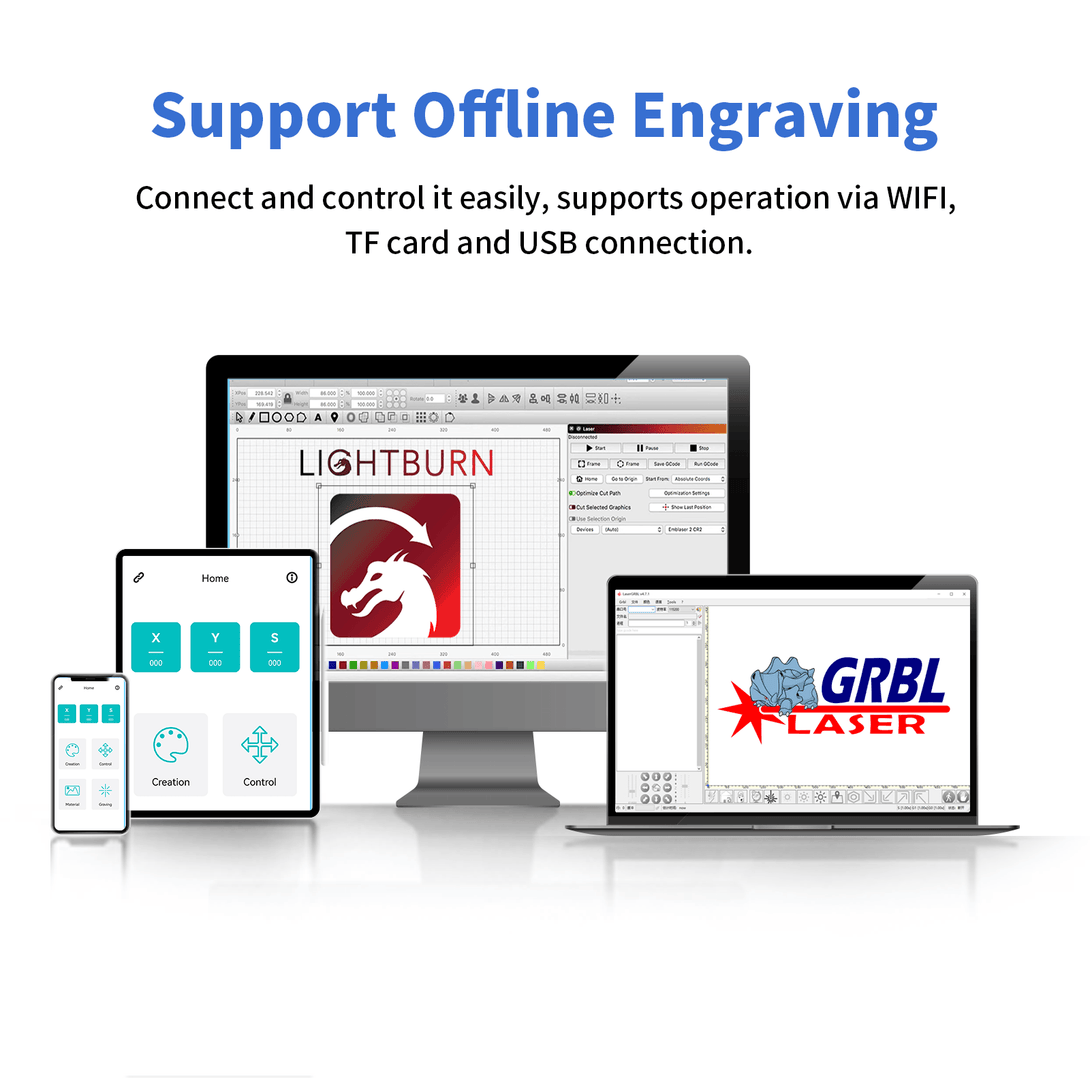

| Support Software | LaserGRBL (Open Source, Free), LightBurn (Paid), Suppot Win XP/Win7/Win 8/Win 10 System |
| Machine Material | Aluminum Profile + Injection Molded Parts |
| Laser Wavelength | 450nm ±5nm |
| Height Adjustment Method | Lifting Module Adjustment (Manual) |

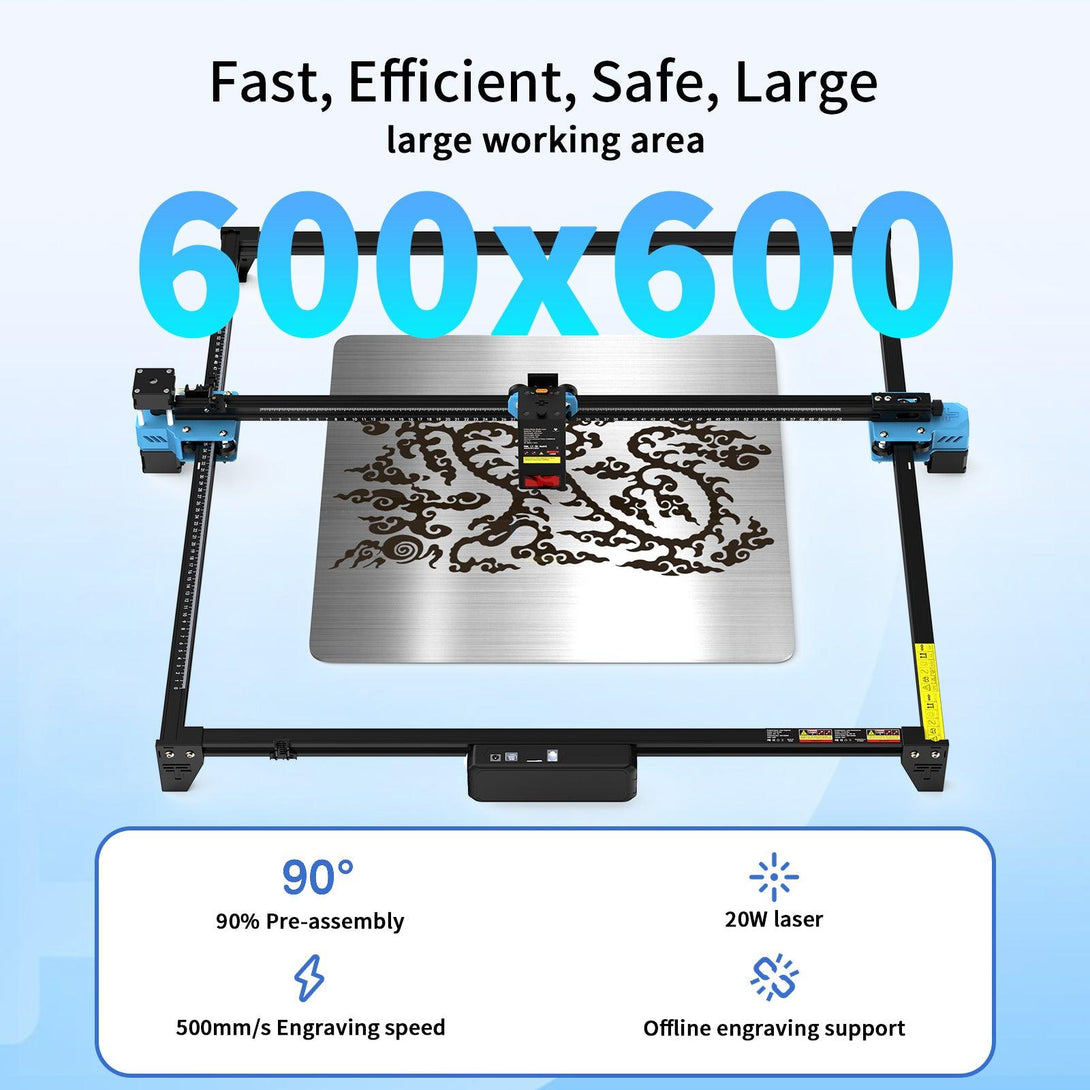

| Engraving Size | 600x600mm |

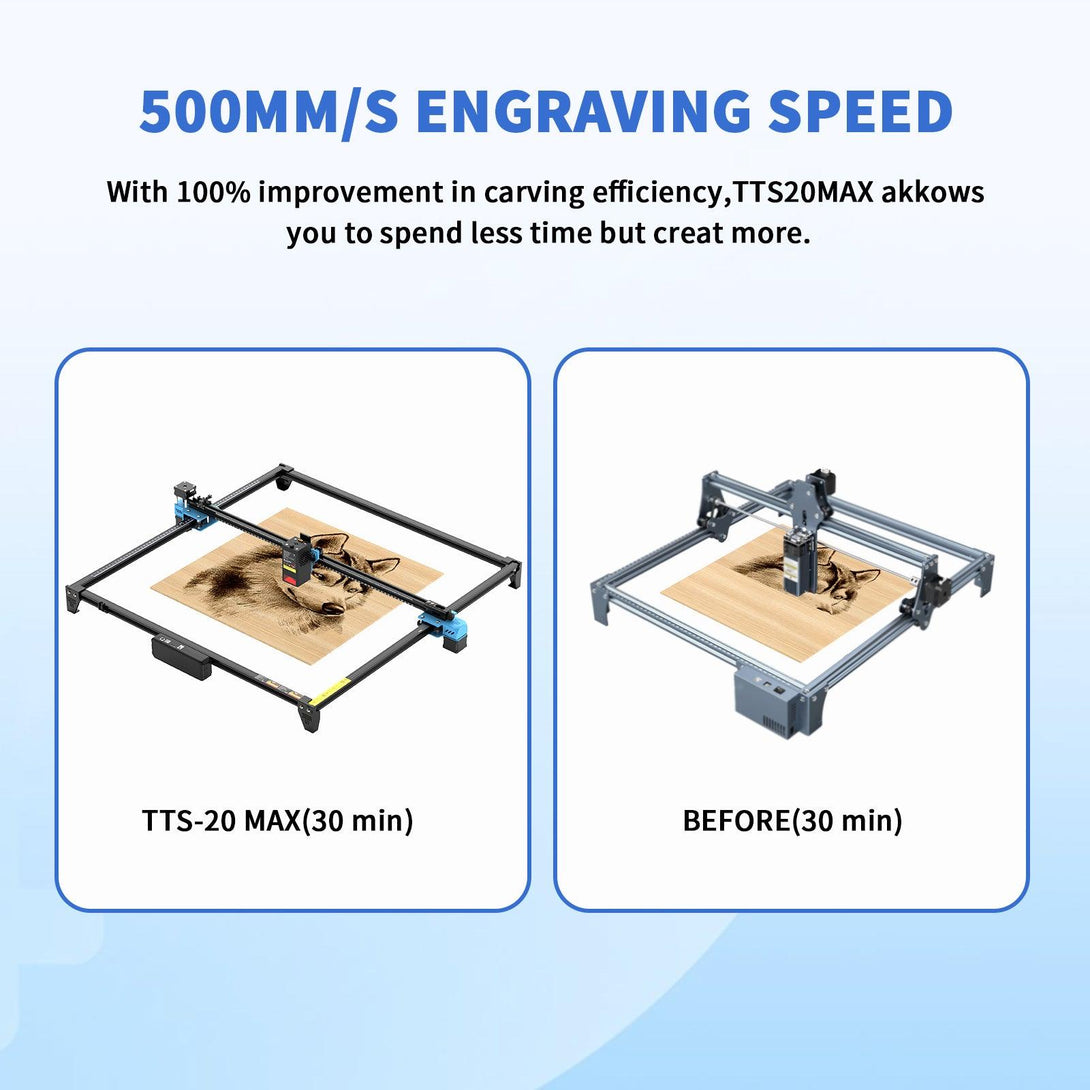

| Engraving Speed | 30000mm/min |
| Software Recognition Format | NC, DXF, BMP, JPG, PNG, GCODE |
| Control Panel | 32-Bit Main Control Board |
| Power Supply | 24V 4A DC |
| Model No | TTS-20 MAX |
| Laser Power | 20W Compressed Spot (COS Technology) |
| Output Power | 20W |
| Motion Control | Yes |
| X/Y Axis Positioning Accuracy | 0.01mm |
| Engraving Method | USB Connection / App / Wireless Computer Web Terminal |
| Continuous Working Hours | ≤6 Hours |
| Language | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, etc. |
| Operating System | Windows, Mac |
| Working Environment | Temperature 5-40°C, Humidity 20-60% RH |
