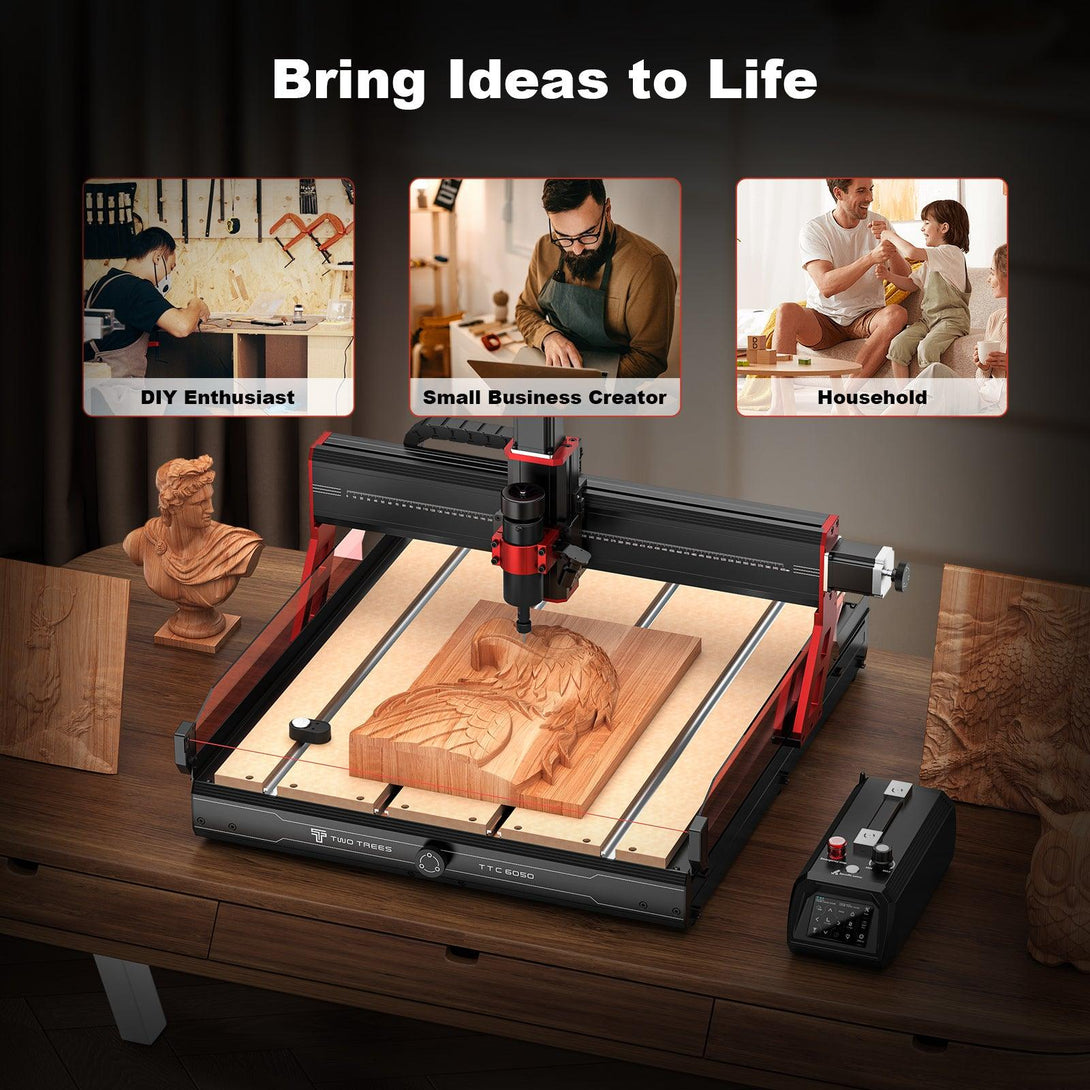

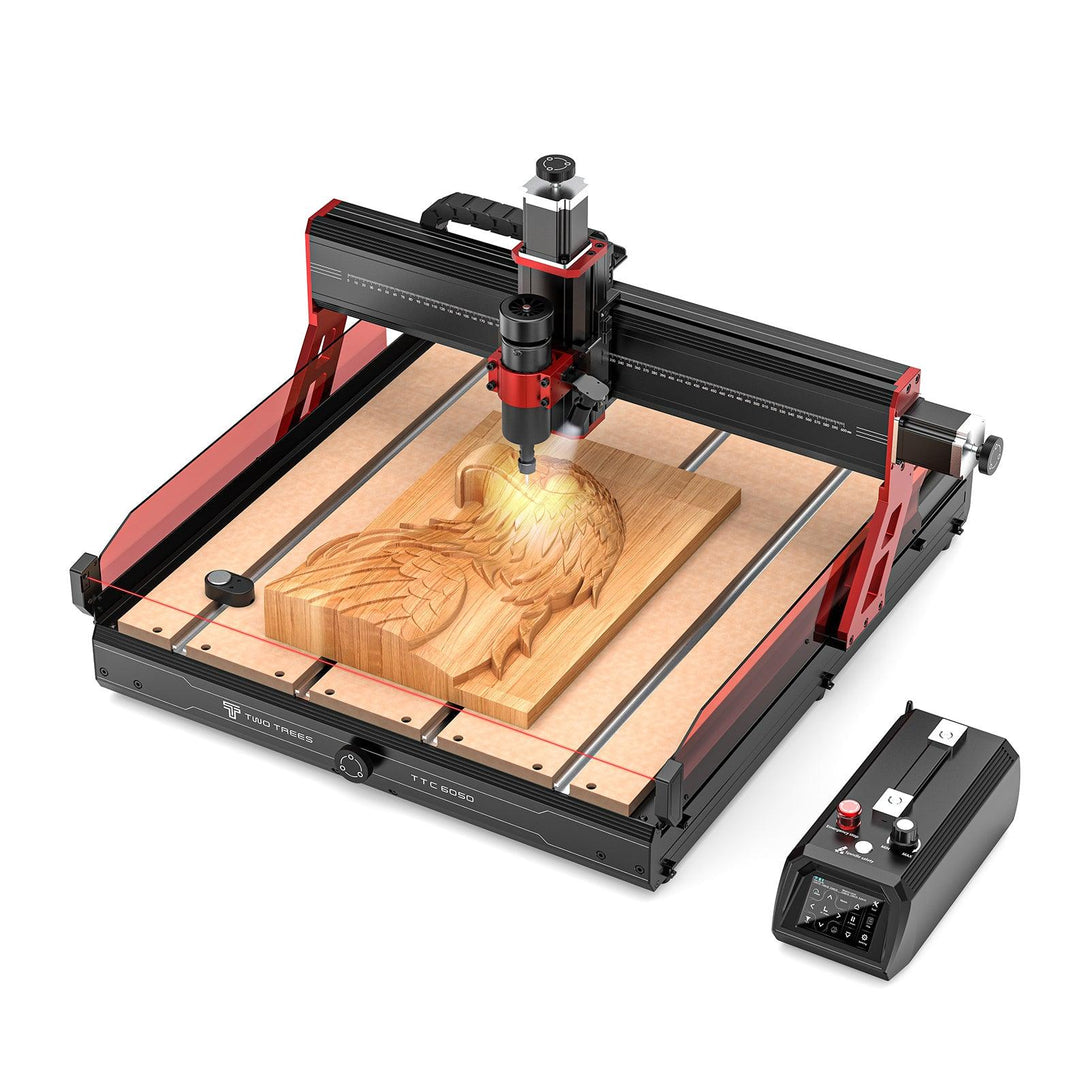

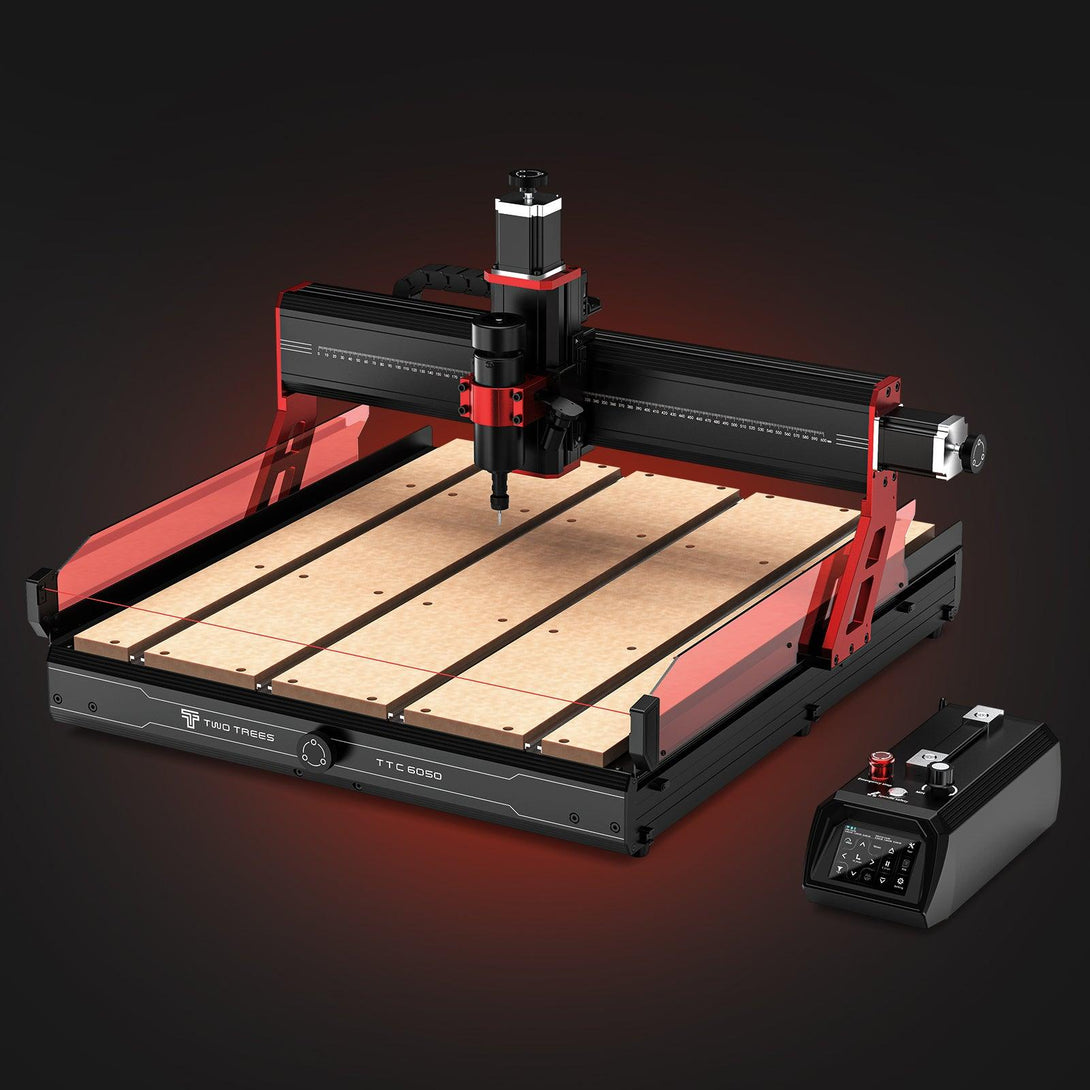

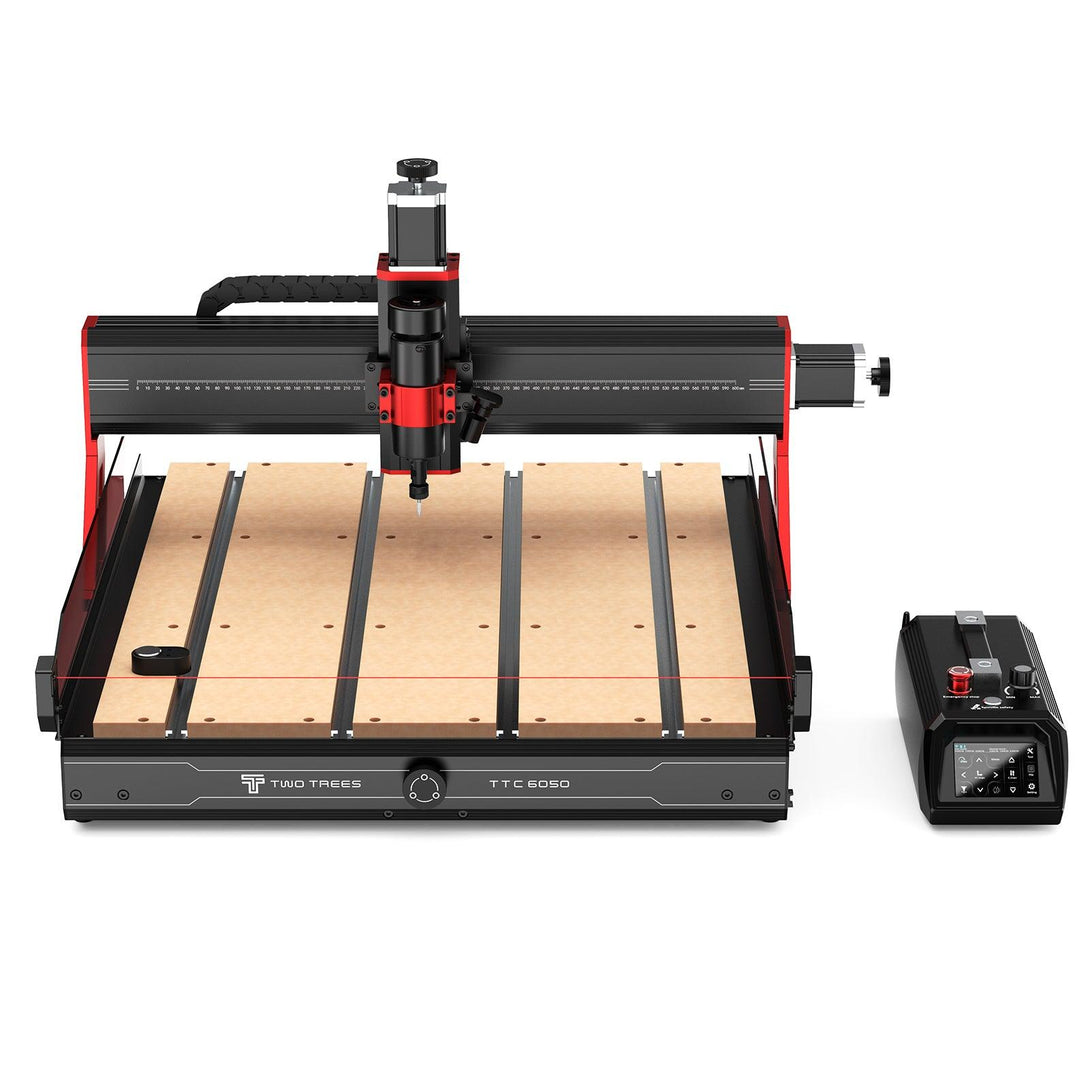

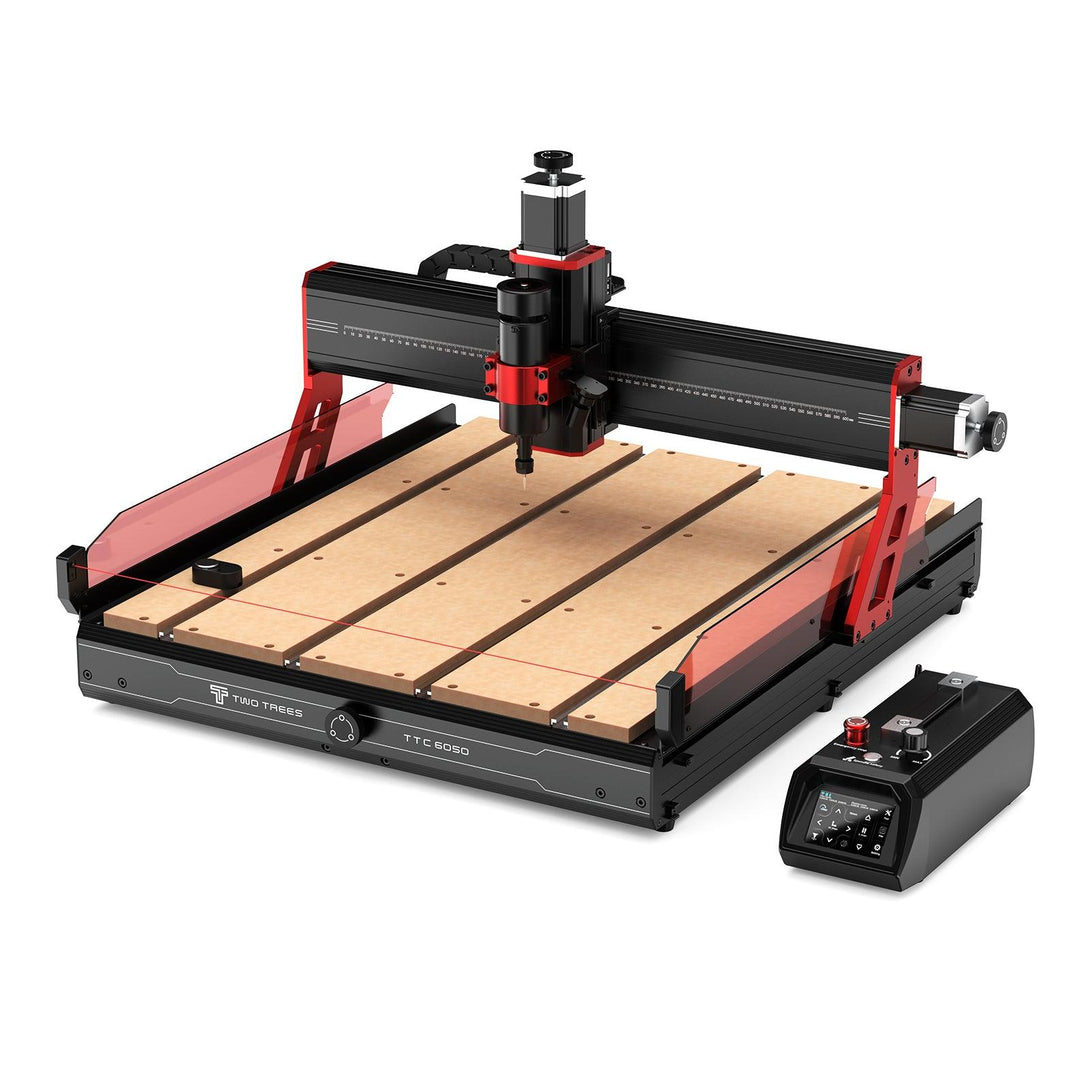

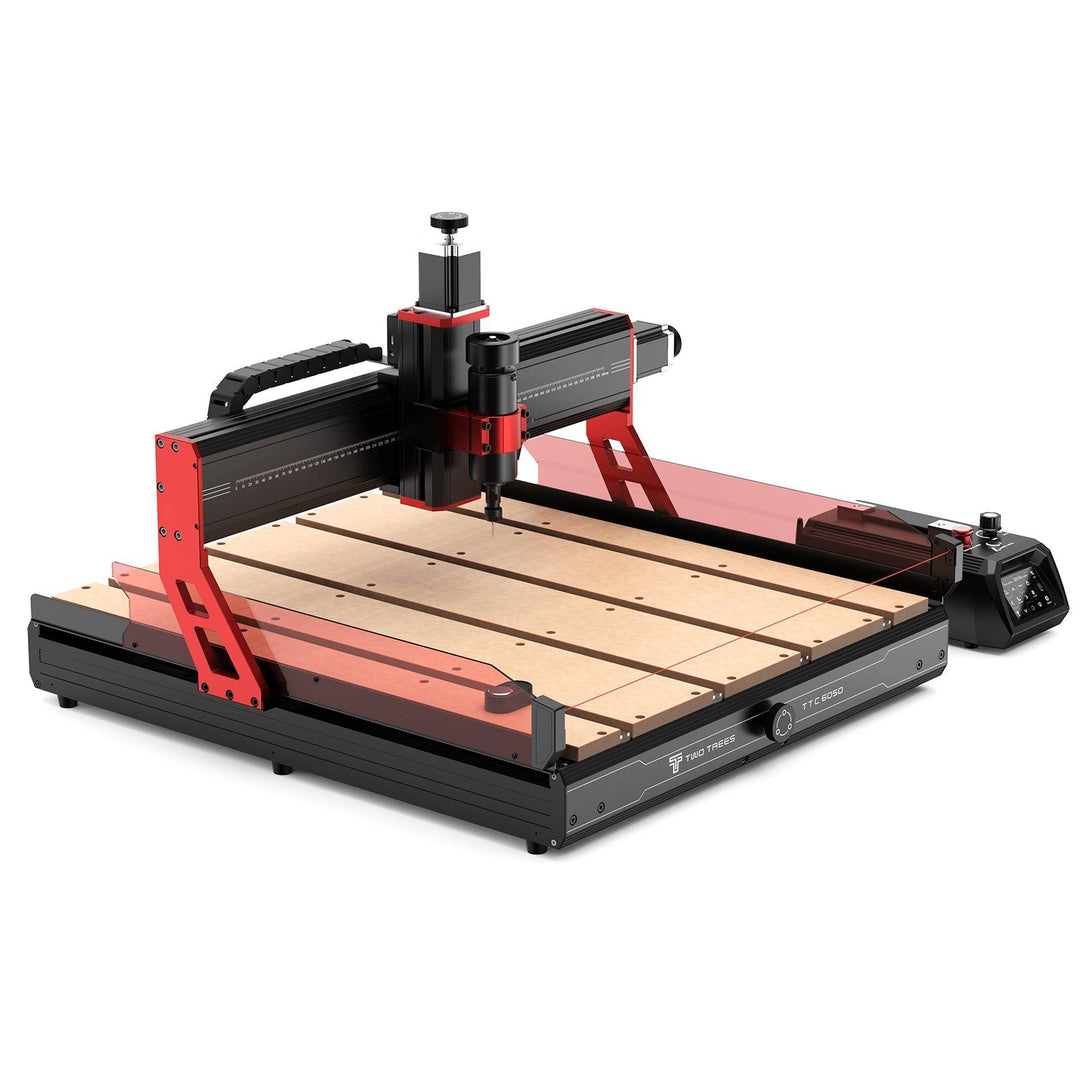

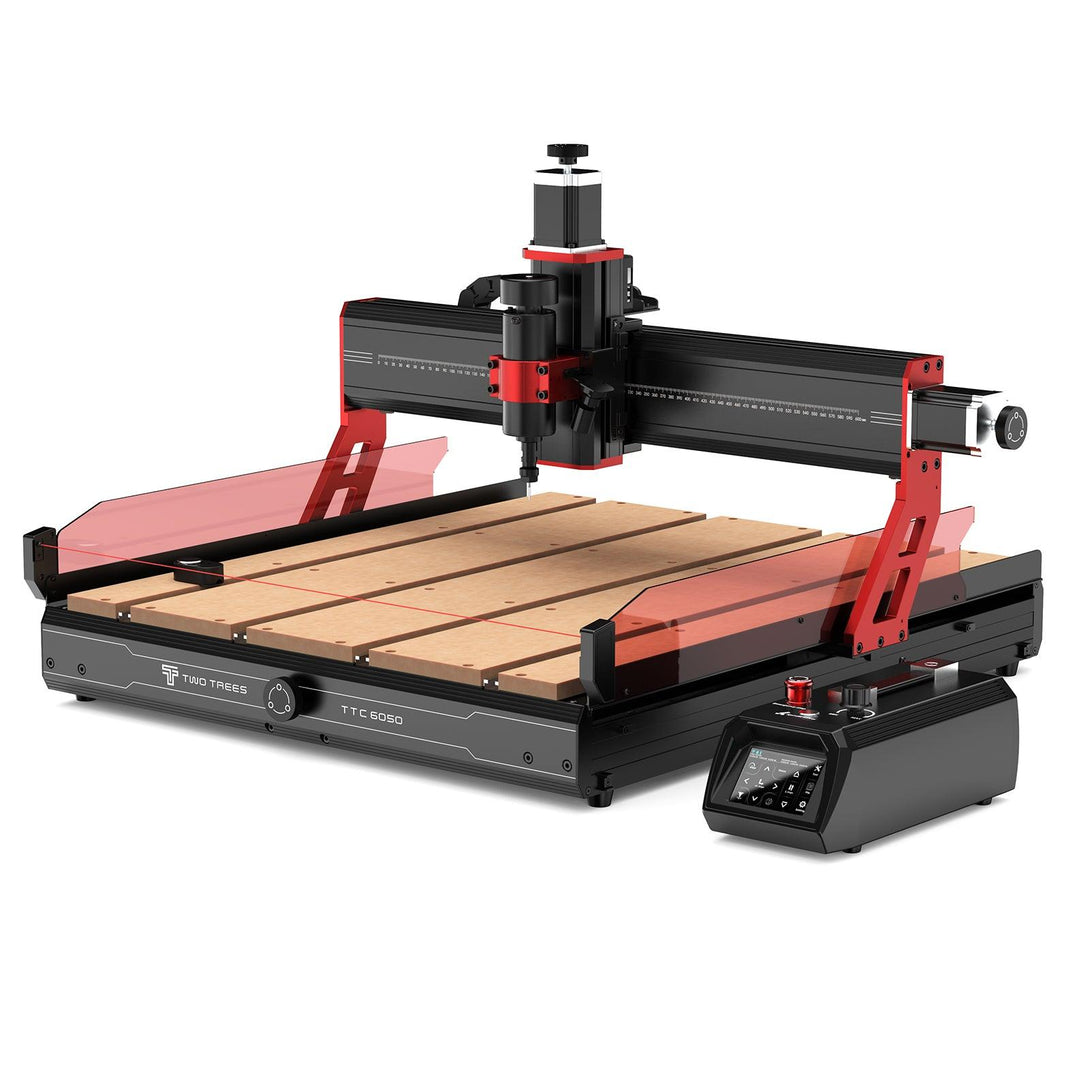

Twotrees TTC 6050 CNC Router Machine
$1,799.00$1,899.00
US Plug
Features:
- Powerful Motor and Precision Drive: Equipped with a 500W spindle motor and high torque design, it ensures efficient cutting and engraving. The motor includes a hand-tightened nut for easy and precise manual position adjustments.

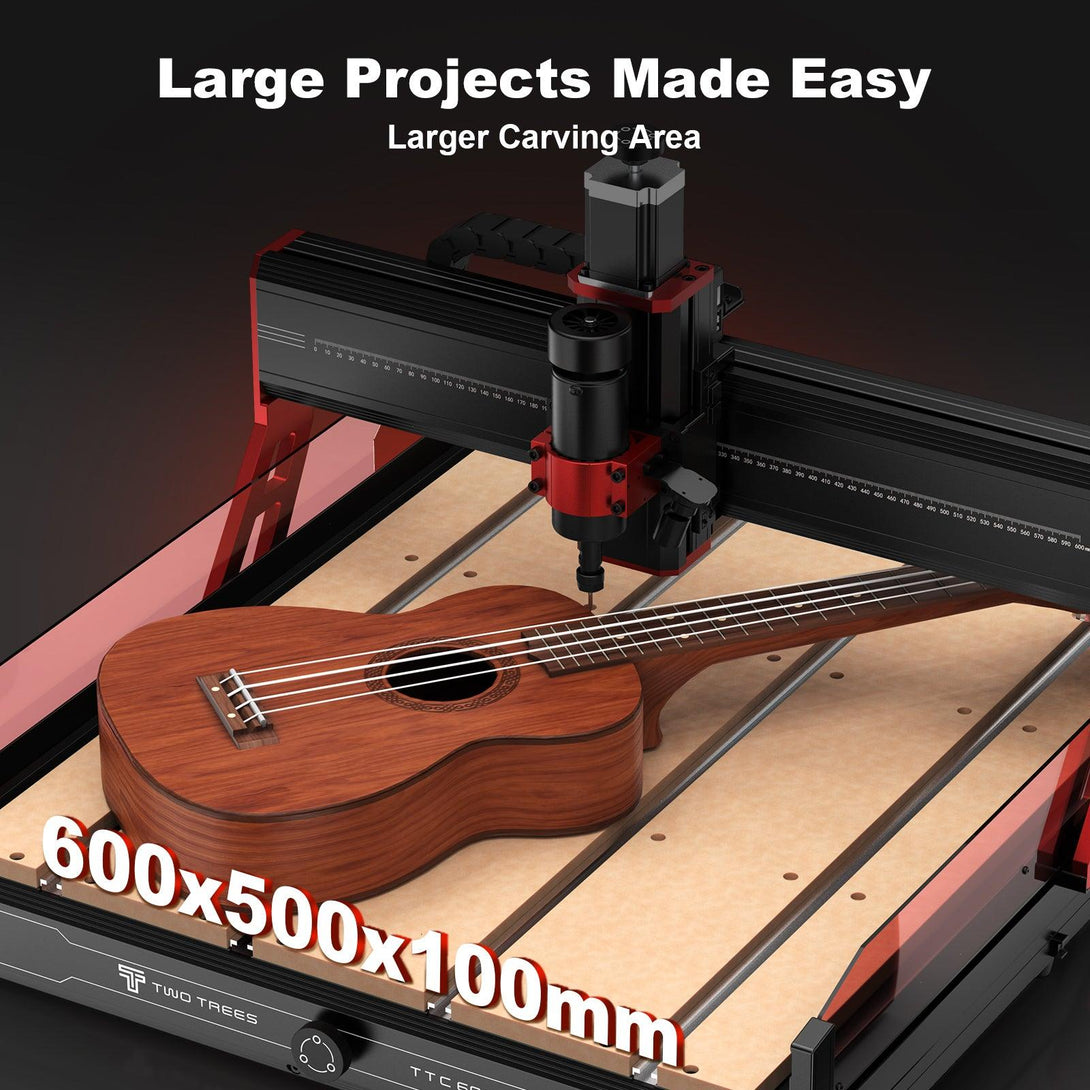

- Large Carving Area: Provides a spacious working area of 600mm x 500mm x 100mm, accommodating complex engraving and cutting tasks.

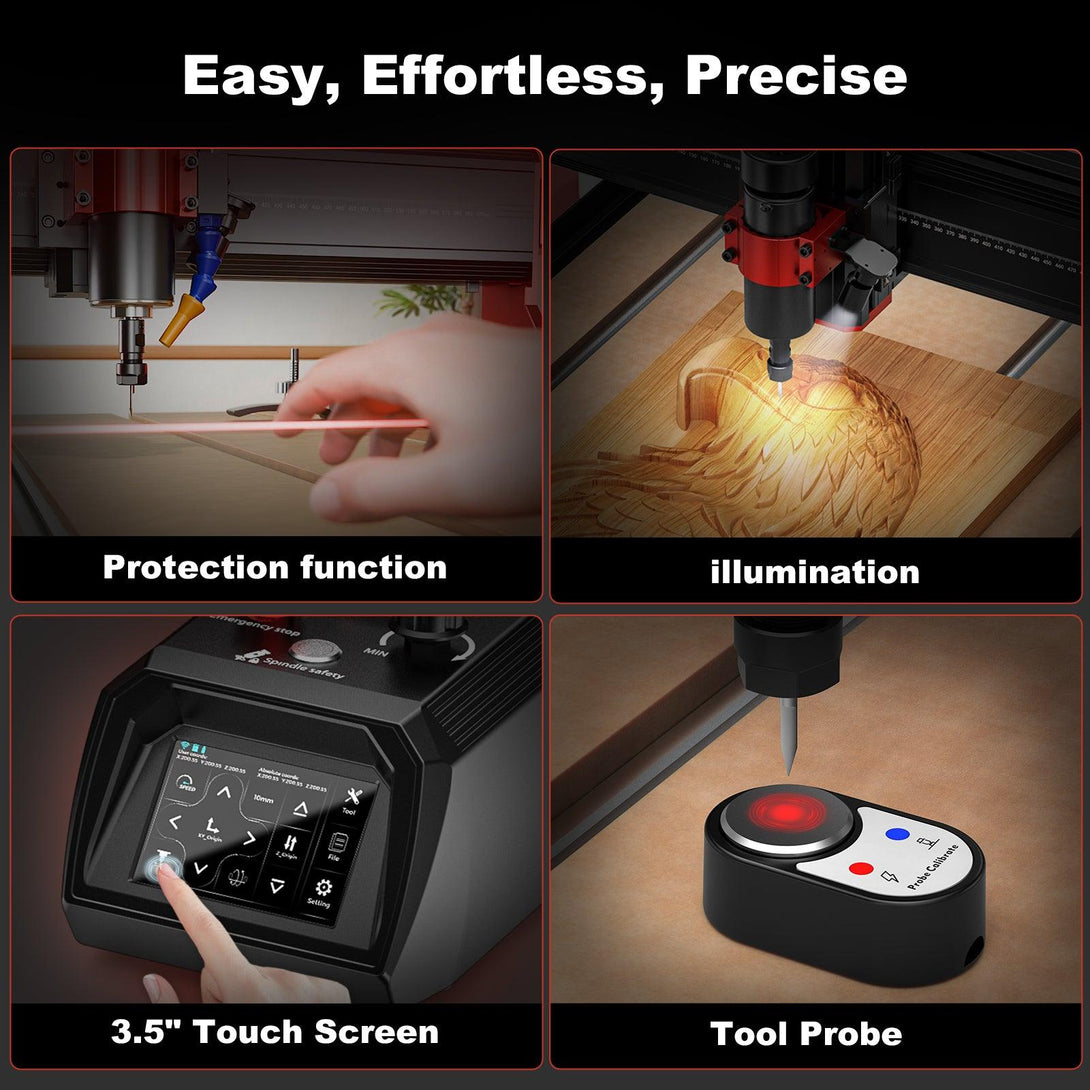

- Infrared Sensing for Enhanced Safety: Features real-time monitoring of the carving area with automatic spindle stoppage within one second to ensure user safety.

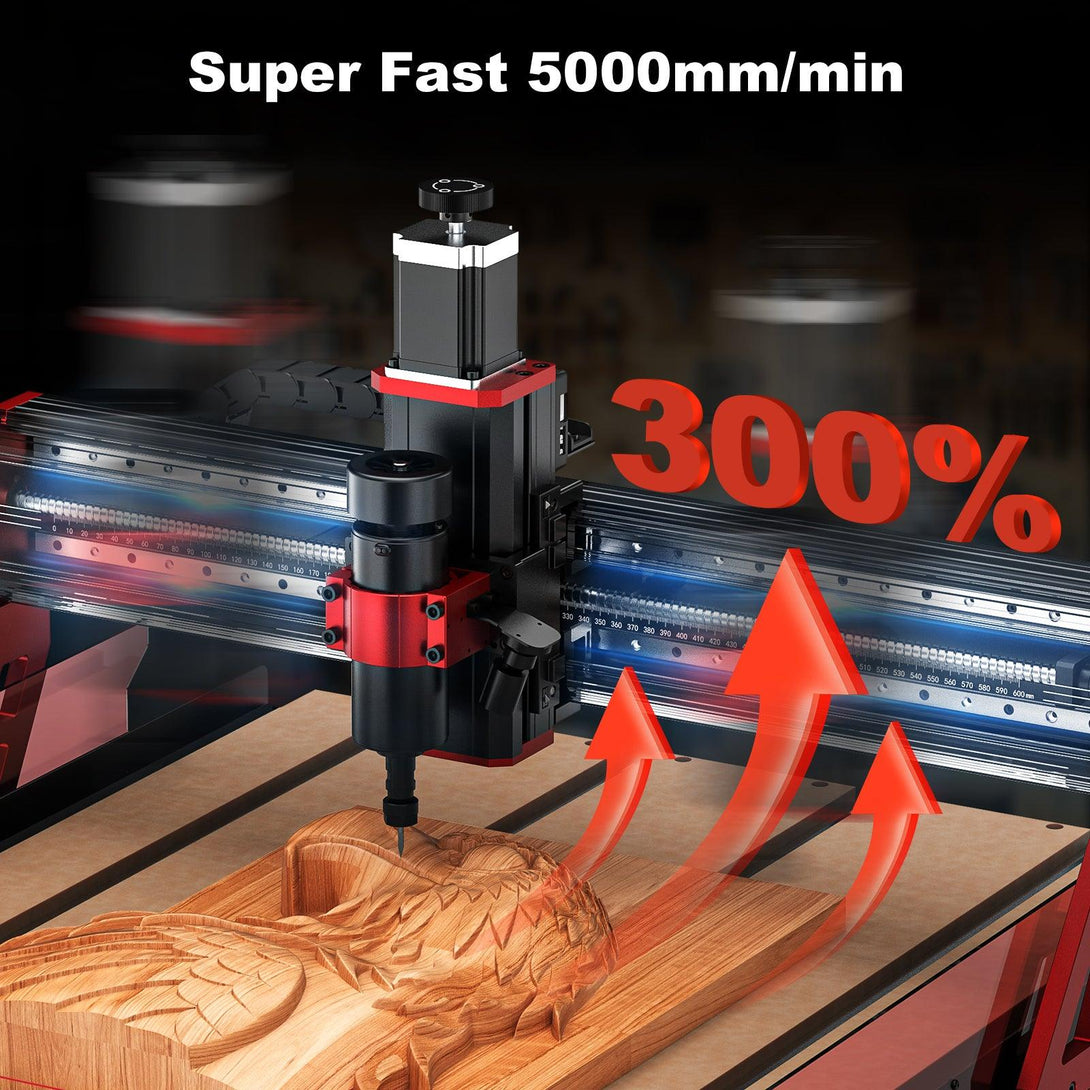

- High-Speed Operation: Achieves a maximum speed of 5000mm/min, enhancing productivity and efficiency.
- Integrated Spotlight: Includes a 500lm spotlight to illuminate the working area for better visibility during operation.
- Quick Tool Setting: Allows for tool setup in just one minute, streamlining the preparation process.

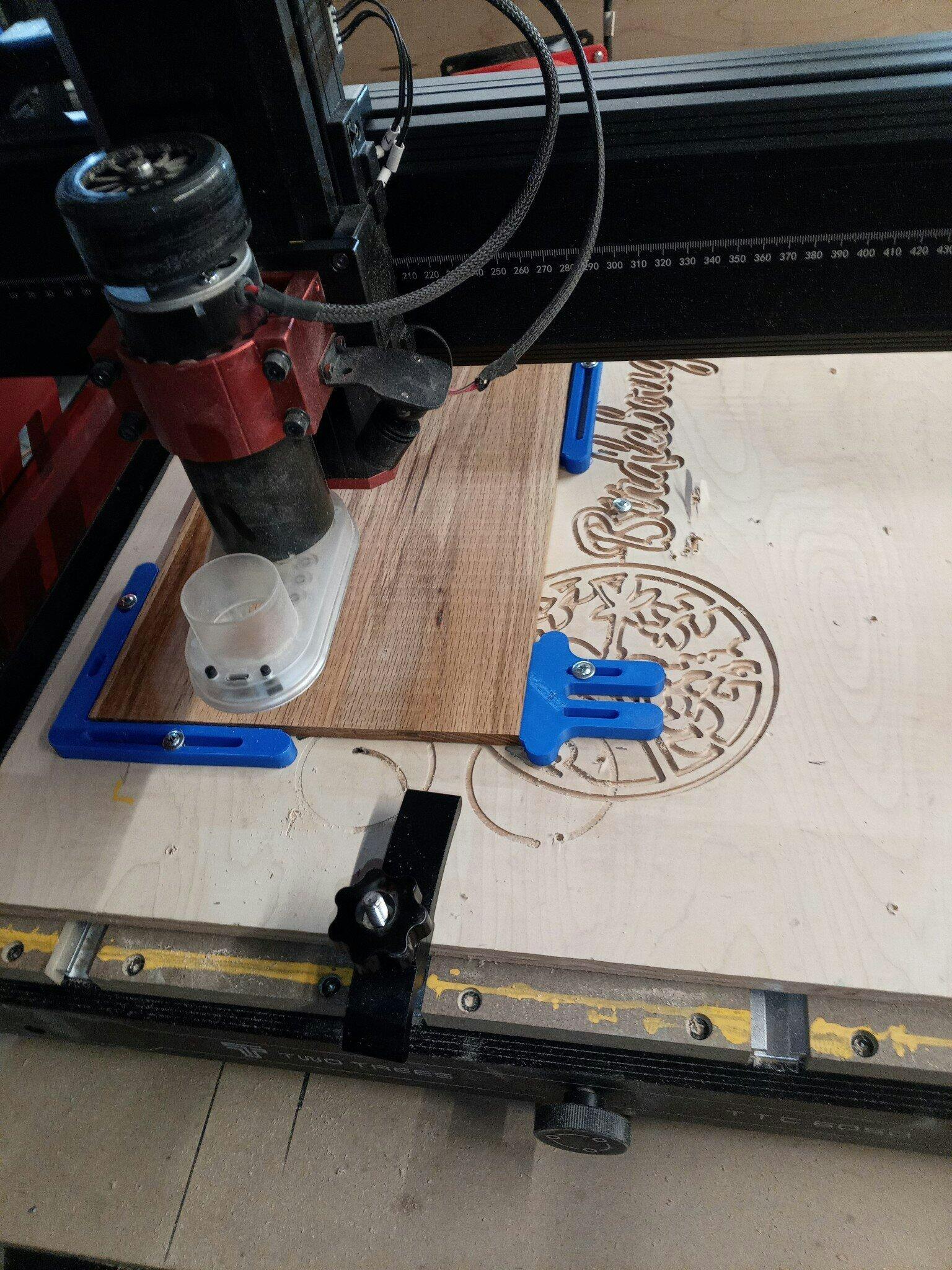

- High-Rigidity Clamp: Ensures stable material holding during operations, contributing to precision and safety.
- Replaceable MDF Baseboard: Features a cost-effective and practical design, ideal for cutting wood, plastic, and metal sheets.

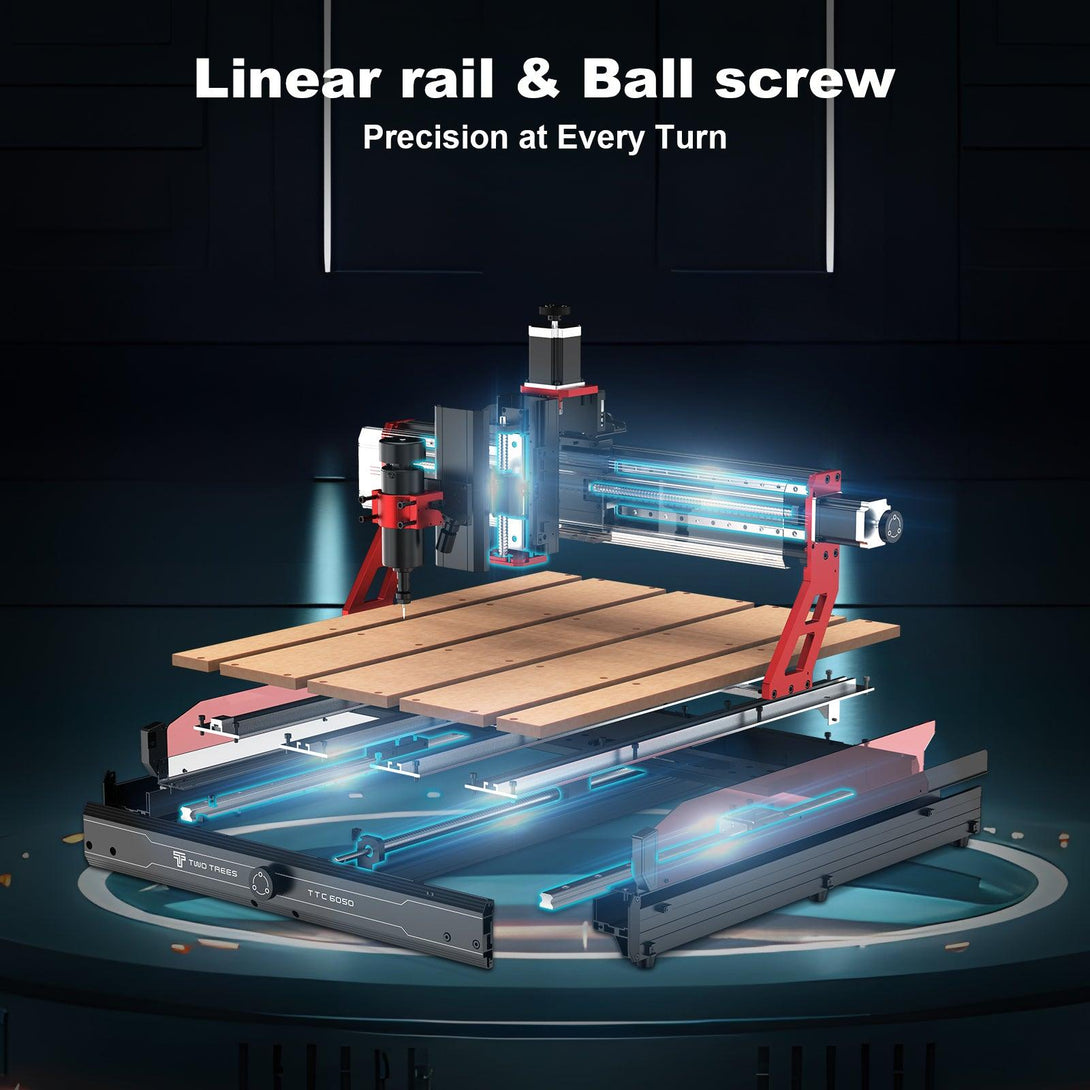

- Dust-Proof Drive: Incorporates a dust-proof design to protect transmission components from debris and wear, extending the machine's lifespan.
- Convenient Expansion: Supports easy adaptation for various tasks and is compatible with vacuum cleaners to maintain a clean working environment.
Specification:
| Parameter | Specification |
|---|---|
| Device Size | 811 × 769 × 530 mm (excl. Control Box) |
| Net Weight | 35.9 kg |
| Working Area | 600 × 500 × 100 mm (23.6"×19.6"×3.9") |
| Material | Aluminium |
| Supported Tool Diameters | 0.5-7 mm (ER11 clip) |
| Device Display | 3.5-inch IPS resistive touch screen (480×320) |
| Max Milling Speed | 5000 mm/min |
| Maximum Acceleration | 500 mm/s² |
| Spindle Motor | 500W Spindle Motor |
| Main Shaft Speed | 12000 rpm |
| Compatible Software | Artcam, Fusion360, EASEL, Carveco Maker |
| Firmware | GRBL is open source and supports both CNC and laser (no firmware required) |
| Operating System | Windows, macOS, Linux |
| Voltage | 24V |
| Performance | 110W Total / 15W Standby |
| Carving Layer Height | Non-metal: 0.1-20mm / Metal: 0.1-0.2mm |
| Compatible Materials | Plywood, MDF, Solid wood, Acrylic, Carbon fiber, Aluminum, Copper, Stainless steel |
Review and Expert Analysis
FAQs
1. What engraving speed can it achieve?
The maximum engraving speed reaches 5000mm/min and the maximum acceleration is 500mm/s², ensuring high engraving efficiency.
2. What materials can it engrave?Can it cut metal?
Compatible engraving materials include plywood, MDF, solid wood, acrylic, carbon fiber, aluminum, copper, stainless steel, etc., making the machine suitable for a wide range of applications.
3. Is it compatible with a laser head?
It supports CNC and laser, and provides a 3.5-inch resistive screen to enhance user experience.
4. What software is supported?
Support a variety of programming software and systems, such as Artcam, Fusion360, etc.
