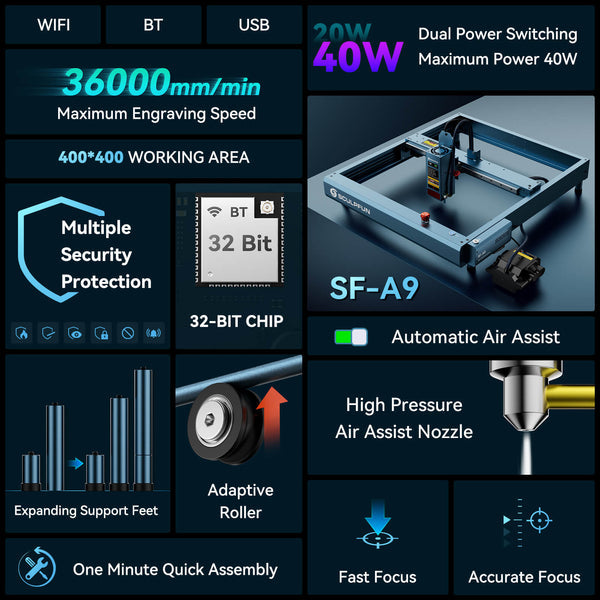

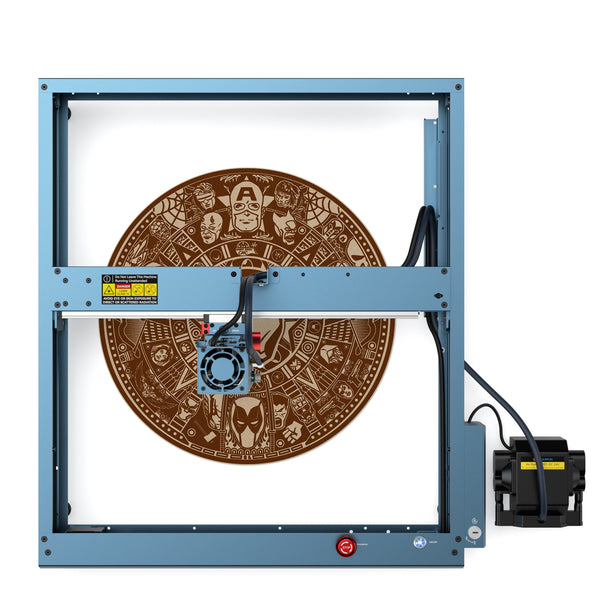

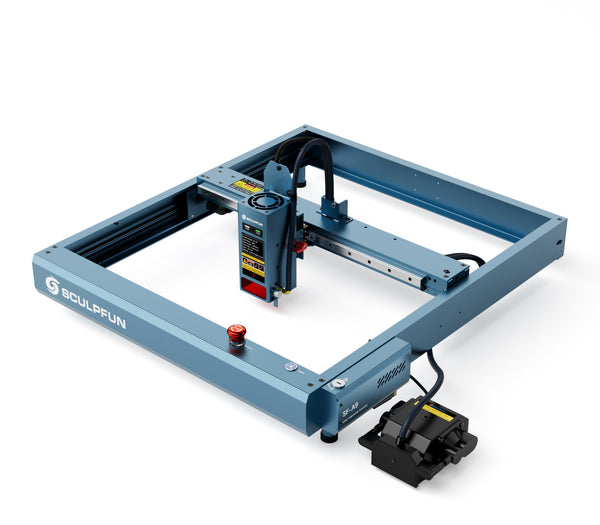

Whether you're crafting personalized gifts, producing signage, or running a small creative business, the Sculpfun SF-A9 40W laser engraver delivers the power and precision to get it done. Equipped with 8 × 6W diode laser chips, it cuts 20mm plywood and 6mm dark acrylic in a single pass at speeds up to 36,000 mm/min. A full-metal frame, industrial-grade X-axis linear rail, and adaptive Y-axis wheels ensure rock-solid stability during every job. With WiFi, Bluetooth, and USB connectivity plus LightBurn and LaserGRBL compatibility, the SF-A9 is the ideal upgrade for hobbyists, Etsy sellers, and small-batch makers ready to level up their workflow.

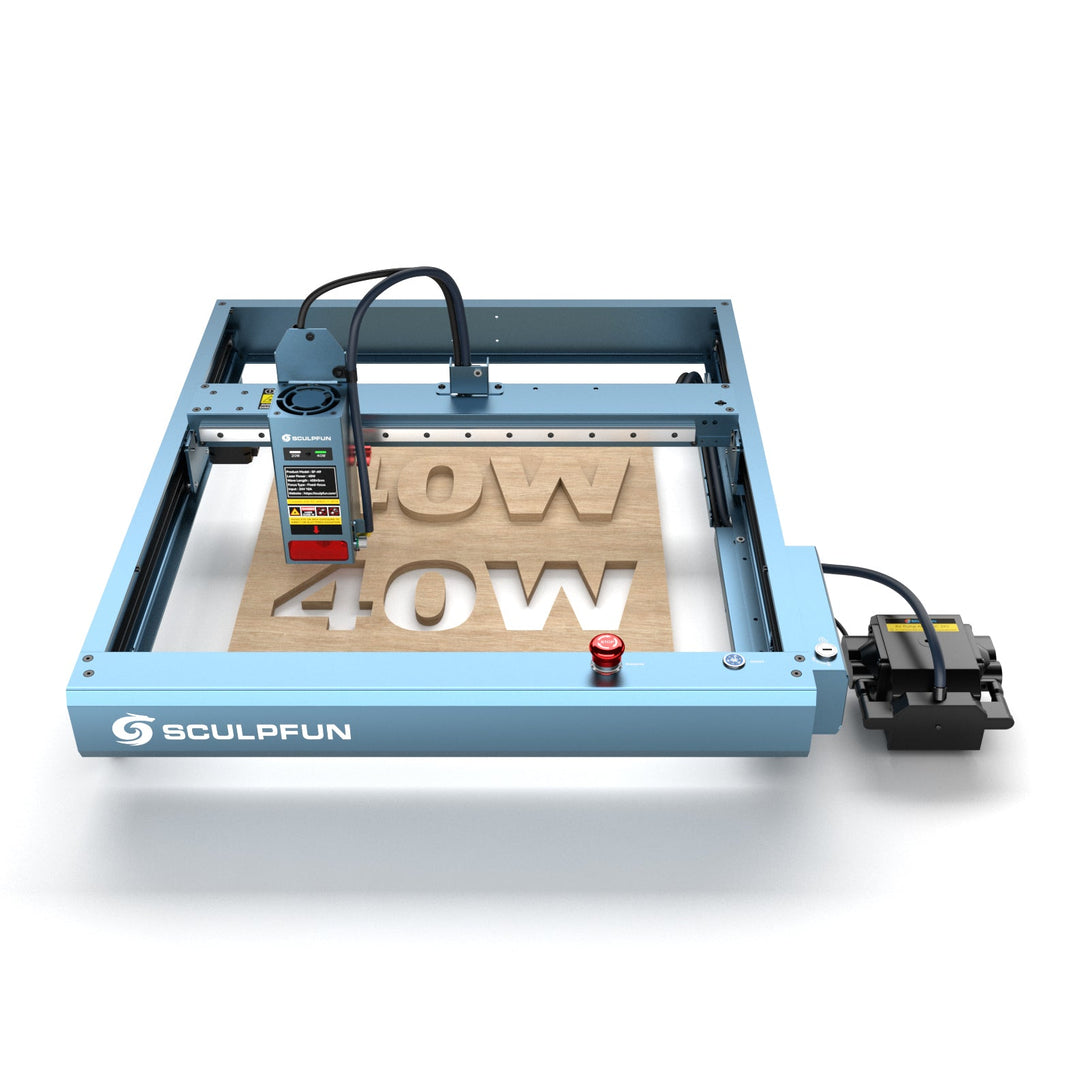

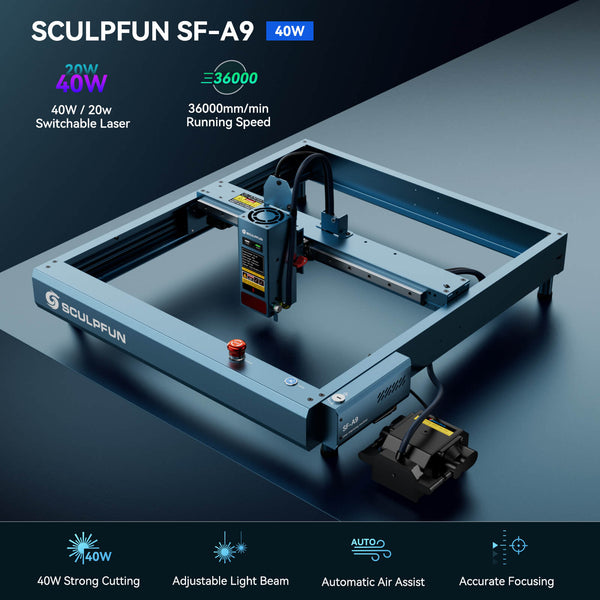

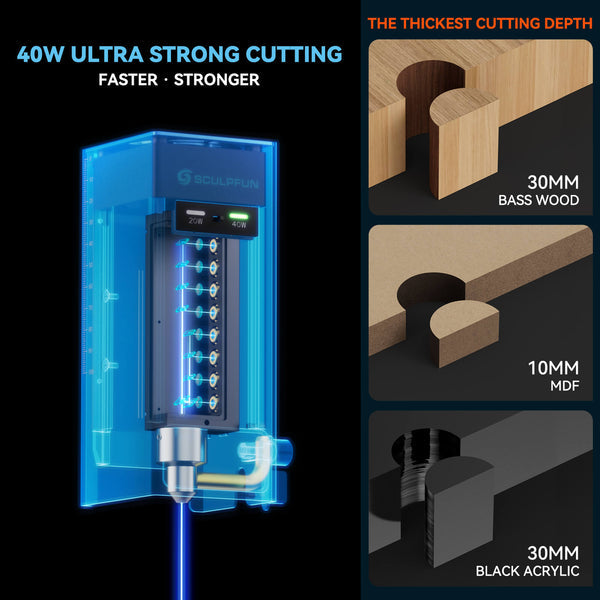

The SF-A9 features 8 high-efficiency 6W laser chips delivering 40W optical output — the first of its kind in the Sculpfun lineup.

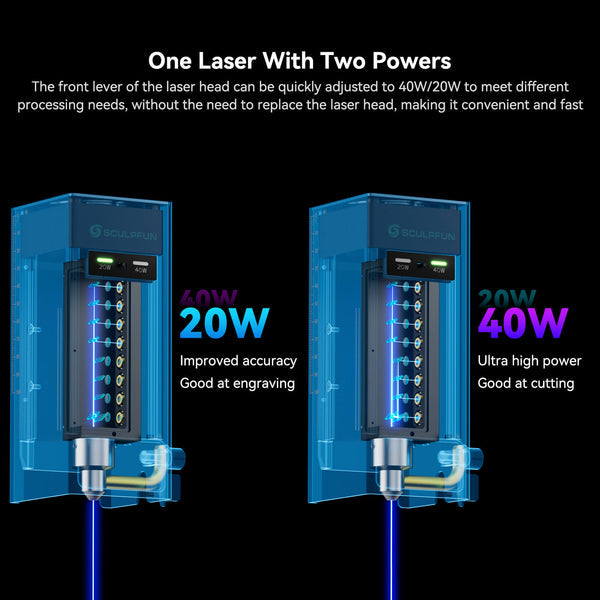

A simple lever on the laser head lets you switch instantly between 40W cutting mode and 20W engraving mode without swapping modules, making it a versatile workhorse for any creative studio.

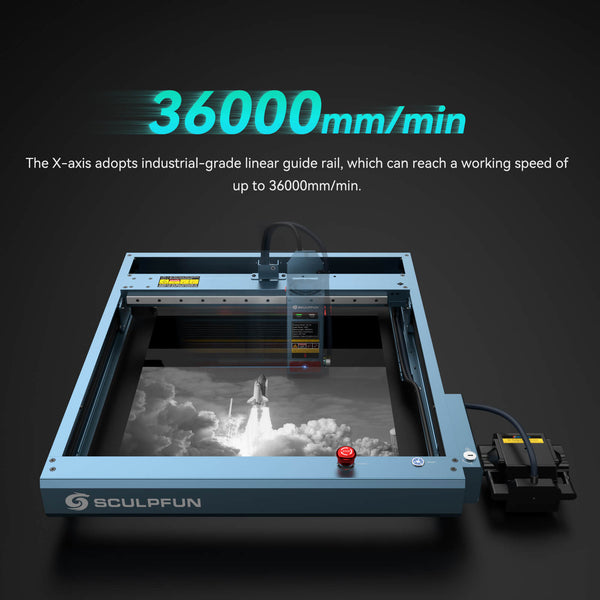

With a maximum engraving speed of 36,000 mm/min, the SF-A9 dramatically cuts production time for batch projects.
The industrial-grade linear guide rail on the X-axis and adaptive wheel system on the Y-axis maintain 0.01mm motion accuracy even at peak speeds, ensuring clean edges and consistent results across large production runs.
The SF-A9 introduces an upgraded two-stage focusing method: a quick-height red knob for coarse positioning based on material thickness, and a fine-tune top knob for precision adjustment.
Combined with an adjustable laser spot of 0.10–0.15mm, this system delivers accurate focal placement for fine engraving detail and clean cuts on thick materials.

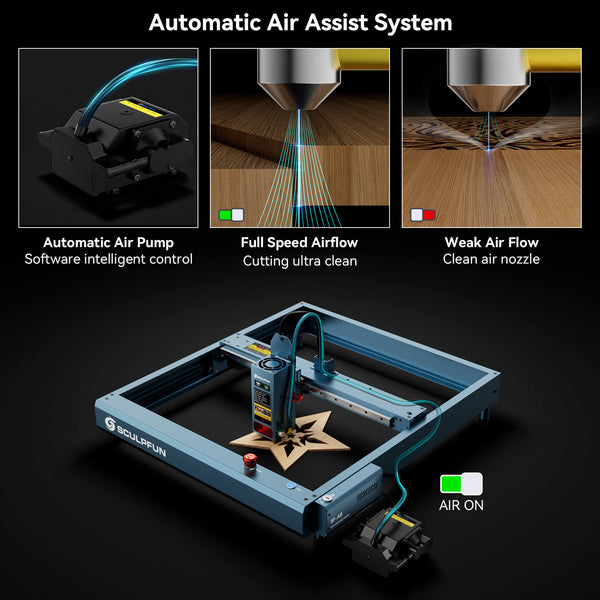

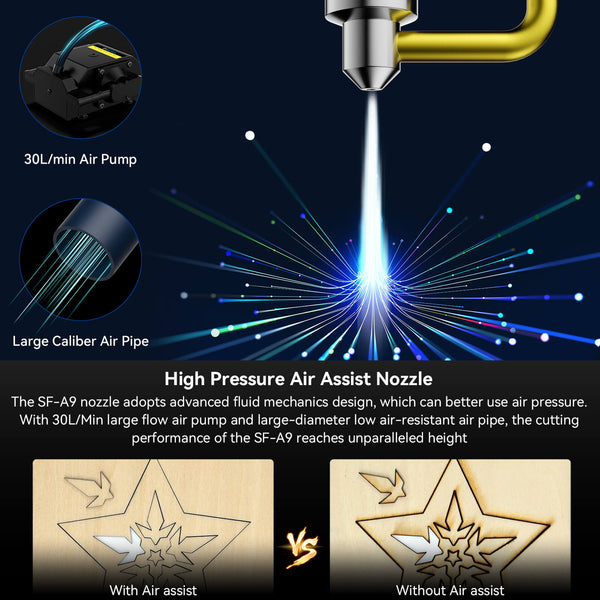

The built-in automatic air assist uses a large-diameter, low-resistance air pipe and advanced nozzle design delivering 30L/min airflow to the cut point for cleaner results and extended lens life.

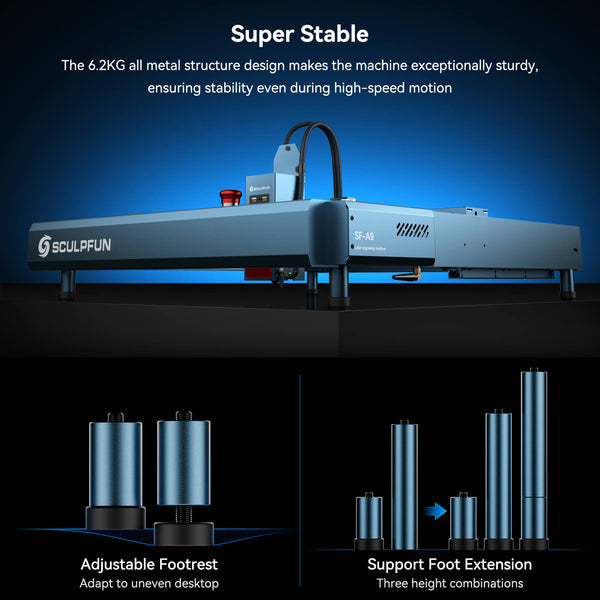

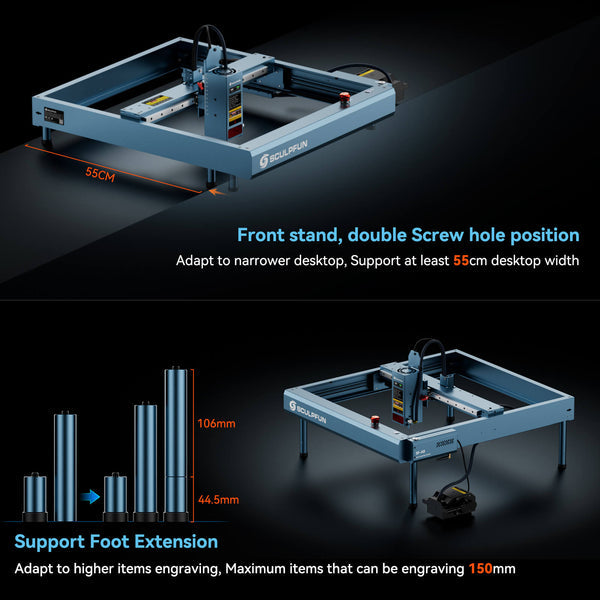

The full-metal 6.2 kg frame with adjustable support pillars handles objects up to 150mm tall and fits desktops as narrow as 55cm, making it workshop-ready out of the box.
Six or more independent safety systems protect every session: tilt sensor (15° trigger), flame & temperature sensor (60°C trigger), emergency stop, child safety lock, limit switches, and laser eye protection shield.
Connectivity covers WiFi (2.4GHz), Bluetooth 4.2, USB, and TF card, compatible with the Sculpfun app, LightBurn, LaserGRBL, and Windows, macOS, iOS, Android, and Linux.
| A. Laser Performance | |
|---|---|
| Model | Sculpfun SF-A9 |
| Laser Type | Diode Laser |
| Optical Output Power | 40W |
| Laser Wavelength | 450nm ± 5nm |
| Laser Module Lifetime | > 10,000 hours |
| Spot Size | 0.10 × 0.15mm |
| Cooling Method | Air cooling |
| Focusing Method | Dual-knob manual focus (coarse + fine) |
| Flame Alarm Trigger | 60°C |
| Tilt Sensor Trigger | 15° |
| B. Working Capability | |
| Effective Working Area | 400 × 400 mm (15.7 × 15.7 in) |
| Maximum Engraving Speed | 36,000 mm/min |
| Motion System Type | Industrial linear rail (X-axis) + Adaptive wheels (Y-axis) |
| Engraving Motion Accuracy | 0.01 mm |
| Repositioning Precision | 0.01 mm |
| Maximum Object Height | 50–80 mm (1.97–3.15 in) |
| Cutting Capacity | One-pass cutting of 20mm plywood and 6mm dark acrylic |
| Air Assist Flow | 30 L/min (automatic, large-diameter low-resistance pipe) |
| Compatible Materials | Wood, plywood, MDF, bamboo, leather, fabric, dark acrylic, cardboard, felt, brushed stainless steel, dark anodized aluminum, painted metal, slate, ceramic, rubber, cork |
| Ideal Applications | Personalized gifts, signage, custom product engraving, home décor, Etsy small-batch production, prototyping, maker workshops, educational projects |
| C. Control & Software | |
| Supported Software Platforms | LightBurn / LaserGRBL / Sculpfun Mobile App |
| Operating System Compatibility | Windows 7/8/10/11 / macOS / iOS / Android / Linux |
| Connectivity Options | WiFi (2.4GHz) / Bluetooth 4.2 / USB / TF Card |
| Supported File Formats | PNG, BMP, JPG, JPEG, DXF, PLT, AI, SVG |
| Firmware Type | 32-bit control firmware |
| D. Safety Features | |
| Tilt Sensor | Yes (alarm at 15° tilt) |
| Flame & Temperature Sensor | Yes (alarm at 60°C) |
| Emergency Stop Button | Yes |
| Child Safety Lock | Yes |
| Limit Switches | Yes |
| Laser Eye Protection Shield | Yes (goggles included) |
| Lens Replacement Kit | Yes (extends lens life 10×) |
| Certification | CE / FCC / RoHS |
| E. Electrical Specifications | |
| Operating Voltage | DC 24V |
| Rated Current | 10A |
| Rated Input Power | 240W |
| F. Mechanical Structure | |
| Frame Material | Full-metal (all-metal structure) |
| Machine Weight | 6.2 kg (13.7 lbs) |
| Product size | 606×665×110mm (23.86×26.18×4.33in) |
| Operating Temperature | 0–40°C (32–104°F) |
| G. Packaging & Logistics | |
| Product Package Weight | 11.2kg (24.69lb) |
| Product Package Size | 715 × 665 × 150mm (28.15 × 26.18 × 5.91in) |

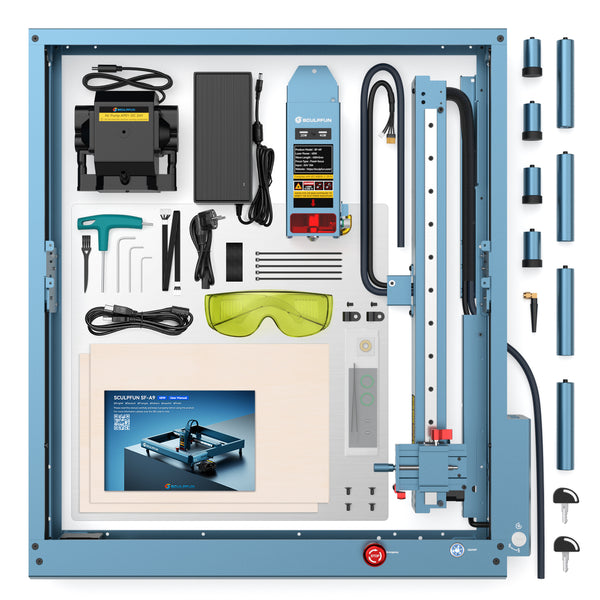

| Packing List | SF-A9 Machine Frame, 40W Laser Module, Air Pump (30L/min), Metal Support Pillars, Fixed Focus Lever, Dual-Knob Focus System, Power Adapter, Power Cable, Data Cable, TF Card Reader, Safety Goggles, Lens Replacement Kit, Screw Kit, Toolkit, User Manual |
| Machine Comparison | SCULPFUN SF-A9 | SCULPFUN S30 Ultra | SCULPFUN S30 Pro Max |
|---|---|---|---|
| Laser Type | Diode Laser | Diode Laser | Diode Laser |
| Laser Power | Up to 40W | Up to 33W | Up to 20W |
| Working Area | 400 × 400 mm | 600 × 600 mm | 410 × 400 mm |
| Air Assist | Yes | Yes | Yes |
| Supported Software | SCULPFUN APP, LightBurn, LaserGRBL | LightBurn, LaserGRBL | LightBurn, LaserGRBL |
| Connection Method | Wi-Fi, USB, Bluetooth | USB, Bluetooth | USB, Bluetooth |
| Safety Features | Safety Switch, Flame, Temperature & Tilt Sensors | Safety Switch | Safety Switch |
| Supported Systems | Win7 / Win8 / Win10 / Win11 / macOS / iOS / Android / Linux | Windows / macOS | Windows / macOS |
