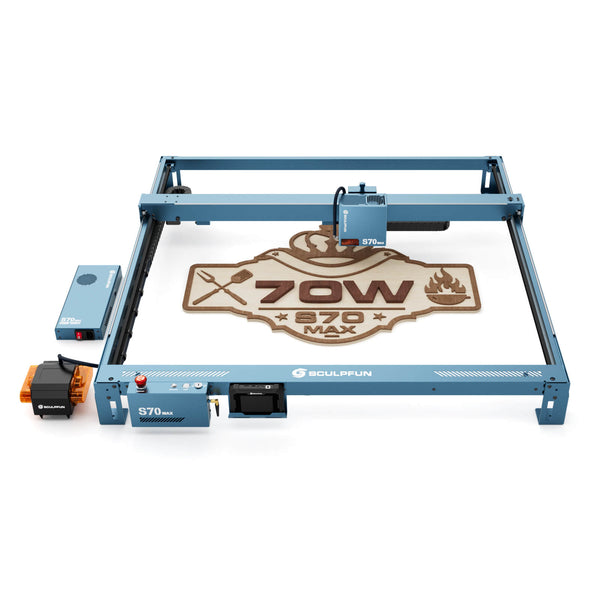

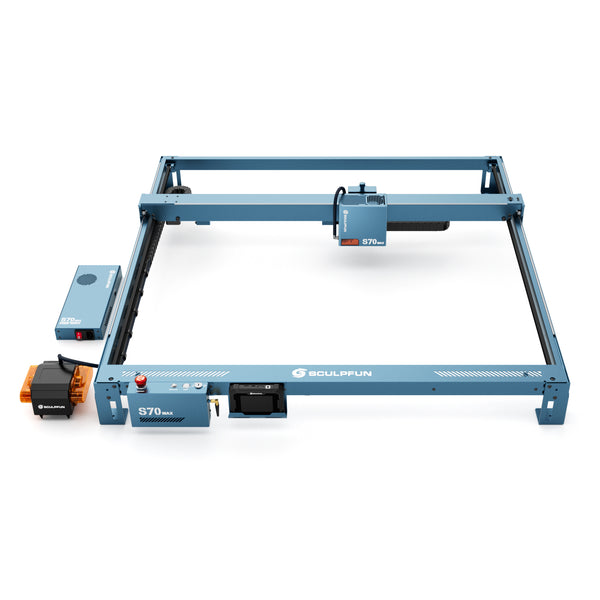

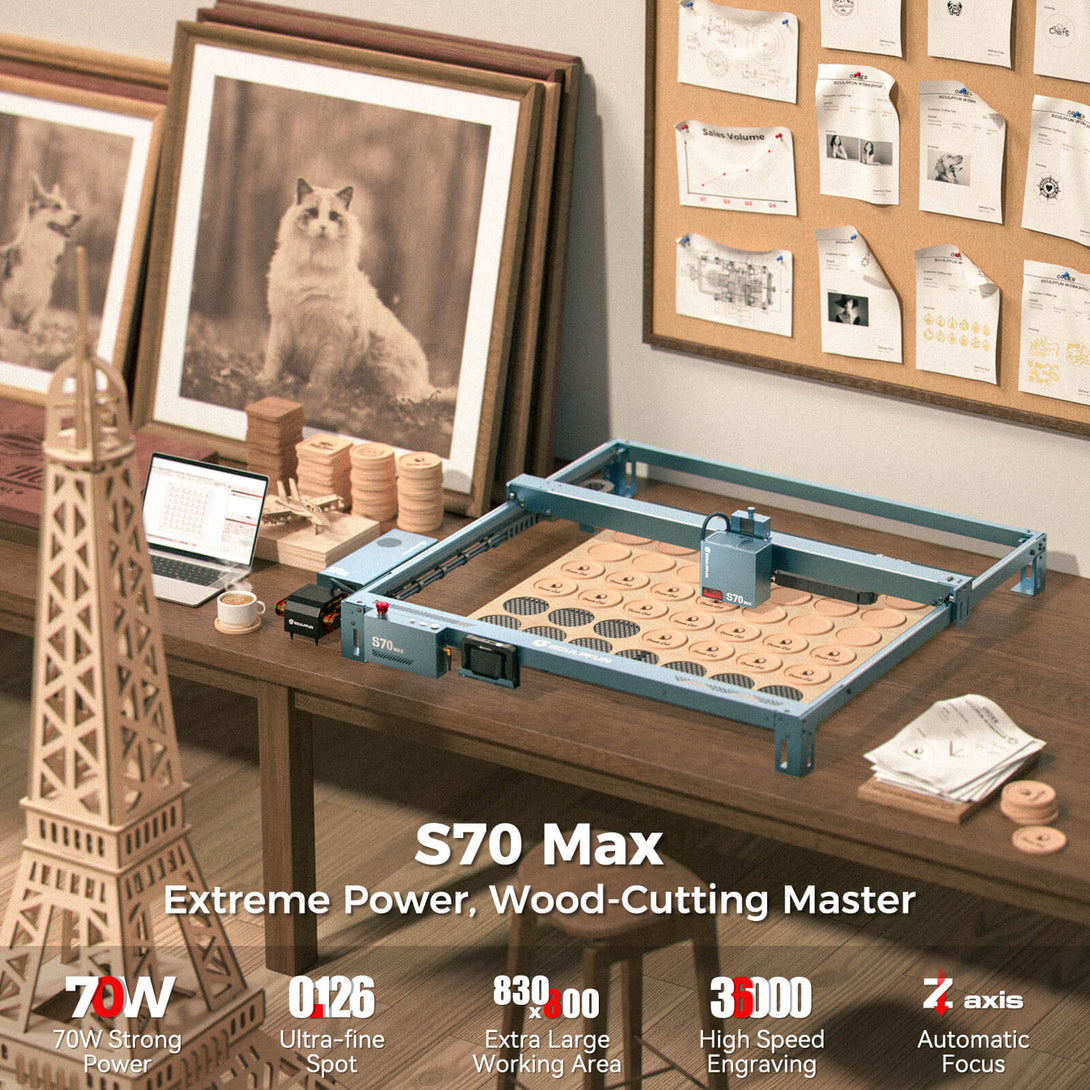

Sculpfun S70 MAX – 70W High-Speed Laser Engraver with 830×800mm Large Area & Auto-Focus
The Sculpfun S70 MAX is a high-performance 70W diode laser engraver with an extra-large 830×800mm working area, auto-focus, and ultra-fine laser spot. It delivers precise, consistent engraving on wood, acrylic, leather, paper, and coated metals, with Z-axis offset support and speeds up to 36,000mm/min. Ideal for makers, small businesses, and workshops, it ensures stable, efficient performance for custom signage, prototyping, and small-batch production.

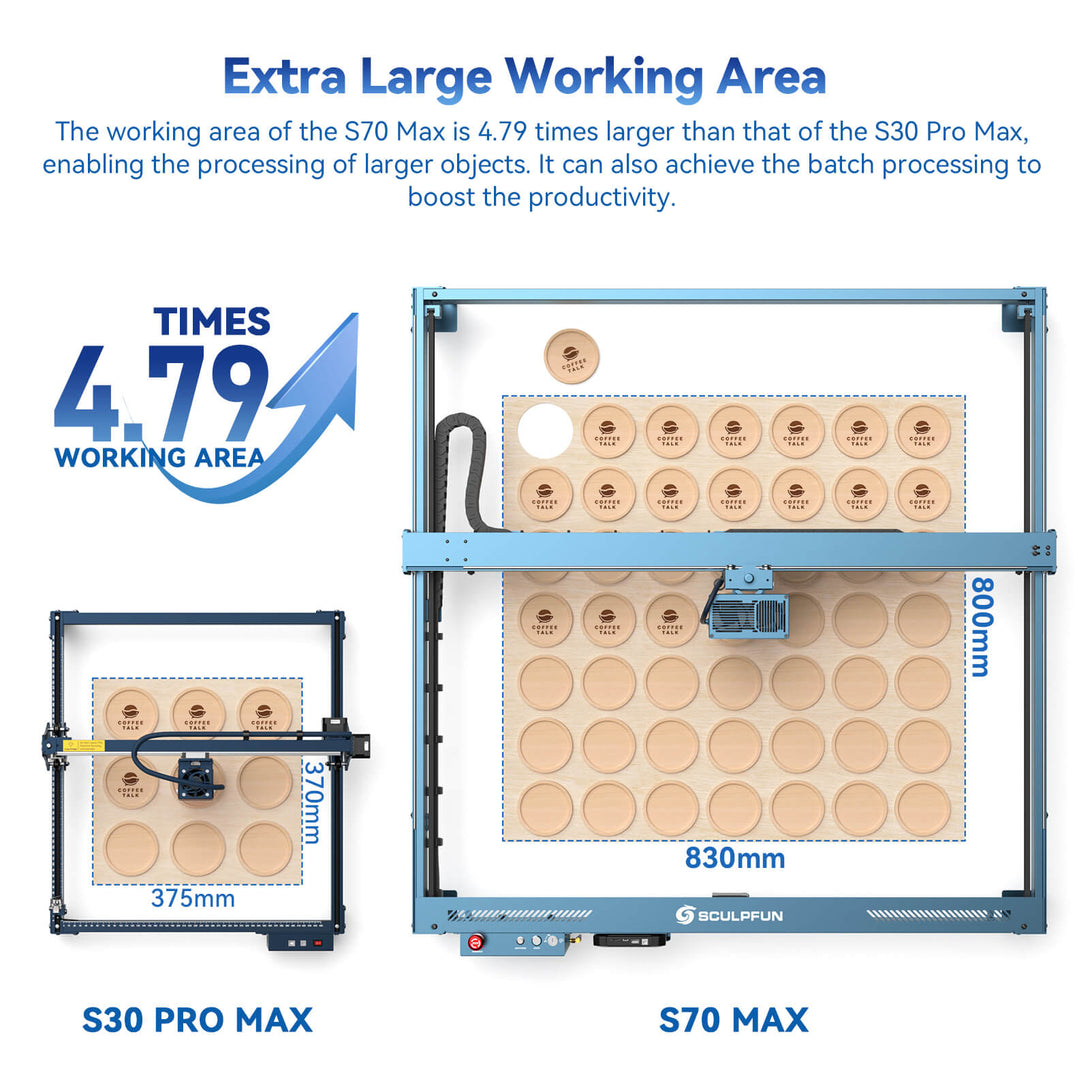

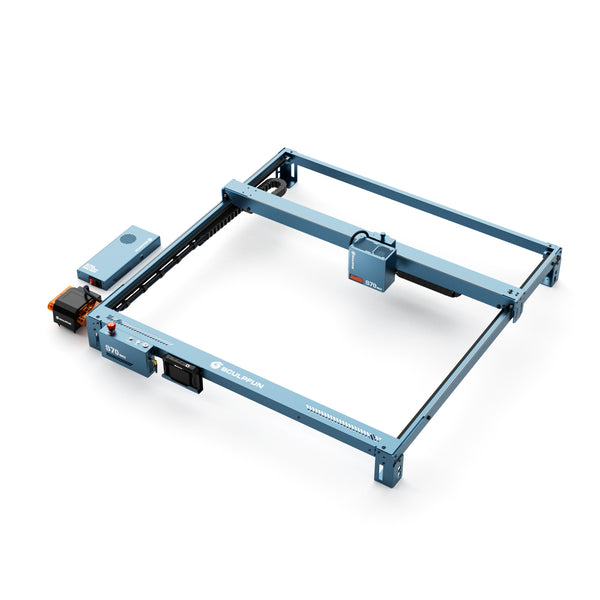

Expansive 830 × 800mm Working Area
Designed to handle oversized materials with ease, the S70 MAX provides a spacious engraving surface ideal for signage, furniture components, batch production, and large creative projects.
Operating at speeds up to 36,000mm/min, it enables efficient large-format processing without sacrificing precision.

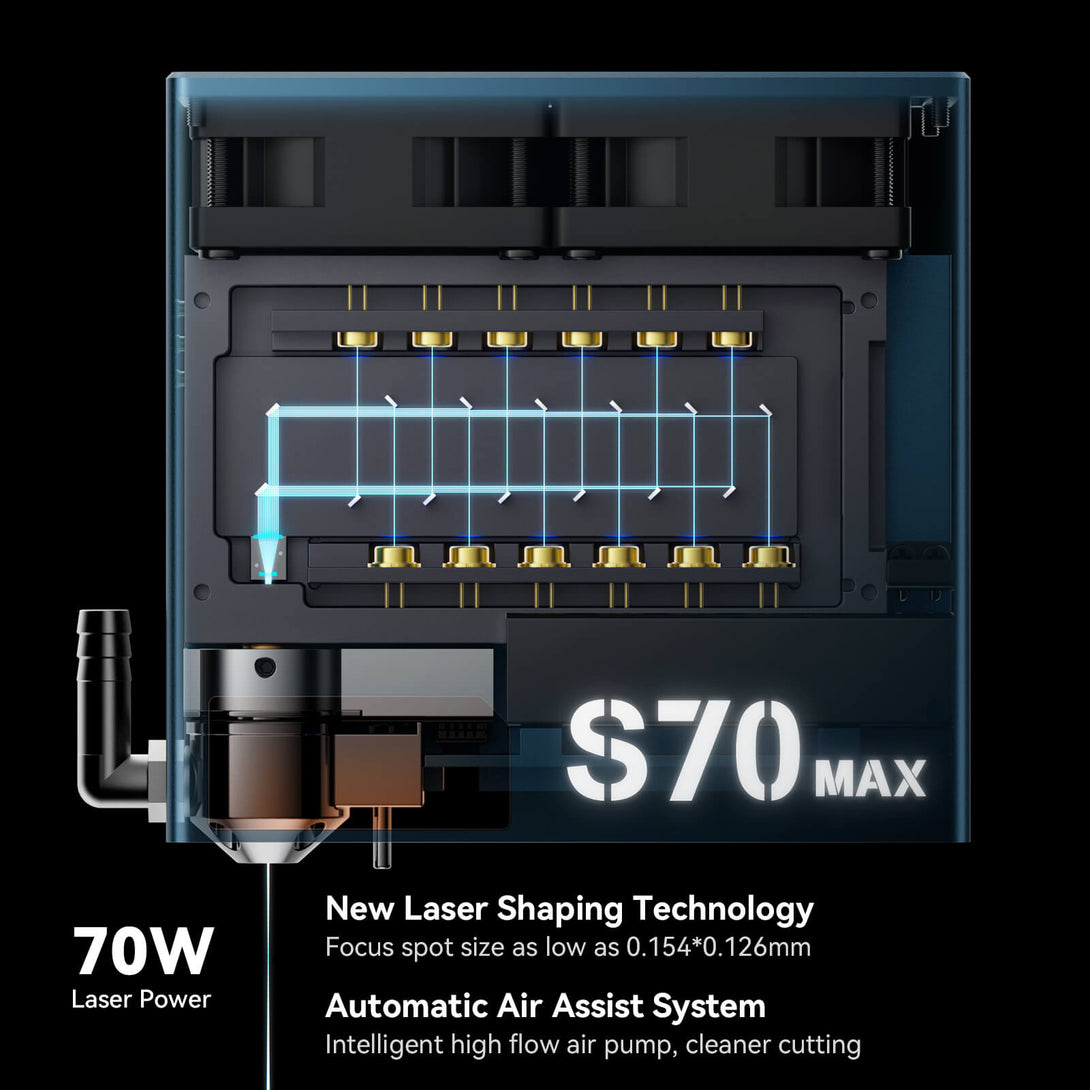

70W Multi-Diode Power System

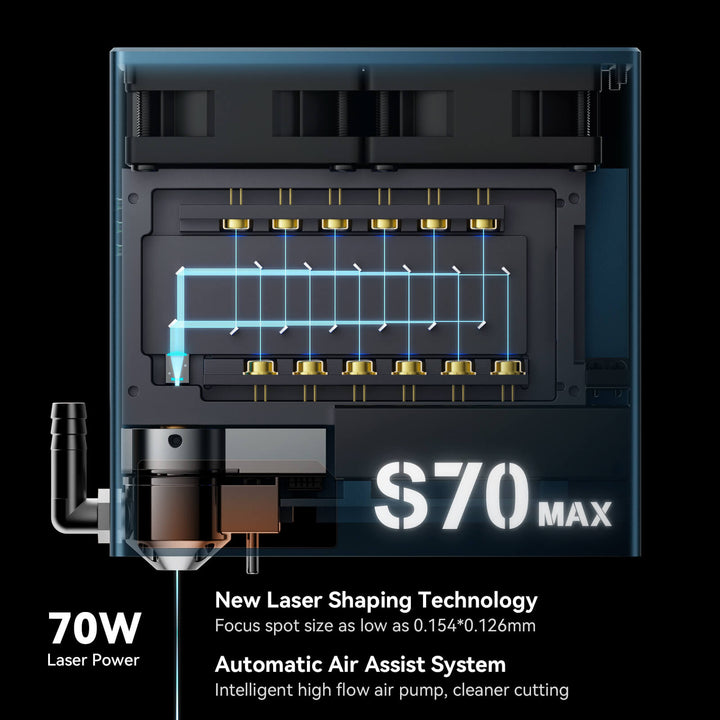

Integrating twelve 6W semiconductor laser chips, the system delivers stable, high-density energy for deeper cuts and improved efficiency.
Capable of cutting up to 20mm plywood, 30mm paulownia wood, and 10mm black acrylic under optimized conditions.

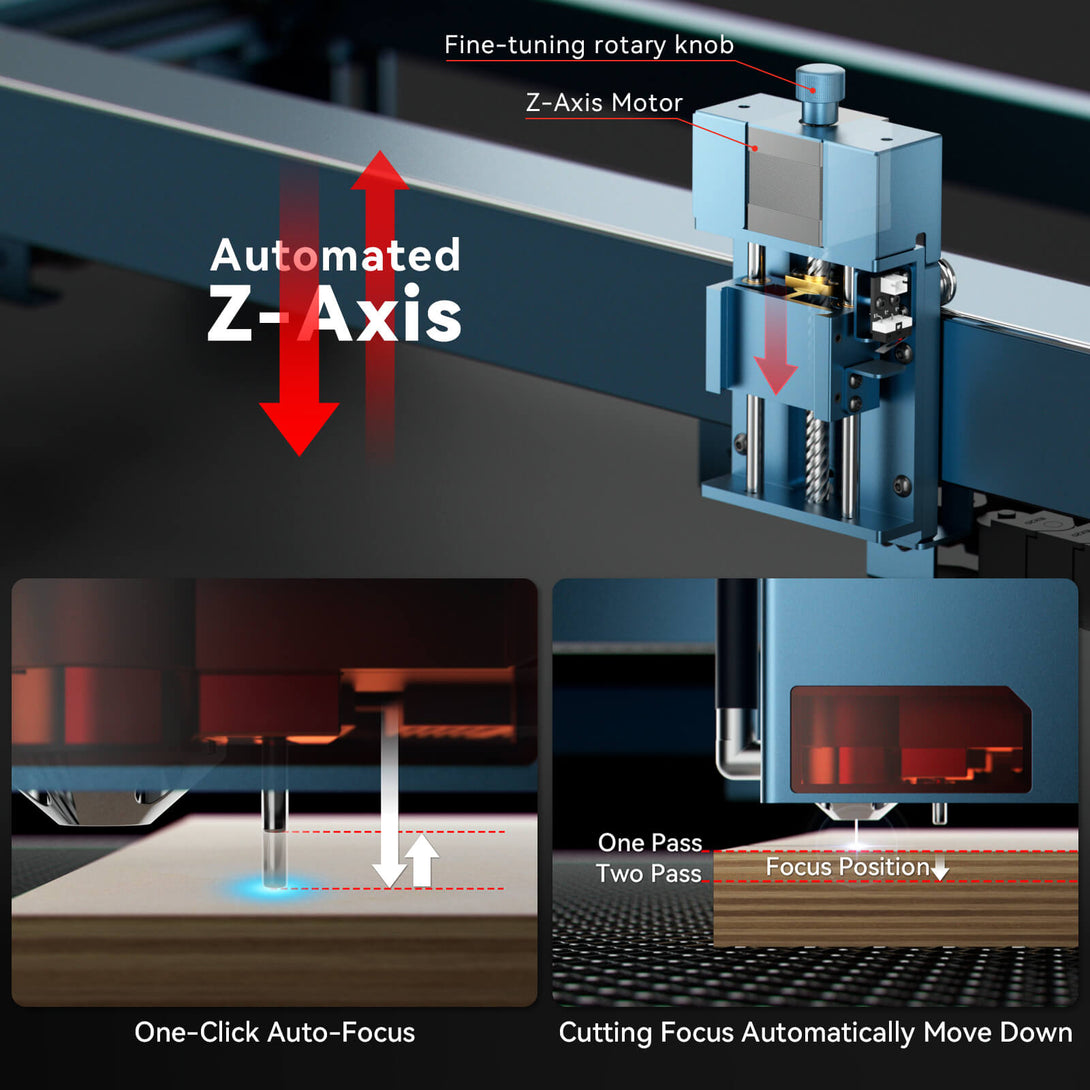

Precision Engineering & Auto-Focus

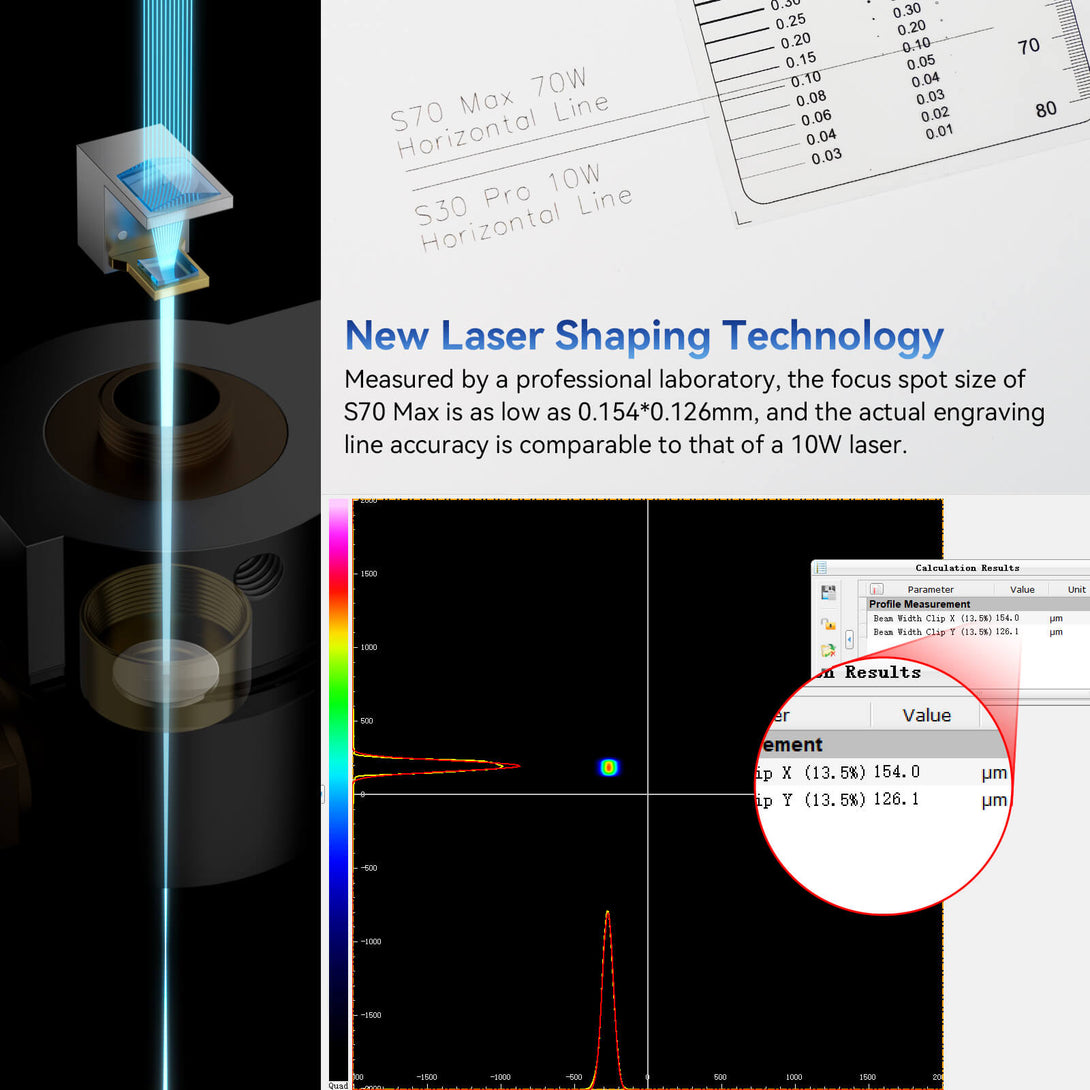

The ultra-fine 0.15 × 0.12mm compressed laser spot ensures detailed engraving and sharp edge definition.

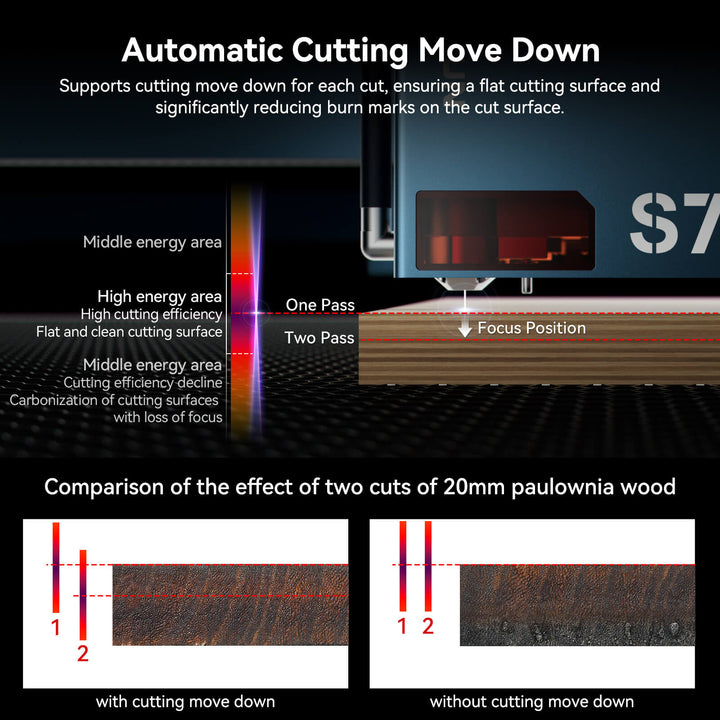

With integrated auto-focus and Z-axis offset support in LightBurn, the machine maintains consistent focal depth during multi-pass cutting for smoother results.

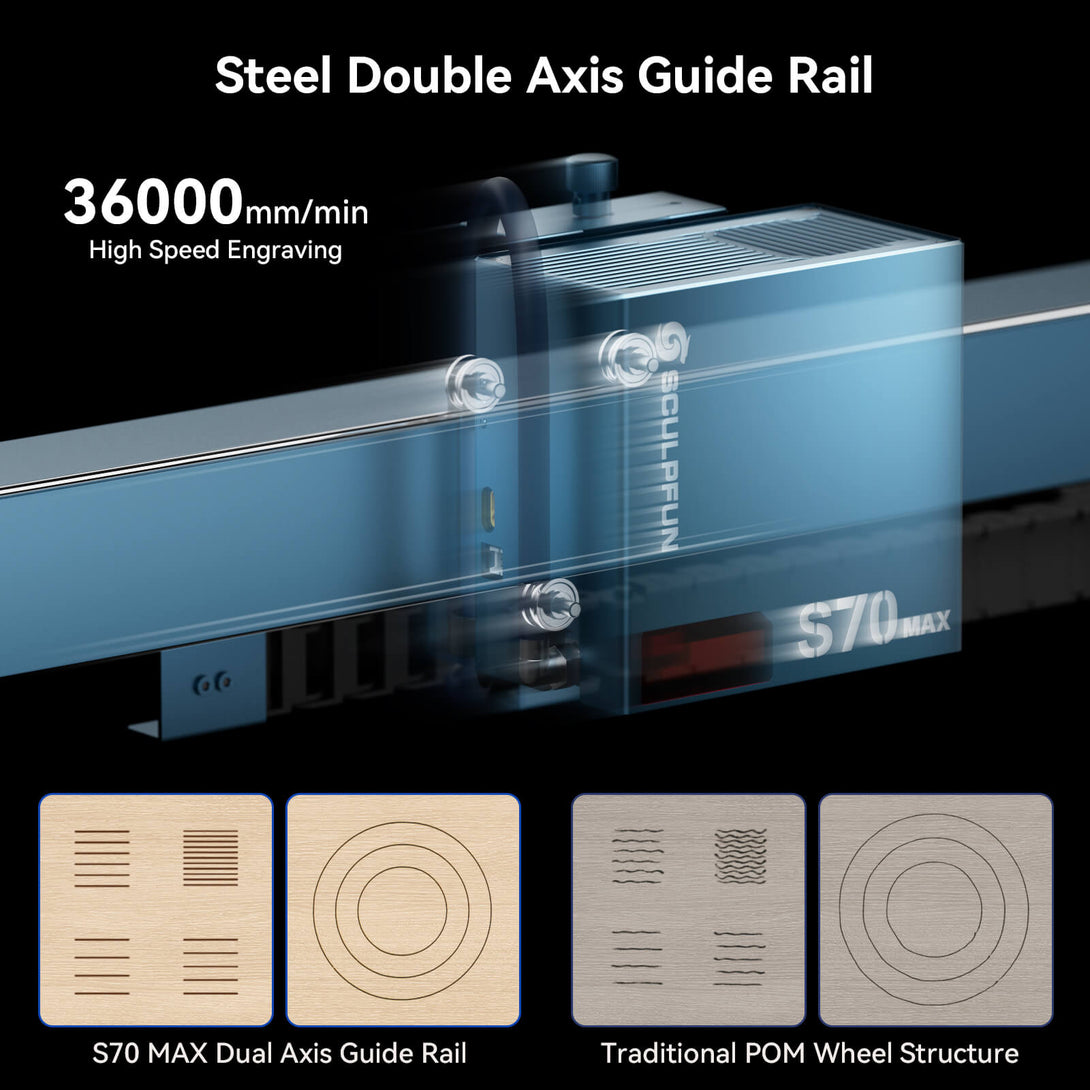

Industrial Stability

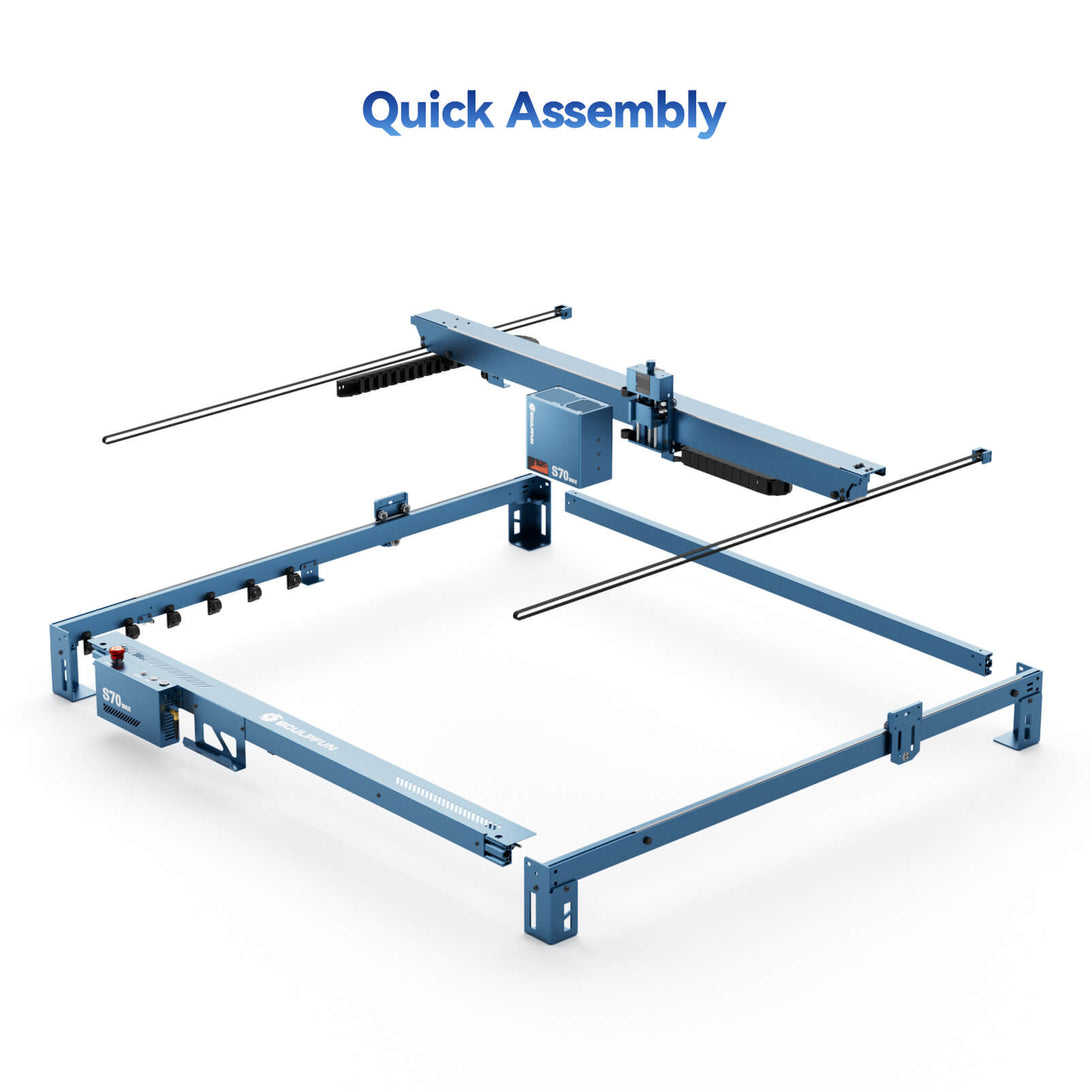

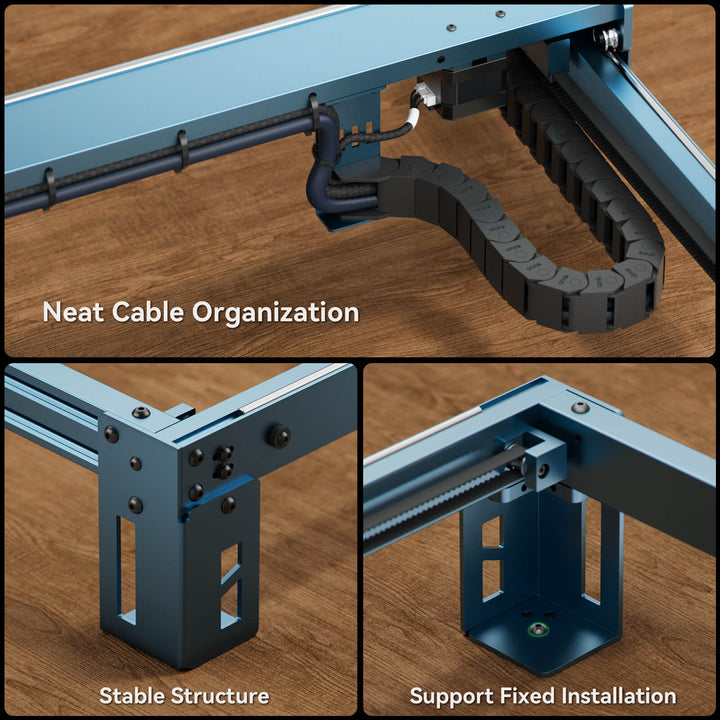

Constructed with a reinforced metal frame and a three-axis motion system, the S70 MAX ensures smooth, low-vibration operation even at high speeds.
Engineered for long production sessions and continuous workshop use.
Flexible & Independent Operation

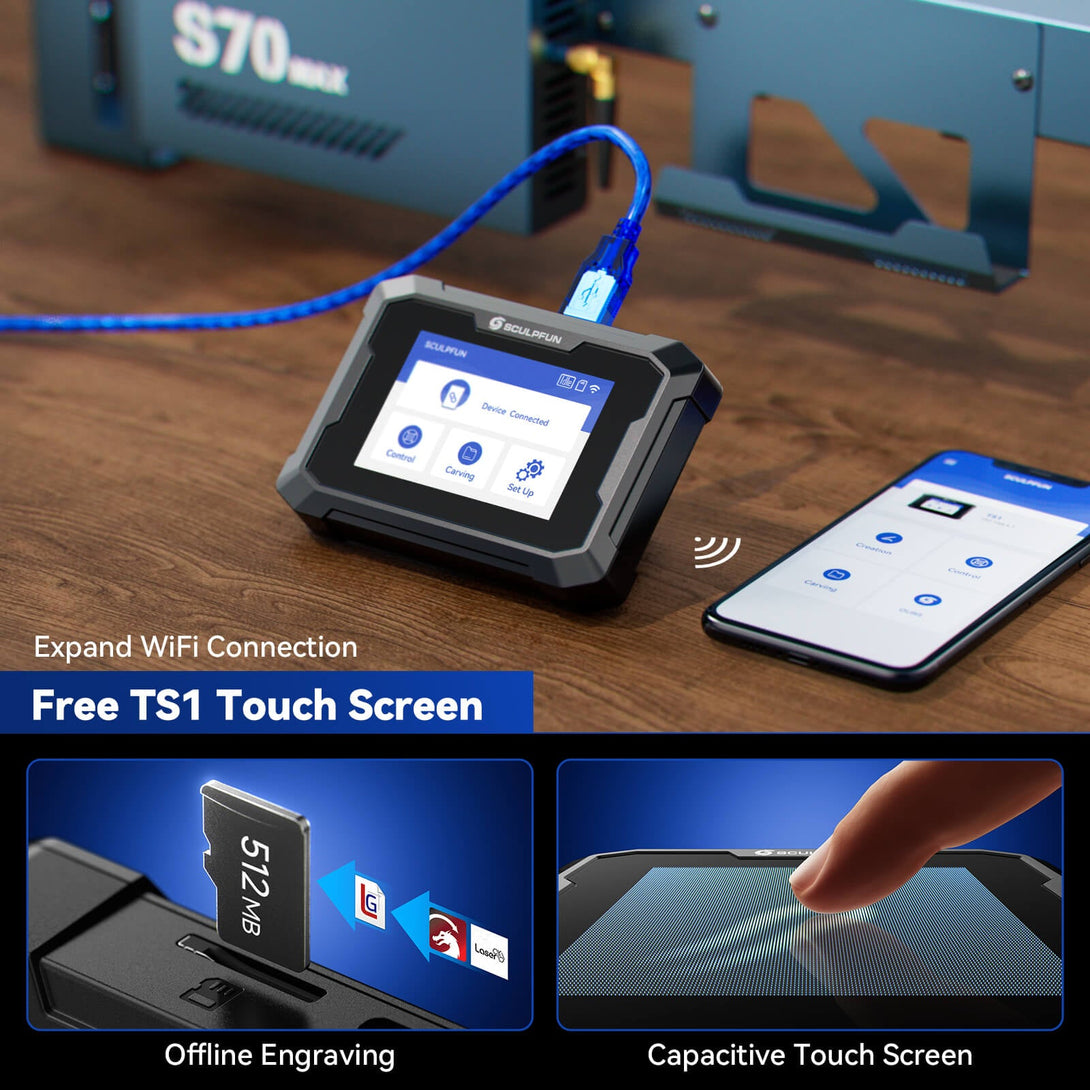

The included TS1 touchscreen allows standalone operation without a computer. Files can be preloaded for seamless workflow management.
With Wi-Fi connectivity via the Sculpfun App, tasks can be transferred and controlled wirelessly from mobile devices.

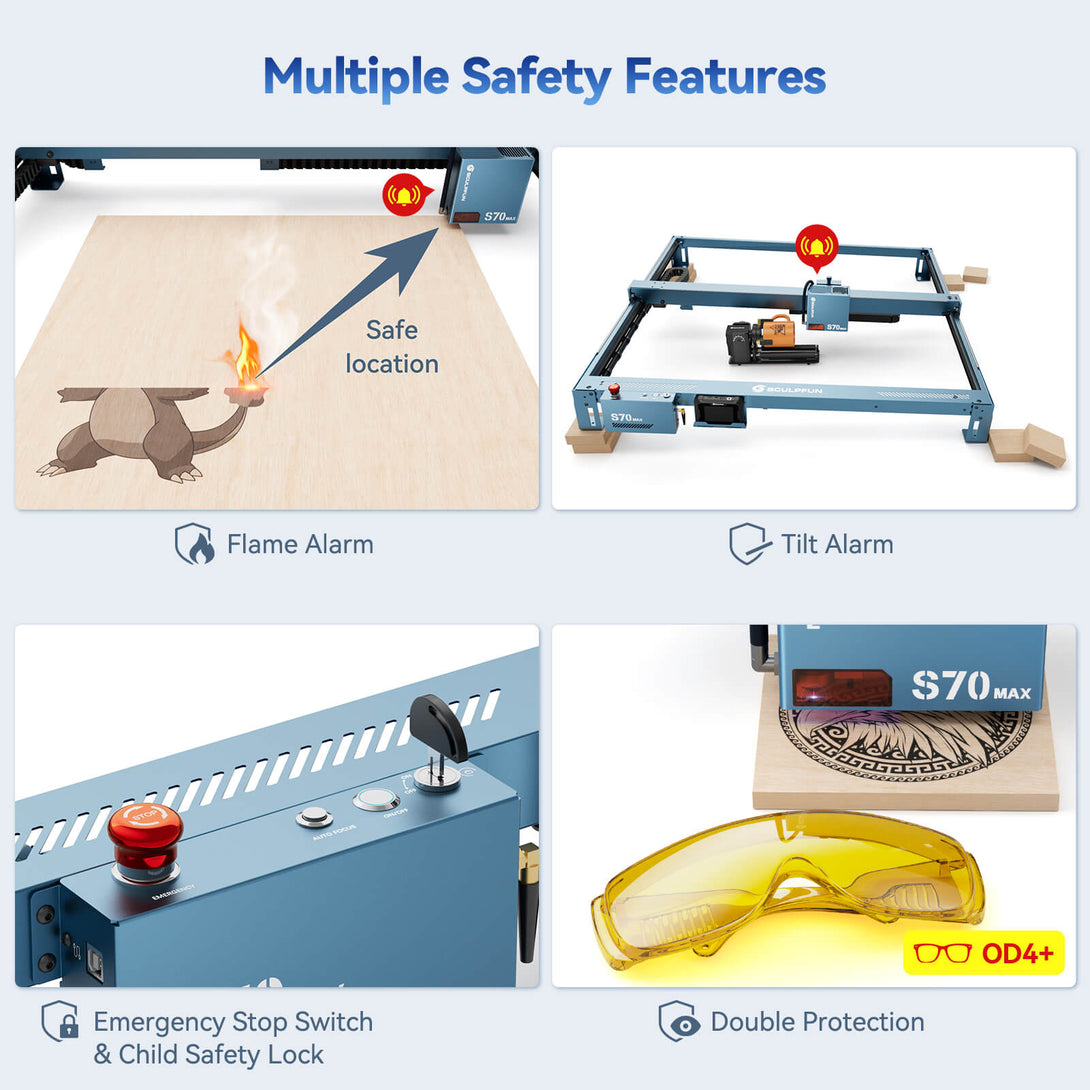

Comprehensive Safety System
The S70 MAX integrates multiple protective mechanisms, including tilt detection, flame monitoring, and an emergency stop function to ensure secure operation in professional and workshop environments.

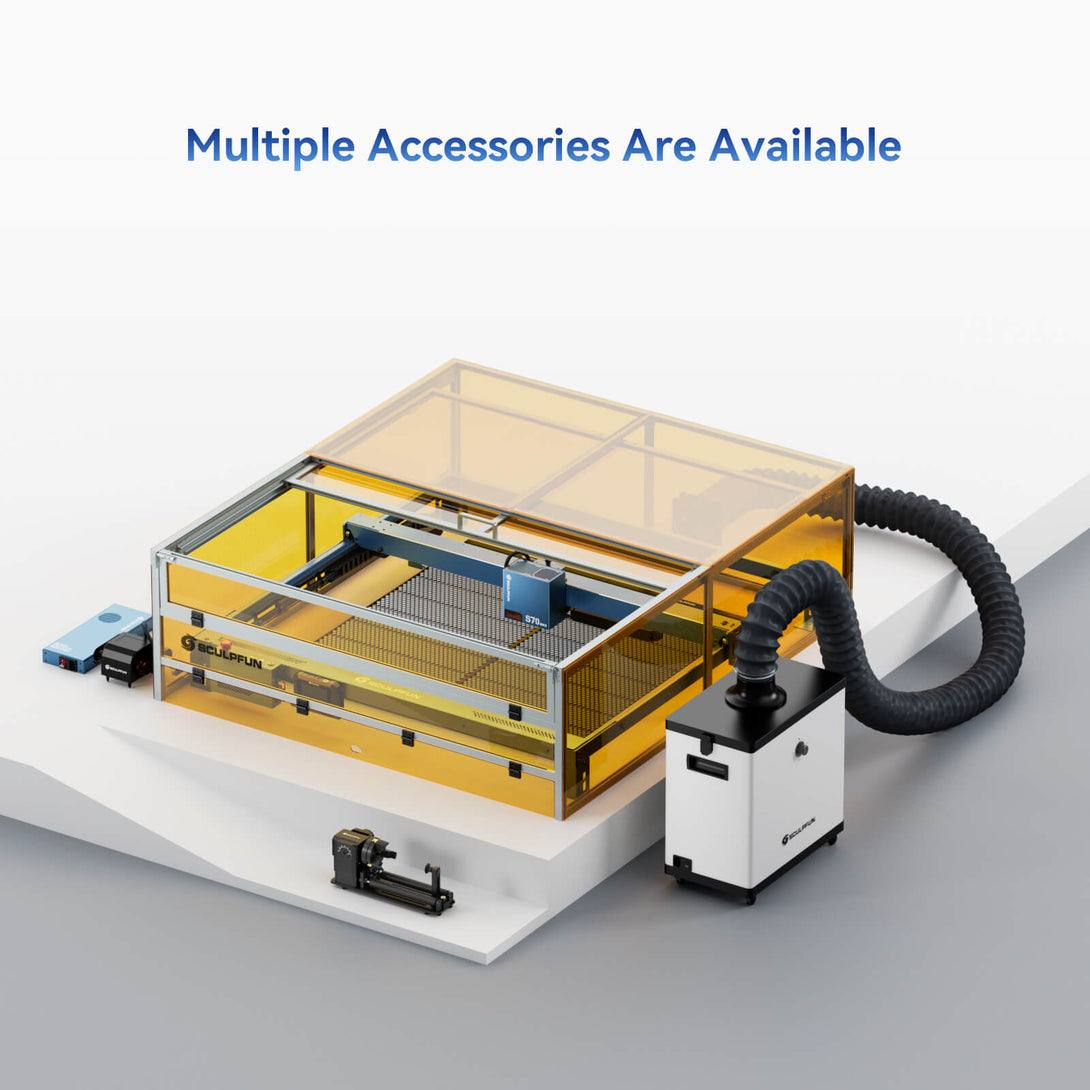

It is compatible with optional accessories such as the B70 enclosure and SP1 smoke purifier, enhancing both safety and air quality management.
Specifications
| A. Laser Performance | |
|---|---|
| Model | Sculpfun S70 MAX |
| Laser Type | Diode Laser |
| Optical Output Power | 70W |
| Laser Wavelength | 455nm |
| Laser Module Lifetime | > 10,000 hours |
| Spot Size | 0.15 × 0.12 mm |
| Beam Shape | Compressed rectangular spot |
| Power Stability | ±5% |
| Cooling Method | Air cooling |
| Focusing Method | Auto Focus + Manual Focus |
| Autofocus Support | Yes |
| Accessory compatibility | Sculpfun RA Pro Max, Sculpfun H4 Honeycomb, Sculpfun B70 Enclosure, Sculpfun SP1 Air Purifier |
| B. Working Capability | |
| Effective Working Area | 830 × 800 mm (32.7 × 31.5 in) |
| Expandable Working Area | No |
| Maximum Engraving Speed | 36,000 mm/min |
| Motion System Type | Industrial linear rail system |
| Upgradeable Laser Module | No |
| Cable Management Design | Integrated Cable Channels |
| Repositioning Precision | 0.1 mm |
| Z-axis Precision | 0.1 mm |
| Maximum Object Height | 50–80 mm (1.97–3.15 in) |
| Cutting Capacity | 20mm plywood, 30mm paulownia wood, 10mm black acrylic |
| Compatible Materials | Wood, plywood, MDF, acrylic, leather, fabric, cardboard, paper, rubber, bamboo, ceramic, slate, anodized aluminum, coated stainless steel, painted metal and other opaque materials |
| Ideal Applications | Custom product engraving, signage production, furniture decoration, prototyping, small-batch manufacturing, educational projects, maker workshops, Etsy business production |
| C. Control & Software | |
| Supported Software Platforms | LightBurn / LaserGRBL |
| Operating System Compatibility | Android / iOS / Windows / macOS |

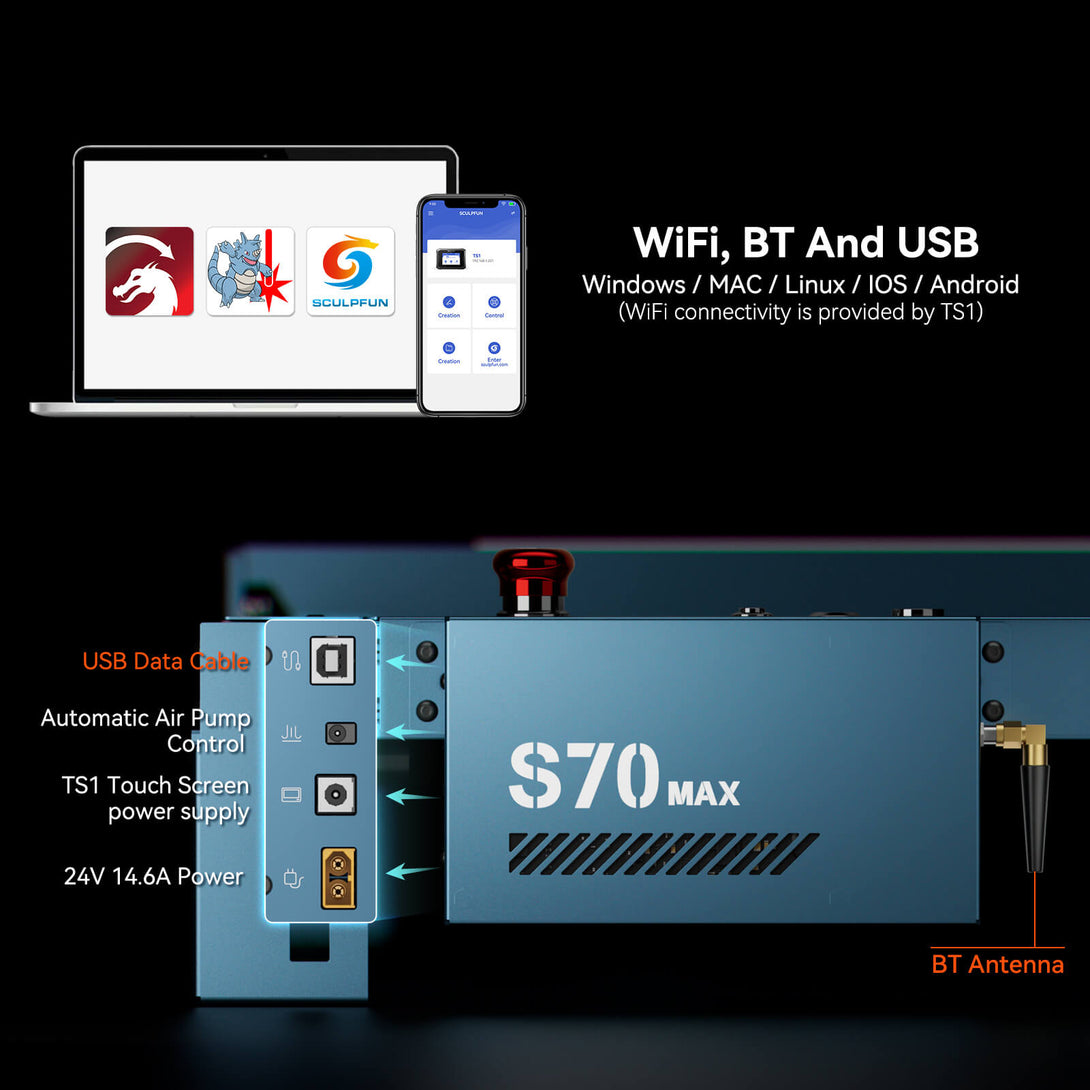

| Connectivity Options | WiFi (via TS1) / USB |
| Supported File Formats | PNG, BMP, JPG, JPEG, DXF, PLT, AI, SVG, STL, OBJ |
| Firmware Type | 32-bit control firmware |
| Motherboard Type | 32-bit high-performance motherboard |
| D. Safety Features | |
| Laser Protection Cover | Sculpfun B70 Enclosure |
| Safety Interlock System | Yes |
| Flame Detection | Yes |
| Tilt Protection | Yes |
| Emergency Stop Button | Yes |
| Temperature Detection | No |
| Certification | CE / FCC / RoHS |
| E. Electrical Specifications | |
| Operating Voltage | DC 24V |
| Rated Current | 14.6A |
| Rated Input Power | 350W |
| F. Mechanical Structure | |
| Frame Material | High-strength metal |
| Machine Dimensions (W × D × H) | 1154 × 1113 × 240 mm (45.4 × 43.8 × 9.4 in) |
| Machine Weight | 15.2 kg (33.5 lbs) |
| Operating Temperature | 0–40 °C (32–104 °F) |
| G. Packaging & Logistics | |
| Package Dimensions | 1180 × 380 × 280 mm (46.5 × 15.0 × 11.0 in) |
| Gross Weight | 22 kg (48.5 lbs) |

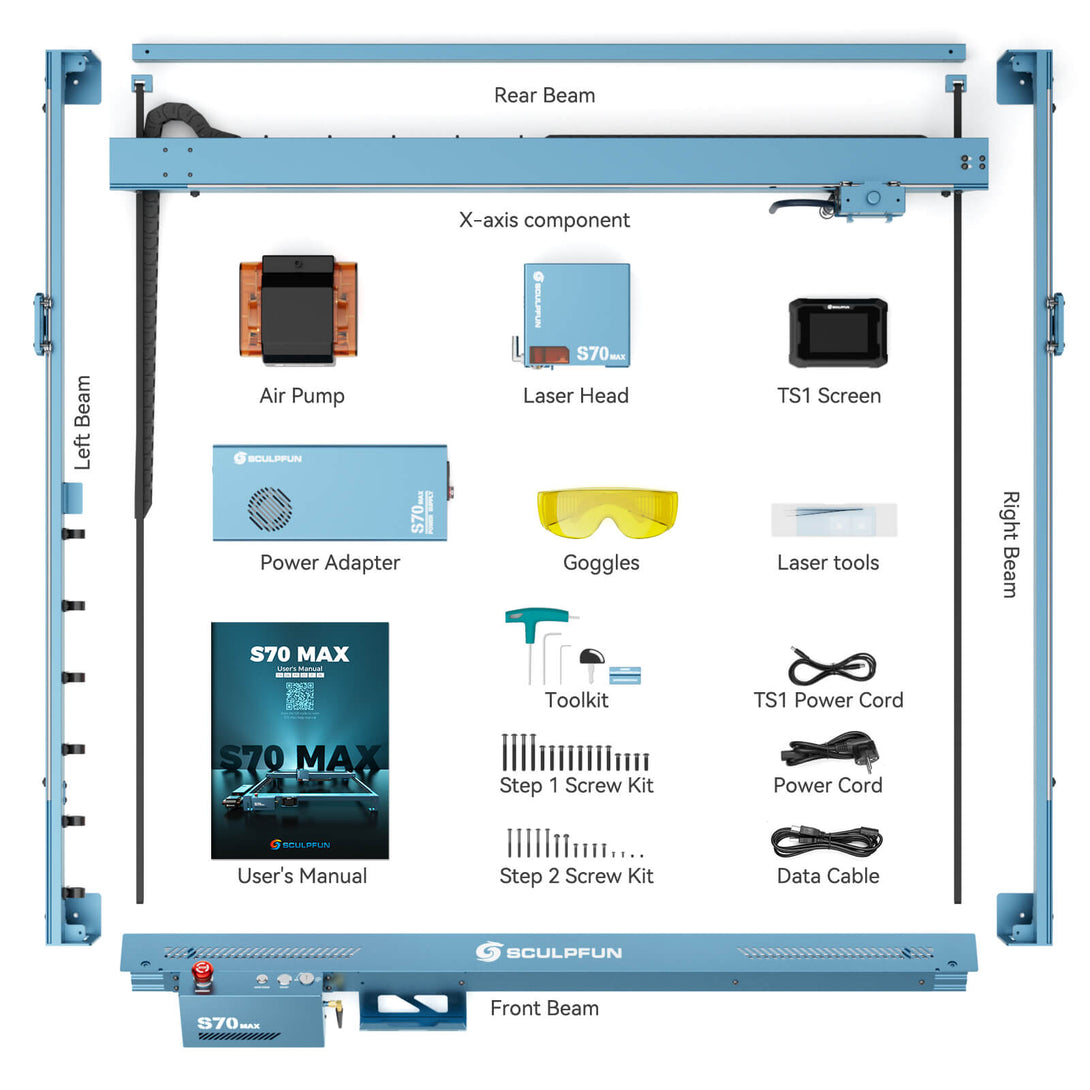

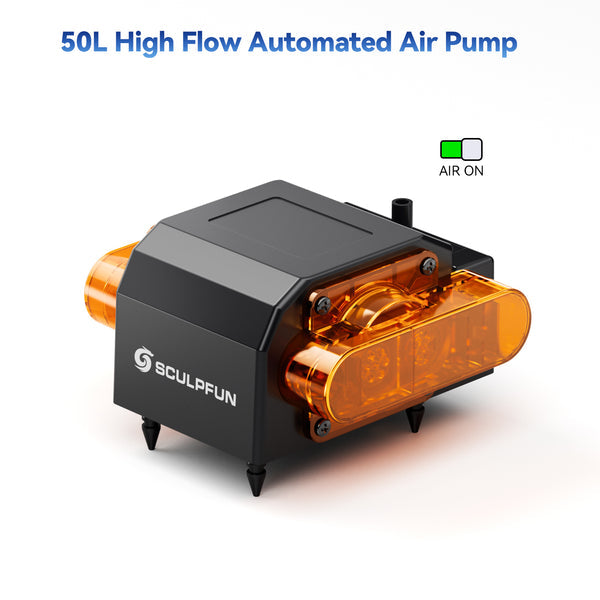

| Packing List | S70 MAX Frame (5 pcs), 70W Laser Module, Laser Accessory Box, TS1 Touch Screen, Power Adapter, Power Cable, TS1 Adapter Cable, Data Cable, Air Pump, Fixed Focus Column, Screw Kit, Toolkit, Safety Goggles, User Manual |
Packing List
Review and Expert Analysis
Download files
FAQs
Up to 20 mm plywood
Up to 30 mm paulownia wood
Up to 10 mm black acrylic
It also engraves a wide range of materials such as wood, leather, acrylic, stone, ceramics, glass, and paper. Cutting results may vary depending on material density and settings.
Software, LightBurn / LaserGRBL
This ensures wide compatibility for different users and workflows.
⚠️ Important Compatibility Note,
Sculpfun IR-2 infrared laser head is NOT compatible with the Sculpfun S70 MAX
Sculpfun IR20 20W Fiber Laser is compatible with the Sculpfun S70 MAX, allowing metal engraving applications when used with the appropriate setup
Accessories and laser modules are sold separately.
