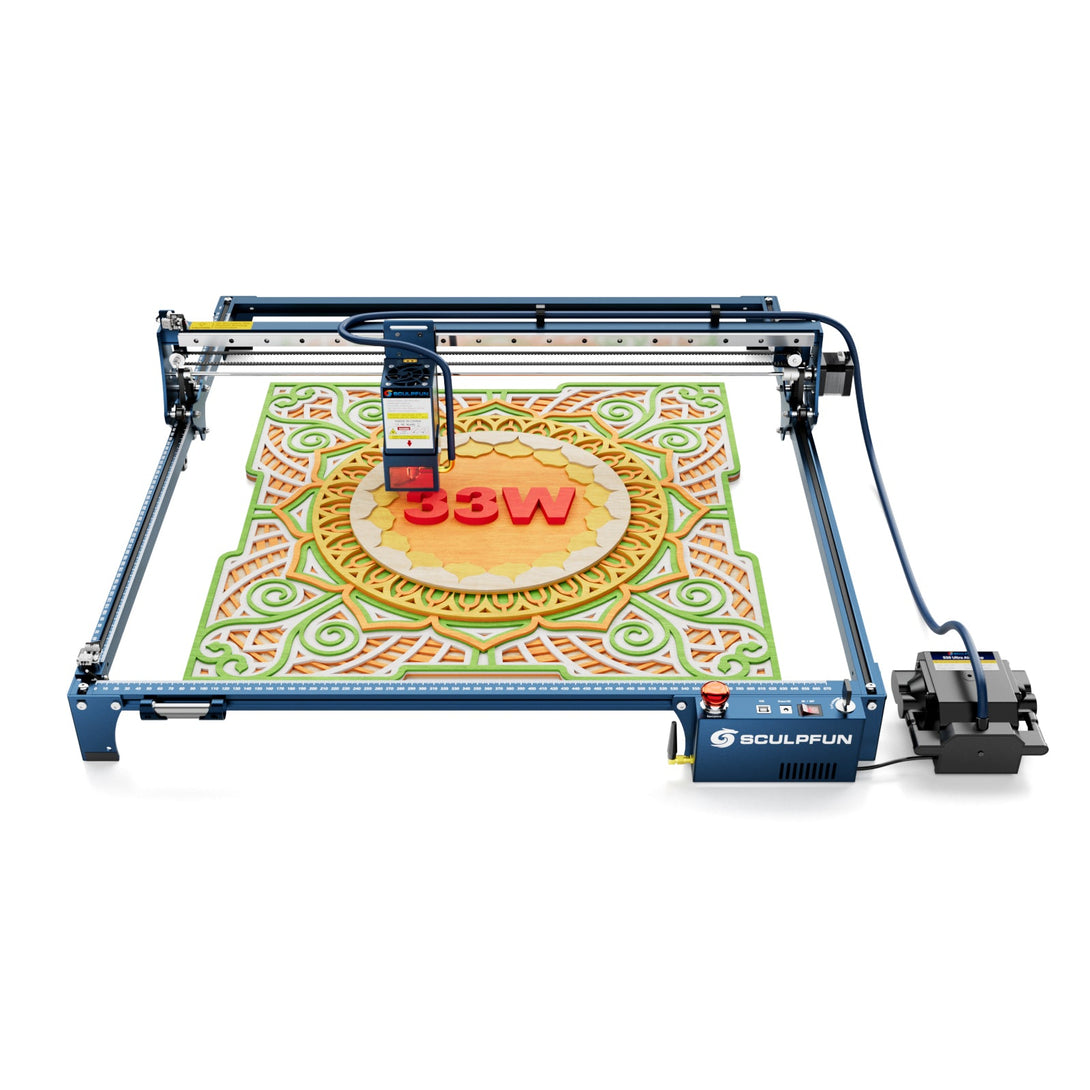

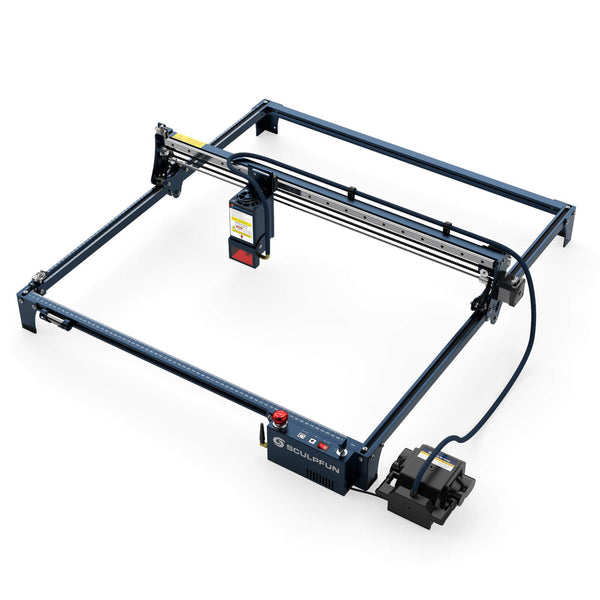

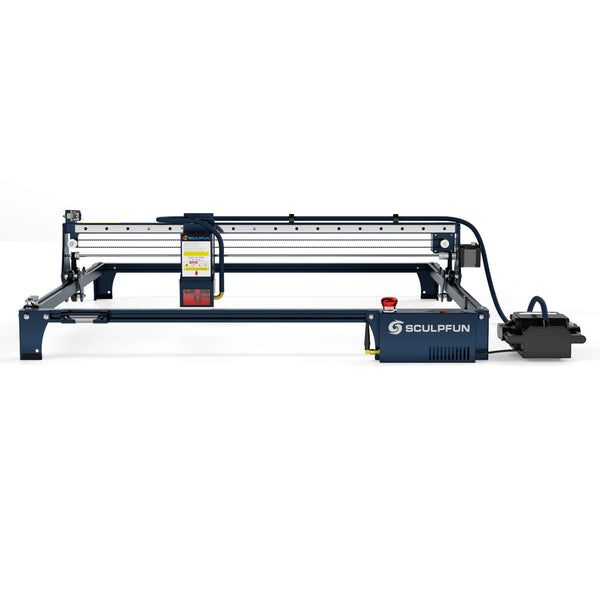

The Sculpfun S30 Ultra 33W laser engraver is designed for creators who need a powerful and reliable large-format engraving solution. With its spacious 600×600mm working area, it is ideal for engraving and cutting wood, acrylic, leather, and other materials used in signage, crafts, and small-batch production. The reinforced aluminum frame, precision linear rail system, and high-torque stepper motor ensure stable, accurate performance even during long engraving sessions. Featuring built-in air assist, advanced safety protection, and a modular upgrade-friendly design, the S30 Ultra is perfect for hobbyists, makers, workshops, and small businesses looking for professional laser engraving results.

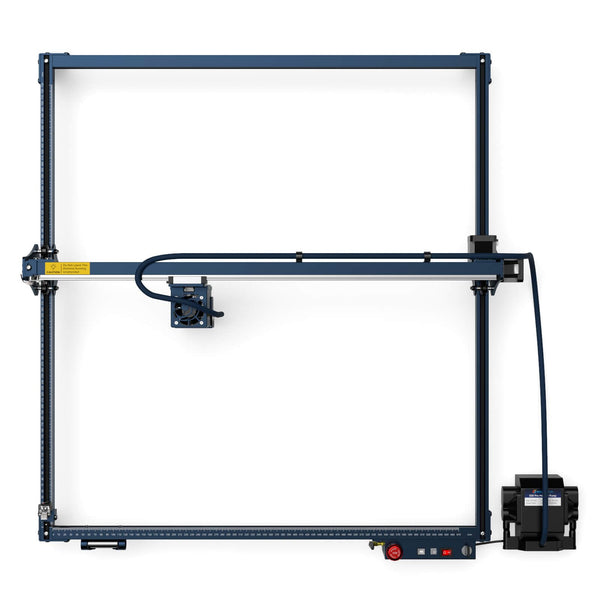

The Sculpfun S30 Ultra features a 600×600mm engraving area, allowing users to process large materials or multiple items in one job.
This expanded workspace is ideal for sign making, large wood panels, batch engraving, and creative DIY projects, improving productivity and flexibility.

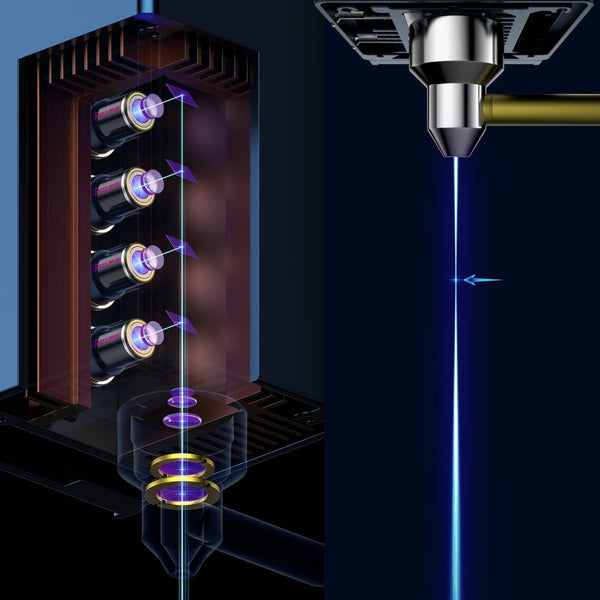

Powered by upgraded 6W diode technology, the S30 Ultra delivers up to 33W laser output, providing strong cutting performance across various materials.
It can efficiently cut wood, acrylic, leather, and other materials while maintaining high engraving precision.

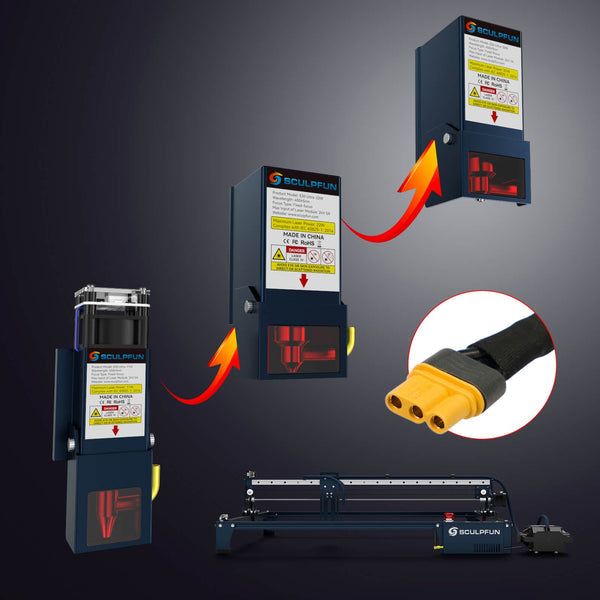

All S30 Ultra machines share the same frame, power supply, and wiring system, allowing users to upgrade simply by replacing the laser module.

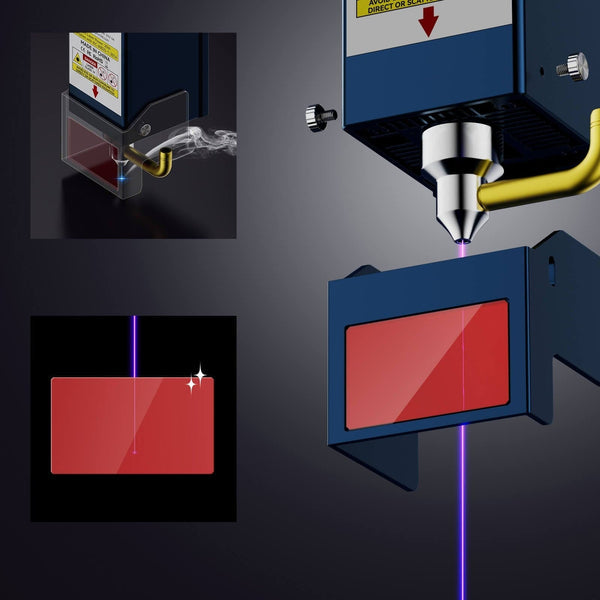

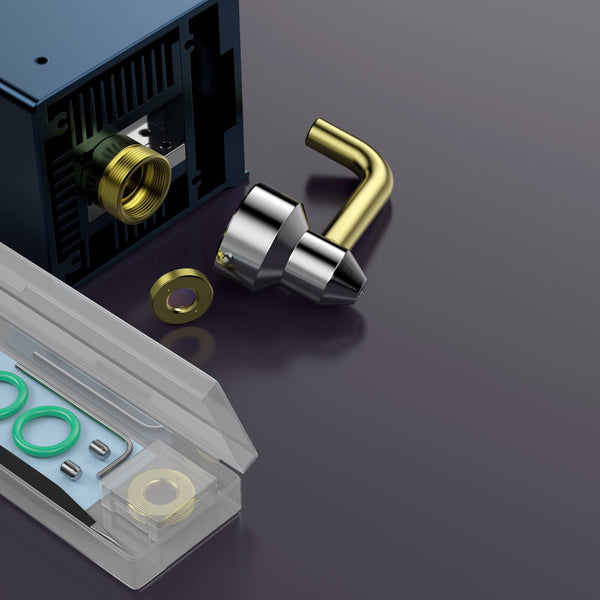

The replaceable protective lens system also extends the laser lifespan up to 10× longer, reducing maintenance costs.
The X-axis is equipped with a 0.005mm high-precision linear slide rail, ensuring extremely smooth motion and eliminating vibration patterns during engraving.
This industrial-grade accuracy produces clean details, sharp lines, and professional results for demanding projects.
The integrated high-pressure air assist system increases cutting speed by more than five times, while significantly reducing smoke stains and burn marks.
This results in cleaner edges, smoother surfaces, and improved cutting efficiency.
| A. Laser Performance | |
|---|---|
| Model | Sculpfun S30 Ultra 33W |
| Laser Type | Diode Laser |
| Optical Output Power | 33W |
| Laser Wavelength | 455nm |
| Laser Module Lifetime | > 10,000 hours |
| Spot Size | 0.08×0.10mm |
| Beam Shape | Compressed rectangular spot |
| Power Stability | ±5% |
| Cooling Method | Air cooling |

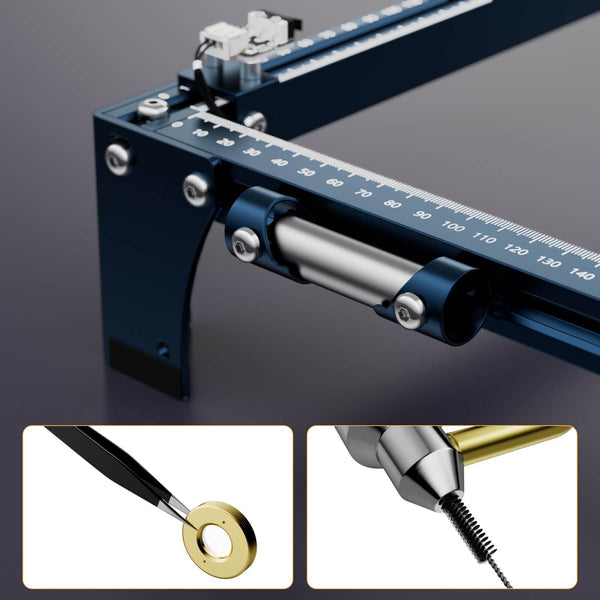

| Focusing Method | Fixed focus column + sliding device |
| Laser Protective Cover | Detachable, adjustable eye shield for protection |
| Autofocus Support | No |
| Accessory compatibility | Expansion Kit 935x905mm, Extension Terminal Cable, Sculpfun RA Pro Max , Sculpfun H3 Honeycomb |
| B. Working Capability | |
| Effective Working Area | 600×600mm (23.6 × 23.6 in) |
| Expandable Working Area | Yes |
| Maximum Engraving Speed | 36,000 mm/min |
| Motion System Type | High-precision linear slide rail |
| Stepper Motor | High-Torque 42-Bit Stepper Motor |
| Upgradeable Laser Module | No |
| Repositioning Precision | 0.005mm |
| Z-axis Precision | 0.1 mm |
| Maximum Object Height | 50–80 mm (1.97–3.15 in) |
| Air Pump Type | Mainboard-controlled air pump, 24V, 30L/min flow rate |
| Air Hose Inner Diameter | 7.5mm |
| Compatible Materials | Wood, PCB, stone, cardboard, plywood, MDF, acrylic, leather, fabric, cardboard, paper, rubber, bamboo, ceramic, slate, anodized aluminum, coated stainless steel, painted metal and other opaque materials |
| Ideal Applications | Custom product engraving, signage production, furniture decoration, prototyping, small-batch manufacturing, educational projects, maker workshops, Etsy business production |
| C. Control & Software | |
| Supported Software Platforms | LightBurn / LaserGRBL / GrblController / LiteFire |
| Operating System Compatibility | Android / iOS / Windows / macOS |
| Connectivity Options | WiFi (via TS1) / USB |
| Supported File Formats | PNG, BMP, JPG, JPEG, DXF |
| Motherboard Type | 32-bit air-assisted motherboard |
| D. Safety Features | |
| Safety Interlock System | Yes |

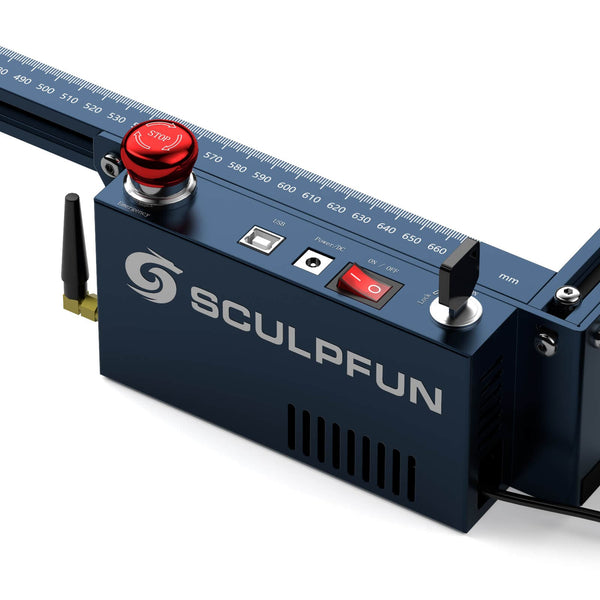

| Emergency Stop Button | Yes |
| Temperature Detection | No |
| Certification | CE / FCC / RoHS/ FDA/ ICE |
| E. Electrical Specifications | |
| Operating Voltage | DC 24V |
| Rated Current | 7A |
| F. Mechanical Structure | |
| Frame Material | High-strength metal |
| Machine Dimensions (W × D × H) | 800×840mm (including motherboard shell & X-axis gantry beam); 750×800mm (beam frame) |
| Operating Temperature | 0–40 °C (32–104 °F) |
| G. Packaging & Logistics | |
| Package Dimensions | 865×247×235mm (34.1 × 9.7 × 9.3 in) |
| Gross Weight | 9.9kg (21.8 lbs) |

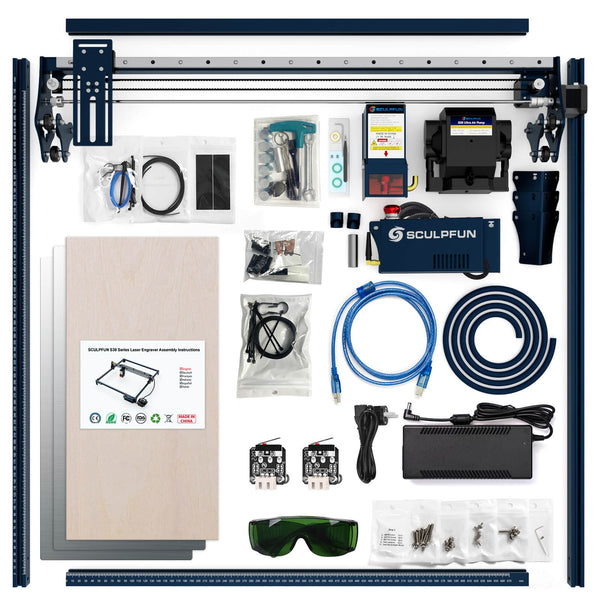

| Packing List | 1× S30 Ultra 33W laser, 1× laser shield, 1× Laser Repair Kit, 1× 24V automatic air pump, 1× 460*230*3mm wood board, 2× 460*230 protective aluminum plate, 2× limit switch, 1× 24V 7A power adapter, 1× power cord, 1× USB cable, 1× rubber air hose, 1× tool box, 1× laser goggles, Step 1-6 installation package, 1× instruction manual, 1× X-axis assembly, 2× X-profiles, 2× Y-profiles, 1× control box assembly, 3× support feet, 1× cable clamp bag, 1× fixed focus column mount, 1× spare screw pack, 1× Non-slip seat pack |
