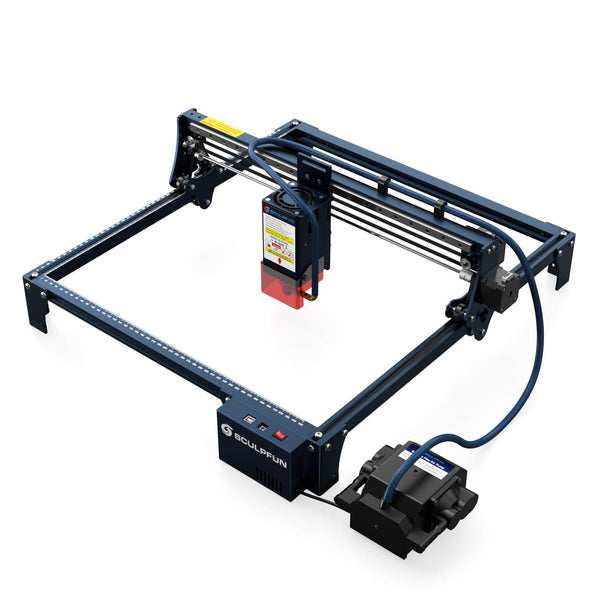

SCULPFUN S30 Pro Max: 20W Laser Engraving and Cutting Machine
$569.99$899.99
EU Plug
Machine Information:
Engraving accuracy: 0.05mm
Engraving area size: the standard version is 370mm*363mm, which can be expanded to 935x400mm or 935x905mmMachine power: about 120W.
Sturdy and Durable Frame
Made of high-strength aluminum alloy, it can withstand up to 50KG weight without damage, very durable. The frame can be used for a long time and maintain high precision, when the machine needs to be upgraded, only the latest laser needs to be upgraded.
Right-angle Measuring Ruler
There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to quickly measure the size of the engraved object. The 370mm*363mm large-area engraving range can meet your various engraving needs.
Built-in High Pressure Air Assist Nozzle
Greatly improve the cutting efficiency, the cutting speed is more than 5 times faster than airless. The powerful airflow blows the residue away, making the cut surface very clean.
Upgraded 32-bit Air-assist Motherboard
The latest 32-bit motherboard supports automatic air-assist control. Reserve Bluetooth function. (Upgrade Kit sold separately)
Engraving Material
all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting Material
all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Very Strong
It doesn't move from side to side or shake and twitch. It works just fine. very friendly to projects

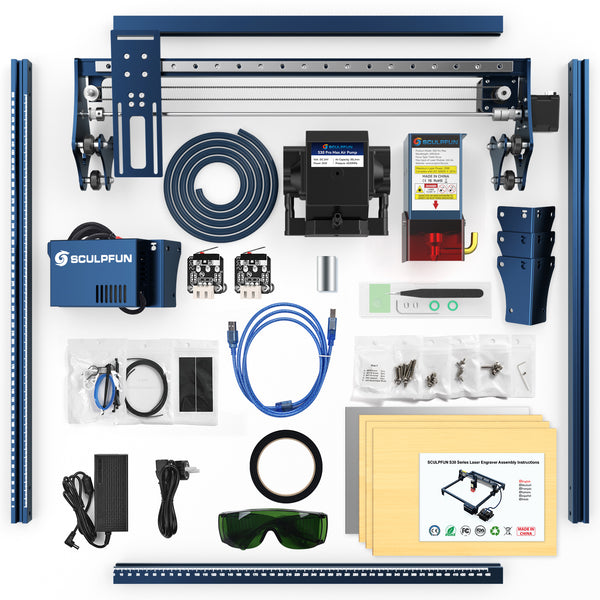

Packing List:
1×S30 Pro laser; 1× Laser Repair Kit; 1×12V automatic air pump
3 x A4 size 3mm wooden board; 2×Limit Switch
1×12V 5A power adapter; 1 x power cord
1×USB cable; 1× Air tube
1× Installation Tool Kit; 1× Laser Goggles
1 x A4 metal backing plate;
Step 1-6 Install the package
1× Manual; 1 x X-axis assembly
2 x X profiles; 2 × Y profiles
1×Control Box Assembly
3 x support feet
| Product Model | SCULPFUN S30 Pro Max |
| Diode laser output power | 20W (note that this is light energy not electrical energy) |
| Laser focus |
0.08x0.1mm |
|
Laser wavelength |
455±5nm |
|
Focusing method |
fixed focus column + sliding device |
|
Laser protection cover |
Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. |
|
Engraving accuracy |
0.005mm |
|
Engraving area size |
the standard version is 370*363mm, which can be expanded to 935x400mm or 935x905mm |
|
Machine power |
about 120W |
|

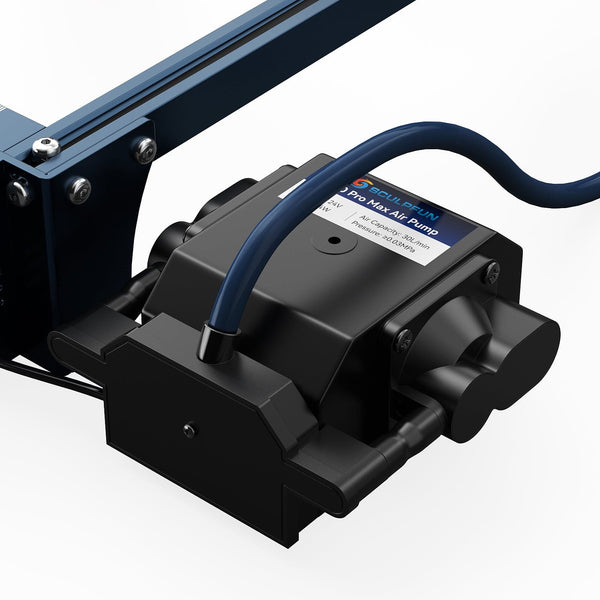

Air pump Type |
mainboard-controlled air pump, voltage 24V, flow 30L/min |
|
Air hose inner diameter |
7.5mm |
|
Motherboard |
32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) |
| Engraving material | all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone |
| Cutting material | all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards |
| Operating software | LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. |
| Data transmission method | USB connection or Bluetooth wireless connection |
| Power Input | 24V 5A |
| Packing weight | 7.53kg |
| Packing size | 62.3*24*22.5cm |
| Certification | CE FCC RoHS FDA ICE certification |
