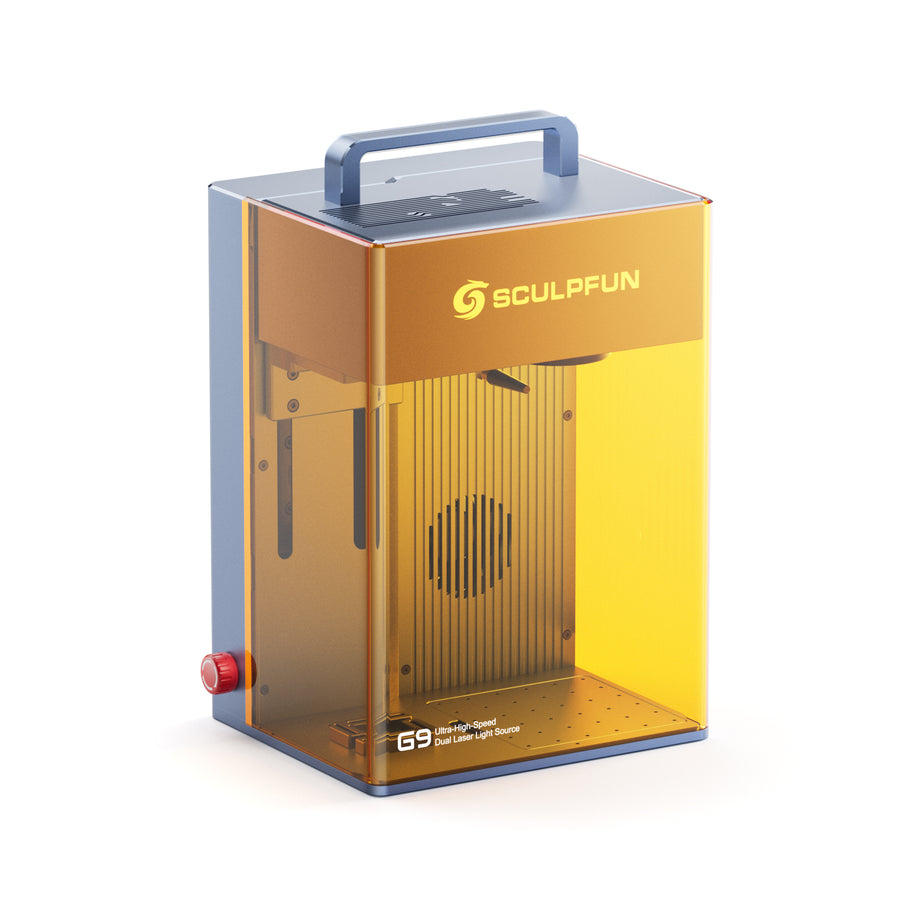

SCULPFUN G9 Portable Laser Engraver with 2W IR + 10W Diode Laser

Features:

1. Complies with Class 1 Laser Safety Standards
Sculpfun G9 is a dual laser engraving machine that complies with the class I laser safety standards, which can avoid most safety issues and provide a one-stop solution. Comes with protective cover, there is no need to purchase additional casing or goggles, ensuring superior safety for you. And it is easy and safe to use with the characteristics of enclosed workspace and pre-assembled.
Note: Opening the cover will automatically stop working

2. Dual Laser Light Source Module
Two wavelengths of laser source is designed in the Sculpfun G9. An Infrared Laser and A Diode Blue Laser make it can work on almost all materials. The 2W 1064nm infrared laser can perform its exceptional ability of metals and plastics engraving, expanding the range of materials to be engraved. The 10W 455nm diode blue laser is suitable to engrave the most common materials such as wood, acrylic, etc. Thus you can use this engraving machine to customize business cards, dog tags, remove rust and so on.

3. Industrial Grade Galvanometer - High Precision Speed
The Sculpfun G9 delivers exceptional laser performance by using industrial grade Galvo system. It significantly improves the productivity with 5000mm/s ultra-high speed engraving capability and 10000mm/s preview speed. With a repeated positioning accuracy of up to 0.0001mm and a beam spot as small as 0.01mm, the G9 can achieve high-quality engraving with clarity and precision, showcasing fine details.

4. Fully Enclosed Protective Cover
G9 laser engraver is equipped with a fully enclosed protective cover, which can effectively filter the laser and smoke can be exhausted through the window by installing a smoke exhaust duct. Additionally, the machine's built-in fan and air purifier effectively purify smoke and smell during the engraving process, ensuring a safe environment for use.
Note: The air purifier needs to be purchased separately!

5. Compact Design
The G9 laser marking machine, with its portable design, is an ideal tool for craft shows, bazaars, flea markets, souvenir shops, and other places where you can unleash limitless imaginations and turn them into extra income.

6. User-Friendly Application
Offering a free powerful smartphone and PC software SGD Laser which has a friendly Interface that helps you perform engraving more easily and satisfy all your creativities. The applications supports rich image editing functions such as multi-layer editing, variable engraving settings and multi-format image import. They can also recommend engraving settings for different materials to achieve high-quality results. In addition, the G9 engraver is also compatible with Lightburn software. With a variety of apps available, it can cater the diverse demands for both professional users and beginners.

7. Multiple Accessories Support
It can be compatible with Air Purifier, G9 Slide Extension Kit and RA Pro Max rotary roller attachments to unlock more possibilities. Paired with the air purifier allows for about 99.97% smoke purification, bringing a more secure working environment to you. The slide extension kit will expand your work area by up to 3.5 times, perfect for batch processing and larger engraving projects. RA Pro Max is a 4-in-1 rotary including roller and chuck for most of the daily use of cylinders and spheres, such as glasses, mugs, baseballs, rings, etc.
Note: The engraving machine accessories need to be purchased separately!

Specification:

Model: G9
Laser Power: 1064nm: 2W 455nm: 10W
Laser Wavelength: 455nm & 1064nm
Spot Size: 0.01mm
Marking Speed:
Infrared laser 2W: 5000mm/s Blue laser 10W: 4000mm/s
Processing Material Types: metal, plastic, wood, leather, acrylic, stone, ceramic, glass, paper (300+ materials)
Engraving Area: 105*105mm
Repeated Positioning Accuracy: 0.0001mm
Focus Operation: Electric lift
Support System: Android / iOS / Windows / macOS
APP: SGD Laser / Lightburn
Support File Format: SVG / DXF / JPG / JPEG / PNG / BMP
Connection Method: WIFI / USB

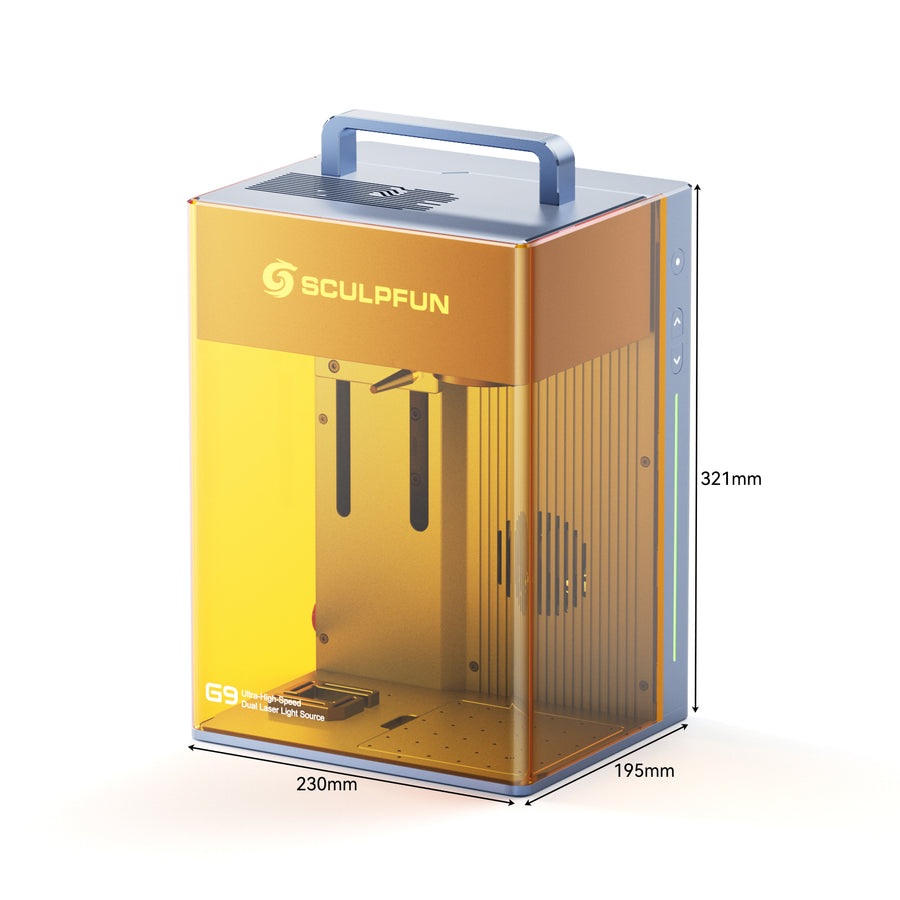

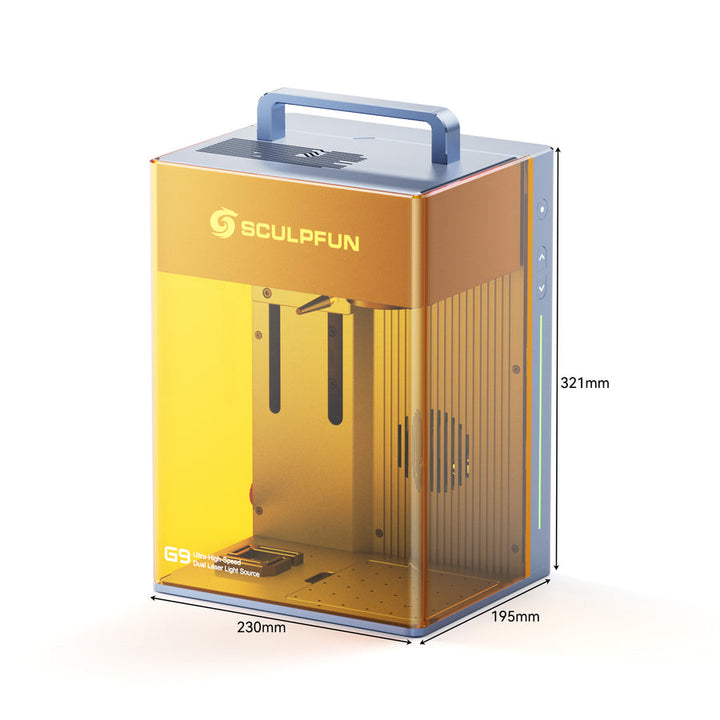

Machine Size: 230*195*321mm
Machine Weight: 6.4kg
Box Package Size: 297*247*478mm
Logistics Box Size: 320*260*495mm
Package Weight: about 10kg

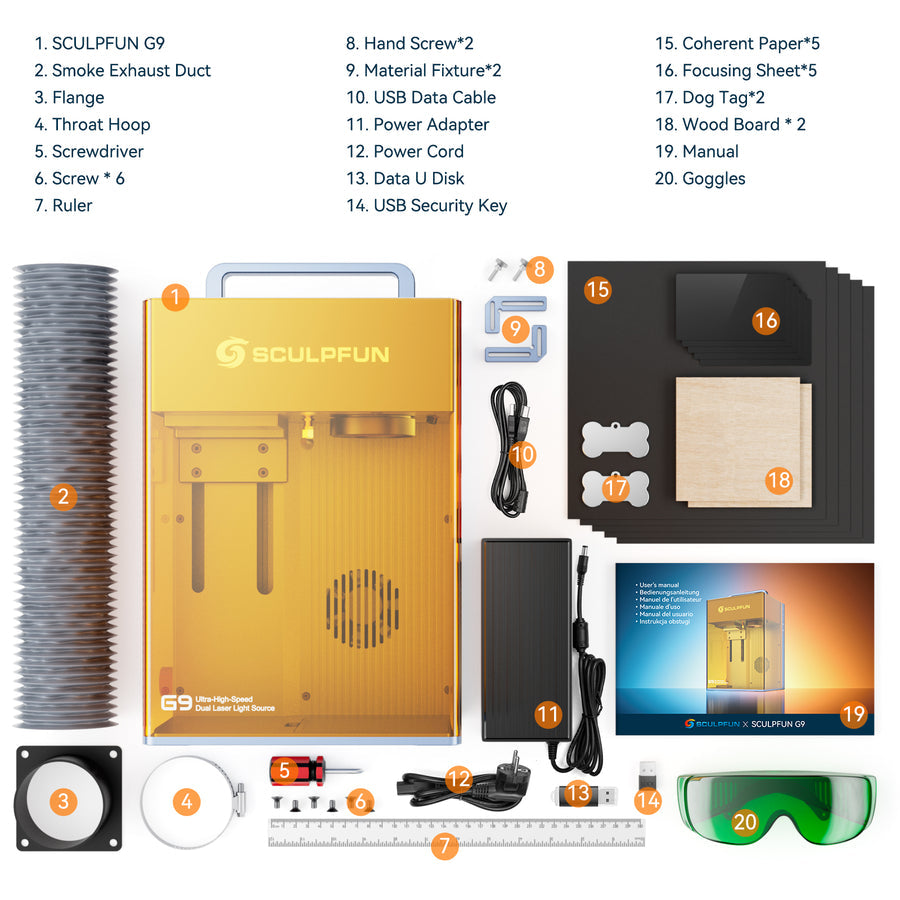

Packing List:

Sculpfun G9*1
Throat Hoop*1
Flange*1
Exhaust Duct*1
Power Supply: adapter*1+connection cable*1
USB Cable*1
USB Security Key*1
Material Clamp*2+Hand Screw*2
Free Materials: wood board*2+dog tag*2
Tool Accessory Kit (screwdriver*1+screws*6)
U Disk*1
Manual*1
Ruler*1 (300mm)
Coherent Paper*5 (210*210mm)
Goggles*1
Focusing Sheet*5 (86x54x0.2mm)
