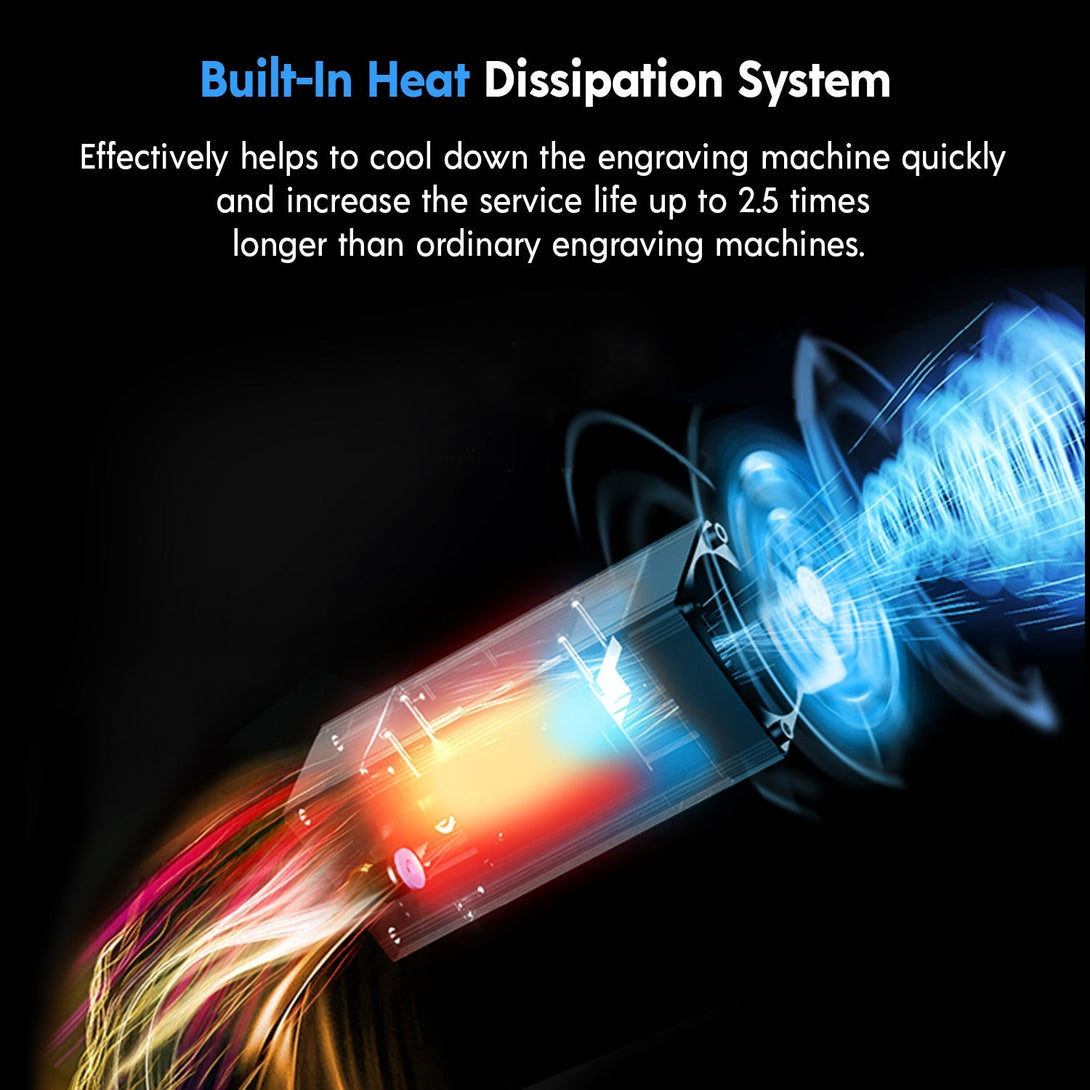

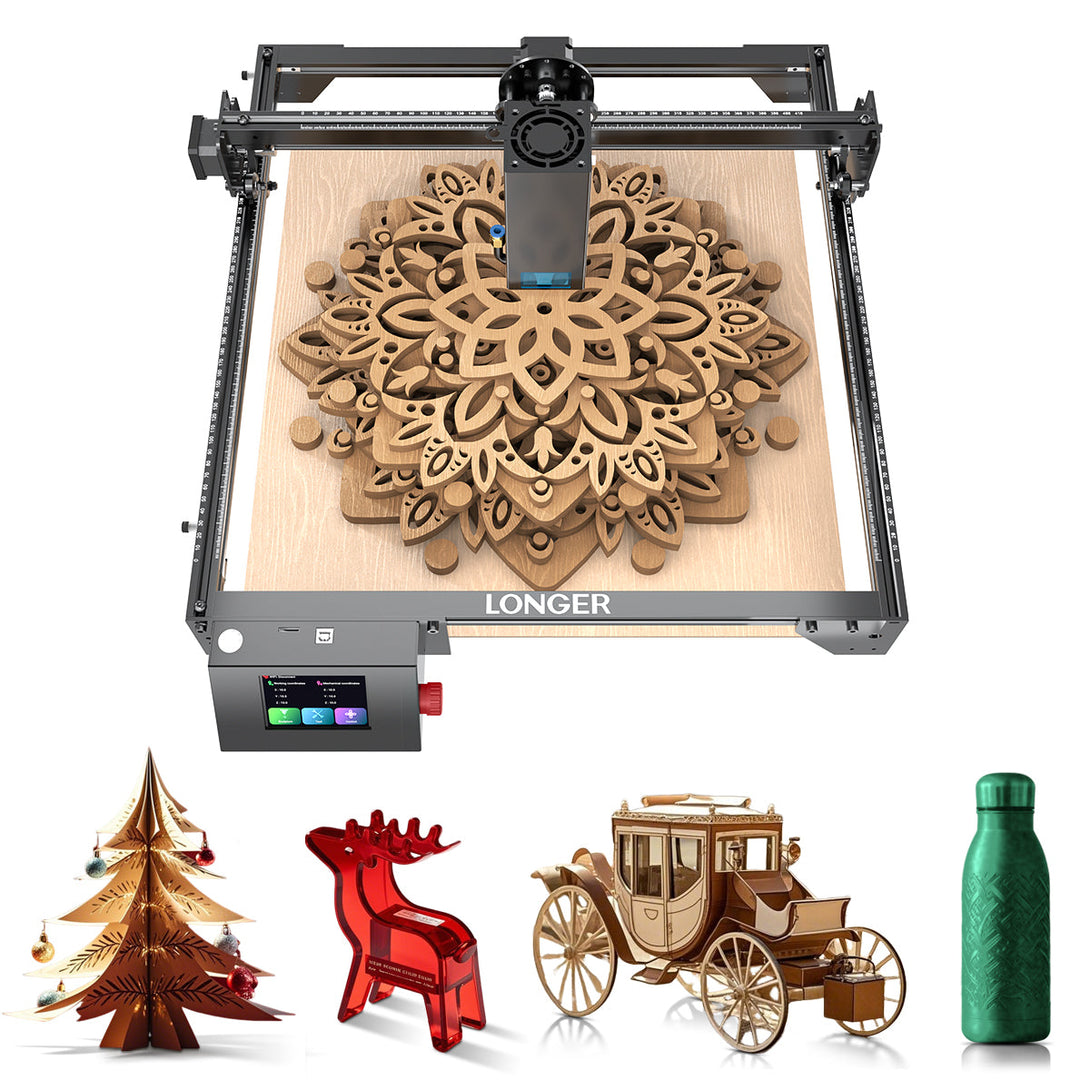

| A. Laser Module & Output Power |
|---|
| Model | Longer RAY5 20W |
| Laser Type | Diode laser |
| Laser Power | 20W |
| Electrical Input Power | 120W |
| Laser Wavelength | 450nm |
| Laser Spot Size | 0.08 × 0.08mm |
| Focal Length | 50mm |
| Protective Lens | Yes — replaceable protective lens + dust-proof hood (extends module life) |
| Laser Head Modularity | Yes — same RAY5 frame accepts 5W, 10W, and 20W heads |
| B. Cutting & Engraving Capability |
|---|

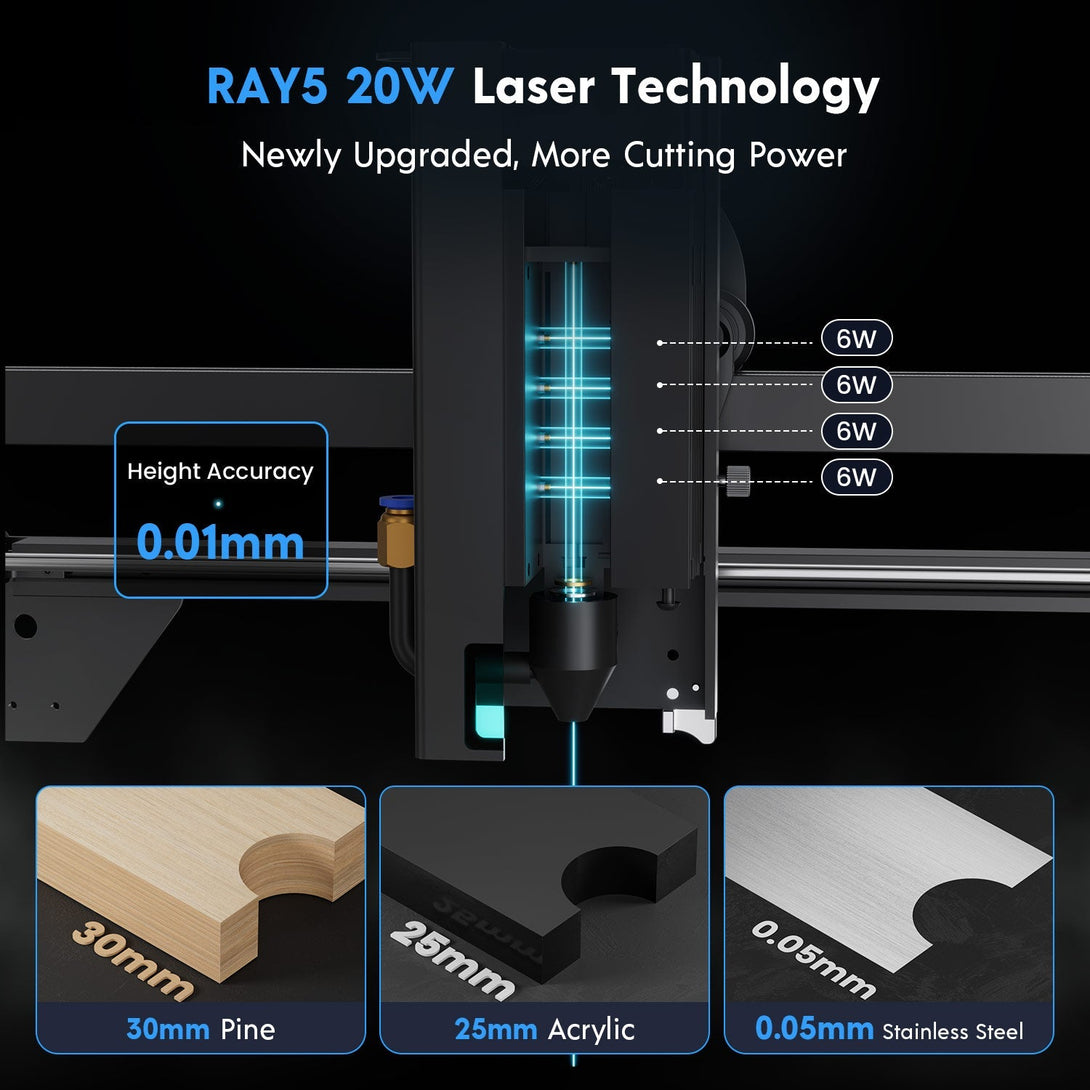

| Max Cut – Pine / Pinewood | 30mm |
| Max Cut – Acrylic | 25mm |
| Max Cut – Stainless Steel | 0.05mm sheet |

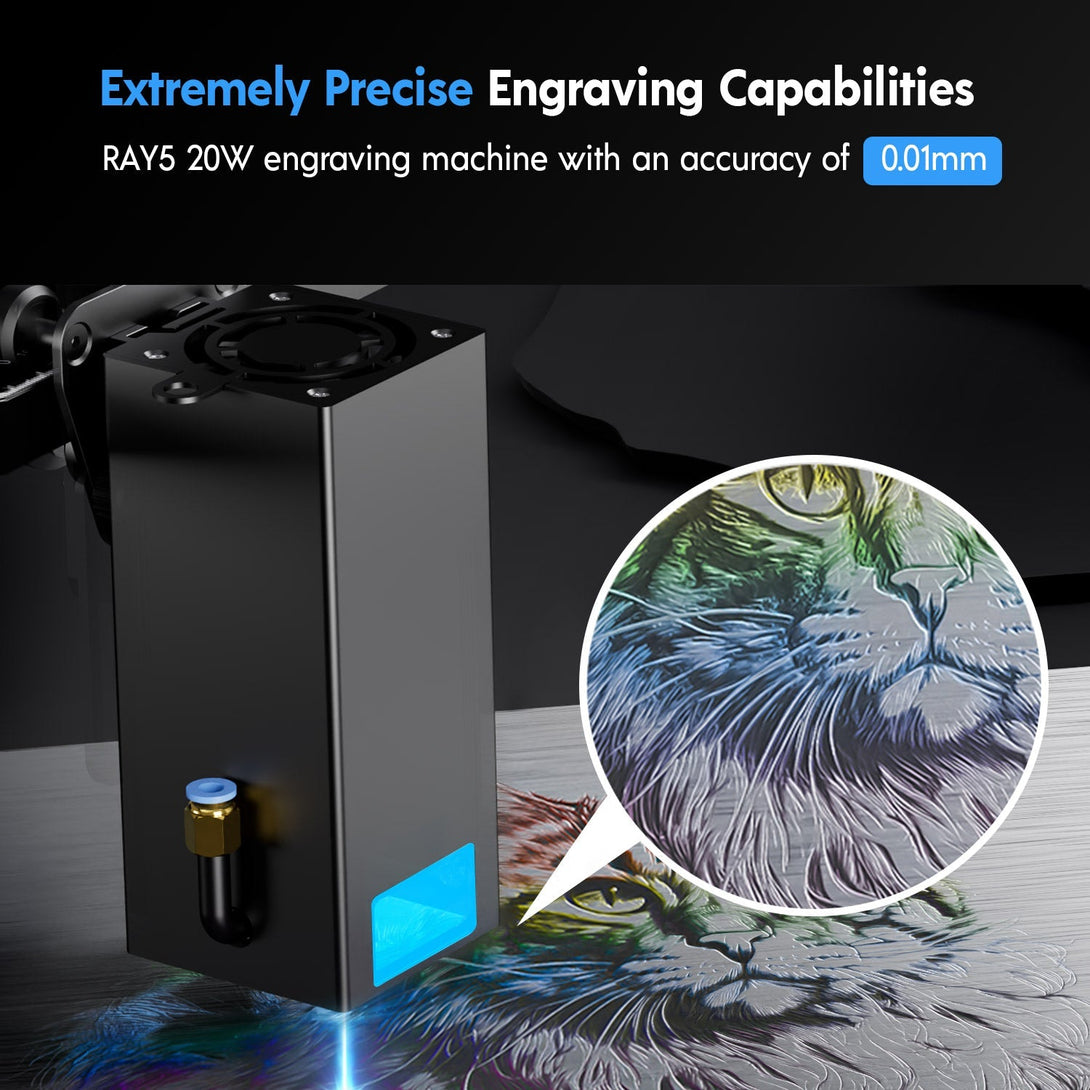

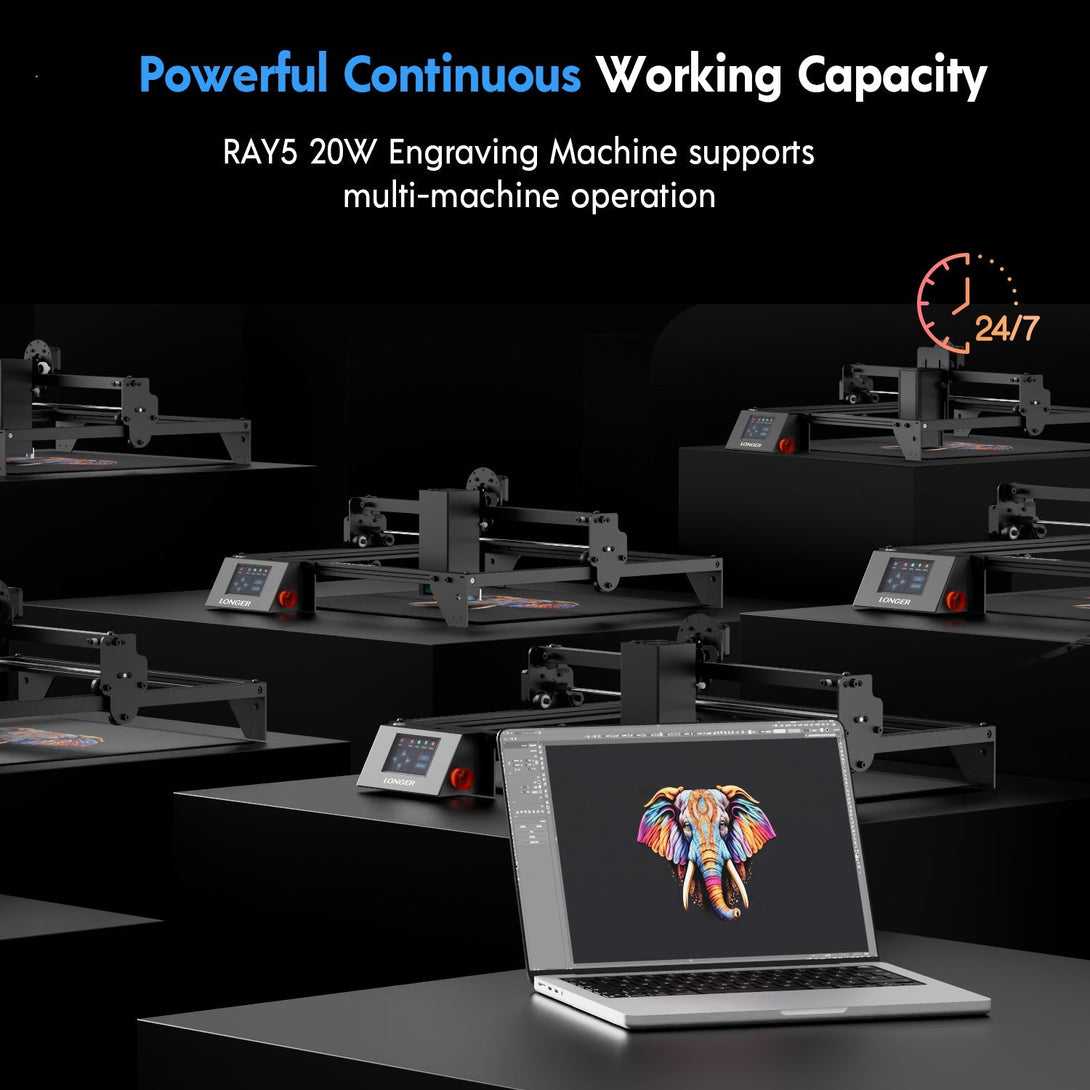

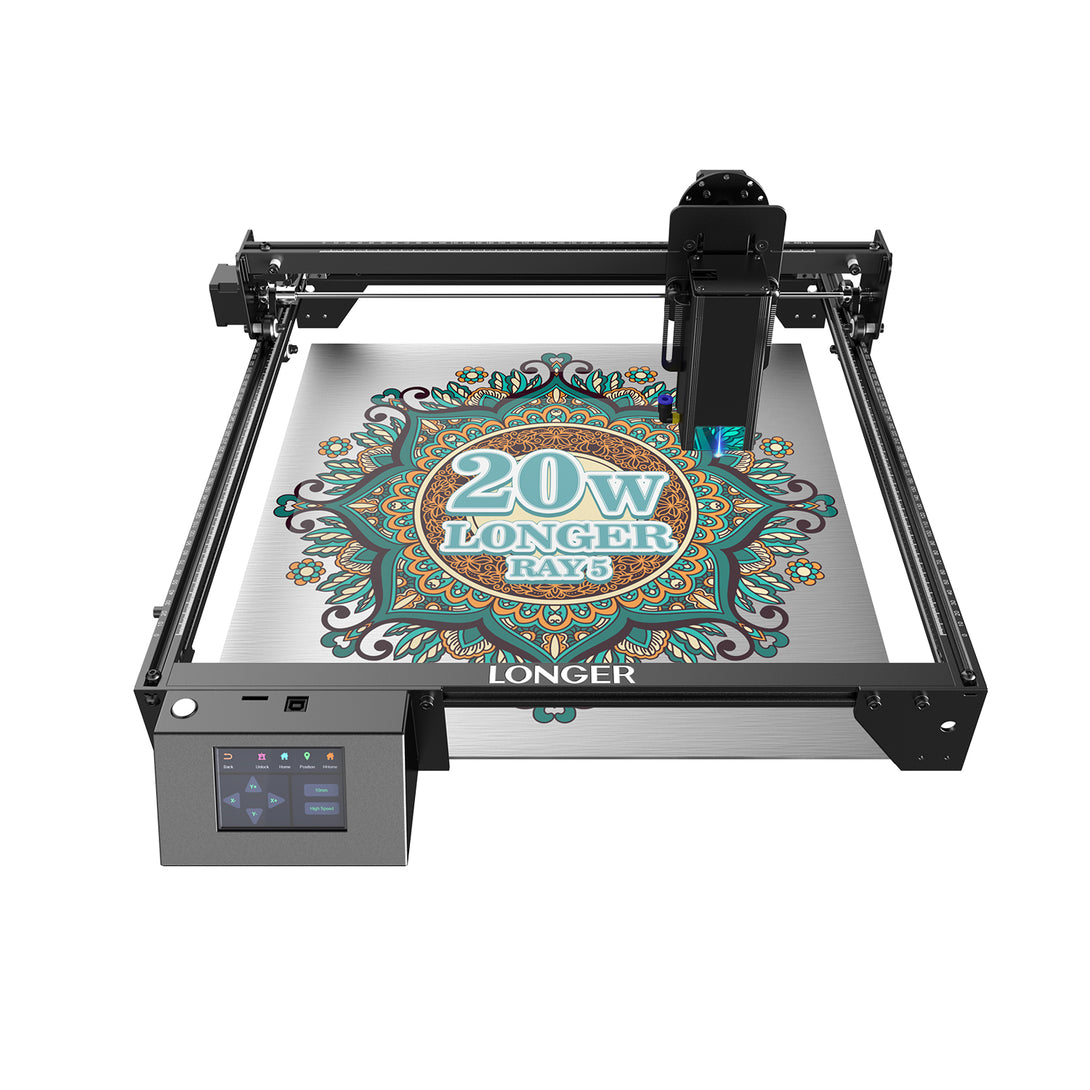

| Engraving Accuracy | 0.01mm |
| Max Engraving Speed | 10,000 mm/min |
| Metal Color Engraving | 380+ colors via UV oxidation (stainless steel) |
| Continuous Operation Rating | 24/7 |
| Multi-Machine Control | Yes — 1 PC controls multiple RAY5 units (5W / 10W / 20W) in parallel via LightBurn or LaserGRBL |
| C. Work Area & Mechanical |
|---|

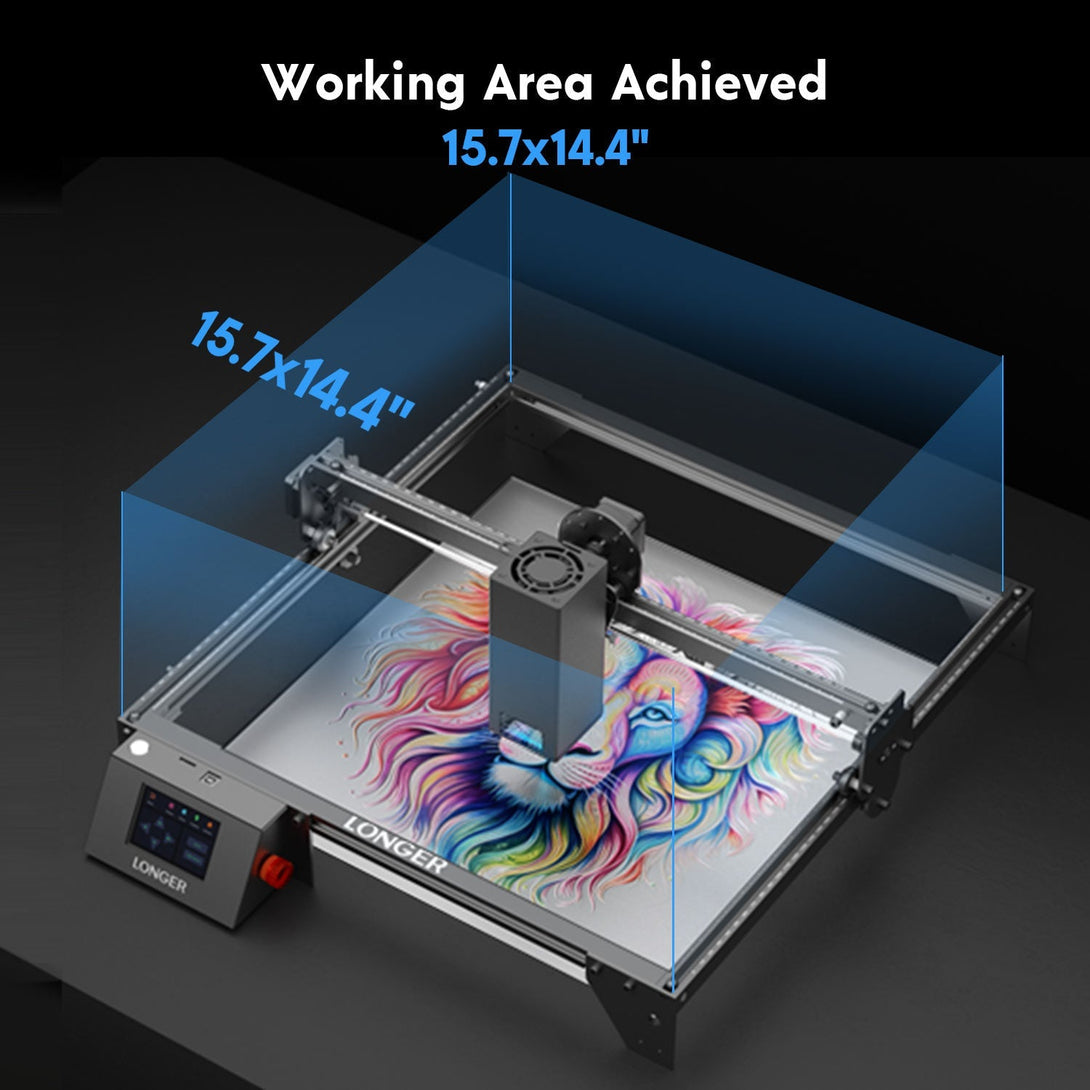

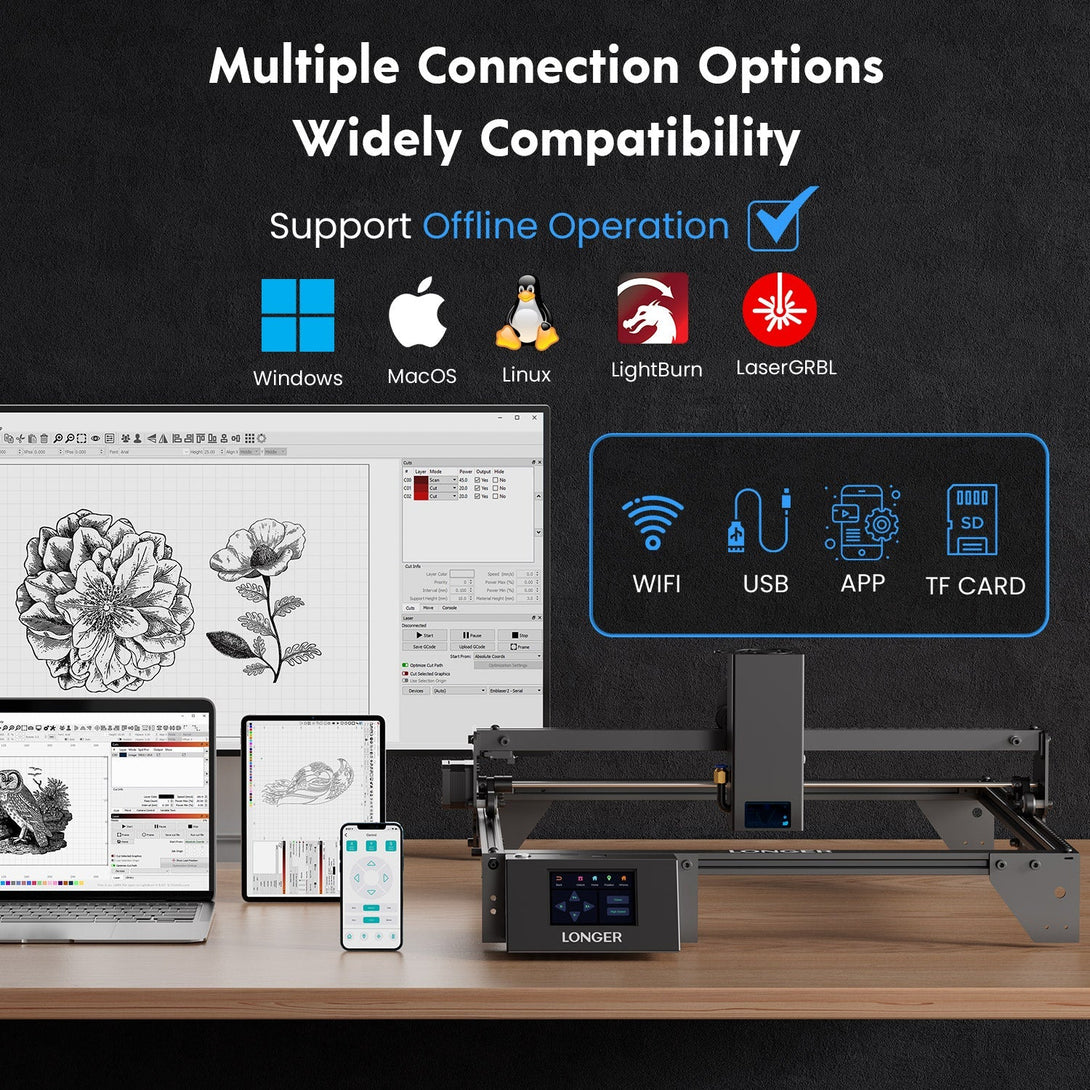

| Work Area (X × Y) | 400 × 365mm (15.7 × 14.4 inches) |
| RAY5 5W & 10W work area | 400 × 400mm (20W module is slightly larger, reducing Y axis) |
| Motion System | X/Y-axis limit switches for accurate homing and over-travel protection |
| Frame | Open-frame aluminum alloy construction |
| D. Control & Connectivity |
|---|
| Touchscreen | 3.5-inch intelligent color touchscreen (standard) |
| Smartphone App | MKSLaser (Android + iOS) — image editing, parameter adjustment, job control |
| Connectivity | Wi-Fi / USB cable / TF card (offline) / Smartphone APP |
| Supported OS | Windows 7+ / macOS / Linux |
| Chipset | 240MHz ESP32 (32-bit) |
| File Formats | JPG / PNG / BMP / GIF / SVG / NC / GC / G-code |
| Software Compatibility | LaserGRBL (Windows, free) / LightBurn (Windows, macOS, Linux) / MKSLaser App (Android + iOS) |
| E. Safety Features |
|---|

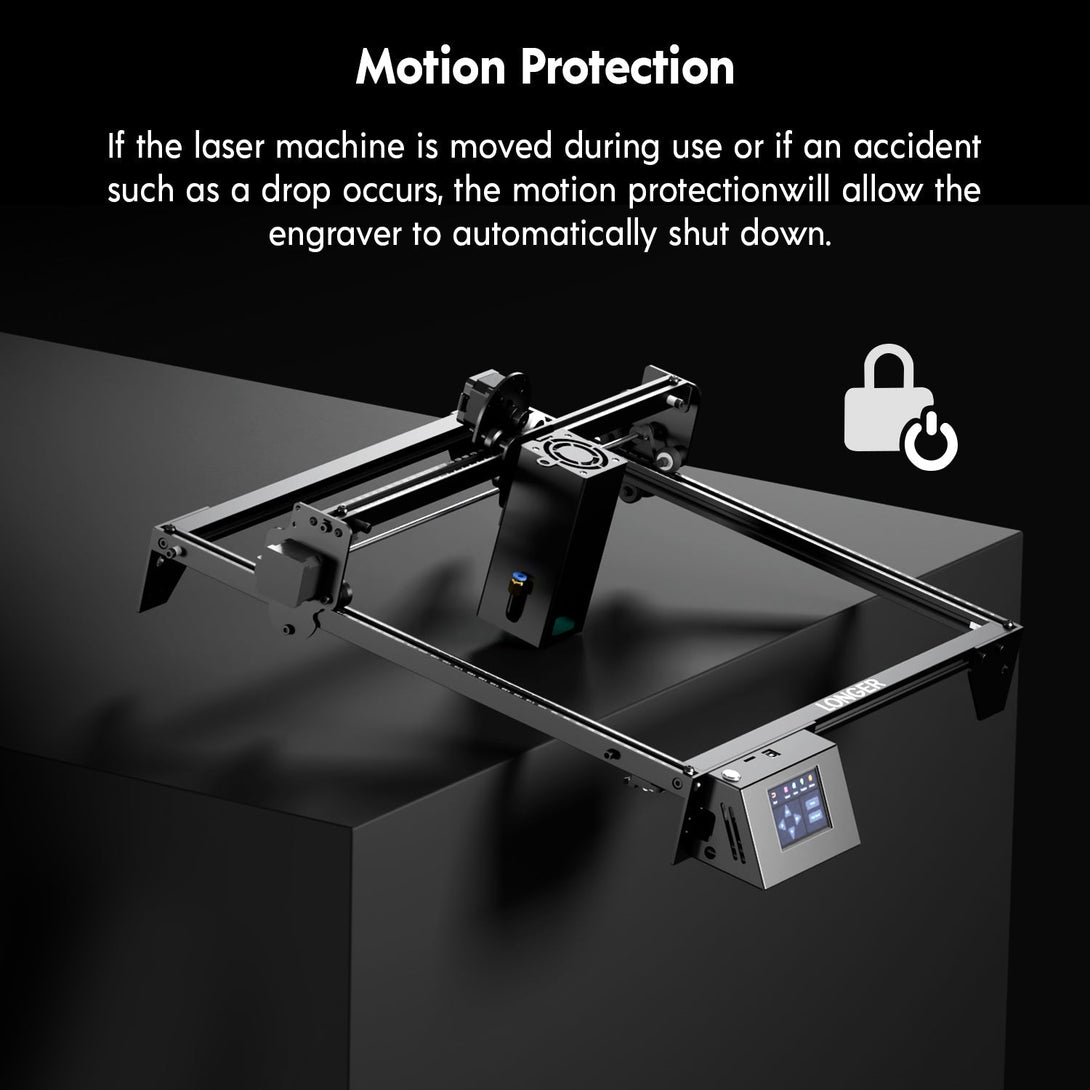

| Tilt Detection |
Automatic laser shutdown if machine is displaced or tipped during operation |
| Flame Detection |
Integrated flame sensor triggers emergency stop if fire is detected in work area |
| Data-Loss Protection |
Laser cuts off automatically if control connection is interrupted |
| Head-Freeze Alarm |
Emergency stop triggered if laser module stalls for >15 seconds |
| Emergency Stop Button |
Physical emergency stop accessible at any time during operation |

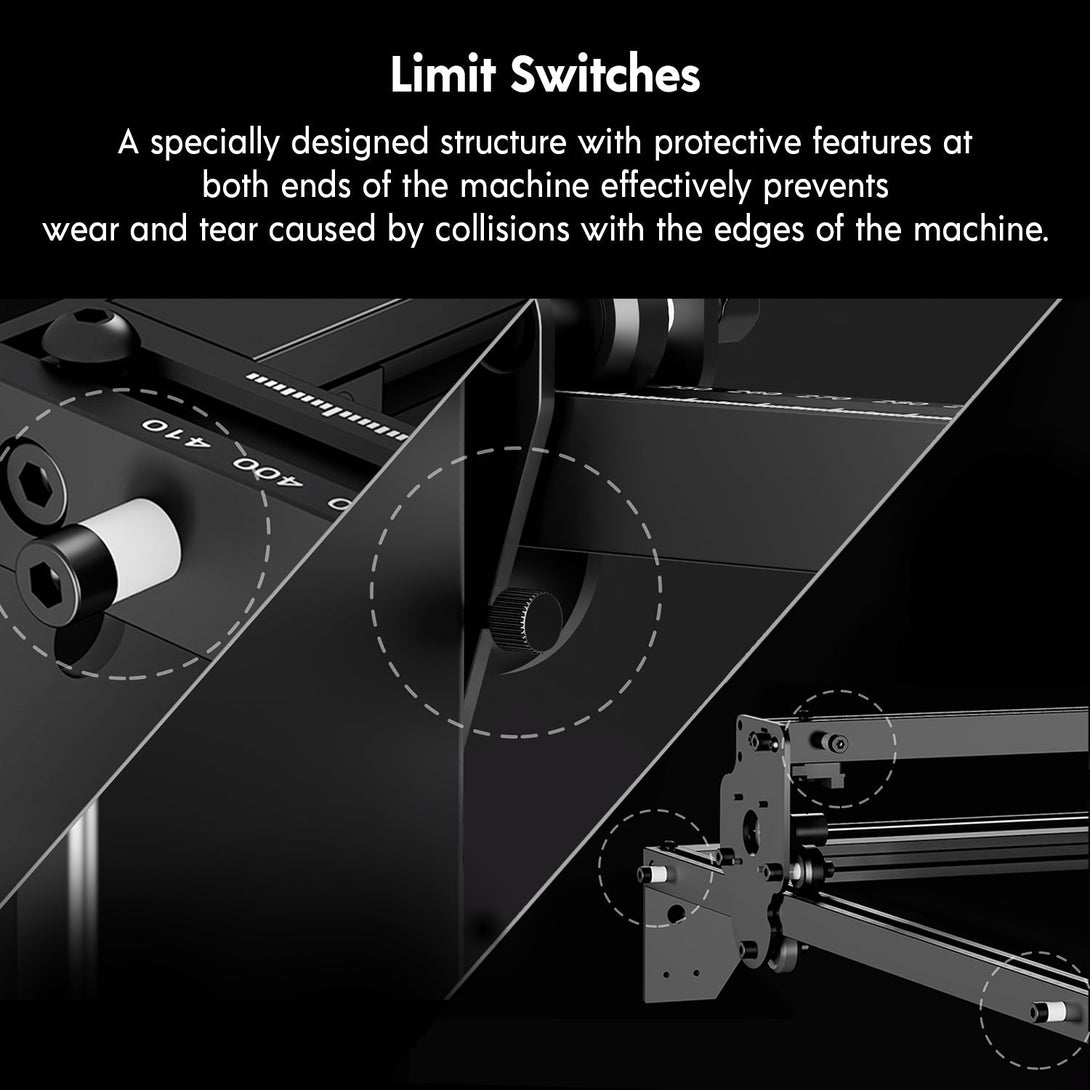

| X/Y-Axis Limit Switches |
Prevent over-travel and ensure accurate homing; triggers alarm if module moves in negative direction |

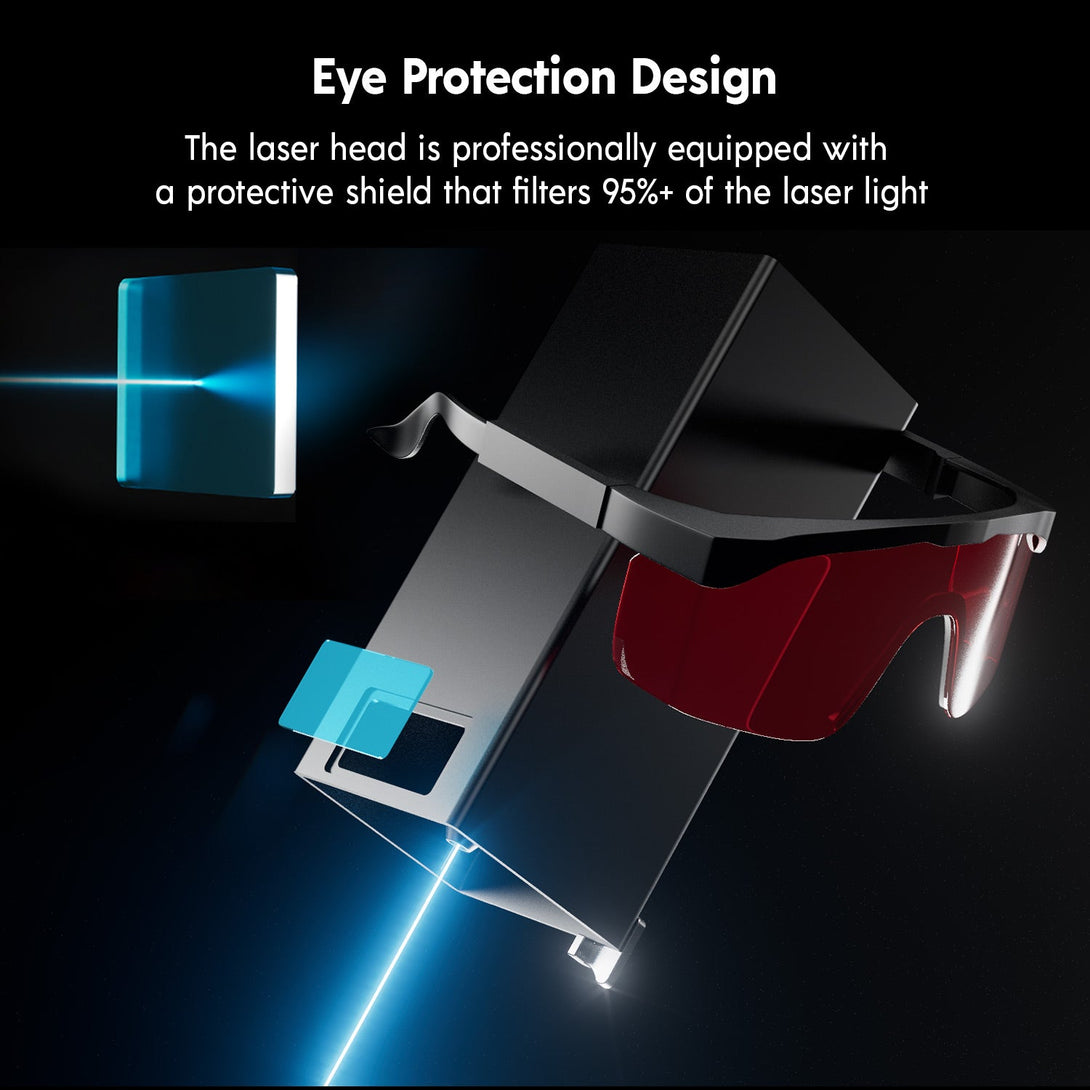

| Eye Protection |
Protective glasses included; protective cover compatible (sold separately) |

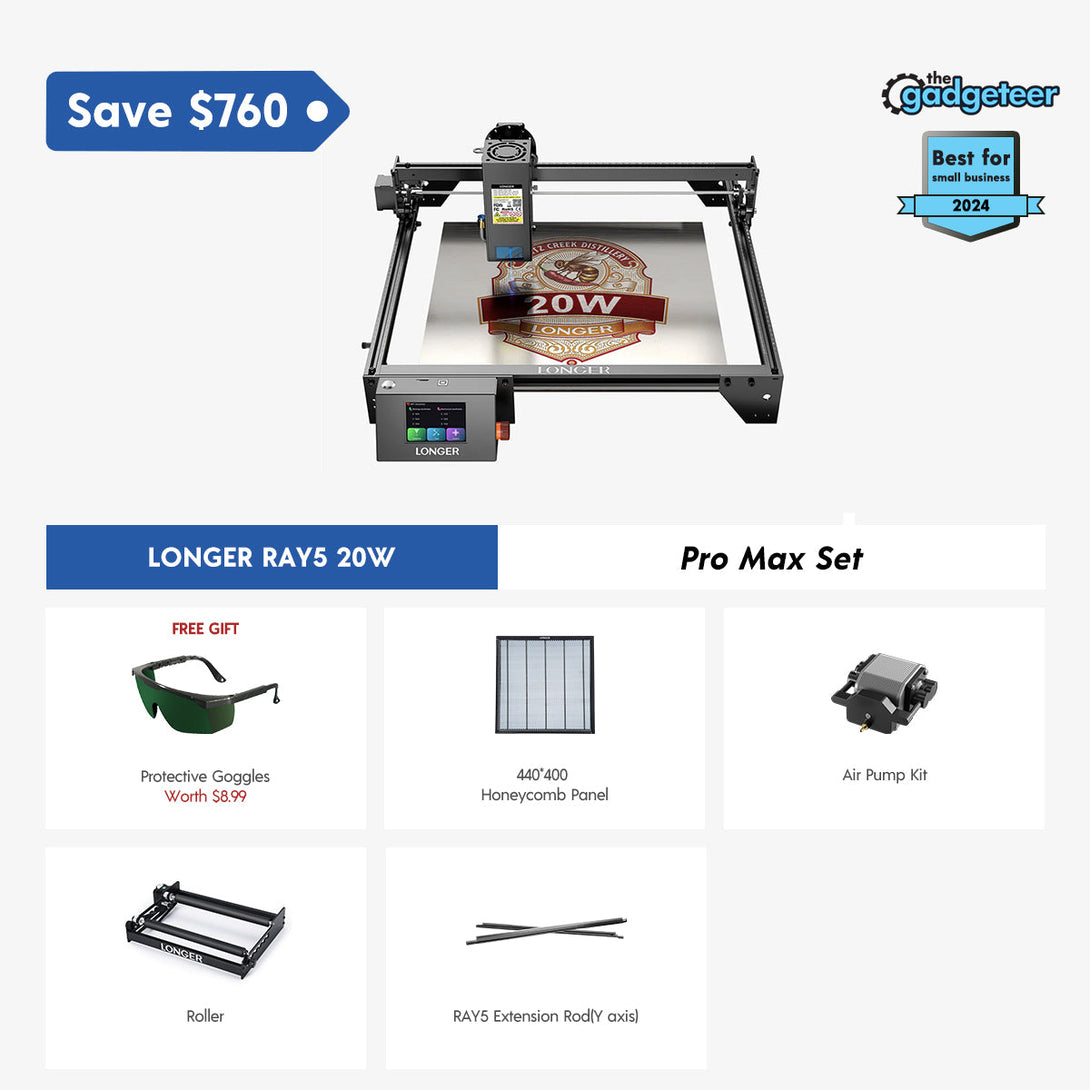

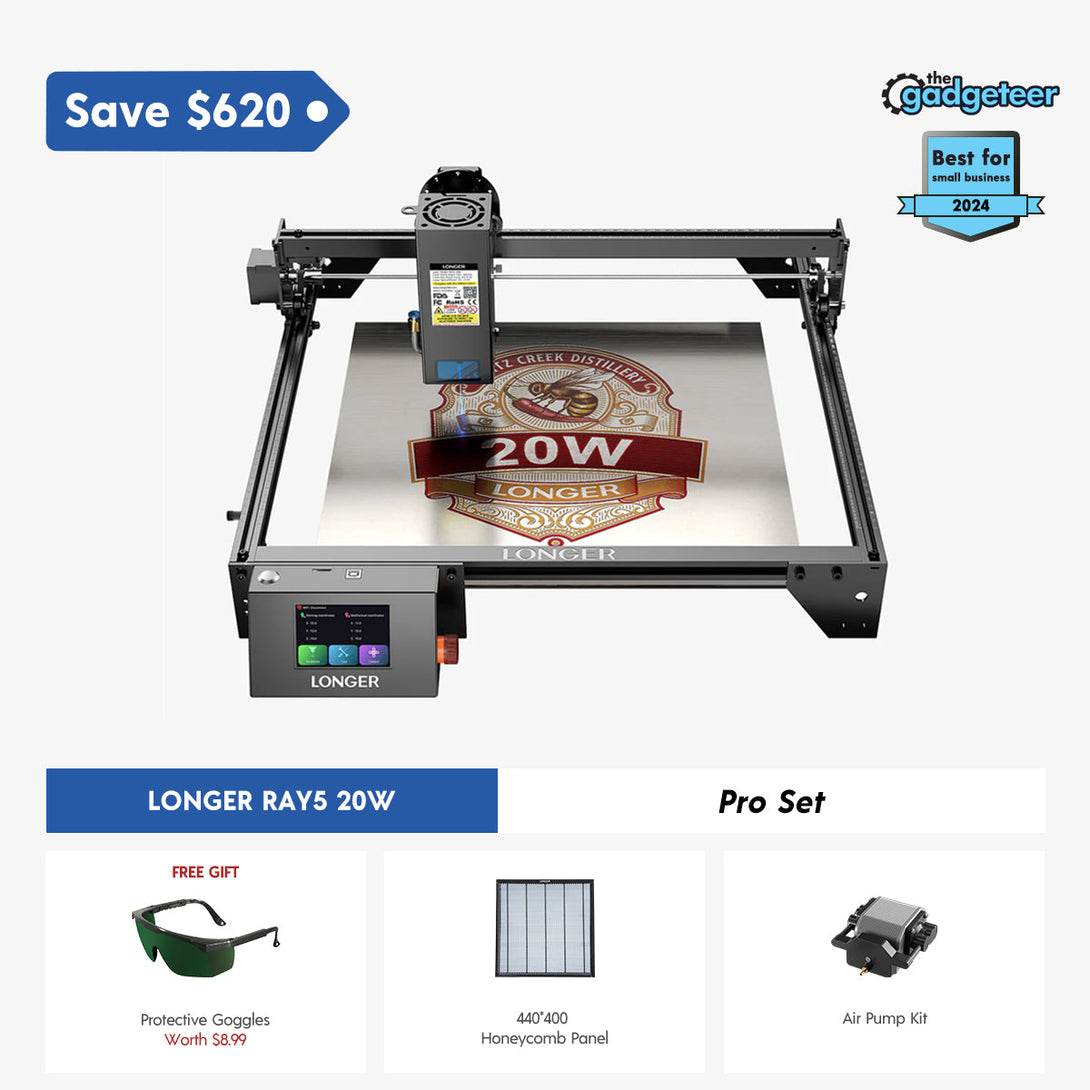

| F. Compatible Materials |
|---|
| Wood | Plywood, basswood, hardwood, pinewood, MDF, balsa, cork |
| Acrylic & Plastics | Acrylic (clear and colored), ABS, PVC (non-chlorinated) |
| Metal | Stainless steel (cut ≤0.05mm; color engrave), anodized aluminum (tumbler engraving), coated metals |
| Other | Leather, fabric, paper, cardboard, kraft paper, ceramic (glazed surface), glass (surface coating required for marking), rubber |
| G. Optional Accessories & Bundles |
|---|
| Air Assist Kit | Longer RAY5 10W/20W Air Assist — 10–30 L/min adjustable; reduces burn marks, protects lens, extends cut quality |
| Honeycomb Bed | 17.3" × 17.3" aluminum honeycomb cutting bed — supports workpiece, reduces reflection, improves cut quality |
| Rotary Roller | 360° rotary axis for cylindrical objects: tumblers, bottles, pens |
| Y-Axis Extension Kit | Extends work area in Y direction for longer material runs |
| 8-Piece Risers | Elevates machine for thicker materials or pass-through cutting |
| Camera Kit | Visual positioning camera accessory for precise job placement |
