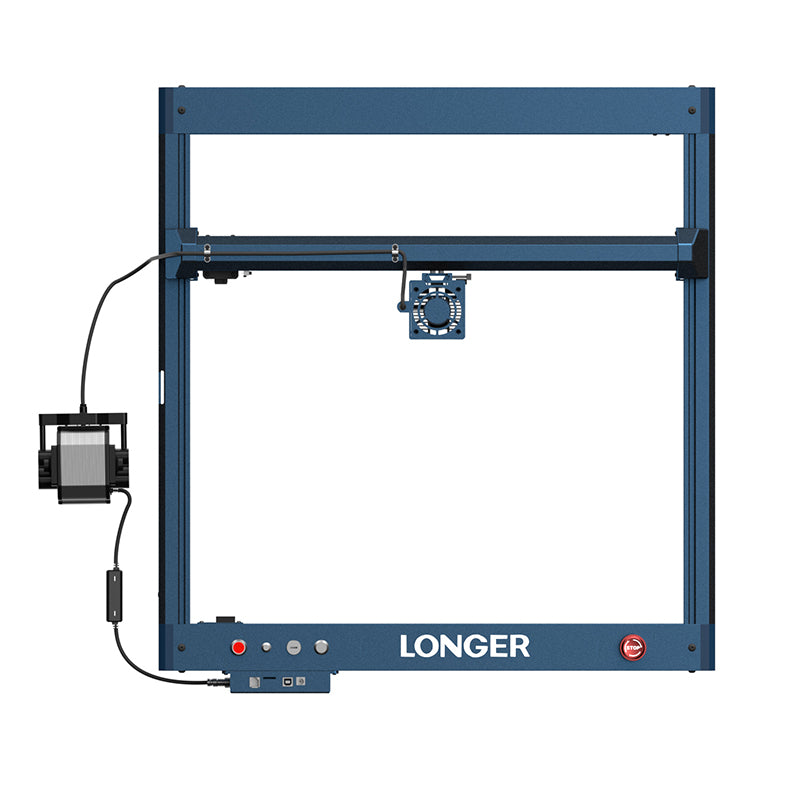

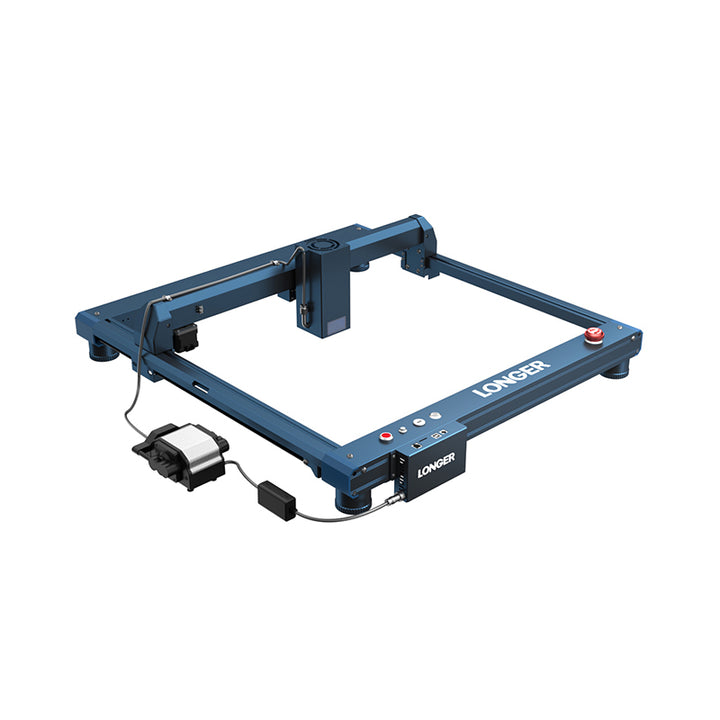

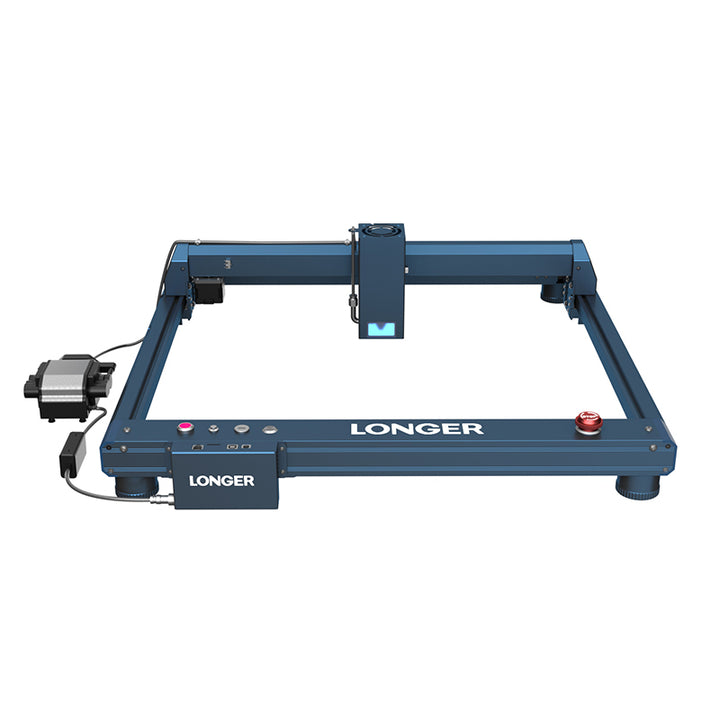

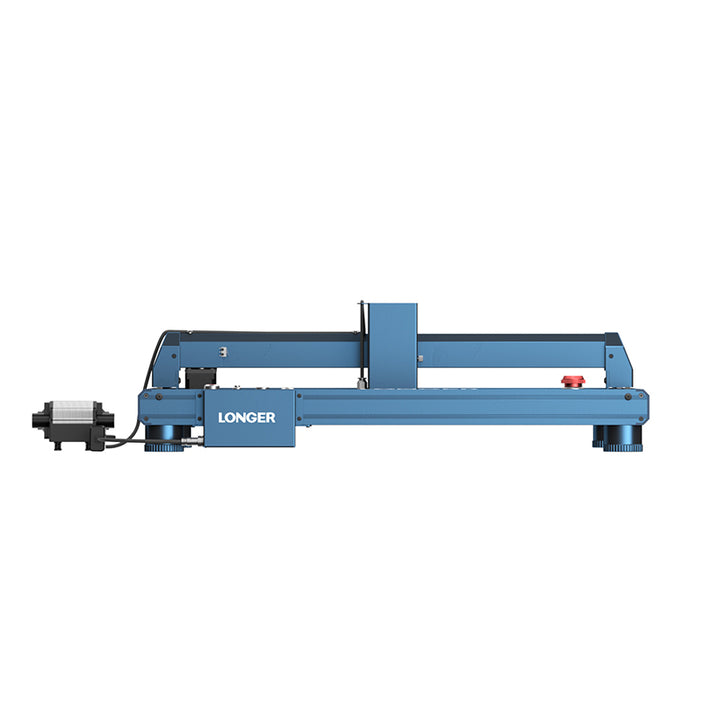

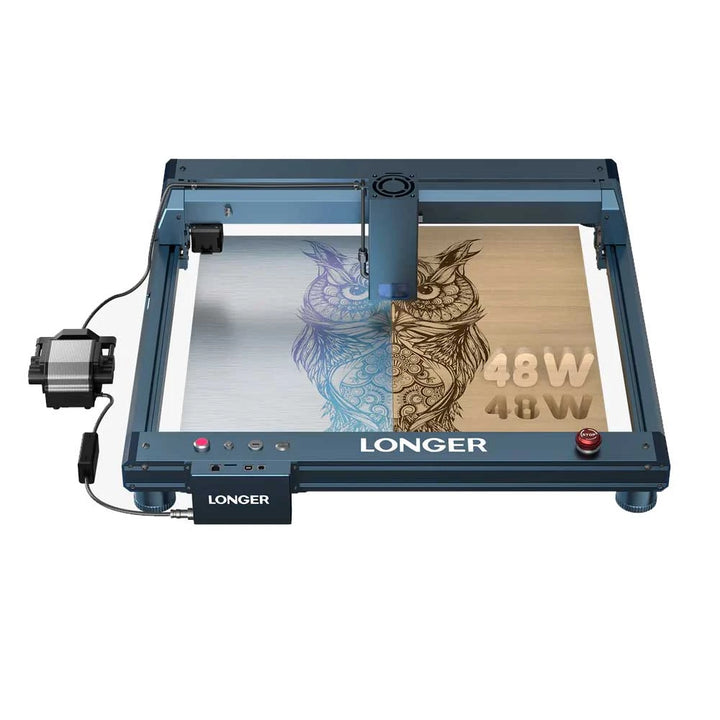

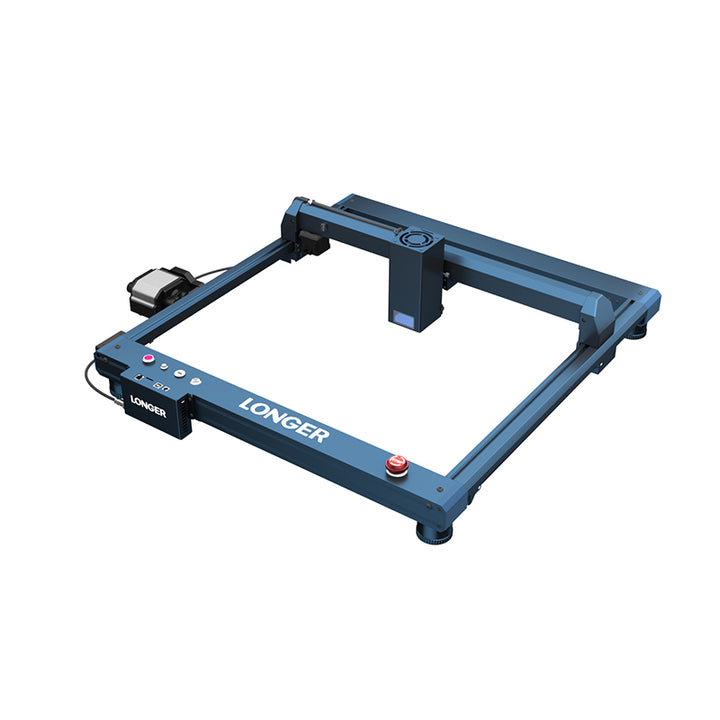

Longer B1 40W Laser Engraving Machine
$919.99
Basic / US Plug
Specification:
| Specification/Model | Longer B1 20W | Logger B1 30W | Longer B1 40W |
|---|---|---|---|
| Optical Output Power | 20W | 30W | 40W |
| Maximum Working Speed | 36,000 mm/min | 36,000 mm/min | 36,000 mm/min |
| Rated Power | 105W | 145W | 175W |
| Maximum Cutting Capacity | 25mm Pinewood, 35mm Acrylic, 0.05mm Stainless Steel | 25mm Plywood, 50mm Acrylic, 0.1mm Stainless Steel | 40mm Plywood, 50mm Acrylic, 0.15mm Stainless Steel |
| One Pass Cutting | 12mm Plywood, 15mm Pinewood, 8mm Acrylic | 20mm Plywood, 10mm Acrylic | 25mm Plywood, 10mm Acrylic |
| Working Area | 450×440mm (17.72×17.32 inches) | 450×440mm (17.72×17.32 inches) | 450×440mm (17.72×17.32 inches) |
| Laser Wavelength | 450nm | 450nm | 450nm |
| Supported Software | LaserGRBL(Free), LightBurn(Paid), LaserBurn App | LaserGRBL(Free), LightBurn(Paid), LaserBurn App | LaserGRBL(Free), LightBurn(Paid), LaserBurn App |
| Operating System | LaserGRBL: Windows LightBurn: Windows, MacOS, Linux LaserBurn App: Android, IOS |
LaserGRBL: Windows LightBurn: Windows, MacOS, Linux LaserBurn App: Android, IOS |
LaserGRBL: Windows LightBurn: Windows, MacOS, Linux LaserBurn App: Android, IOS |
More Details:
Review and Expert Analysis
Download files
FAQs
1. What is the difference between Longer Laser B1 series and RAY5 series? Which one should l choose?
The Longer B1 offers greater power, faster speeds, higher precision, and enhanced safety features when compared to the RAY5. While the Ray5 is ideal for beginners, the B1 caters to experienced users seeking advanced engraving and cutting capabilities. Your choice between the two depends on your specific requirements and budget. For further information, please refer to the product detail page.
2. What software does the Longer Laser B1 engraving machine support?
LightBurn Software For Windows(XP/7/8/10) / MAC /Linux；LaserGRBL Software For Windows Only; LaserBurn APP For Android and iOS.
3. What are the advantages of the Longer Laser B1 air pump?
Longer LaserB1 can intelligently control the air pump switch through the motherboard. That is, setting the Air on or off in Lightburn can automatically control the air pump switch without manually switching the air pump.
4. What materials can Longer Laser B1 engrave and cut?
The Longer LaserB1 is capable of engraving a wide range of materials including plywood, basswood, hardwood, pinewood, acrylic, kraft paper, stainless steel, aluminum alloy, ceramics, and more. Additionally, the Longer LaserB1 excels in cutting materials such as basswood, acrylic, bamboo, kraft paper, and others.
5. What is the focal length of Longer Laser B1?
The Longer Laser B1 boasts a focal length of 50mm. This longer focal length sets it apart from other products on the market and makes it particularly well-suited for cutting applications.
6. Can Longer Laser B1 auto focus?
No, it cannot. It requires manual focusing, which is a simple process.
7. What safety features does the Longer Laser B1 engraver have?
Longer LaserB1 has 8 safety protection functions, namely moving/flame/offline/stationary/safety lock/eye protection/emergency stop button/reset to zero. And the laser head automatically returns to zero to avoid burning out during ignition.
8. What is the warranty policy of Longer Laser B1?
We guarantee a 1-year warranty.
9. Does Longer Laser B1 come with free shipping?
➤ United States (Other than Hawaii, Alaska, and Puerto Rico);
➤ Most European countries;
➤ Most Asia countries (NOT included tariff);
➤ For the other countries, the shipping fee would be charged by the weight of the parcel.
➤ You may refer to the shipping guide on our website
➤ Most European countries;
➤ Most Asia countries (NOT included tariff);
➤ For the other countries, the shipping fee would be charged by the weight of the parcel.
➤ You may refer to the shipping guide on our website
10. What is the maximum cutting depth of Longer Laser B1?
➤ Laser B1 20W maximum cutting capacity is 25mm Pine wood and 35mm Acrylic, 0.05mm stainless steel
➤ Laser B1 30W maximum cutting capacity is 25mm Plywood and 50mm Acrylic, 0.1mm stainless steel
➤ Laser B1 40W maximum cutting capacity is 40mm Plywood and 50mm acrylic, 0.15mm stainless steel
➤ Laser B1 30W maximum cutting capacity is 25mm Plywood and 50mm Acrylic, 0.1mm stainless steel
➤ Laser B1 40W maximum cutting capacity is 40mm Plywood and 50mm acrylic, 0.15mm stainless steel
