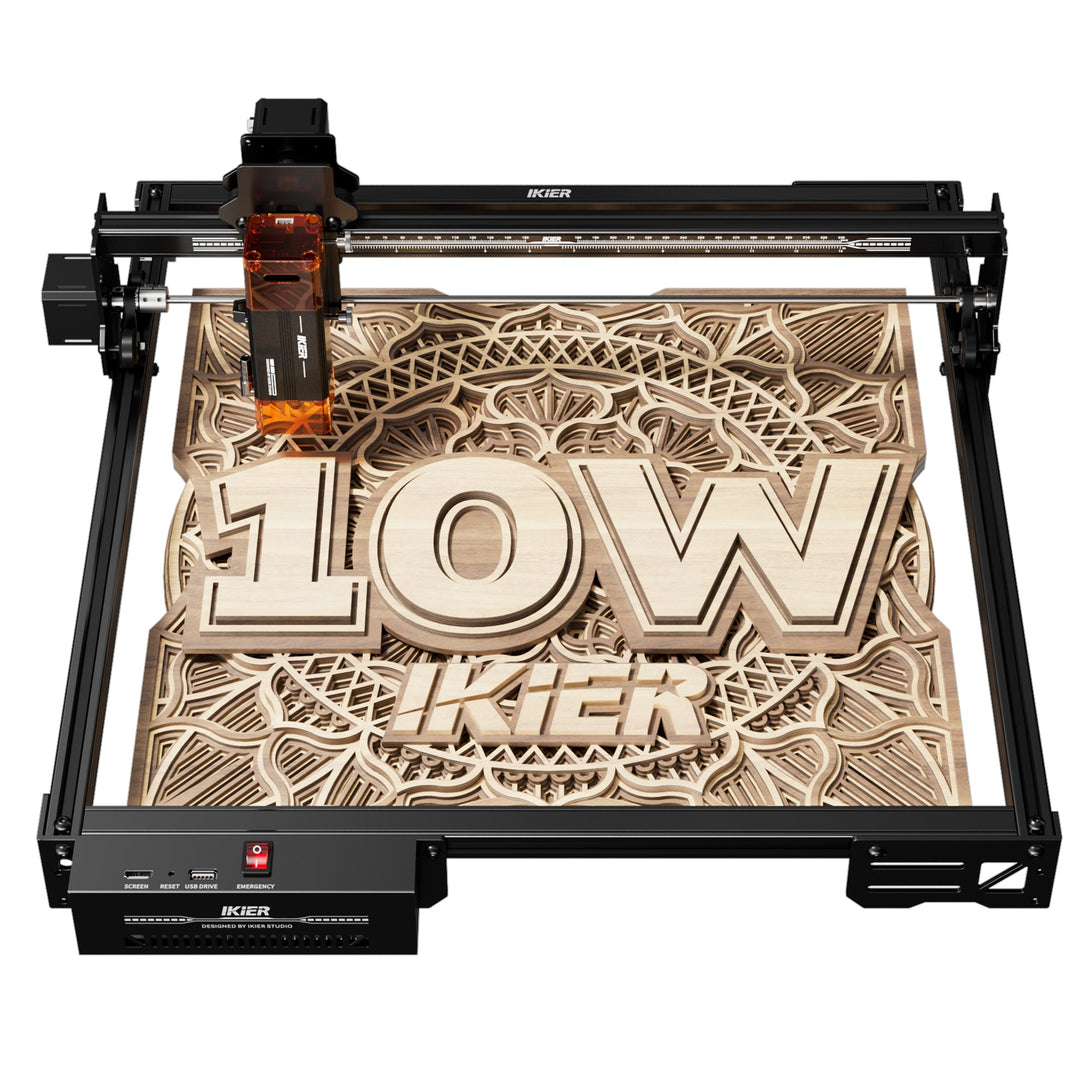

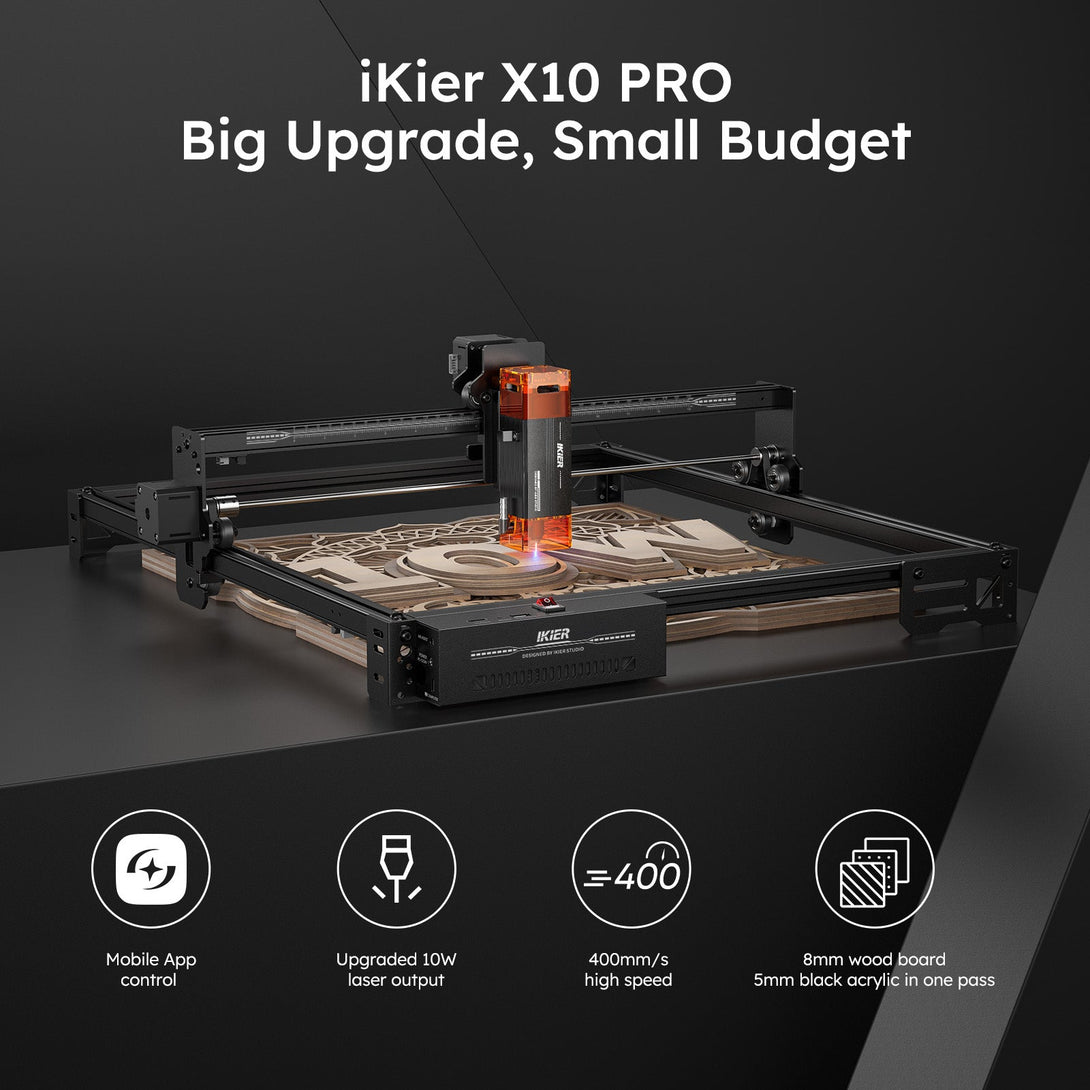

iKier X10 Pro: Upgraded 10W Laser Engraving Machine with Gen2 Spot Compression Technology

iKier X10 Pro upgraded laser engraving machine, 10W laser power, eye protection engraving, 410x380mm engraving area, all aluminum alloy structure, quick installation, high efficiency and high precision metal engraving, thick wood board cutting, can perfectly realize the wood cutting effect of 60W CO₂ laser engraving machine.

Features:

1. New Magnetic Eye Protection Design: The panoramic magnetic eye protection shield effectively protects your eyes, filtering 97% of strong light. You and those around you don’t need to wear goggles and can view the laser engraving, reducing the cost and inconvenience of wearing goggles. The magnetic design also makes cleaning easier.

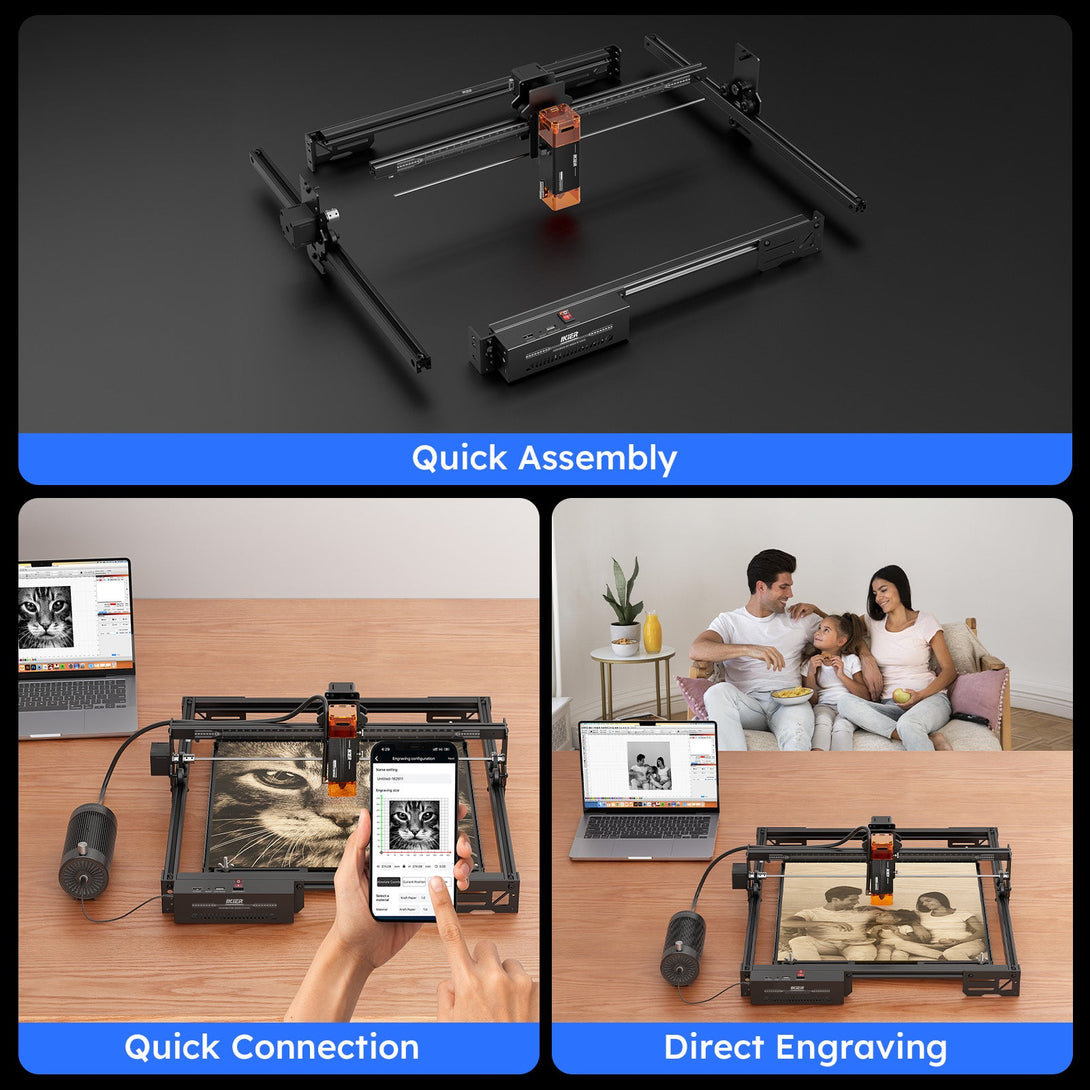

2. Sturdy and Easy-to-Install Structural Design: The full aluminum alloy anodized structure makes the machine more solid and durable, while improving engraving precision. The entire structure is designed for quick assembly, usually completed in 10-20 minutes.

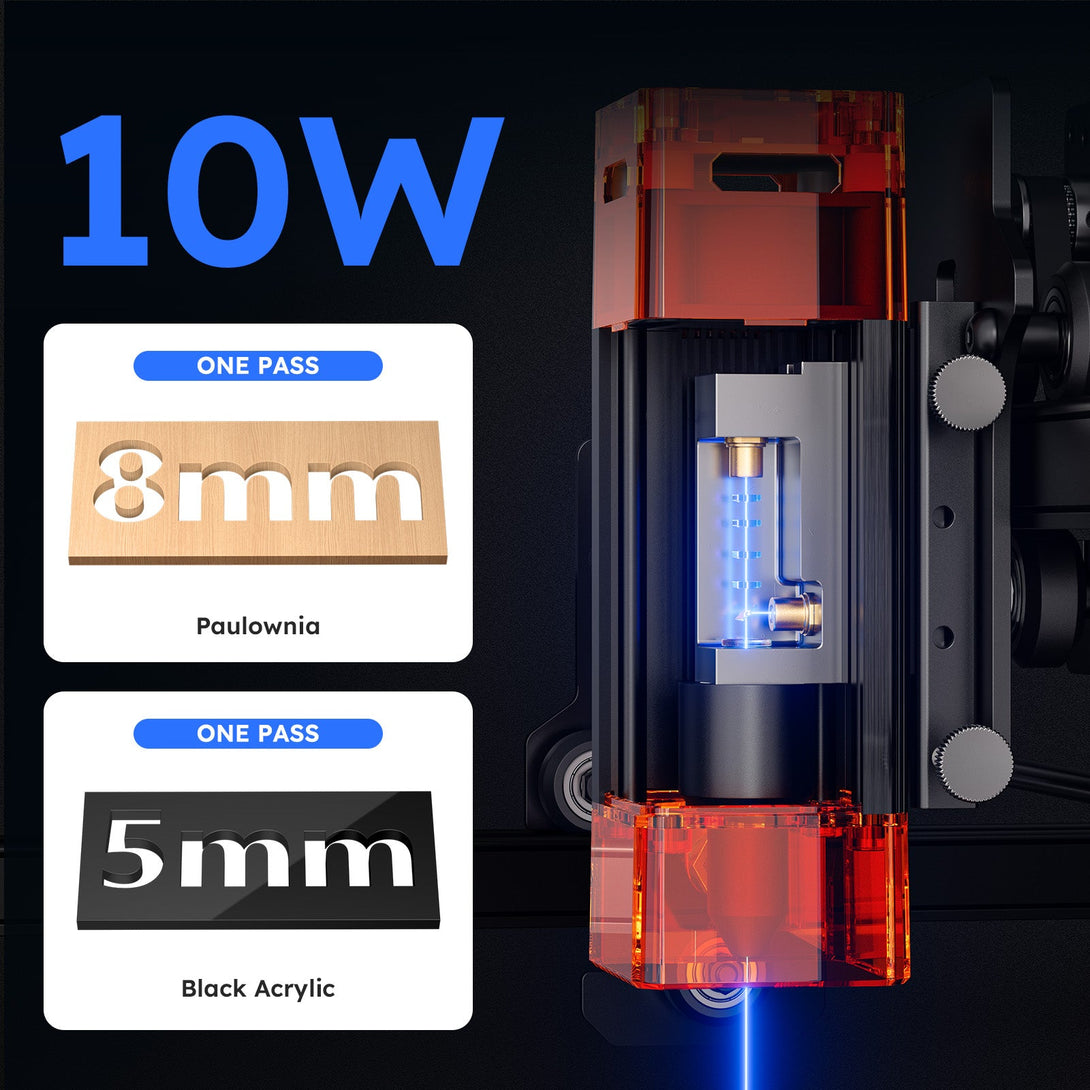

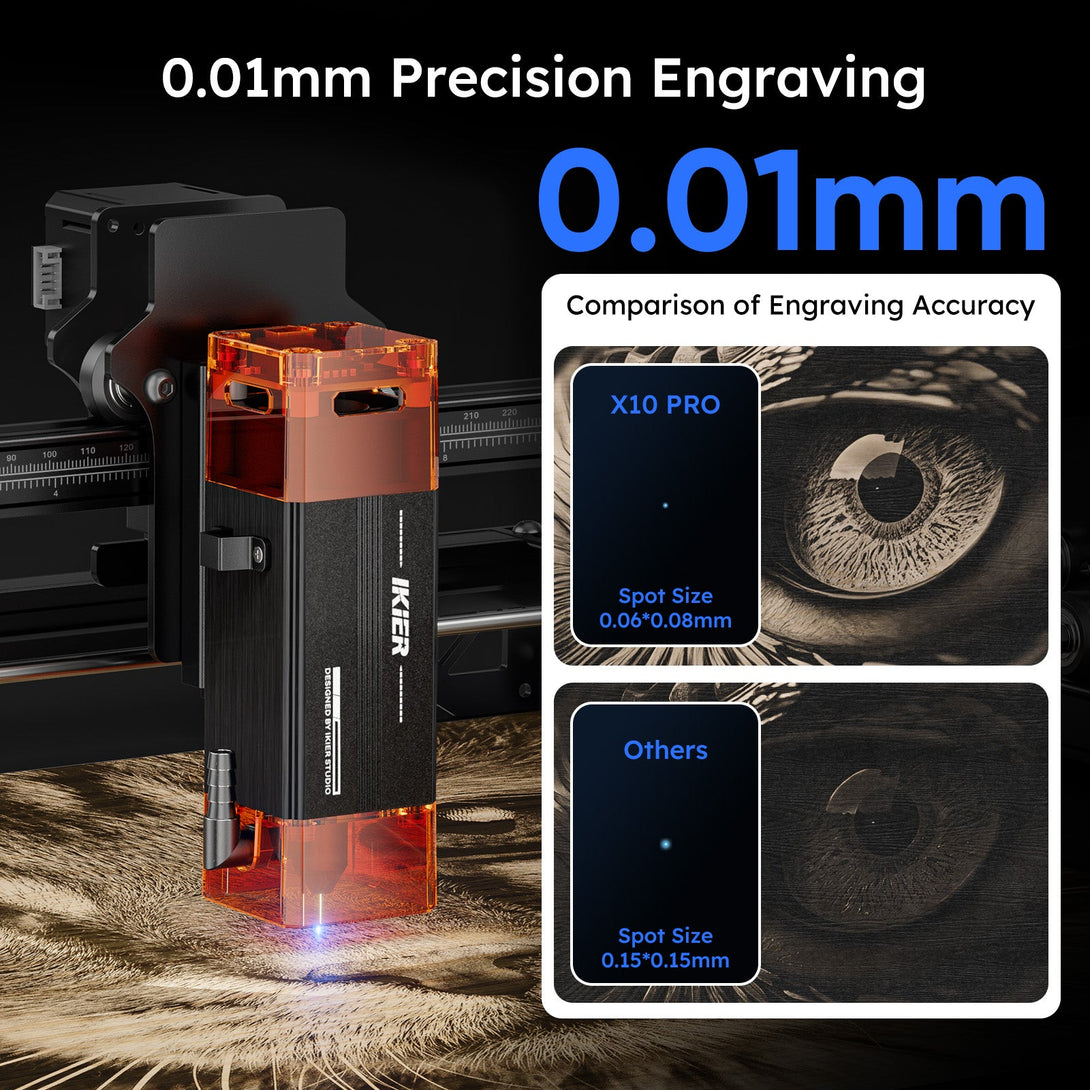

3. Upgraded High-Performance Fixed-Focus Laser: The new laser’s focus spot area is only 0.06*0.08mm, one-third the size of other common lasers. It balances both precise engraving and high-energy cutting. The fixed-focus laser also provides more stable power than zoom lasers.

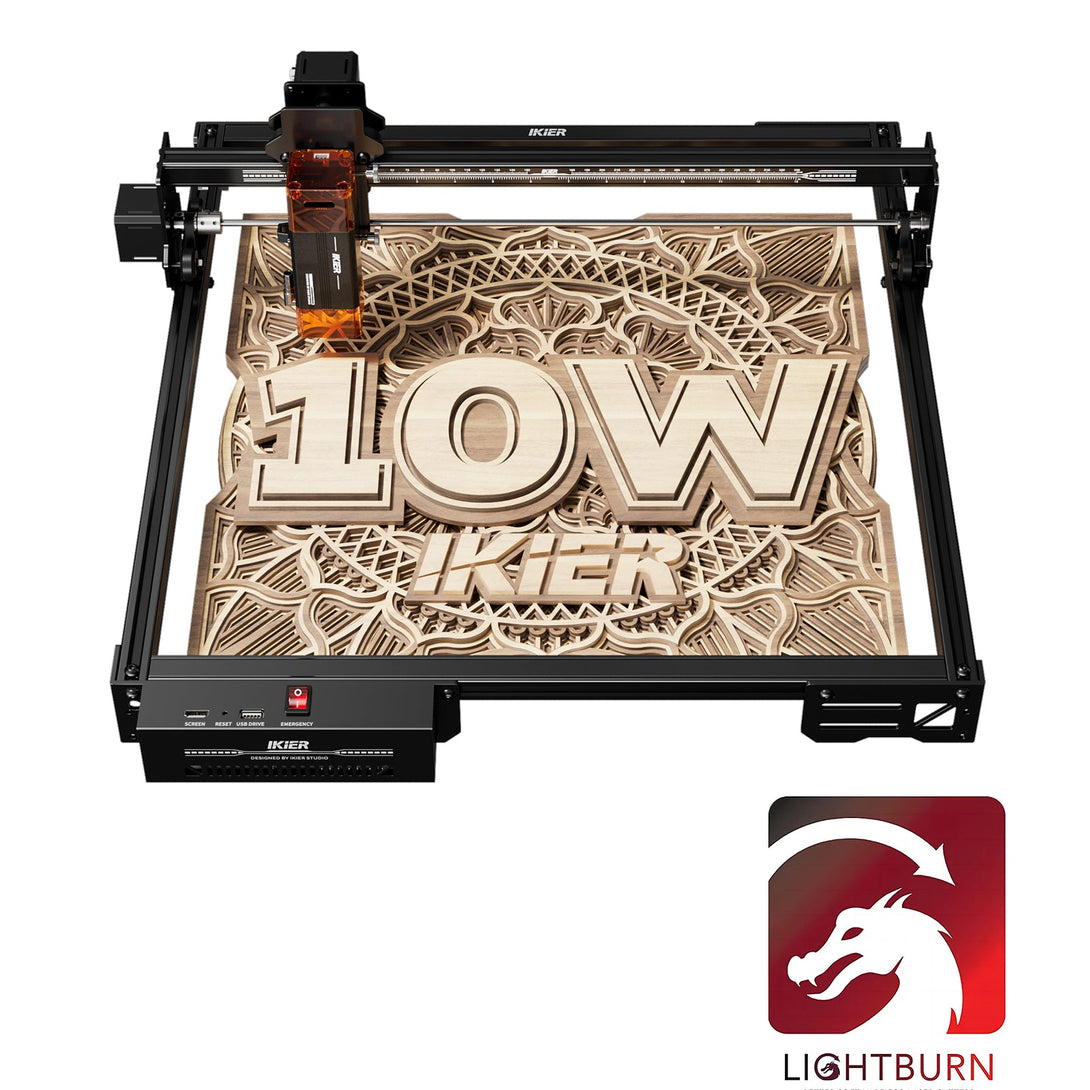

4. Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, and supports Win XP/Win 7/Win 8/Win 10, as well as Mac systems (LightBurn). Supported file formats for engraving include NC, BMP, JPG, PNG, DXF, etc.

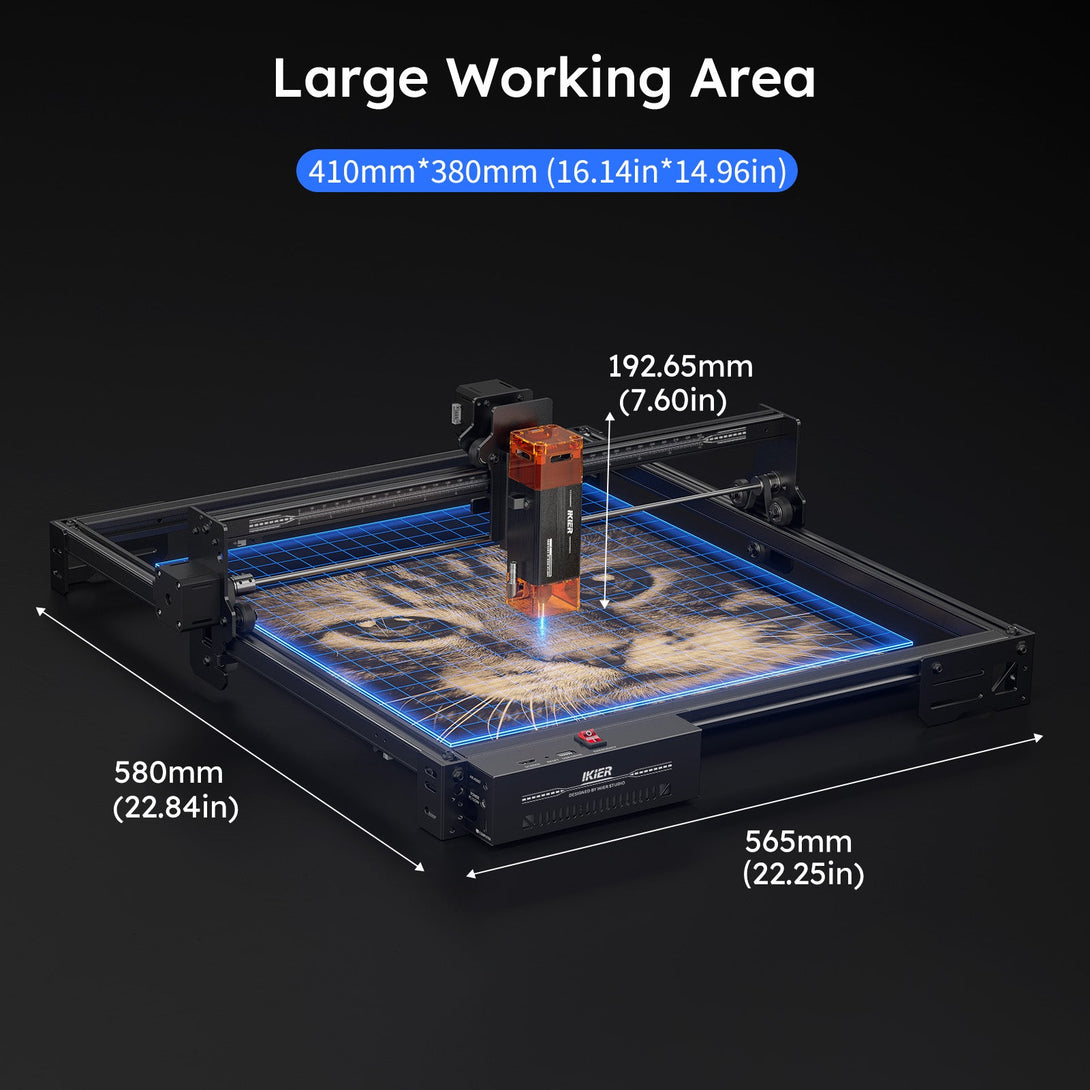

5. Large Size Processing: The 410x380mm large engraving area can meet a variety of engraving needs.

6. Integral Lead Screw: The machine uses an integral lead screw instead of a combined coupler. The stepper motor and lead screw are integrated, allowing for more precise laser movement and more durable couplings.

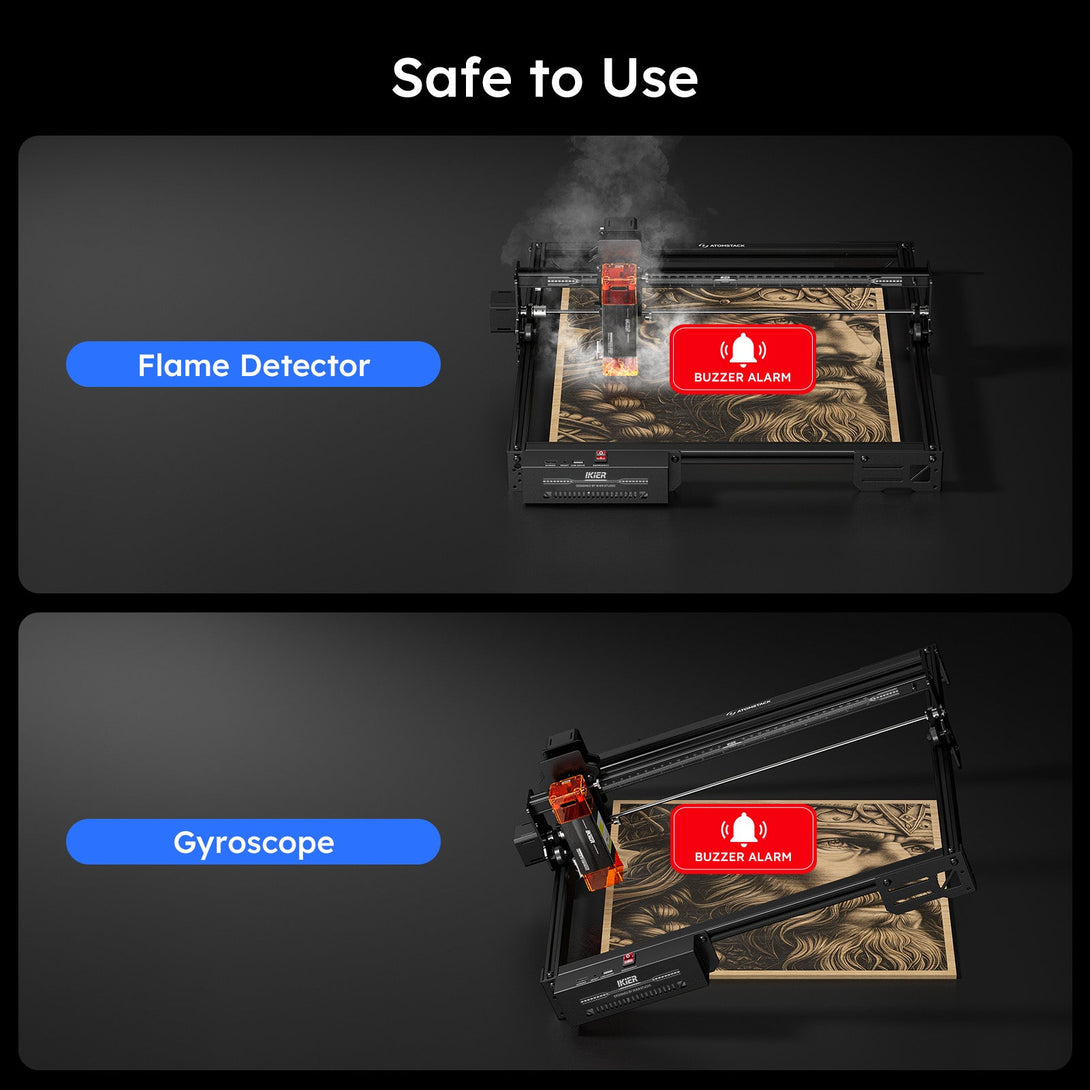

7. Tilt Alarm: When the machine tilts more than 15°, it will automatically stop working and emit a beeping alert.

8. Next-Generation APP Control: The iKier X10 PRO is compatible with the second-generation Atomstack APP, providing a better user experience and more control functions. It supports offline engraving, allowing you to engrave anytime and anywhere without the need for a computer.

9. Power Loss Recovery: With the second-generation APP, the power loss recovery function is available. If there is an unexpected power outage, the machine can continue engraving from the original position (as long as the relative position between the engraving machine and the workpiece remains unchanged).

10. Laser Sintering Temperature: The laser sintering temperature can reach up to 600°C.

Specification

Product Model: iKier X10 Pro
Device Size: 7 x 10 x7 inches
Engraving Size: 410*380mm(16.14*15inches)
Working Principle: Engraving / Cutting
Engraving Materials: Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Anodized Aluminum, Non-reflective Electroplated and Painted Metals, 304 Mirror Stainless Steel, Glass, Ceramic, Cotton Fabric, Slate
Cutting Materials: Cardboard, Non-woven Fabric, Wood, Black Acrylic, Certain Thin Plastics, Sponge
Electric Power Output: 50W
Laser Output Power: 10 - 12W

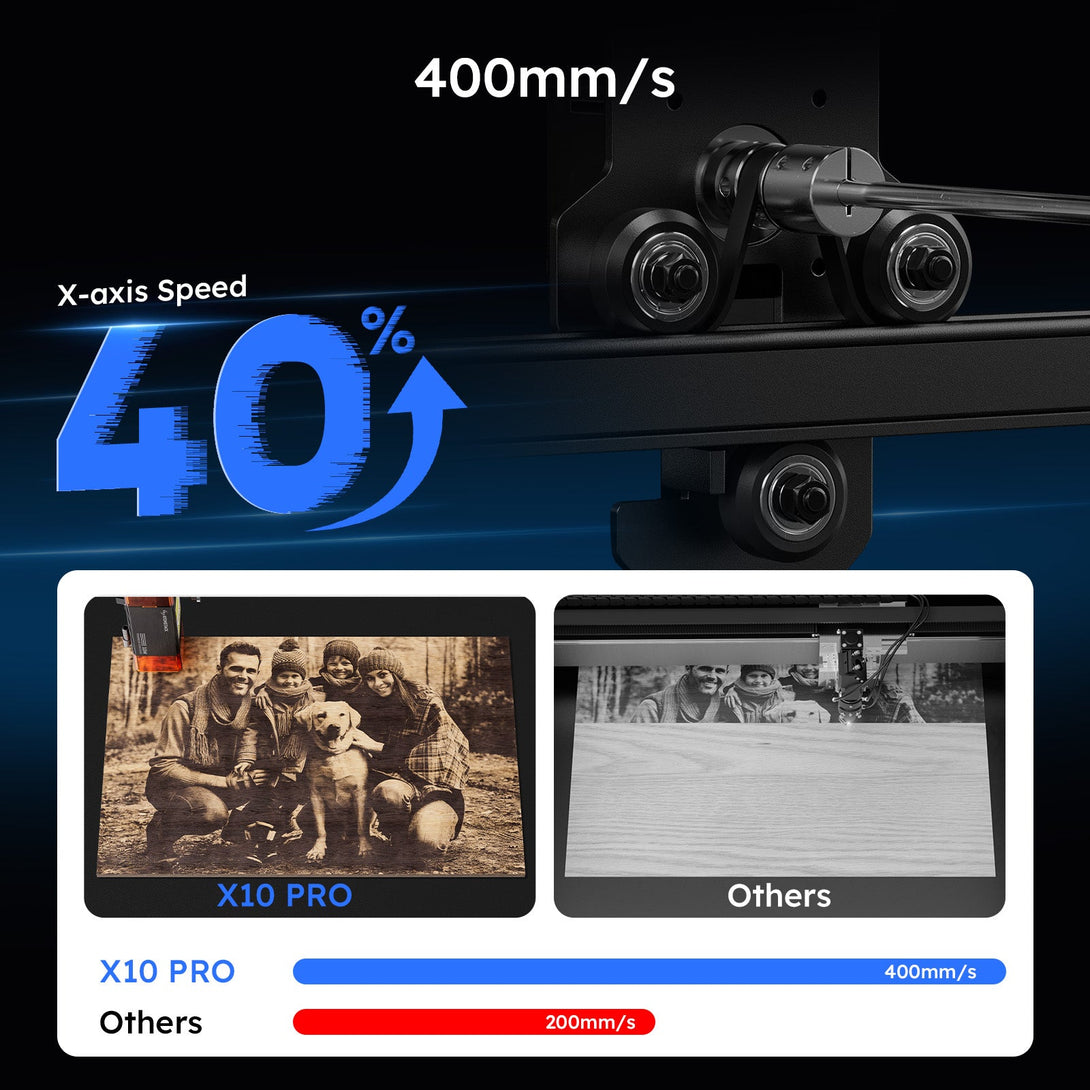

Maximum Speed: 400 mm/s
Laser Wavelength: 455±5nm
Engraving Accuracy: 0.02mm
Spot Size: 0.06*0.08mm
Joint Structure: Guide Rails
Connection Method: USB, Wi-Fi 2.4G
Supported Devices & Operating Systems: Mobile: Android, iOS; Computer: Windows, mac OS
Software: LightBurn, LaserGRBL, Atomstack PC, Atomstack APP
Driver Update: AtomStack APP or USB drive
Supported Formats: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF
Focus Adjustment Method: Automatic focus + Manual focus（The automatic focus requires support from the L2 Z-axis slider）
Tip-over Alarm:  Tipping angle>15°, buzzer prompts
Cross Positioning: Yes
Flame Detection: Yes, it requires support from the L2 Z-axis slider
Resume Engraving: Yes
Quality Certification: CE, FCC, RoHS, FDA, PSE

Precautions:

1. Always install the laser protection cover when operating the laser engraver. If not installed, protective goggles must be worn.
2. Do not touch the laser with your hands as it may cause burns.
3. Avoid subjecting the machine to strong impacts.
4. Children under 14 years of age are prohibited from using this product; adult supervision is required for children over 14 years of age.
5. Do not direct the laser onto any mirror-like reflective surfaces, as this could cause injury to the operator or damage the laser.
