iKier 48W/24W V2 M40 Diode Laser Module

Main Features:

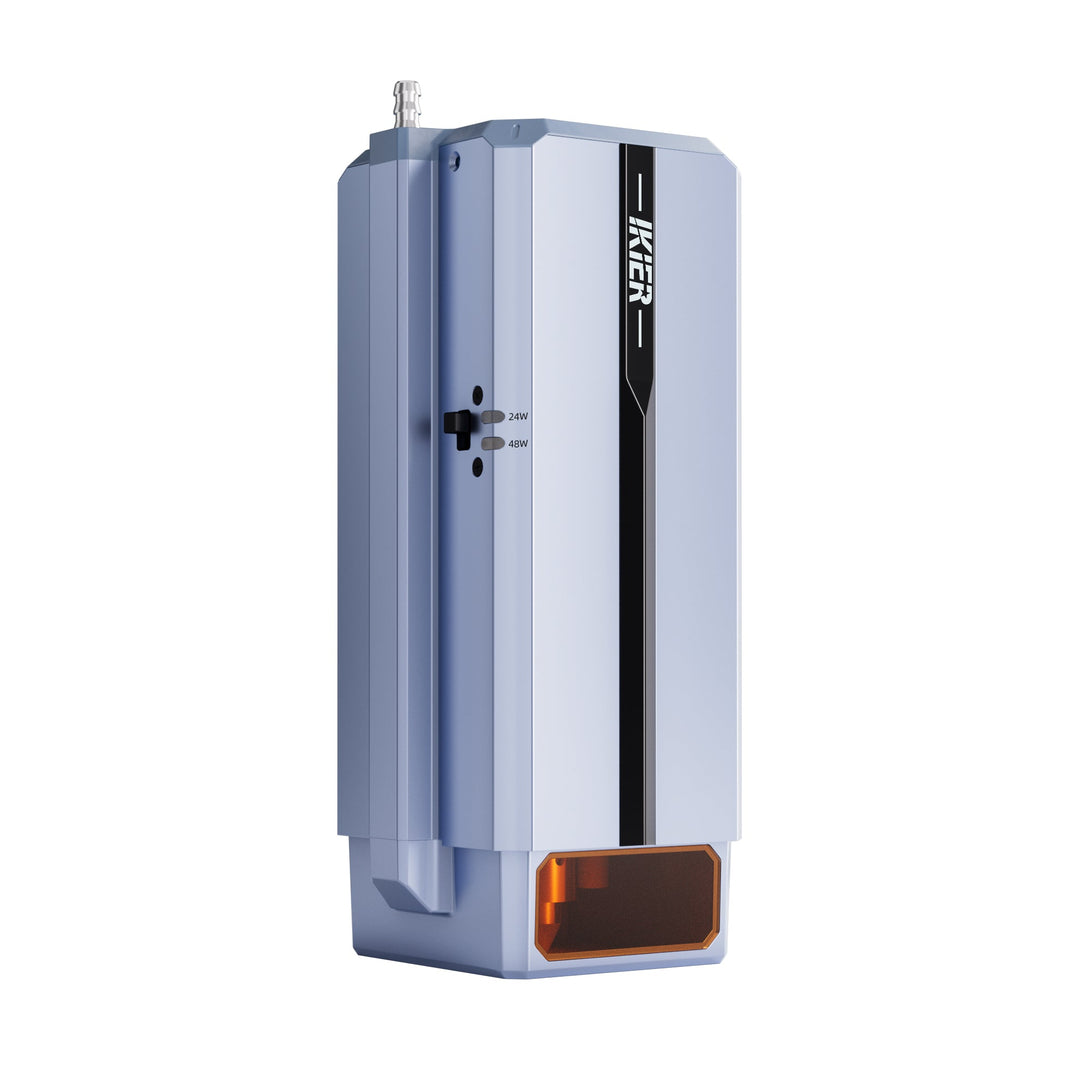

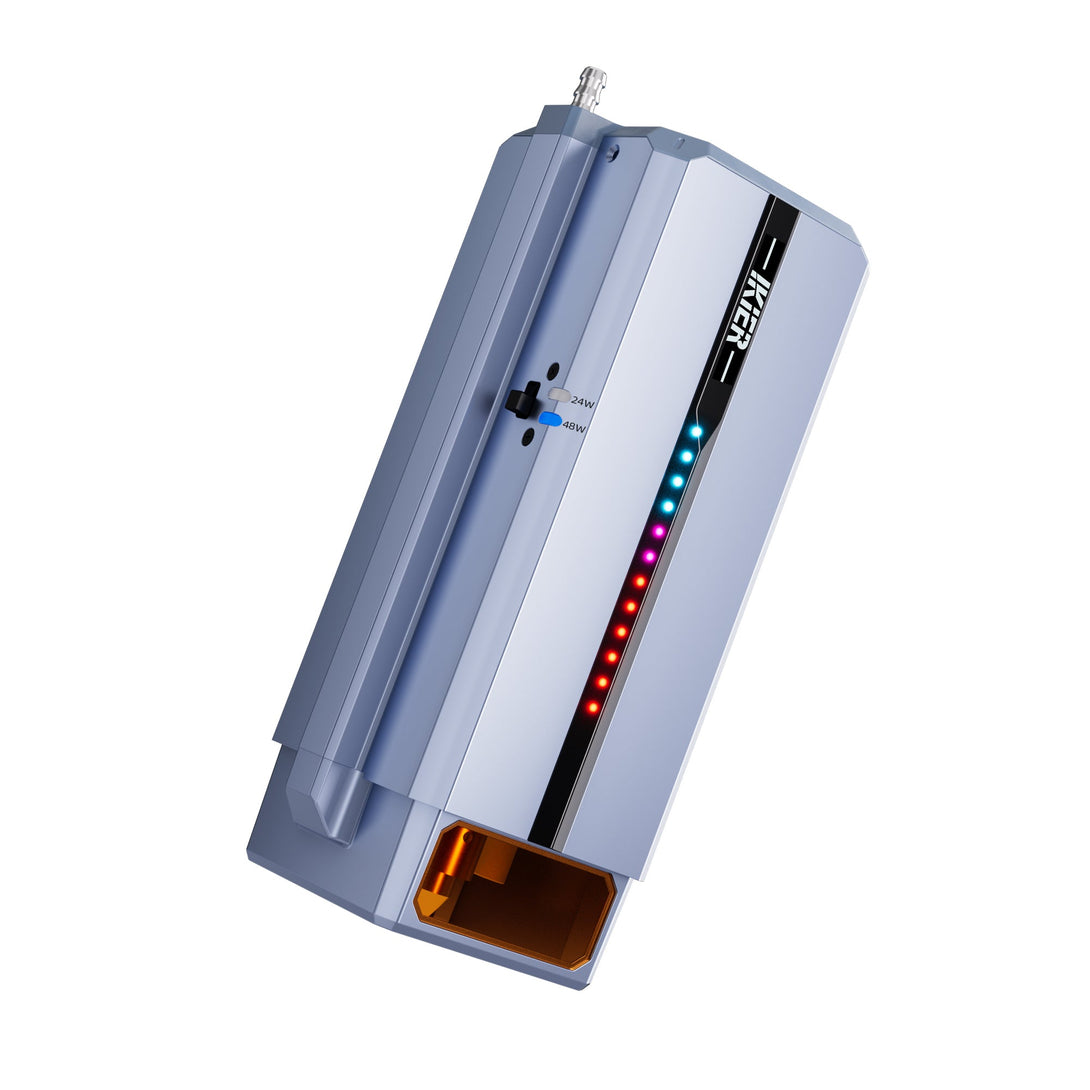

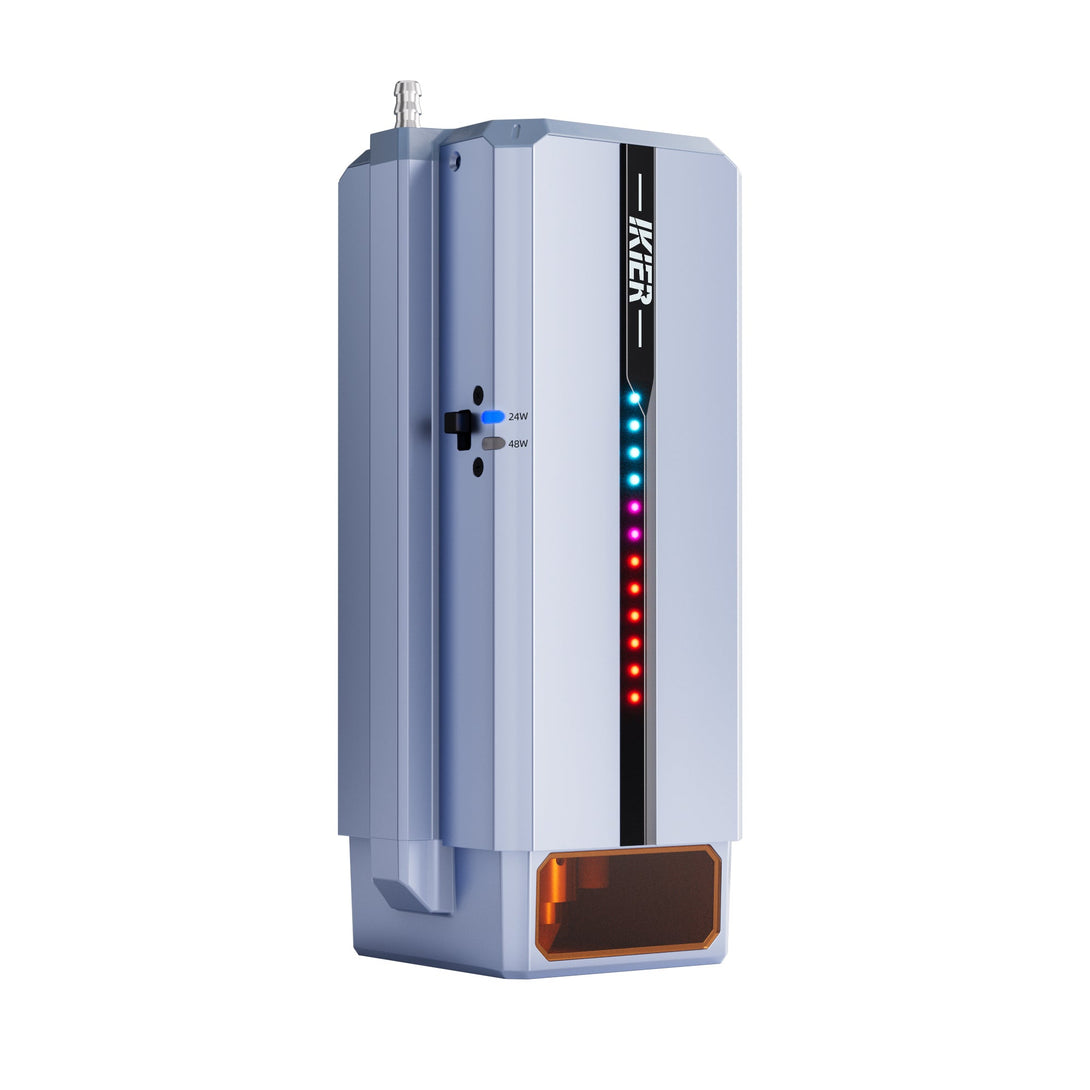

1. 48W / 24W Laser Power Switching: The World's First Gear Switching Laser Module. When you need to cut, you can use the 48W gear, and the laser power is fully turned on; when you need to engrave, you can use the 24W laser gear, and the engraving is more precise.

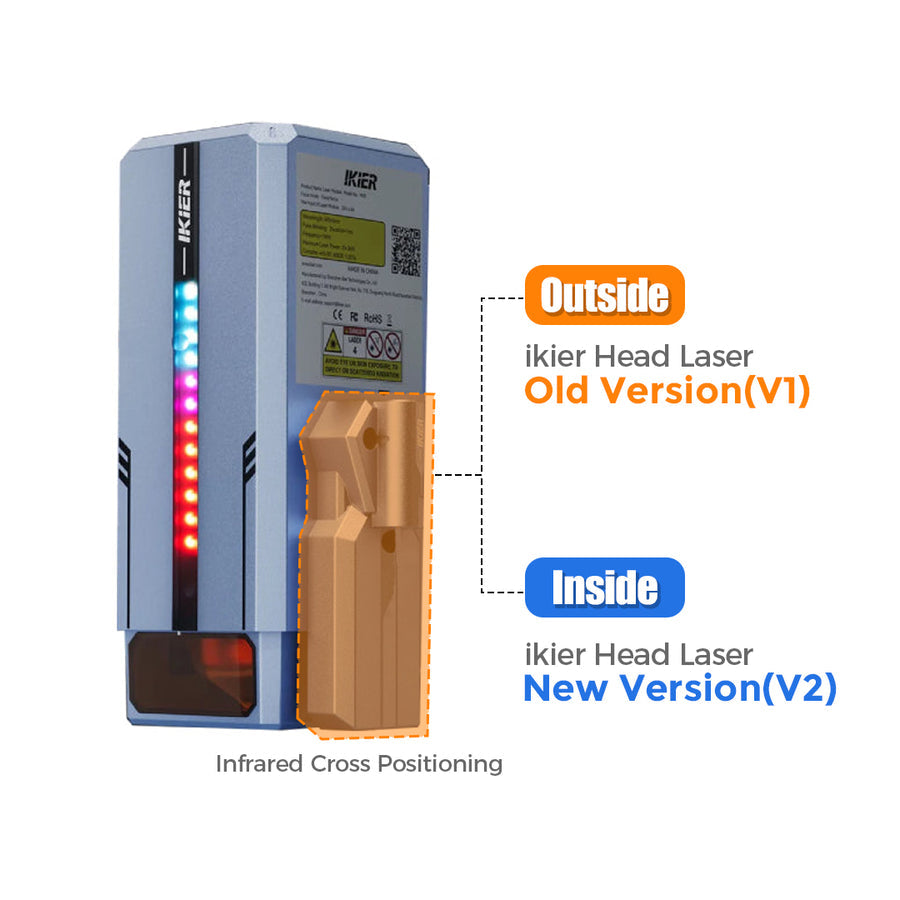

2. Infrared Positioning: The infrared positioning function of a laser engraving machine uses infrared rays to accurately locate the position of the material to be engraved. It projects a visible light onto the surface of the material, allowing for precise alignment of the engraving area and the design.

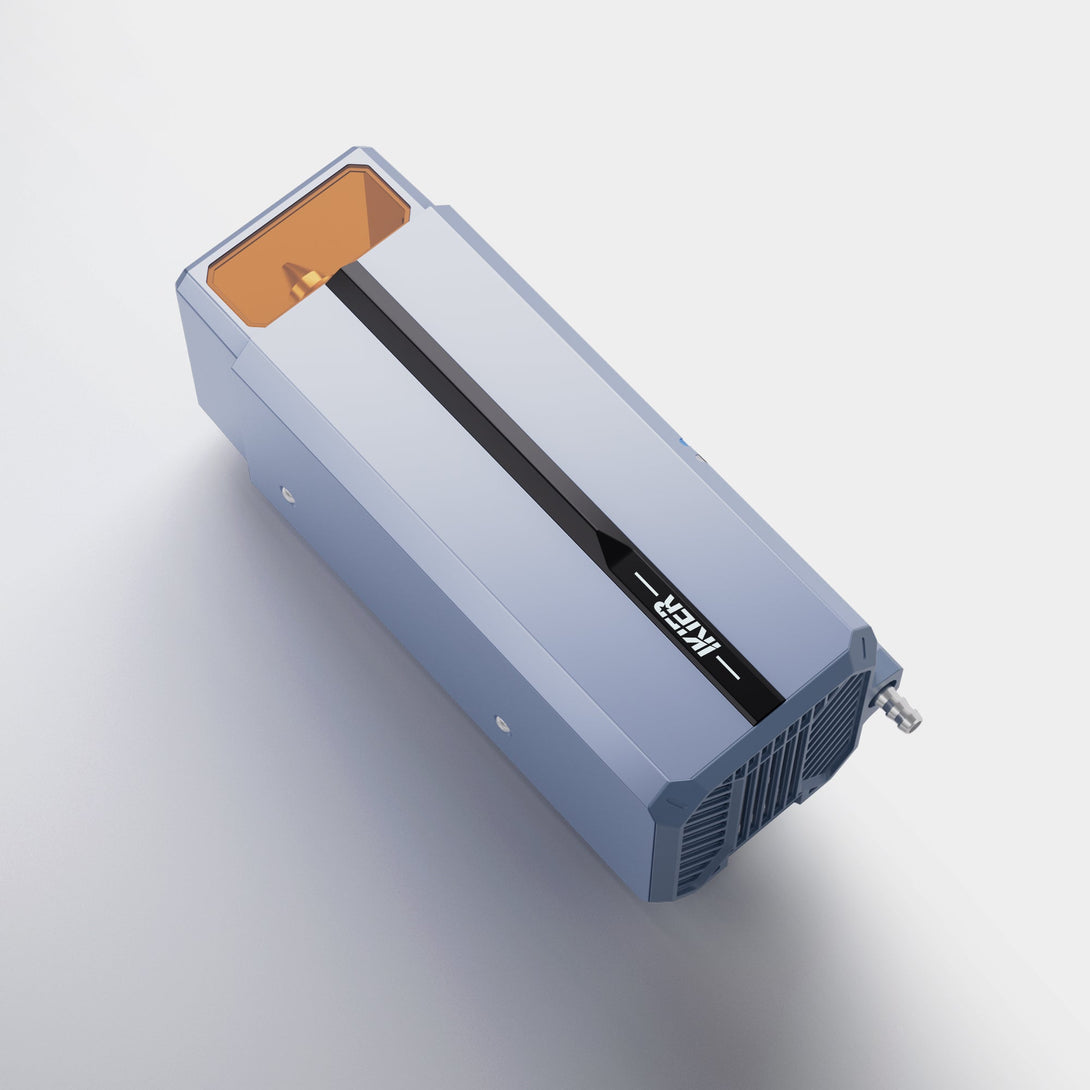

3. Super Cooling System: innovative dual-duct air design with 4 high-quality copper tubes for thermal conduction, double row of large fins on both sides and high-power fan on top to provide maximum heat dissipation for the laser module and ensure coolness.
4. Metal Cutting and Color Engraving: thanks to the powerful optical capabilities of the iKier M40 laser module, all users can try out new and more interesting jobs. Like cutting 0.05 mm stainless steel sheets or color engraving stainless steel sheets in over 360 different colors.

Applicable models :

IKIER K1 12W

IKIER K1 Pro 24W

IKIER K1 Ultra 36W

IKIER K1 Pro Max 48W

Specifications :

Brand: IKIER
Model: M40
Optical Output Power: 44-48 W, 21-24 W
Spot Size: 0.08 mm x 0.1 mm (24 W) 0.1 mm x 0.15 mm (48 W)
Engraving Accuracy: 0.01 mm
Laser Focal Length: 40 mm
Laser Wave: 455 ± 5 nm
Fan: 24 V
Laser Beam Mode: spot
Operating Mode: pulse operation
