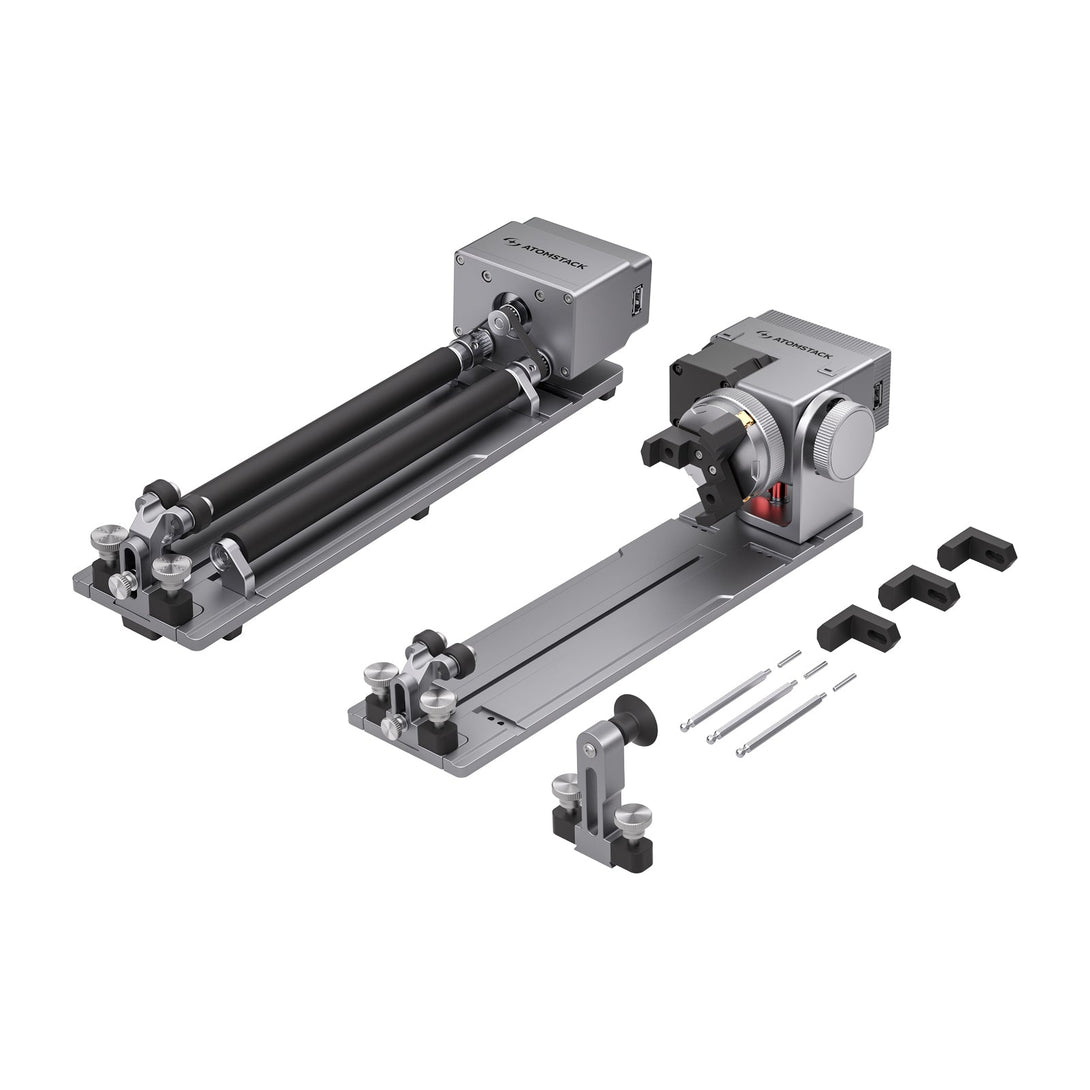

Atomstack R8 Pro Upgraded Chuck and Roller Rotary Laser Engraver

Features:

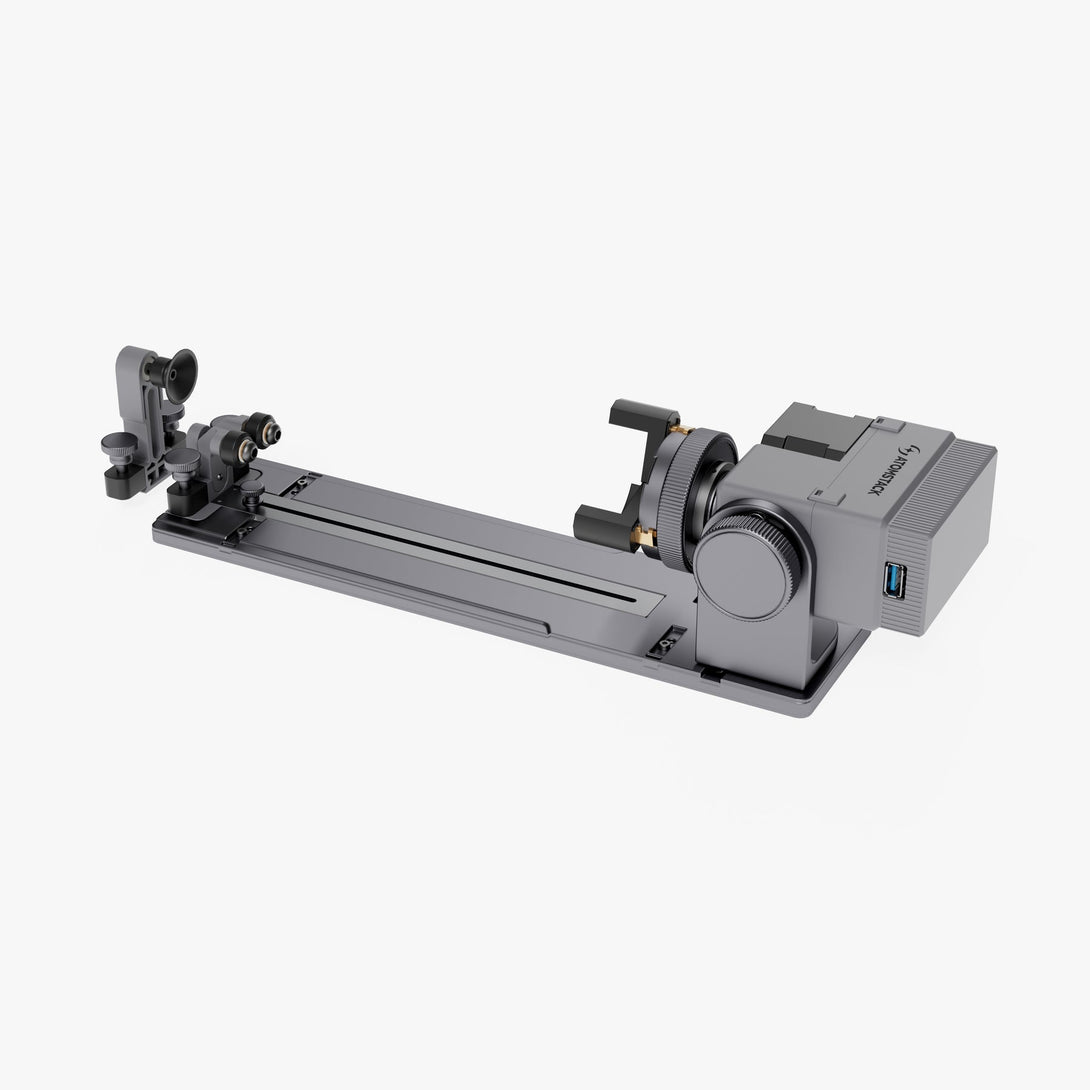

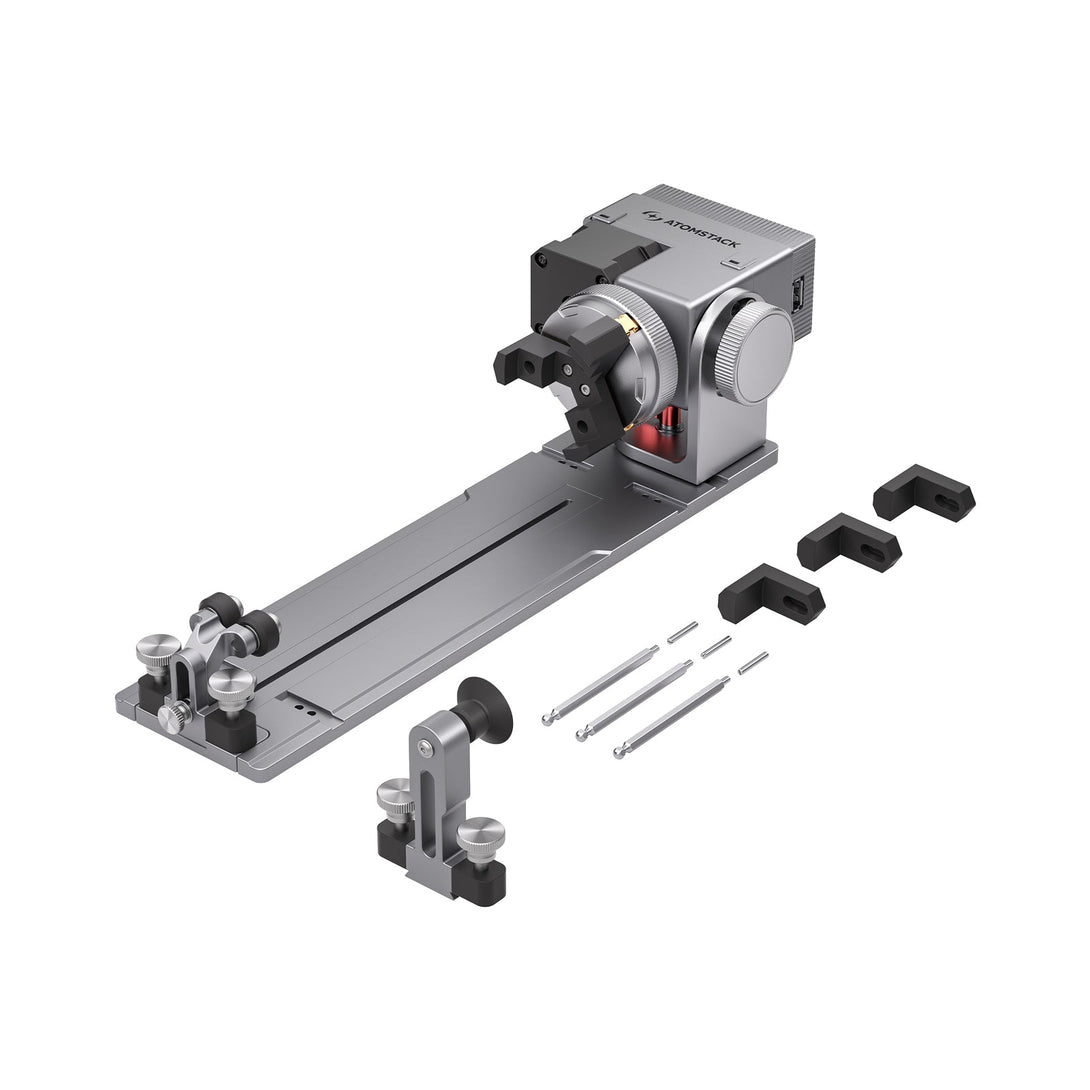

R8 Rotatry Chuck is equipped with adjustable jaws or clamps, ensuring a secure grip on objects of varying thicknesses and shapes.

Irregularly Shaped Objects: The R8 securely holds a variety of irregular items, such as cups, spheres, and rings, ensuring precise engraving.
Flexible Adaptability: Designed to adjust to different shapes and sizes, the R8 provides stable and reliable support throughout the engraving process.

• Enhanced Usage Scenarios: Expand your engraving capabilities beyond flat surfaces, working effortlessly with irregularly shaped objects.
• Smart Recognition: Equipped with a built-in recognition chip that integrates seamlessly with Atomstack Studio, removing the need for manual parameter adjustments. Fully compatible with LightBurn.
• Expandable Design: Accommodates longer items, surpassing the limitations of standard chucks for greater versatility.
• Plug-and-Play: No installation required—simply connect via USB for effortless setup and operation.
• Sturdy and Safe: Constructed from high-quality aluminum alloy and high-hardness brass, ensuring exceptional durability and stability.

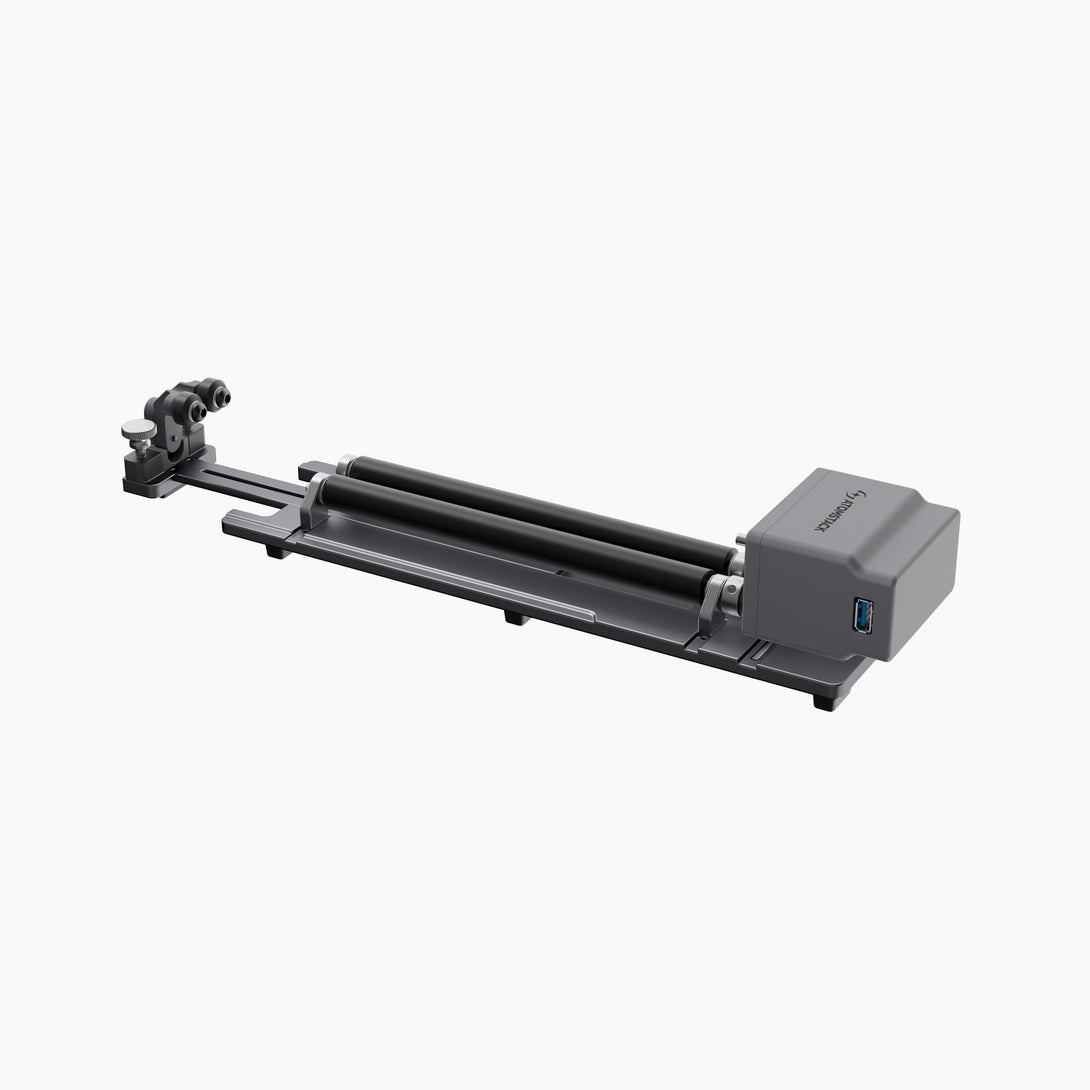

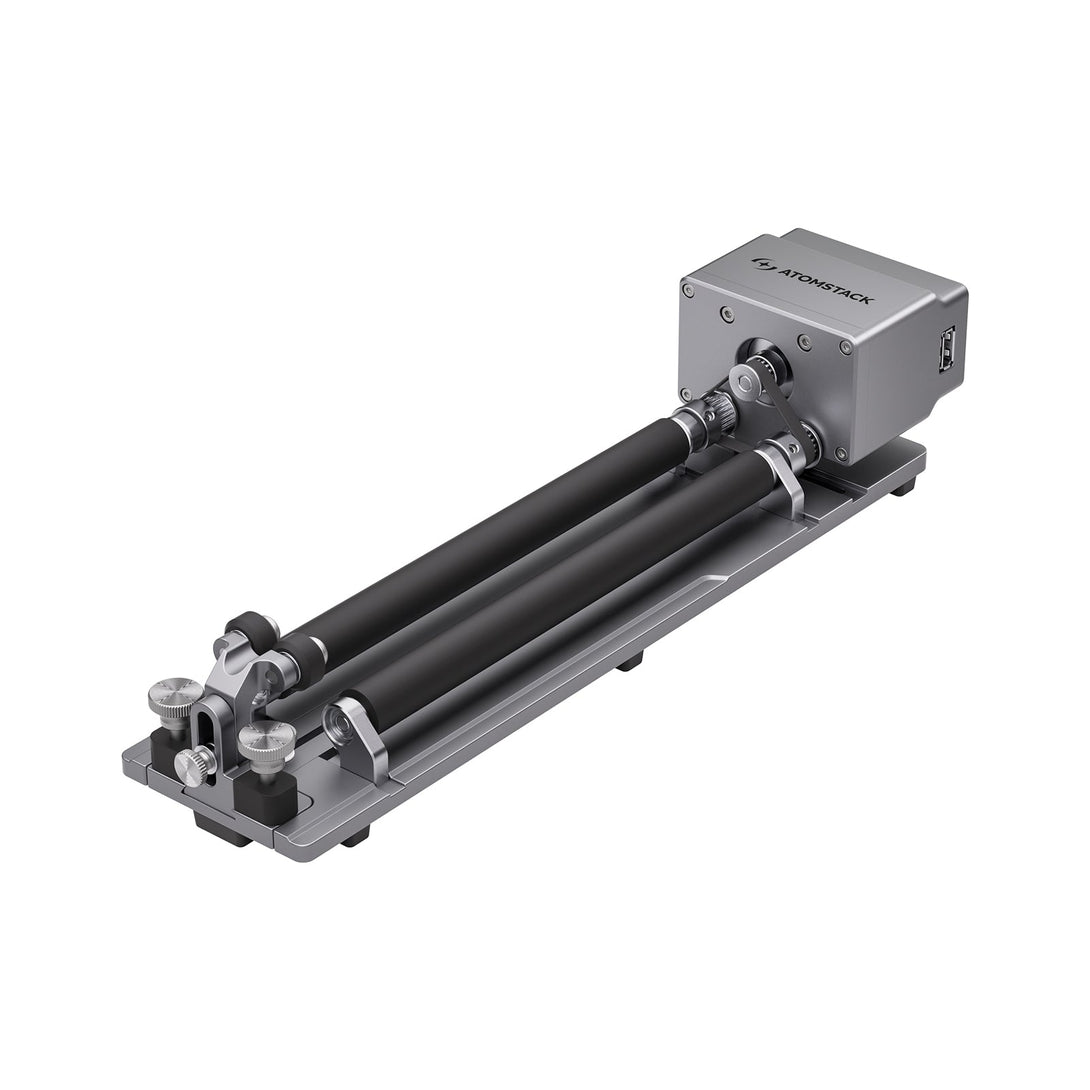

R6 Rotary Roller is designed with adjustable parallel rollers, providing a secure grip and smooth rotation for cylindrical items like bottles and tumblers, enabling precise engraving on curved surfaces.

Standard Cylinders: R6 is ideal for engraving cylindrical objects such as wine bottles, pipes, and other round containers.
Consistent Diameter Requirement: For optimal performance, the engraved object should maintain a uniform diameter to ensure smooth and even rotation.
Rotational Engraving: Designed for seamless wrap-around engraving, making it perfect for full-circle designs. While not suitable for excessively long objects, R6 supports extensions for lengths up to 650mm.

1. Enhanced Versatility: Perfect for engraving both standard and slightly irregular cylindrical objects, including thermoses, baseball bats, and wine glasses.
2. Smart Recognition:  Equipped with a recognition chip for seamless integration with Atomstack Studio, eliminating manual setup. Fully compatible with LightBurn.
3. Expandable Design: Supports longer items, offering greater flexibility for various engraving needs.
4. Plug-and-Play: Features a USB interface for effortless, hassle-free connectivity and operation.
5. Adjustable Diameter: Adapts to different object sizes, ensuring precise engraving within the supported diameter range.

Specification:

R8 Rotatry Chuck
Total Weight: 1.5 kg
Rotation Angle: 25°
Engraving Diameter (Cylindrical Objects): 0-80 mm
Engraving Diameter (Circular Objects): 10-70 mm
Engraving Diameter (Spherical Objects): 25-80 mm
Load Capacity: 1.5 kg

R6 Rotary Roller
Total Weight: 1.4 kg
Engraving Diameter (Cylindrical Objects): 0-120 mm
Load Capacity: 1.5 kg

Compatibility:

Older frame models lack auto-recognition functionality and require the old motor cable for compatibility (included in the package).

iKier & Atomstack P1
Atomstack X70Max A70Max
Atomstack X40Max A40Max S40Max
......

All ikier machines
All Atomstack Laser diode machines

Packing List:

More details:
