Features:

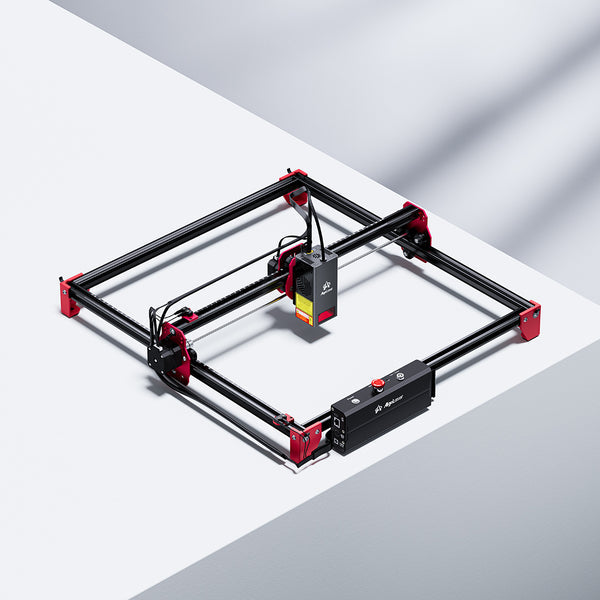

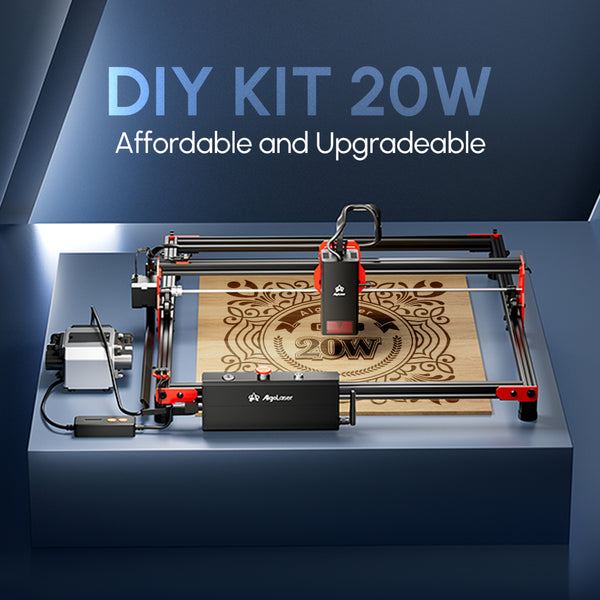

Powerful Performance: The DIY KIT 20W Diode Laser Engraver features a robust 20W laser module, enabling efficient batch engraving and cutting, thereby significantly enhancing productivity.
High-Speed Engraving: With a maximum engraving speed of 12,000mm/min, this machine ensures rapid project completion without compromising quality.

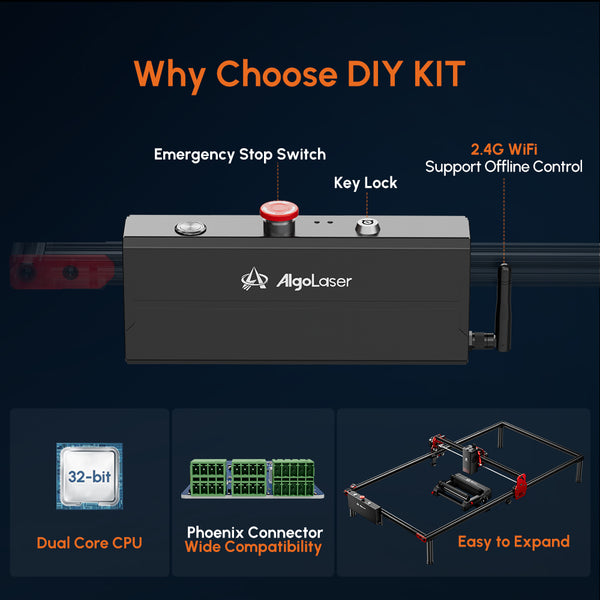

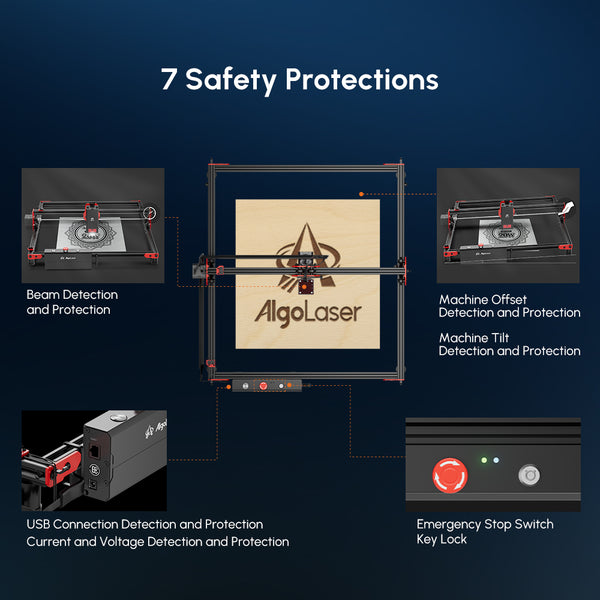

Enhanced Safety Measures: The engraver is equipped with seven safety protections, including a safety lock, gyroscope detection, active light detection, USB disconnect shutdown, voltage and current safety control, an emergency stop switch, and temperature monitoring, ensuring user safety during operation.

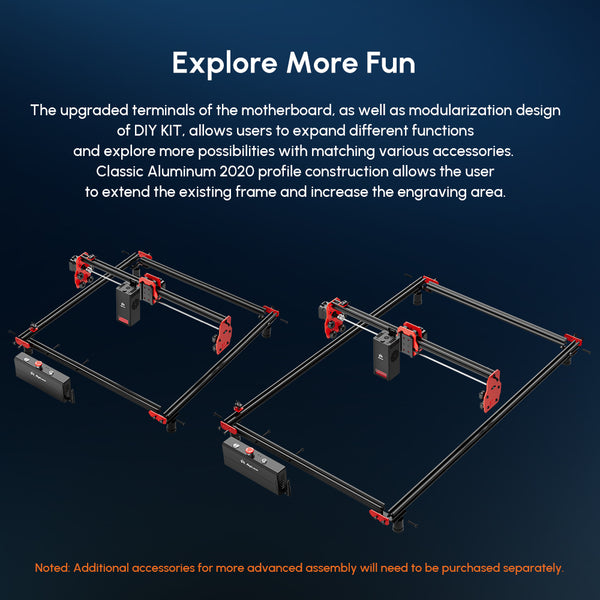

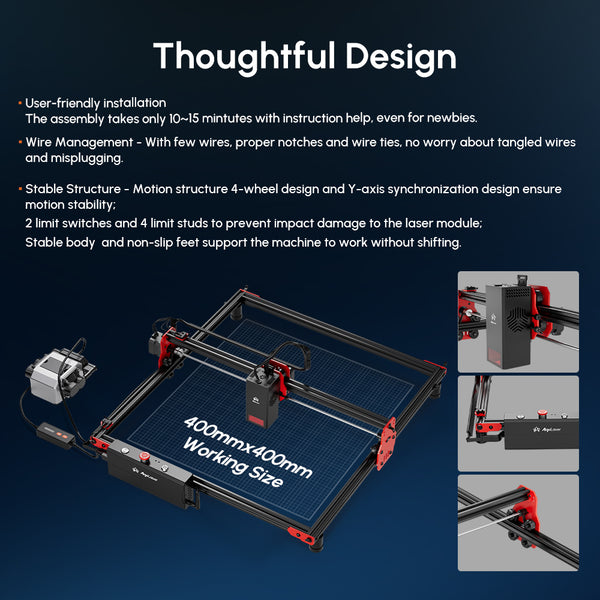

User-Friendly Design: The DIY KIT's modular design allows for easy assembly within 10 to 15 minutes, even for beginners, and offers the flexibility to upgrade and expand with additional accessories.

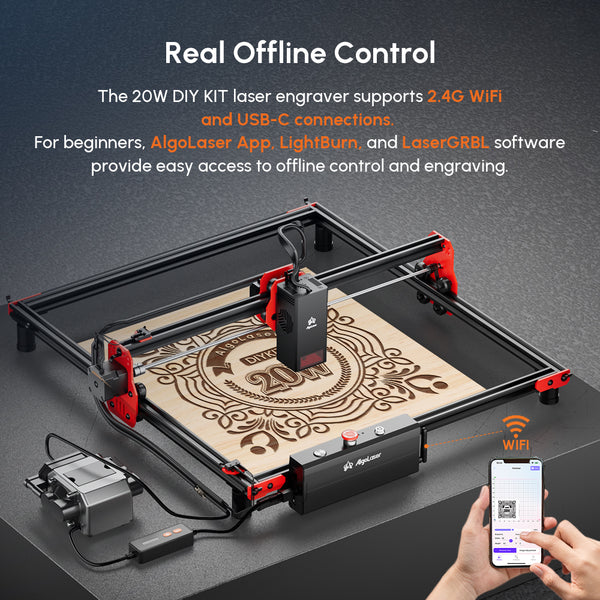

Advanced Connectivity: Supporting Wi-Fi, USB-C, and a built-in TF card, this engraver offers versatile connectivity options, allowing users to operate the machine offline via the AlgoLaser App, enhancing convenience and flexibility.
Specification:
|
AlgoLaser DIYKIT Mechanical Frame |
Optical Power: ≥20000mW(20W) Machine Power: 144W Power Supply: DC24V/6A Engraving Speed:12000mm/min Spot Size:0.15*0.12mm Product Size: 642mm*602mm*180mm Product Weight: 5.08kg Packing Weight 5.87kg Packing Size 650mm*295mm*145mm Laser Head Life Expectancy: >10000 hours Certification: FCC/CE/RoHS/FDA Warranty: 12 Months Safety Features: Safety Lock (Keep the Key, Professional Use only), Gyroscope detection, Active Light Detection and Protection, USB Disconnect Shutdown, Voltage and Current Safety Control System, Emergency Stop Switch, Temperature Monitoring |
|
Software and Connection |
System Supported: Android、iOS、Windows、Mac OS、Web-based Control Software: AlgoLaser App / LightBurn/LaserGRBL Compatible Accessories: 5W laser module,10W laser module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, |
|
Packaging |
Box Size: L66*W31*H16cm Gross Weight: 5.0KGS |
Comparison:
|
Laser Head |
10W |
5W |
2W |
|
Laser Module Size |
43.5mm*43.5mm*173.7mm |
44mm*44mm*132mm |
38.5mm*36mm*108.5mm |
|
Optical Power Output: |
≥10000mW(10W) |
≥5000mW(5W) |
≥2000mW(2W) |
|
Laser Output Wavelenght: |
455±5nm |
455±5nm | 455±5nm |
|
Spot Size: |
0.05mm*0.1mm |
0.04mm*0.09mm |
0.04mm*0.09mm |
|
Focal Distance: |
5mm(From Module Radiator to Material) |
4.8mm(From Module Radiator to Material) |
5mm(From Module Radiator to Material) |
|
Operating Temperature: |
0℃--35℃ |
-10℃--40℃ |
0℃--70℃ |
