AlgoLaser Alpha MK2 20W Diode Laser Engraver

Name: AlgoLaser Alpha MK2 20W Diode Laser Engraver
Brand: AlgoLaser
SKU: AlgoAMK2-20W-US
Price: 639.0 USD
Availability: InStock

$639.00

Bundle: Alpha MK2 20W

Alpha MK2 20W

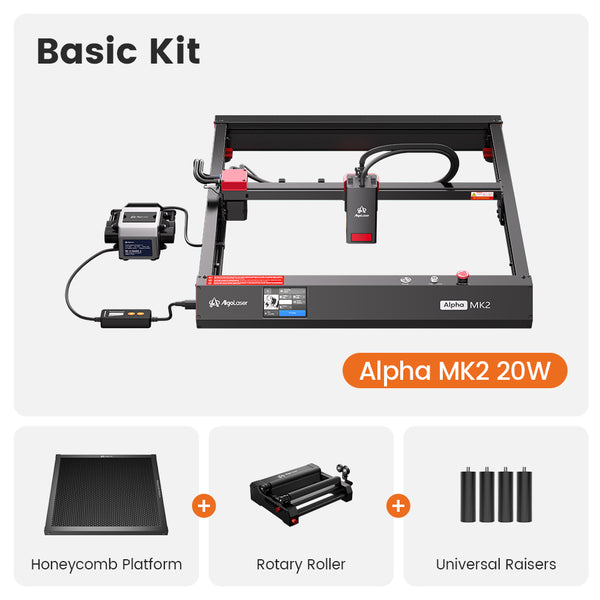

Alpha MK2 20W Basic Kit

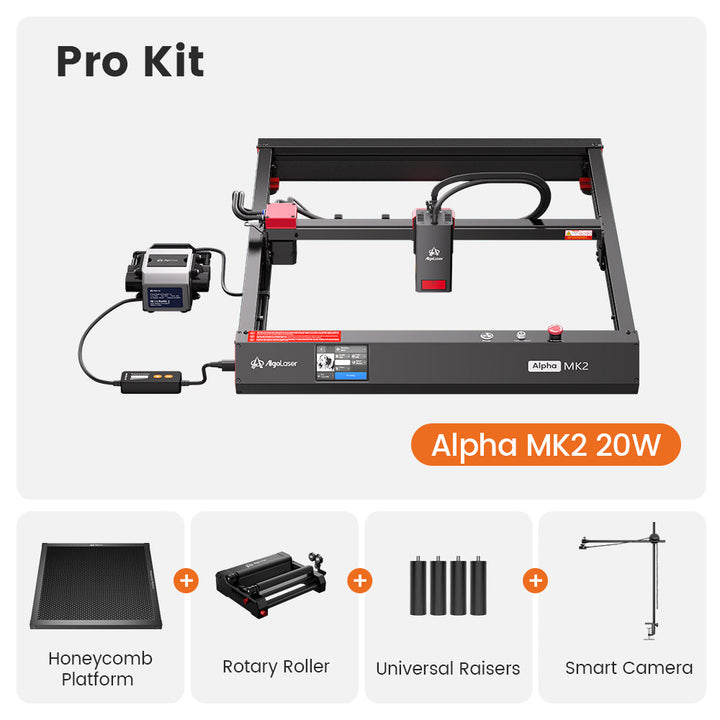

Alpha MK2 20W Pro Kit

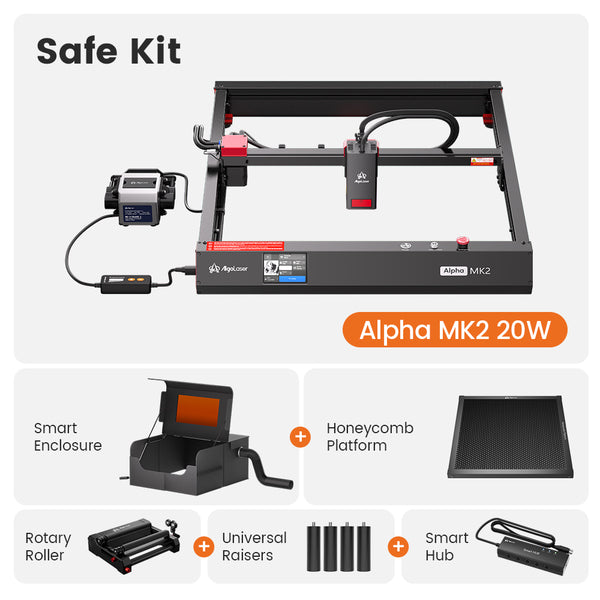

Alpha MK2 20W Safe Kit

Alpha MK2 20W Metal Master Set

Plug Type: US Plug

US Plug

EU Plug

UK Plug

AU Plug

🚚 1–2 Day Dispatch | DHL / FedEx / UPS / USPS

FAST SHIPPING

Local warehouses in the U.S. and Europe

SUPPORT 24/7

Quick response online chat system

7 DAYS RETURN

Simply return it within 7 days for an exchange

PAYMENT SECURE

We ensure secure payment with PEV

Why Desktop Diode Laser Engravers Are Replacing Traditional Workshop Tools for Makers and Small Businesses

68% of desktop laser buyers report that standard entry-level engravers cannot run jobs without a connected computer — making standalone, touchscreen-operated machines like the AlgoLaser Alpha MK2 the fastest-growing category in affordable desktop laser engravers. The MK2 combines a 20W diode laser, 3.5-inch AlgoOS 2.0 touchscreen with 32GB onboard storage, 400×410mm work area, and 20,000mm/min engraving speed — delivering professional output without professional complexity.

Most Laser Engravers Require a Connected Computer to Run Every Job

NLP pain point: "Can I run my laser engraver without a computer attached? I want to use it away from my desk."

The vast majority of desktop laser engravers in the $400–$800 price range require a connected PC running LightBurn or a smartphone with an app for every single job — which limits where you can work and creates a bottleneck in batch production workflows. The Alpha MK2's 3.5-inch AlgoOS 2.0 touchscreen with 32GB internal storage enables fully standalone operation: load a file once, then run unlimited jobs with no connected device required.

Entry-Level Lasers Are Too Slow for Batch Production

PAA: "How fast should a laser engraver be for small business production? What's a good engraving speed?"

Most entry-level diode engravers in the 5W–10W class run at 6,000–8,000mm/min — creating long job times that kill productivity on repeat orders. The Alpha MK2 reaches 20,000mm/min maximum engraving speed, which AlgoLaser's published specifications show is approximately 3× faster than the class average. For batch runs of custom gifts, branded merchandise, or repeat orders, the speed difference translates directly to revenue per hour.

Cutting Thick Wood and Acrylic Requires More Power Than Budget Lasers Provide

PAA: "What wattage laser do I need to cut 5mm plywood? Can a diode laser cut acrylic?"

5W and 10W diode lasers struggle with material thickness above 3–4mm plywood and often require multiple slow passes on acrylic. The Alpha MK2's 20W diode laser uses advanced spatial coherence technology with a 0.15×0.12mm spot size — enabling single-pass cuts through 5mm plywood, reliable cutting of acrylic and leather, and deep engraving on wood, bamboo, and MDF with the cutting headroom that lower-power machines simply cannot deliver.

Color Engraving on Stainless Steel Seems Out of Reach at This Price

NLP pain point: "Can a diode laser engrave color on stainless steel? I thought you needed a fiber laser for that."

Many makers assume color stainless steel engraving requires a fiber or MOPA laser system costing $1,500+. The Alpha MK2 uses controlled parameter settings through AlgoOS and LightBurn to produce over 500 shades of color on stainless steel — including gold, blue, purple, and the full oxidation spectrum — without any additional equipment. This opens high-value product categories like custom drinkware, jewelry pieces, and branded metal items to buyers at a fraction of the cost.

Smart Accessories Require Manual Setup and Separate Controls

PAA: "Do smart laser enclosures and air pumps need separate switches? How do I automate accessories with a laser engraver?"

Most desktop laser engravers treat accessories as independent devices — the air pump, enclosure fan, and rotary chuck all require separate power switches and manual start/stop coordination. The Alpha MK2's smart accessory ecosystem (smart air pump, smart enclosure, rotary chuck) is automatically controlled by the machine through AlgoOS — starting and stopping in sync with each job without any manual intervention, keeping the workflow as simple as tap-and-engrave.

Power Interruptions Destroy Long Engraving Jobs

NLP pain point: "My laser engraver restarted from the beginning after a power outage. Is there a laser with power-loss recovery?"

On most engravers, an unexpected power cut or emergency pause means starting the entire job over — wasting both material and time. The Alpha MK2's power-loss recovery function saves the exact job position before interruption; when power is restored, pressing Recovery resumes from exactly where the laser stopped with no loss of alignment or progress. This feature is particularly valuable for large, multi-hour engraving jobs where restart would waste significant material.

Insight

The AlgoLaser Alpha MK2 attracts buyers because it solves the single biggest frustration of desktop laser ownership — machine dependency — in a way no comparable-priced competitor does: true standalone touchscreen operation with onboard storage. Combined with 20W cutting power, 20,000mm/min speed, color stainless steel capability, and smart ecosystem accessories, the MK2 delivers a feature set that was previously only available on machines costing $300–$500 more. That value clarity makes the purchase decision easy for both hobbyists and small business owners.

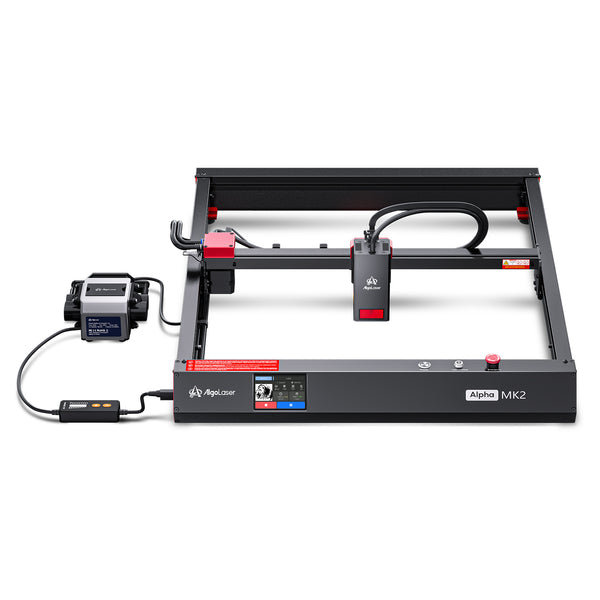

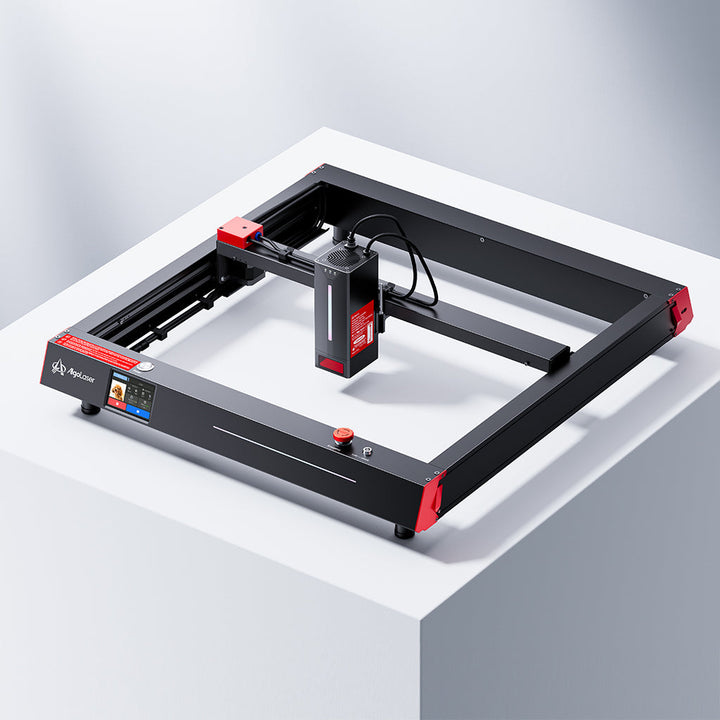

AlgoLaser Alpha MK2 – 20W Diode Laser Engraver with 3.5" AlgoOS Touchscreen, 400×410mm Work Area, 20,000mm/min Speed & Standalone Operation

Engrave custom wood gifts, cut acrylic signage, mark leather goods, and produce color artwork on stainless steel — all from a single machine that runs without a connected computer. The AlgoLaser Alpha MK2 is built around a 20W diode laser (0.15×0.12mm spot, 20,000mm/min max speed) and a 3.5-inch AlgoOS 2.0 touchscreen with 32GB onboard storage that enables fully standalone tap-and-engrave operation — a feature normally reserved for machines costing $300+ more. The 400×410mm work area, dual CPU quad-core motherboard, power-loss recovery, smart accessory auto-control (air pump, enclosure, rotary chuck), and compatibility with LightBurn, LaserGRBL, and the AlgoLaser App make the MK2 the most capable desktop diode laser in its price class for hobbyists, makers, and small business owners.

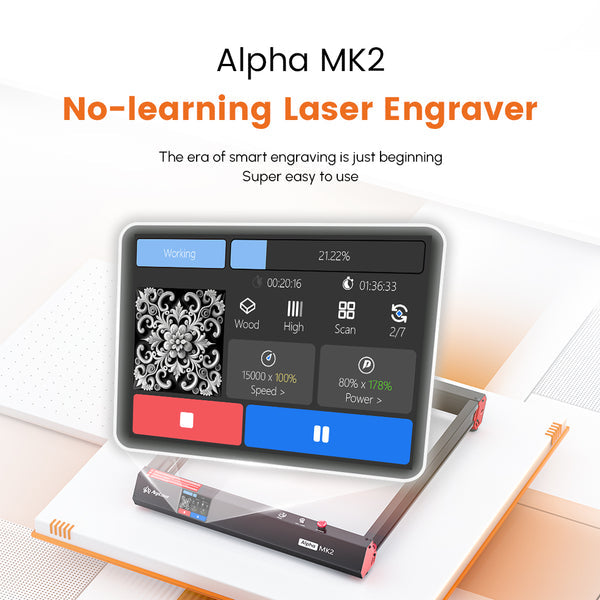

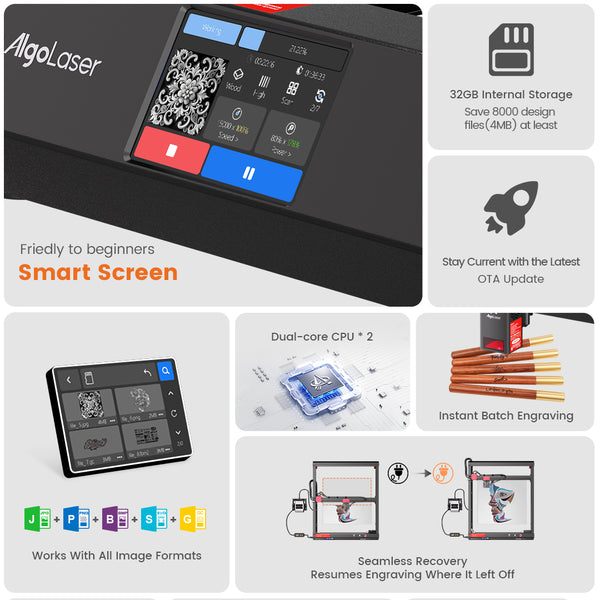

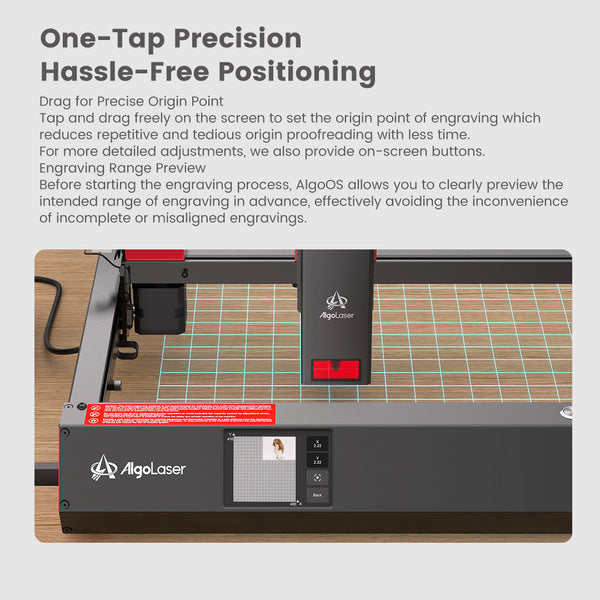

3.5" AlgoOS 2.0 Touchscreen – Standalone Laser Engraving with 32GB Onboard Storage

The Alpha MK2's most important differentiator is a feature that most comparable desktop lasers don't have at all: true standalone operation via a 3.5-inch AlgoOS 2.0 touchscreen with 32GB internal storage.

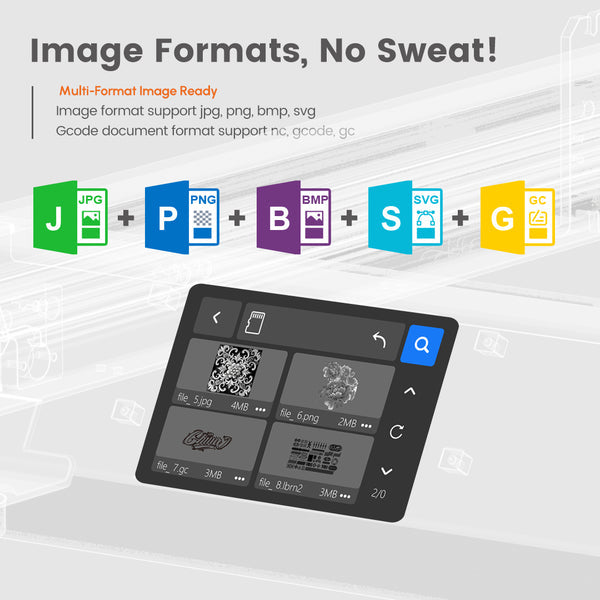

Load your design once via USB, WiFi, or cable — then run the same job unlimited times directly from the touchscreen with no connected computer, phone, or tablet required. Drag to reposition artwork, adjust size directly on screen, preview the Gcode path before burning, and access the full AlgoOS material preset library — all from the device itself.

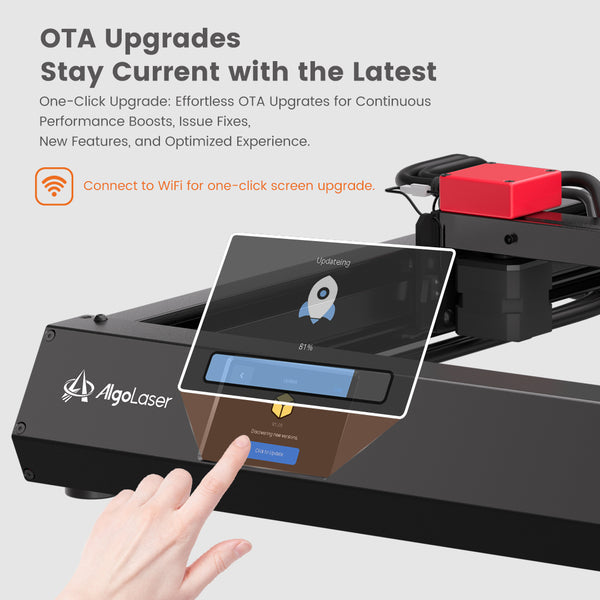

OTA firmware updates keep the operating system current over WiFi, and SD card upgrades provide a manual update path. The dual CPU quad-core motherboard ensures the OS remains responsive even during complex multi-layer engraving jobs.

20W Diode Laser at 20,000mm/min – 3× Faster Batch Production, Cuts 5mm Plywood Single Pass

The Alpha MK2's 20W diode laser module uses advanced spatial coherence technology to produce a 0.15×0.12mm precision spot — delivering both fine engraving detail and the raw power output required for thick-material cutting.

20,000mm/min maximum engraving speed makes the MK2 approximately 3× faster than typical entry-level desktop engravers running at 6,000–8,000mm/min, according to AlgoLaser's published specifications — a meaningful productivity difference for batch production of custom gifts, branded merchandise, and repeat orders.

Cutting capability includes 5mm plywood in a single pass, clean acrylic cuts, leather, fabric, cork, cardboard, MDF, and bamboo. The included air assist pump reduces char on wood and acrylic cuts and clears smoke from the kerf — improving edge quality without purchasing additional equipment.

Smart Accessory Ecosystem – Auto Air Pump, Smart Enclosure & Rotary Chuck, All Machine-Controlled

Unlike most laser engravers where each accessory requires its own power switch and manual coordination, the Alpha MK2's smart accessory ecosystem is automatically controlled by the machine:

Smart air pump — starts and stops automatically with each engraving or cutting job; no manual activation required
Smart enclosure — controls the exhaust fan and monitors job status through AlgoOS; activates automatically for smoke and fume management
Smart rotary chuck — auto-recognized when connected, eliminating manual configuration for cylindrical object engraving on tumblers, cups, rings, and pens
Smart camera — optional add-on for live preview positioning directly on the workpiece

The 10W and 40W laser modules are also field-swappable, meaning the same machine body handles different power and precision requirements without hardware replacement beyond the module itself.

LightBurn, LaserGRBL & AlgoLaser App Compatible – 500+ Color Shades on Stainless Steel

The Alpha MK2 supports the full range of desktop laser software — from beginner-friendly to professional-grade:

AlgoLaser App (iOS & Android) — the recommended starting point for beginners; simple image import, material presets, and WiFi job transfer without a cable
LightBurn — the professional standard for advanced layer control, vector import, speed/power parameters, and fine-grained engraving profiles
LaserGRBL (10W model) — open-source Windows control for users who prefer a free, lightweight workflow

All three connect via WiFi or USB, so you can design on a desktop, transfer over WiFi, and run offline from the internal storage with no cable attached to the machine during the job.

Color stainless steel marking — 500+ shades including gold, blue, green, red, and purple — is achievable through AlgoOS and LightBurn parameter control without additional equipment. Also engraves aluminum oxide, coated metals, glass, ceramics, and leather.

400×410mm Work Area & Power-Loss Recovery – Large Projects, Uninterrupted Production

The Alpha MK2's 400×410mm working area (machine footprint: 692×585mm) is one of the largest available in its price class — accommodating A3-size material, wide wooden boards, full-length tumblers in the rotary chuck, and large acrylic panels for signage and custom gifts in a single uninterrupted job.

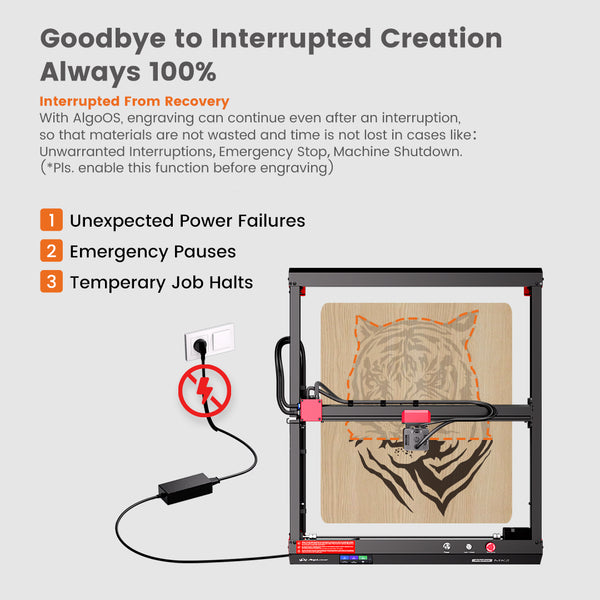

Power-loss recovery means an unexpected outage, emergency stop, or deliberate pause doesn't destroy your work. When power is restored or the job is resumed, the MK2 continues from the exact point of interruption — protecting both the material and the time already invested in any large job.

Safety systems include an emergency stop button, tilt and vibration sensors that automatically halt the laser if the machine is moved unexpectedly, and protective eyewear included in the box — providing the active protection layer that standalone, unmonitored operation requires.

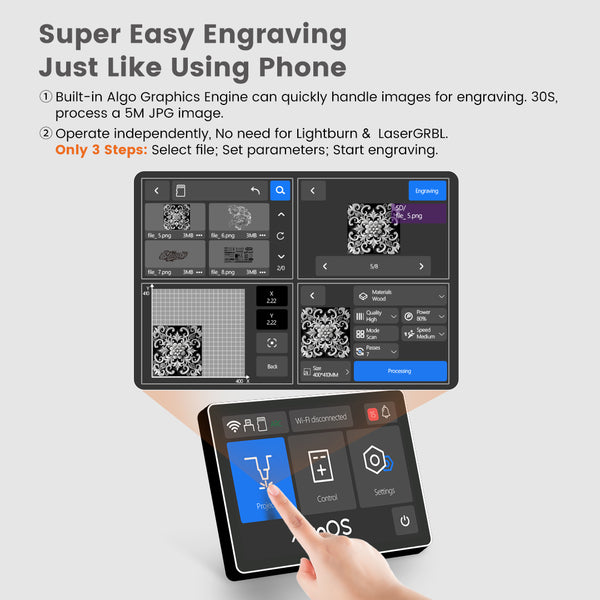

Snap & Engrave, Relief Art & Material Presets – From Photo to Finished Product in 3 Steps

AlgoOS 2.0 is designed around a three-step workflow that removes the technical barriers between an idea and a finished engraved product:

Snap & Engrave — take a photo directly on the touchscreen or import an existing image; AlgoOS processes it for engraving without external software
Material presets library — select your material (wood, acrylic, leather, cardboard, rubber, metal) and AlgoOS automatically sets optimized speed, power, and pass parameters
Gcode preview — visualize the complete tool path before committing to the job; catch positioning or sizing errors before burning material

For advanced users, relief artwork is supported through AlgoOS's industry-leading processing algorithms — producing genuine 3D-effect engravings with depth, shadow, and tonal graduation on wood that look significantly more professional than flat single-level burns.

Wood, Acrylic, Leather, Metal & More – From Hobby Projects to Small Business Production

The Alpha MK2 covers the full range of materials used in craft, custom gifting, signage, jewelry, and small manufacturing:

Cutting: plywood (up to 15mm with 20W), 5mm plywood single pass, acrylic, MDF, cardboard, cork, leather, fabric, bamboo, non-woven fabric, polycarbonate, Depron foam
Engraving: all above cutting materials plus glass, ceramics, tile, stainless steel (including color marking), anodized aluminum, coated metals, rubber, painted surfaces

Business use cases: custom wood gifts and home décor, personalized tumblers and drinkware (with rotary), leather accessories, acrylic signage, branded merchandise, custom awards and plaques, event personalization, jewelry engraving on metal and gemstone surfaces

The 400×410mm work area fits full A3 sheets and long tumblers — making the MK2 genuinely usable for small-batch production without the footprint of commercial laser cutters.

What You Can Engrave & Cut with the AlgoLaser Alpha MK2

Category	✂️ Cutting (20W module)	🎨 Engraving
🪵 Wood & Board	Plywood (up to 15mm, 20W) 5mm plywood — single pass Basswood, pine, MDF Bamboo chips	All above woods Relief artwork and 3D-effect engraving High-detail photo engraving
🧊 Acrylic & Plastic	Acrylic sheet (colored) Polycarbonate Depron foam Corrugated board	Acrylic signage and panels Custom awards and trophies Frosted glass effect on acrylic
🥩 Leather & Fabric	Natural and artificial leather Non-woven fabric Cork sheet	Custom leather accessories Wallet, belt, and bag engraving Personalized patches and tags
⚙️ Metal & Coated Surfaces	Not for direct metal cutting (fiber laser required for thick metal cutting)	Stainless steel — 500+ color shades Anodized aluminum (black marking) Coated metals and painted surfaces Glass, ceramics, tile

💰 Revenue Opportunities with the Alpha MK2:

Personalized wood gifts — cutting boards, photo frames, home décor (high demand, high margin)
Custom drinkware — tumblers and mugs with names and logos (with rotary chuck)
Acrylic signage — custom business signs, wedding décor, event name cards
Leather accessories — wallets, keychains, notebook covers
Color metal art — stainless steel artwork, portraits, and branded merchandise (500+ shades)
Custom awards and plaques — engraved on wood, acrylic, or metal-coated panels

Specifications

A. Laser Performance
Model	AlgoLaser Alpha MK2
Laser Type	Diode laser
Laser Power	20W (standard) / 10W or 40W (field-swappable modules)
Spot Size	0.15 × 0.12 mm
Max Engraving Speed	20,000 mm/min
Color Marking on Stainless Steel	Yes — 500+ shades via parameter control
B. Working Capability
Working Area (20W)	400 × 410 mm
Working Area (40W)	400 × 386 mm
Machine Dimensions	692 × 585 mm
Max Cut Depth (20W — wood)	Up to 15mm plywood (multi-pass)
Single-Pass Plywood Cut	5mm plywood
Compatible Materials (Cutting)	Plywood, MDF, acrylic, leather, fabric, cork, cardboard, bamboo, polycarbonate, Depron foam
Compatible Materials (Engraving)	All above + stainless steel, anodized aluminum, coated metals, glass, ceramics, tile, rubber
C. Control & Software
Operating System	AlgoOS 2.0 — 3.5-inch IPS touchscreen
Onboard Storage	32GB internal
Compatible Software	AlgoLaser App (iOS/Android) / LightBurn / LaserGRBL (10W)
Connectivity	WiFi / USB
Firmware Updates	OTA (WiFi) + SD card
D. Safety Features
Emergency Stop Button	Yes
Tilt Sensor	Yes — auto-halts laser if machine is tilted
Vibration Sensor	Yes — auto-halts laser if machine is bumped
Power-Loss Recovery	Yes — resumes from exact interruption point
Protective Eyewear	Included in box
Certification	CE / FCC
E. Smart Accessories & Expandability
Smart Air Pump	Auto-controlled — starts and stops with each job
Smart Enclosure	Auto fan control via AlgoOS
Smart Rotary Chuck	Auto-recognized when connected — for cylindrical objects
Smart Camera	Optional — live preview positioning on workpiece
Module Upgrades	10W, 20W, 40W laser modules — field-swappable on same body

📦 What's in the Box

AlgoLaser Alpha MK2 main unit (partially pre-assembled)
20W diode laser module (pre-installed)
Smart air pump (included standard)
3.5-inch AlgoOS 2.0 touchscreen (pre-installed)
Power cable and power adapter
USB cable
Protective safety goggles
Hex wrench toolkit (for assembly and maintenance)
Sample engraving materials (basswood test piece)
Quick-start guide and installation manual
USB drive or download card with software and LightBurn profile

Optional accessories (sold separately): Smart enclosure, smart rotary chuck, smart camera, 10W module, 40W module, stylus pen, honeycomb work panel

How the AlgoLaser Alpha MK2 Compares to the Market

Competitive Analysis Summary: Alpha MK2 vs. xTool P2 55W CO₂, Sculpfun S30 Ultra 33W, Ortur LM3 20W

Feature	Alpha MK2 20W ★	xTool P2 55W CO₂	Sculpfun S30 Ultra 33W	Ortur LM3 20W
Touchscreen Standalone	✓ 3.5" AlgoOS 2.0 ★	✓ Yes (enclosed)	✗ No — PC required	✗ No — PC required
Onboard Storage	32GB internal ★	Yes (SD card)	✗ None	✗ None
Max Speed	20,000 mm/min ★	~600 mm/s (36,000 mm/min)	~18,000 mm/min	~15,000 mm/min
Work Area	400 × 410 mm	498 × 319 mm (enclosed)	600 × 400 mm	400 × 400 mm
Smart Accessory Auto-Control	✓ Full ecosystem ★	⚠ Limited	✗ Manual only	✗ Manual only
Color on Stainless Steel	✓ 500+ shades ★	✗ CO₂ — not supported	⚠ Limited	⚠ Limited
Power-Loss Recovery	✓ Yes	✓ Yes	⚠ Partial	✓ Yes
LightBurn Support	✓ Yes	✓ Yes	✓ Yes	✓ Yes
Price Range	💰 Mid-range ★	💰💰 High ($1,800+)	💰 Mid-range	💰 Low-mid
Best For	🏆 Standalone + smart ecosystem + color metal	High-volume enclosed cutting	Large area diode cutting	Budget 20W diode

📊 Competitive Edge Analysis:

vs. xTool P2 55W CO₂: Alpha MK2 delivers standalone touchscreen operation and color stainless steel marking at a fraction of the P2's price — the P2 is a superior cutting machine for thick materials, but the MK2 wins on value, portability, and metal marking capability
vs. Sculpfun S30 Ultra 33W: MK2 adds standalone touchscreen operation, 32GB onboard storage, smart accessory auto-control, and color stainless steel marking — features the S30 Ultra's PC-dependent workflow cannot match
vs. Ortur LM3 20W: Same laser power class, but MK2 delivers a complete standalone OS, 32GB storage, smart ecosystem, 500+ color stainless shades, and 3× faster batch throughput at a comparable price
Overall: The AlgoLaser Alpha MK2 is the only sub-$800 desktop diode laser combining true standalone touchscreen operation, 32GB onboard storage, smart accessory auto-control, and 500+ color stainless steel marking in a single package

Alpha MK2 20W Testing

Alpha MK2 20W Unboxing and Installation

Review

Download files

Alpha MK2 Installation

Alpha MK2 20W engraving LaserGRBL

Alpha MK2 20W engraving LightBurn

Alpha MK2 20W cutting LaserGRBL

Alpha MK2 20W cutting LightBurn

FAQs

1. What materials can be engraved or cut by AlgoLaser Alpha MK2?

Cutting Material---All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.
Engraving Material---All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.

2. What is the laser power of Alpha MK2 machine?

Can be equipped with 10W and 20W power modules.

3. Is Alpha MK2 compatible with rotary roller, smart enclosure and smart camera?

Yes, the Alpha MK2 is completely compatible with above accessories.

4. Can Alpha MK2 engrave on stainless steel?

Yes, Alpha MK2 support engraving over 500 shades of color on stainless steel material.

5. What are the dimensions and working dimensions of the Alpha MK2 laser engraving machine?

The size of the entire machine is 692mm×585mm, and the working area is 400×410mm.

6. In addition to screen control, can I control it through other devices?

It can also be controlled through PC software and mobile phone software, without even connecting cables, it can be controlled directly through WiFi.

7. Will machine engraving be interrupted?

Normal work will not be interrupted. If an emergency occurs, such as the power is disconnected, the machine has a power-off resume function.
