Acmer P2 33W Flagship Laser Cutter with Auto Air Assist

$1,399.00 $809.00 SAVE $590.00

➤ With Automatic 25L/min air assist system
➤ Zero Assembly, ready to work in just 1 minute
➤ 33~36 watt output power, Up to 30,000mm/min
➤ Cut through 30mm wood, 20mm acrylic, 9mm MDF, 0.1mm metal

Package: P2 33W

P2 33W
Basic Set (Camera+Honeycomb Bed)
Pro Set (R20 Enclosure Box+Honeycomb Bed+Metal Riser)
Advanced Set (Camera+L80 Expansion Kit+Metal Riser)
Pro Max Set (L80 Expansion Kit+Honeycomb Bed+Camera+Metal Riser+2W IRLaser Module)

Plug Type: US Plug

US Plug
EU Plug
AU Plug
UK Plug

paypalklarnavisamasteramerican expressdiscoverjcbdiners clubmaestrogoogle pay

🚚 1–2 Day Dispatch | DHL / FedEx / UPS / USPS

FAST SHIPPING

Local warehouses in the U.S. and Europe

SUPPORT 24/7

Quick response online chat system

7 DAYS RETURN

Simply return it within 7 days for an exchange

PAYMENT SECURE

We ensure secure payment with PEV

ACMER P2 33W Laser Engraver & Cutter – 33–36W Open-Frame Diode Laser with Auto 25L Air Assist, Zero Assembly, 30mm Wood Cutting & 420×400mm Work Area for Wood, Acrylic, Metal & 800mm Expansion

The wood blank is 28mm thick and the order is due tomorrow. The acrylic sheet is 18mm and needs clean edges. The metal dog tag needs a logo that won't wash off. These are the jobs that define whether a laser engraver is a hobby machine or a production tool — and the ACMER P2 33W was built to handle all three without compromising on any. At 33–36W of measured output, the P2 cuts 30mm wood, 20mm acrylic, and 9mm MDF in a single pass, at speeds up to 30,000 mm/min. The built-in 25L/min auto air assist pump requires no external unit and activates automatically. The machine ships pre-assembled and factory tested — unbox, connect, and start cutting in under one minute. With a 420×400mm work area expandable to 800mm with the L80 kit, five independent safety systems, and an upgrade path to infrared for jewelry engraving, the P2 is the open-frame machine that serious makers choose when they're ready to stop compromising on power.

Zero Assembly + Auto 25L Air Assist – Unbox, Connect, Cut

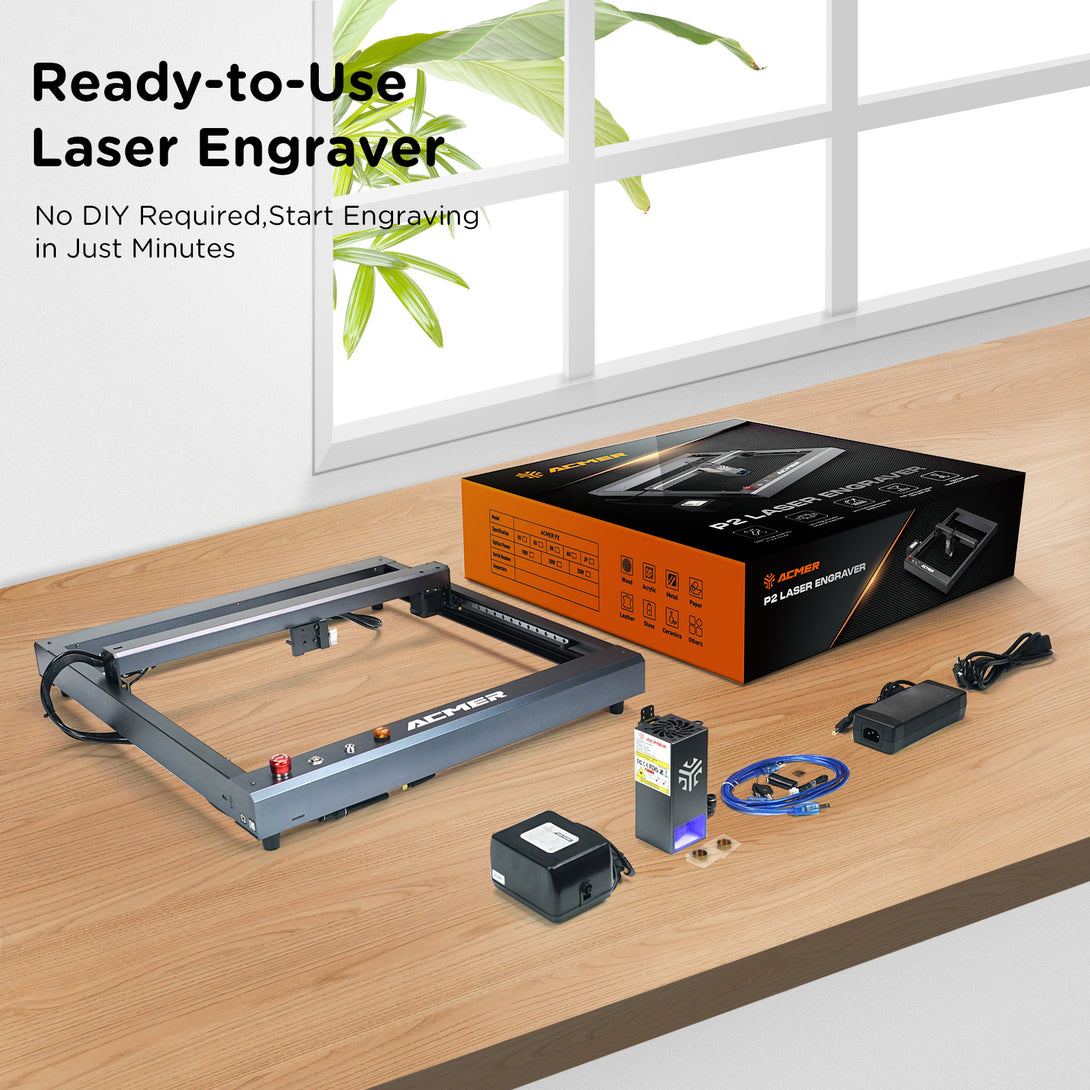

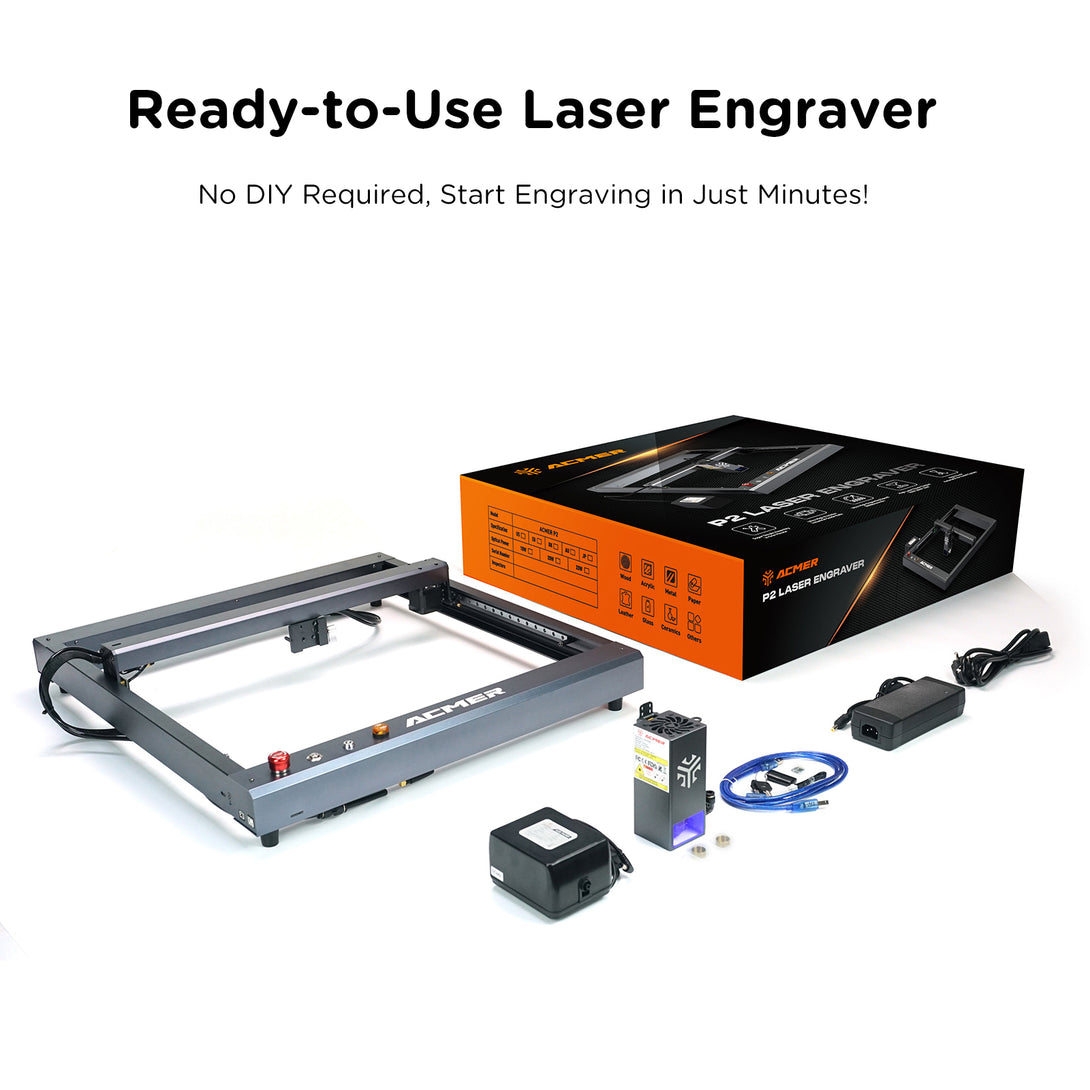

The P2 33W ships pre-assembled and factory tested — every unit runs a test job before leaving the facility. Unboxing to first cut takes under one minute. No frame to build, no belt to tension, no air pump to source and plumb.

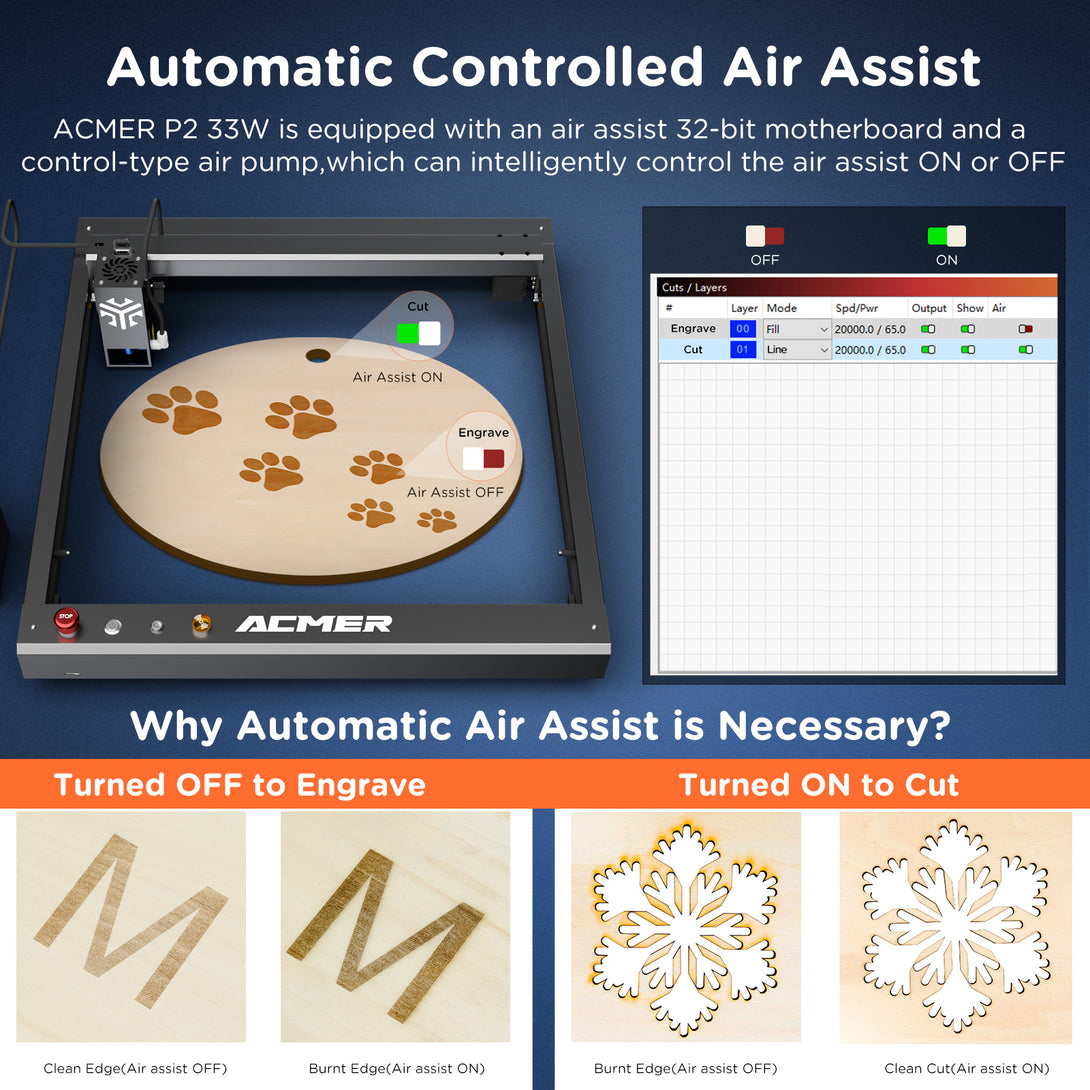

The 25L/min air assist pump is built into the machine frame and activates automatically based on the current job — no manual valve, no external power connection required. For production users running multiple jobs per day, every session starts immediately, not after 20 minutes of setup.

33–36W Cutting Power – 30mm Wood, 20mm Acrylic, 0.1mm Metal

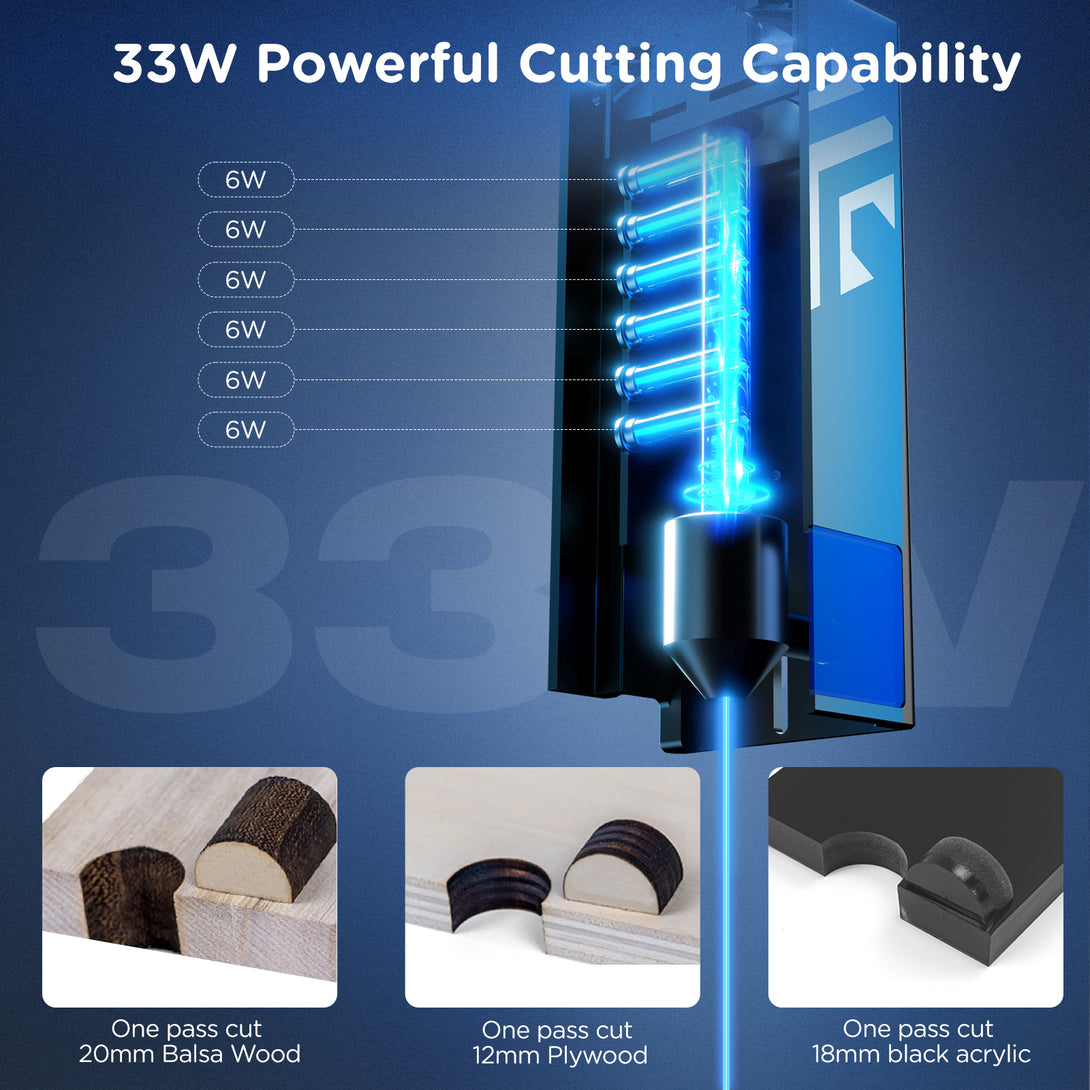

The P2 delivers 33–36W of measured optical output with a 0.08×0.1mm spot via 6W laser coupling technology — tighter than most machines in the 30W+ class. Single-pass cutting: 30mm wood, 20mm acrylic, 9mm MDF, 0.1mm metal sheet.

At 30,000 mm/min engraving speed, a detailed photo on a 400mm wood panel completes in a fraction of the time on lower-power machines. 0.01mm minimum engraving accuracy keeps fine fonts and detailed vector artwork crisp at production speeds — not just at low speed.

6-Layer Safety – Open-Frame, Seriously Protected

A gyroscope cuts the laser instantly at 15° tilt, a flame detector shuts down on fire, and a child safety lock (physical key) blocks unauthorized power-on.

Motherboard over-temperature protection rounds out five independent safety layers. Protective eyewear is included and required for all open-frame operation.

Flame detector: Stop working and sound an alarm onceflame and smoke are detected.Eye-catching: yellow alarm indicator light gives you the quickest response to any malfunction or accident.Filtered glass: shield protectsyour from laser injury and filters 97% of UV rays.Equipped with a safety key: which needs to be inserted to turn on the switch to work, preventing children from misusing the machine.When the machine is working the machine can be stopped immediately by the emergency stop switch.

420×400mm + L80 Expansion to 800mm – Open-Frame Scale Advantage

The standard 420×400mm work area covers A3-format engraving, 400mm signs, full-size cutting boards, and large acrylic panels. The optional L80 Expansion Kit extends the Y-axis to 800mm — a 200% increase — enabling long board engraving, banner-length cuts, and continuous production runs.

No lid height restriction. No fixed enclosure dimension. No limit on material thickness from above — thick slabs, irregular shapes, and tall objects fit freely under the open gantry. This is the structural advantage of open-frame that enclosed machines cannot match without repositioning.

IR Module Upgrade + ACMER Ecosystem – One Machine, More Revenue Streams

Upgrade the P2 to a 1064nm infrared module and it becomes a jewelry and precious metal engraver — marking gold, silver, and steel surfaces that the 450nm diode laser cannot address.

Connect via Wi-Fi, USB, TF card (offline), or ACMER App for online control — engrave from LightBurn on a PC, send a job from your phone, or run a TF card job autonomously. Software interface supports English, German, Italian, French, and Chinese.

Specifications

A. Laser Module
Laser Output Power33–36W
Laser Wavelength445nm (blue diode)
Spot Size0.08 × 0.1mm (6W laser coupling technology)
Min Engraving Accuracy0.01mm
Upgradeable Modules1064nm 2W IR module (jewelry/precious metals)
B. Performance & Work Area
Work Area (standard)420 × 400mm
Work Area (with L80 Expansion Kit)Up to 800mm Y-axis (200% increase)
Max Engraving Speed30,000 mm/min
Machine Power120W (24V 8A DC)
ControllerESP32 32-bit
C. Cutting Capability (Single Pass)
WoodUp to 30mm
AcrylicUp to 20mm
MDFUp to 9mm
MetalUp to 0.1mm sheet
NoteCutting results may vary depending on material density, machine settings, and ambient conditions
D. Air Assist
Air Assist PumpBuilt-in — no external pump required
Flow Rate25L/min
ControlAutomatic — activates based on current job; no manual valve
E. Safety Features
UV-Filtering Glass Shield Mounted on laser head; filters 97% of UV radiation
Gyroscope Tilt Detection Auto laser off at 15° tilt angle
Flame Detector Monitors work area; triggers shutdown on fire detection
Child Safety Lock Physical machine key — prevents unauthorized power-on
Over-Temperature Protection Motherboard thermal shutdown
Emergency Stop Button Immediate laser and motion shutdown
Protective Eyewear Included; required during all open-frame operation
F. Connectivity & Software
ConnectivityUSB / TF card (offline) / Wi-Fi / ACMER App (online)
SoftwareLightBurn (Windows / macOS / Linux) / LaserGRBL (Windows, free)
Supported OSWindows / macOS / Linux
File FormatsSVG, NC, BMP, JPG, PNG, GCODE
Software LanguagesEnglish, German, Italian, French, Chinese
Engraving ModesImage / text / scanning / convex engraving
G. Machine, Bundle & Package Contents
Machine Dimensions600 × 650 × 170mm (23.62 × 25.59 × 6.69 in)
Machine Weight6.5kg (14.33 lb)
AssemblyZero assembly — pre-assembled and factory tested
Bundle: Machine OnlyMachine + air pump + power adapter + key + goggles + TF card + USB cable + test materials + manual
Bundle: Basic Set+ Camera + Honeycomb Bed
Bundle: Pro Set+ R20 Enclosure Box + Honeycomb Bed + Metal Risers
Bundle: Advanced Set+ Camera + L80 Expansion Kit + Metal Risers
Bundle: Pro Max Set+ L80 Expansion Kit + Honeycomb Bed + Camera + Metal Risers + 2W IR Laser Module
Warranty12 months
Return Policy7 days return
Local WarehousesUS and EU

Expert Analysis

ACMER P2 33W Laser Module Upgrade Kit: Unboxing & Setup

Quick Unboxing: ACMER P2 33W Laser Engraver

ACMER P2 33W Laser Engraver Review: Test Critique and Tips You Must Know

Review

Download files

ACMER P2-User Manual English.pdf
ACMER P2 User Manual German.pdf
ACMER P2 User Manual French.pdf
ACMER P2-33W Parameters.pdf
ACMER P2 LaserGRBL User Manual.pdf
ACMER P2 LightBurn User Manual.pdf
ACMER P2 Firmware Update Intructions.pdf
ACMER P2-FAQ.pdf

FAQs

1. What is the warranty period for the machine?
The machine's structural components have a warranty period of 12 months, the laser module has a warranty period of 6 months, and other consumables, such as transmission belts, have a warranty period of 3 months.
2. ls it difficult to assemble the laser engraving ACMER P2?
Very simple. The machine can be assembled within one minute.
3. What materials can be engraved and cut?
Include wood, plywood, acrylic, aluminum oxide, ceramics.glass, leather, slate, etc Supported cutting materials include wood, plywood, acrylic, thin metasheets, etc. ACMER engraving parameter table contains parameters for different materials.
4. ls it possible to upgrade the laser module, such as from 20W to 33W?
Yes, you can purchase any laser module for ACMER P2 series, including 10W and 33W, in theaccessories category.
5. How to lmprove the Cutting Ability of ACMER P2?
The primary factors that affect the cutting ability are the laser module's power and the auxiliary air pump. To achieve a strong cutting ability, you can consider purchasing a 33W laser module and upgrading to the gas auxiliary system ACMER C4 (30L/min). Additionally, using a honeycomb plate to assist gas circulation can be helpful. For those who primarily focus on engraving scenes, our standard electromagnetic silent air pump that can produce an air output of 25L/min will meet your engraving needs. Any unauthorized modification of the air pump to increase its output may increase the risk of fire, unless an inert gas is used.
