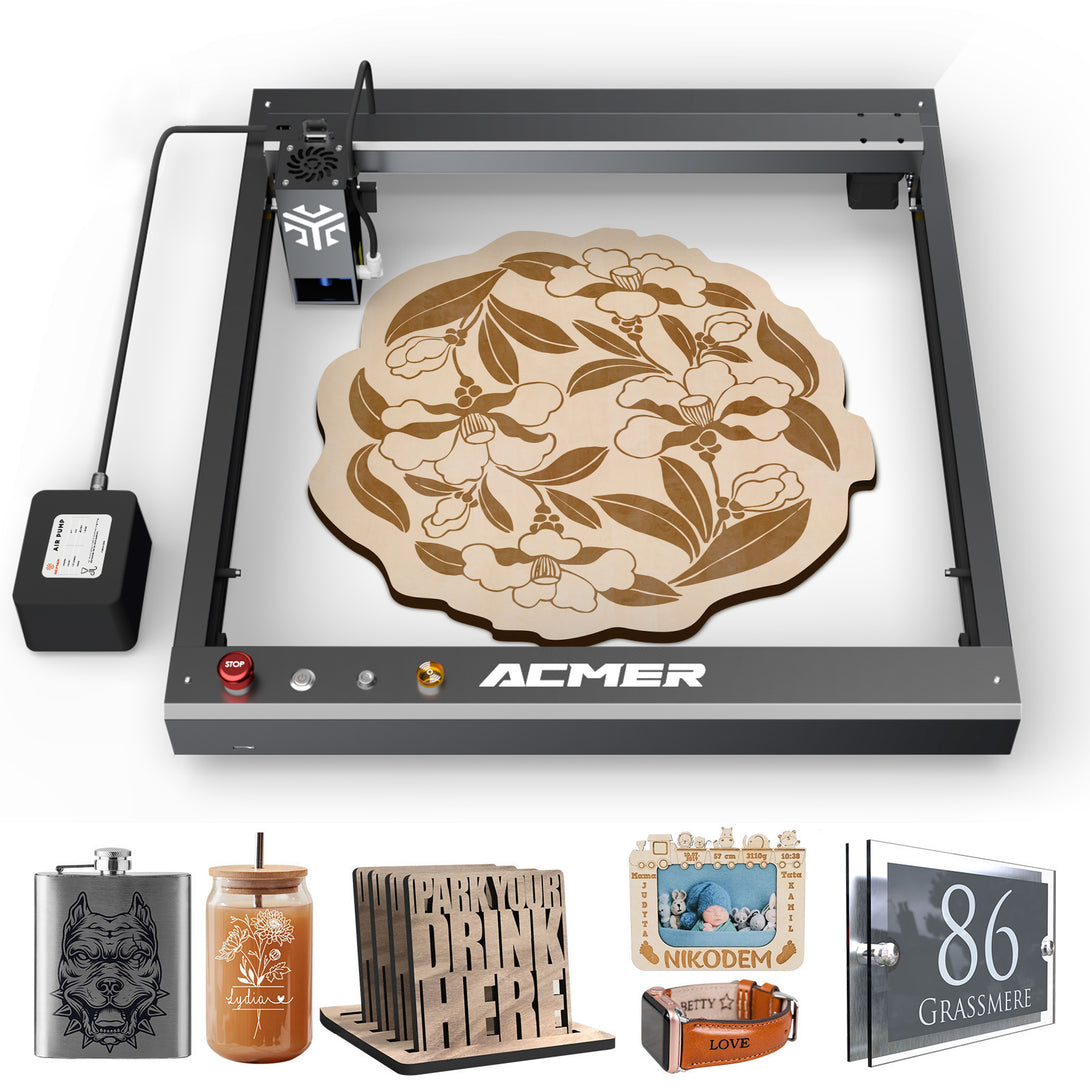

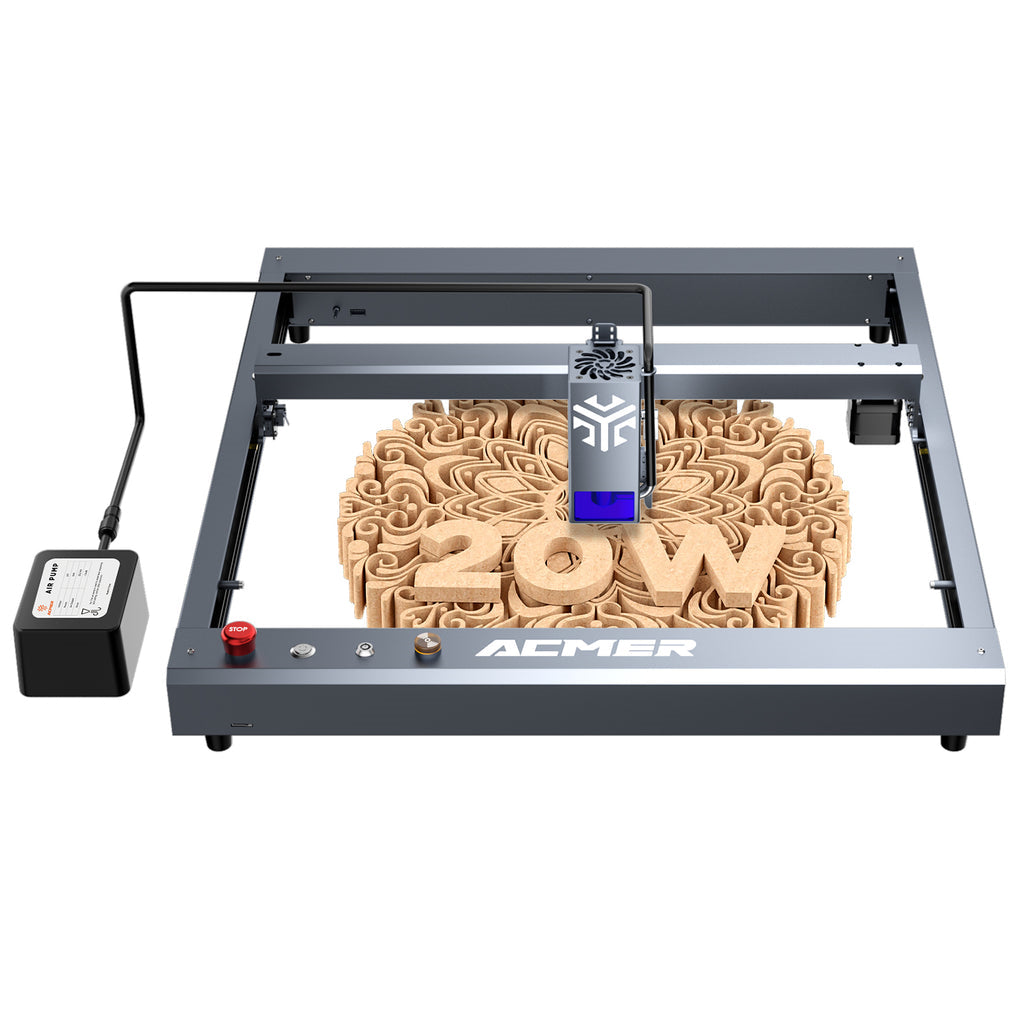

Acmer P2 20W Pre-Assembled Laser Engraver with Auto Air Assist

$999.00 $499.00 SAVE $500.00

➤ 30000mm/min Superfast Speed
➤ Eye Protection Shield
➤ 420x400mm Engraving Area
➤ Deisign Easy to Install

Package: P2 20W

P2 20W
Basic Set (Camera+Honeycomb Bed)
Pro Set (R20 Enclosure Box+Honeycomb Bed+Metal Riser)
Advanced Set (Camera+L80 Expansion Kit+Metal Riser)
Pro Max Set (L80 Expansion Kit+Honeycomb Bed+Camera+Metal Riser+2W IRLaser Module)

Plug Type: US Plug

US Plug
EU Plug
AU Plug
UK Plug

paypalklarnavisamasteramerican expressdiscoverjcbdiners clubmaestrogoogle pay

🚚 1–2 Day Dispatch | DHL / FedEx / UPS / USPS

FAST SHIPPING

Local warehouses in the U.S. and Europe

SUPPORT 24/7

Quick response online chat system

7 DAYS RETURN

Simply return it within 7 days for an exchange

PAYMENT SECURE

We ensure secure payment with PEV

ACMER P2 20W Laser Engraver – 30,000mm/min Speed, Auto Air Assist, 420×400mm Work Area, Pre-Assembled

From cutting signage and engraving leather goods to slicing 10mm plywood and 30mm acrylic in a workshop or studio, the ACMER P2 20W delivers 30,000mm/min speed, built-in auto air assist, and 0.001mm repositioning accuracy across a generous 420×400mm work surface. Pre-assembled and rigorously factory-tested, it ships ready to run with full LightBurn and LaserGRBL compatibility. Designed for hobbyists, small-business makers, and production users who need a reliable, upgradeable machine from day one.

30,000mm/min – Industrial Speed in a Desktop Machine

Optimized firmware acceleration settings push the P2 20W to engraving speeds of 30,000mm/min — significantly faster than most desktop diode laser machines — without sacrificing edge quality or accuracy.

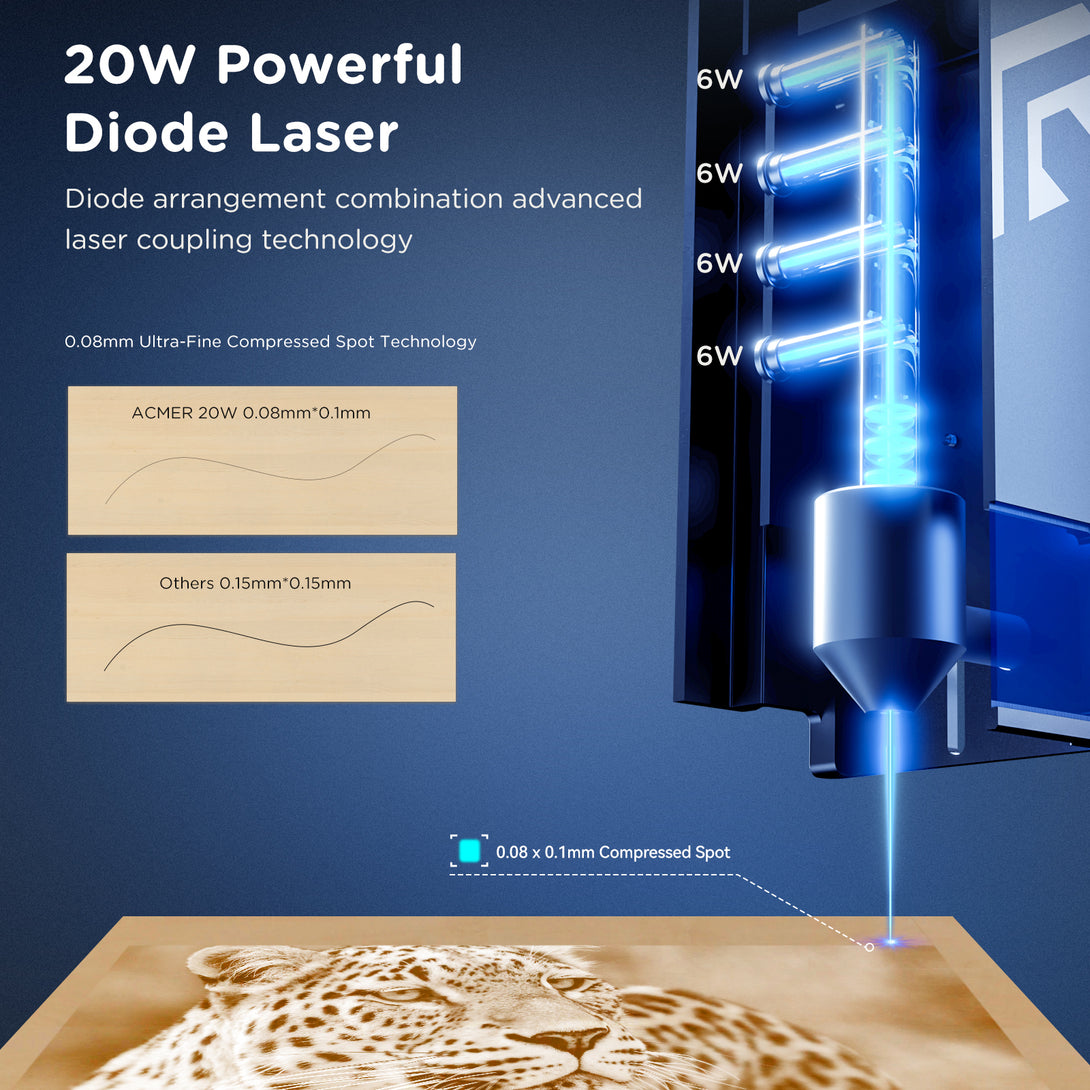

With a compressed laser spot of 0.08 × 0.1mm and engraving accuracy down to 0.01mm, the P2 delivers both throughput and precision. Repositioning accuracy reaches 0.001mm, making batch production and repeat-job alignment reliable and consistent every time.

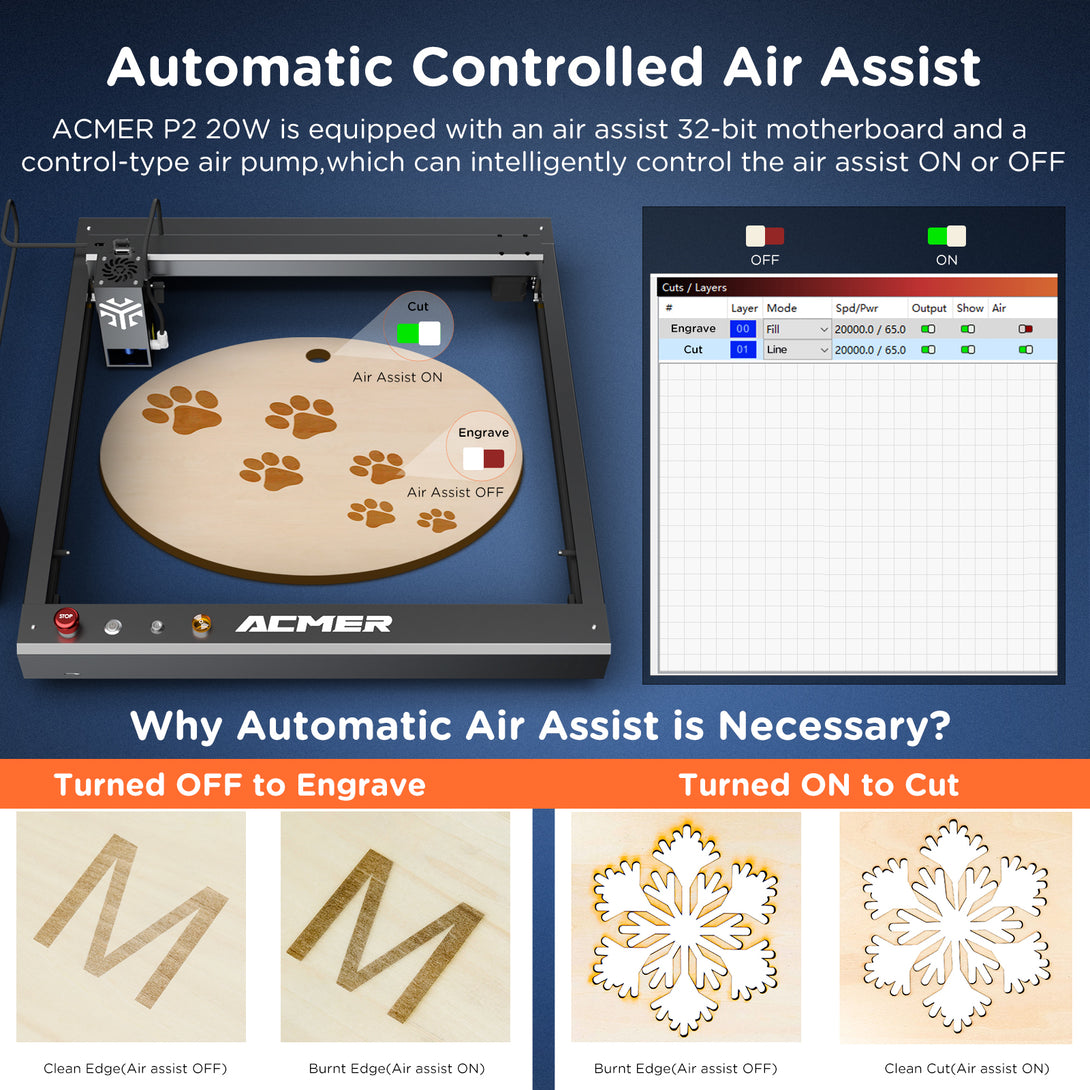

Auto Air Assist – Cleaner Cuts, Deeper Penetration

The P2 ships standard with a quiet electromagnetic air-assist pump delivering 25L/min airflow, automatically clearing smoke and debris from the cutting path to produce cleaner edges and prevent char buildup.

The built-in auto air assist improves cutting depth and surface quality on wood, acrylic, and leather without manual adjustment. Users can upgrade to the ACMER C4 30L/min pump for even greater cutting performance through thicker materials — making the P2 a machine that grows with your production demands.

420×400mm Work Area – Cut 10mm Plywood in One Pass

The P2's generous 420 × 400mm engraving area accommodates large-format signage, furniture panels, batch production runs, and oversized art pieces without repositioning.

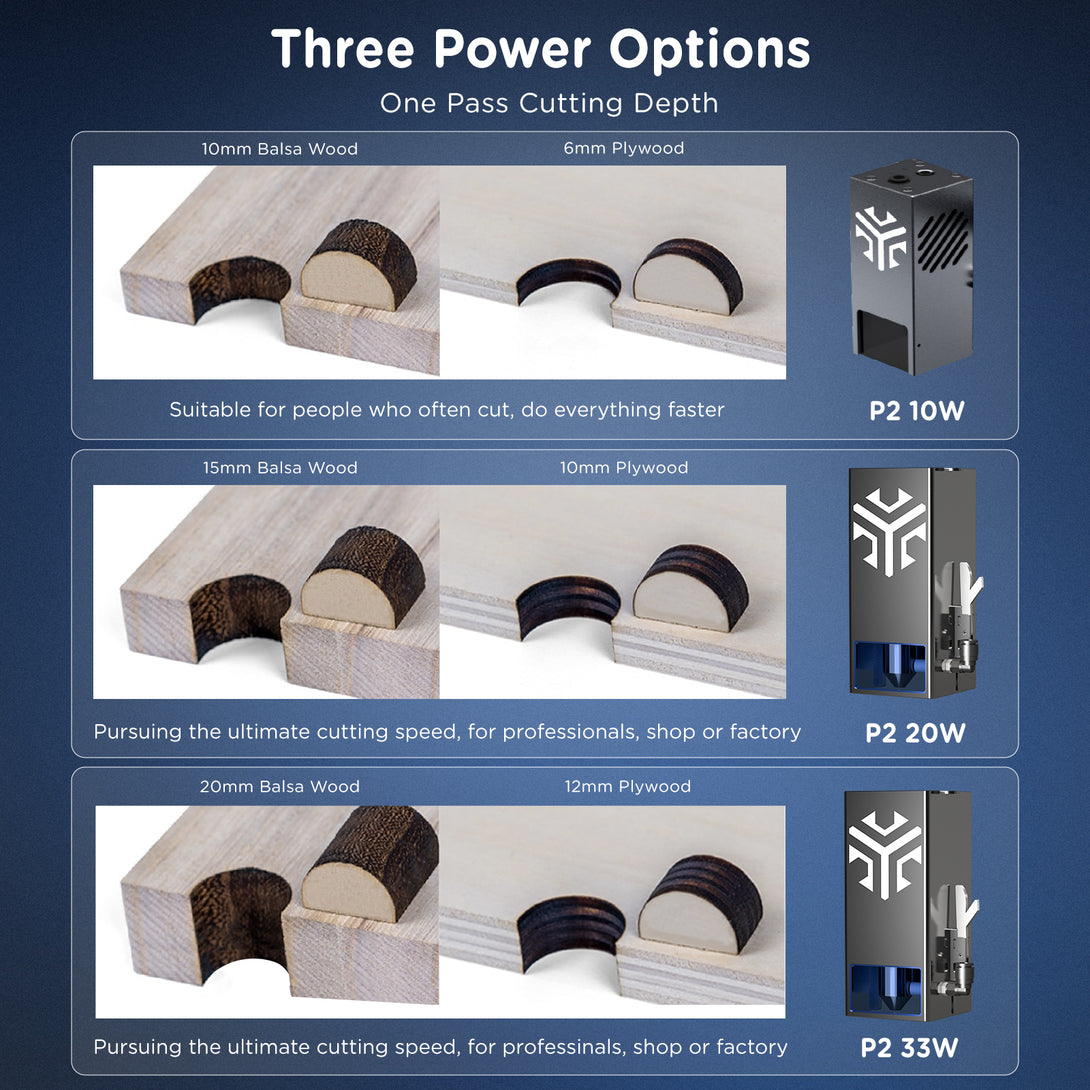

The 20W diode laser cuts 10mm plywood in a single pass, 30mm acrylic in multiple passes, and 0.1mm stainless steel sheet cleanly. It engraves wood, bamboo, leather, glass, plastic, aluminum oxide, painted and lacquered metals, and ceramics — covering the full range of workshop and small-business production scenarios.

Comprehensive Safety System with Eye Protection Shield

The P2 integrates a full suite of active safety protections: a gyroscope tilt sensor that cuts the laser if the machine tips beyond 15°, a flame and smoke detector that triggers an alarm and auto-shutdown, motherboard over-temperature protection, an emergency stop button, and a child safety lock.

A filtered glass eye protection shield blocks 97% of UV rays to protect the operator during open engraving, making the P2 one of the most safety-conscious open-frame machines in its class.

Pre-Assembled & Upgradeable – Ready Now, Expandable Later

The P2 ships fully pre-assembled and factory-tested — unbox, place it on your bench, connect the cable, and start engraving. No complex assembly, no calibration frustration, and no learning curve for setup.

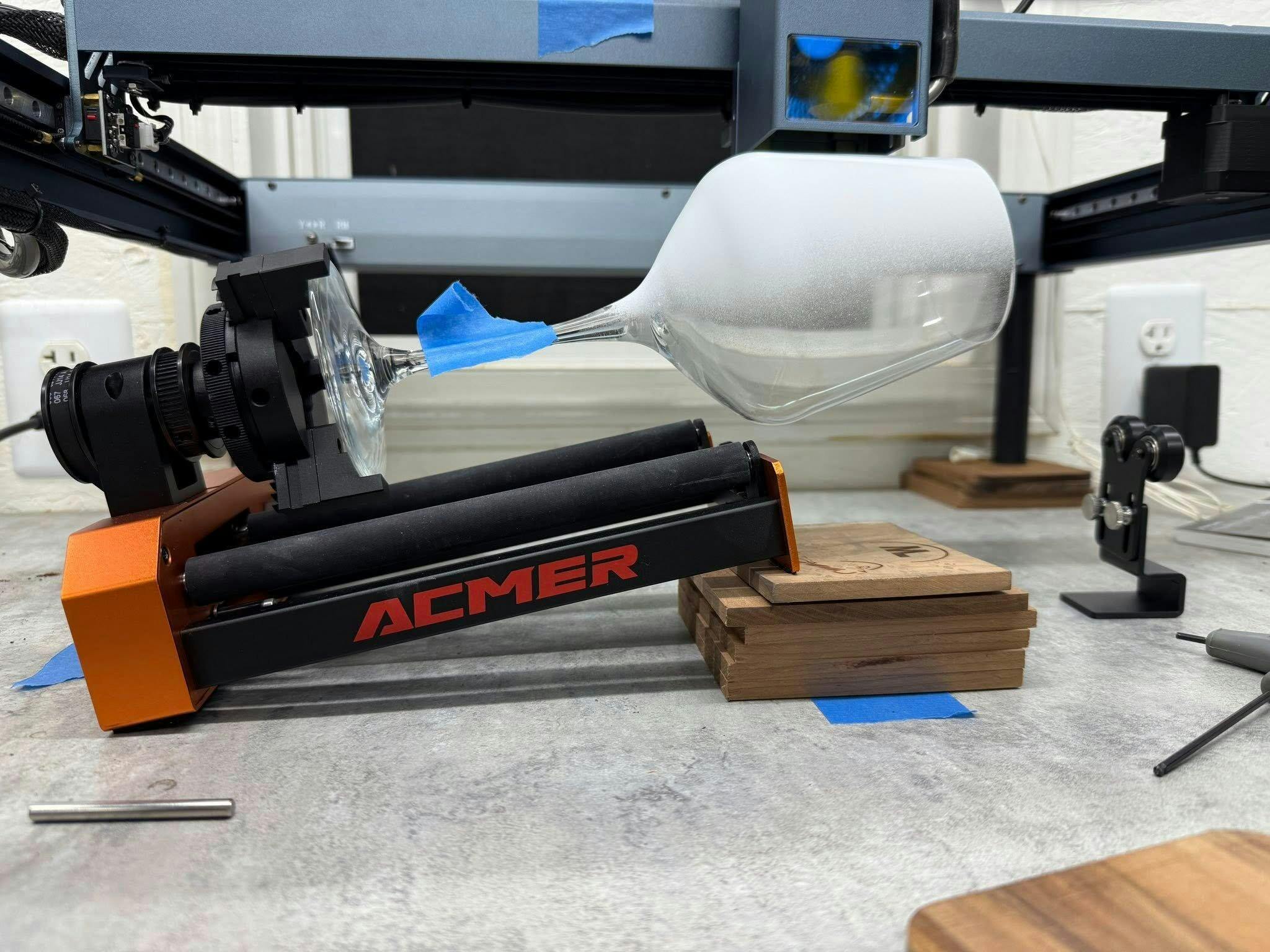

When your workflow demands more, the P2 is built to expand: upgrade to a 33W diode laser module for deeper cuts, add a 2W 1064nm infrared laser module for bare metal marking, or add the L80 expansion kit, rotary roller, camera module, or R20 enclosure — turning a starter machine into a full production system.

Specifications

A. Laser Performance
Model ACMER P2 20W
Laser Type Diode Laser
Laser Output Power 20W
Machine Power 130W
Compressed Spot Size 0.08 × 0.1mm
Engraving Accuracy 0.01mm
Repositioning Accuracy 0.001mm
Focusing Method Fixed focus – no adjustment required
B. Working Capability
Engraving Area420 × 400mm
Maximum Engraving Speed30,000 mm/min
Air AssistBuilt-in auto air assist pump (25 L/min)
Cutting Capacity10mm plywood (single pass), 30mm acrylic (multi-pass), 0.1mm stainless steel
Engrave MaterialsWood, bamboo, paper, glass, plastic, leather, aluminum oxide, non-reflective plating, lacquered metal, ceramic
Cut MaterialsCardboard, non-woven fabric, light wood, acrylic, thin plastic sheet, stainless steel sheet
Ideal ApplicationsSignage, custom gifts, leather goods, wood cutting, acrylic artwork, metal marking, small-batch production, prototyping
C. Control & Software
Supported SoftwareLaserGRBL / LightBurn
Operating SystemsWindows / macOS / Linux
ConnectivityUSB / ACMER App
Input FormatsNC, BMP, JPG, PNG, DXF, and more
D. Safety Features
Eye Protection Shield Filtered glass – blocks 97% of UV rays
Gyroscope Tilt Detection Auto laser off if tilted >15°
Flame & Smoke Detector Auto shutdown + alarm
Over-Temperature Protection Yes – motherboard level
Emergency Stop Button Yes
Child Safety Lock Yes
E. Electrical Specifications
Input VoltageAC 100–240V, 50/60Hz
Output VoltageDC 24V 5A
F. Mechanical Structure
Machine Size (L×W×H)600 × 650 × 170mm
Machine Weight6.5kg
Package Size700 × 760 × 180mm
Package Weight12.6kg
AssemblyPre-assembled & factory-tested
G. Packaging & Variants
Available PackagesP2 20W / Basic Set / Pro Set / Advanced Set / Pro Max Set
Plug TypesUS / EU / AU / UK
In the BoxPre-assembly machine, laser module, air pump, power adapter, machine key, laser goggles, card reader + TF card, USB cable, 5× test plank, metal card, acrylic sheet, cork coaster, wrench, screwdrivers, brush, user manual

Expert Analysis

ACMER P2 Laser Engraver Series: Cutting Speed Test

ACMER P2 Laser Engraver: Power Laser Cutting in Various Scenes

ACMER P2 Laser Engraver: Unboxing & Setup

How to Clean the Lens of ACMER P2 20W Laser Engraver

Review

Download files

ACMER P2-User Manual English.pdf
ACMER P2 User Manual German.pdf
ACMER P2 User Manual French.pdf
ACMER P2-20W Parameters.pdf
ACMER P2 LightBurn User Manual.pdf
ACMER P2 LaserGRBL User Manual.pdf
ACMER P2 Firmware Update Intructions.pdf
ACMER P2-FAQ.pdf

FAQs

1. What is the warranty period for the machine?
The machine's structural components have a warranty period of 12 months, the laser module has a warranty period of 6 months, and other consumables, such as transmission belts, have a warranty period of 3 months.
2. ls it difficult to assemble the laser engraving ACMER P2?
Very simple. The machine can be assembled within one minute.
3. What materials can be engraved and cut?
Include wood, plywood, acrylic, aluminum oxide, ceramics.glass, leather, slate, etc Supported cutting materials include wood, plywood, acrylic, thin metasheets, etc. ACMER engraving parameter table contains parameters for different materials.

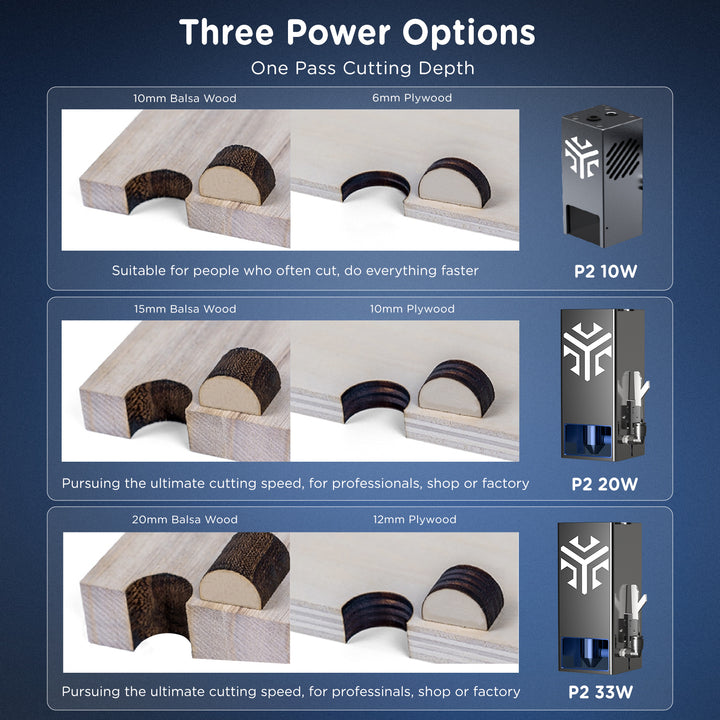

4. ls it possible to upgrade the laser module, such as from 20W to 33W?
Yes, you can purchase any laser module for ACMER P2 series, including 10W and 33W, in theaccessories category.
5. How to lmprove the Cutting Ability of ACMER P2?
The primary factors that affect the cutting ability are the laser module's power and the auxiliary air pump. To achieve a strong cutting ability, you can consider purchasing a 33W laser module and upgrading to the gas auxiliary system ACMER C4 (30L/min). Additionally, using a honeycomb plate to assist gas circulation can be helpful. For those who primarily focus on engraving scenes, our standard electromagnetic silent air pump that can produce an air output of 25L/min will meet your engraving needs. Any unauthorized modification of the air pump to increase its output may increase the risk of fire, unless an inert gas is used.
