Features:

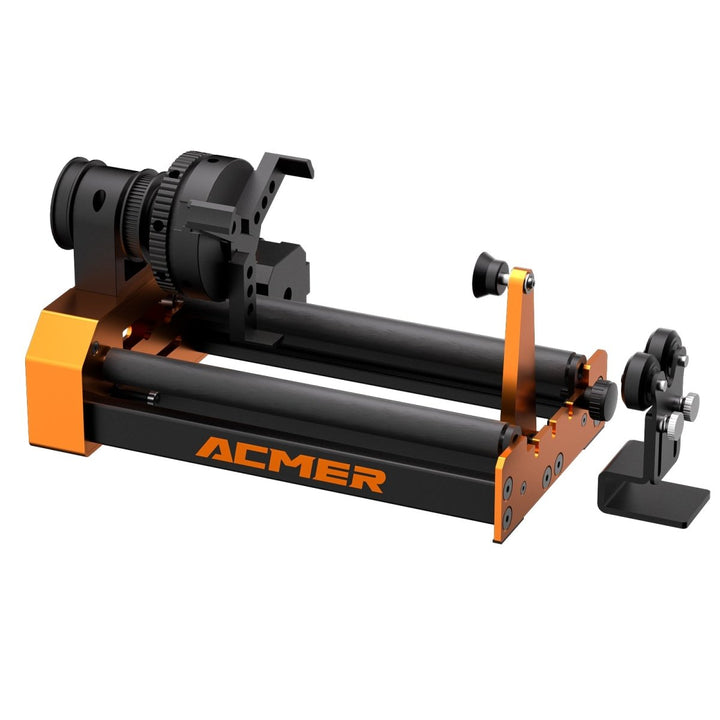

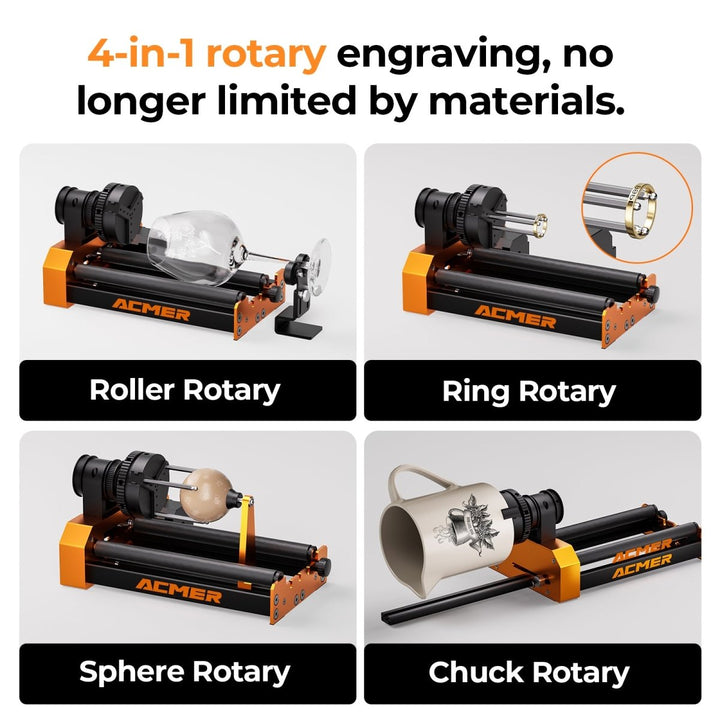

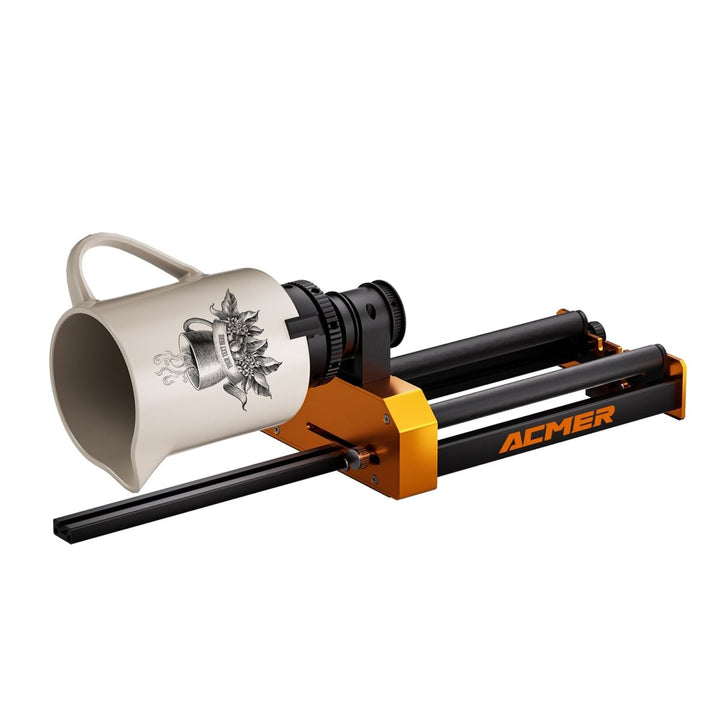

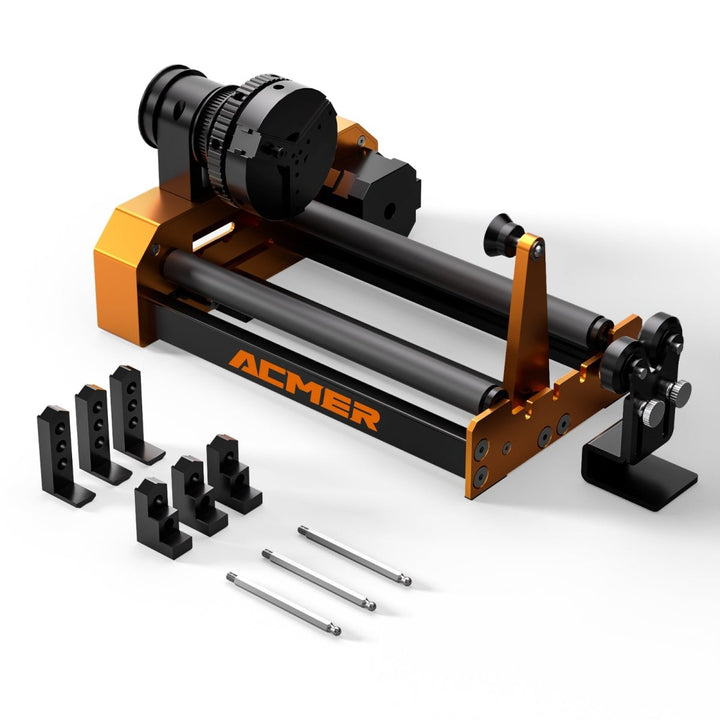

1. ACMER 4-in-1 Laser Rotary Attachment - M4, including roller rotation, chuck rotation, sphere engraving module and ring engraving stud. You can unleash your creativity on almost any cylinder by replacing accessories such as wine glasses, snowman cups, baseball bats, rings, balls or cups with handles.
2. Various Wide Range Diameter Adjustments - The diameter range of ACMER M4 rollers: stepped claws (1-100mm), right-angle claws (1-134mm), spherical rods (9.5-95mm inner diameter), rings (16-75mm spheres) enable a wide range of object engraving.

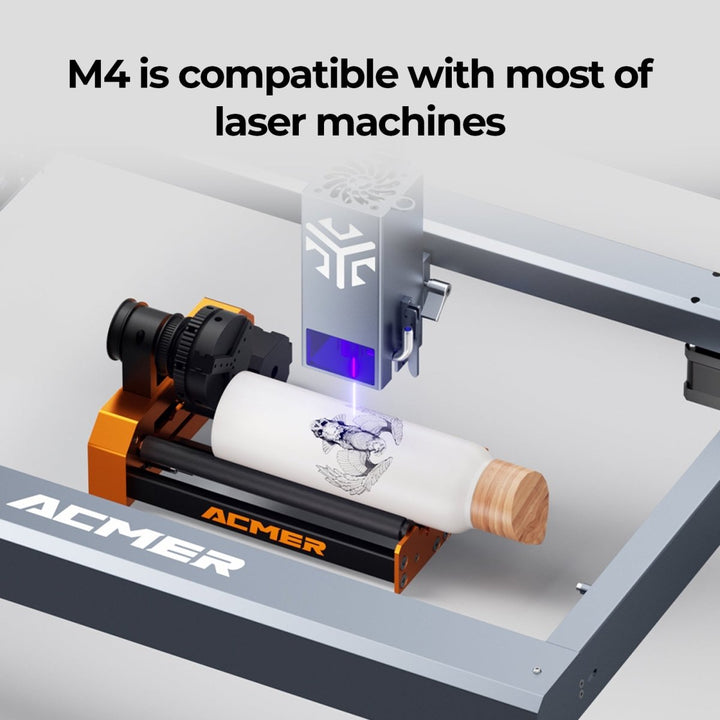

3. Wide Compatibility - ACMER M4 is compatible with all models of ACMER machines and most laser engravers on the market. Also compatible with LaserGRBL and LightBurn.
4. Durable Materials and Practical Design - Made of aluminum profiles to ensure long-term and reliable use. Compared with other roller rotary attachments, ACMER M4 supports engraving on extra-long cylinders and spheres (such as beverage cans, eggshell cups, goblets, wine bottles, baseballs, baseball bats).
5. Easy to Use and Customer Support - Pre-assembled and modular design, plug and play with your laser cutting machine. User-friendly convenience supports adjustment of module height and chuck diameter. ACMER provides friendly customer service and professional technical support.
6. ❗ Note: If ACMER M4 is used with ACMER's laser engraving machine, the metal riser must be prepared separately.
Specification:
| Parameter | Value |
|---|---|
| Size | 250*175*125mm (including chuck module) |
| Weight | 1.6kg |
| Roller Maximum Spacing | 78mm |
| Roller Recommended Engraving Length | ≤370mm (uniform density cylinder) |

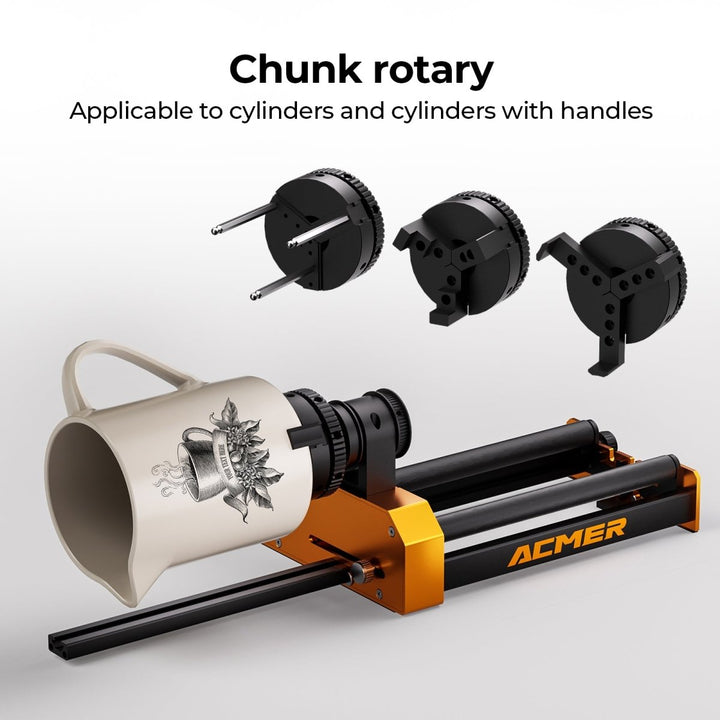

| Chuck Recommended Clamping Diameter Range | Stepped claw (1-100mm), Right-angle claw (1-134mm), Spherical rod (inner diameter 9.5-95mm), Ring (16-75mm sphere) |
| Chuck Size | Ø64mm |
| Compatibility | Supports engraving on cylindrical objects such as glass bottles, stemmed glasses, thermos cups, and similar items. |
| Width Adjustment | 4 levels |
| Engraving Diameter Range | 3mm≤D≤150mm |
