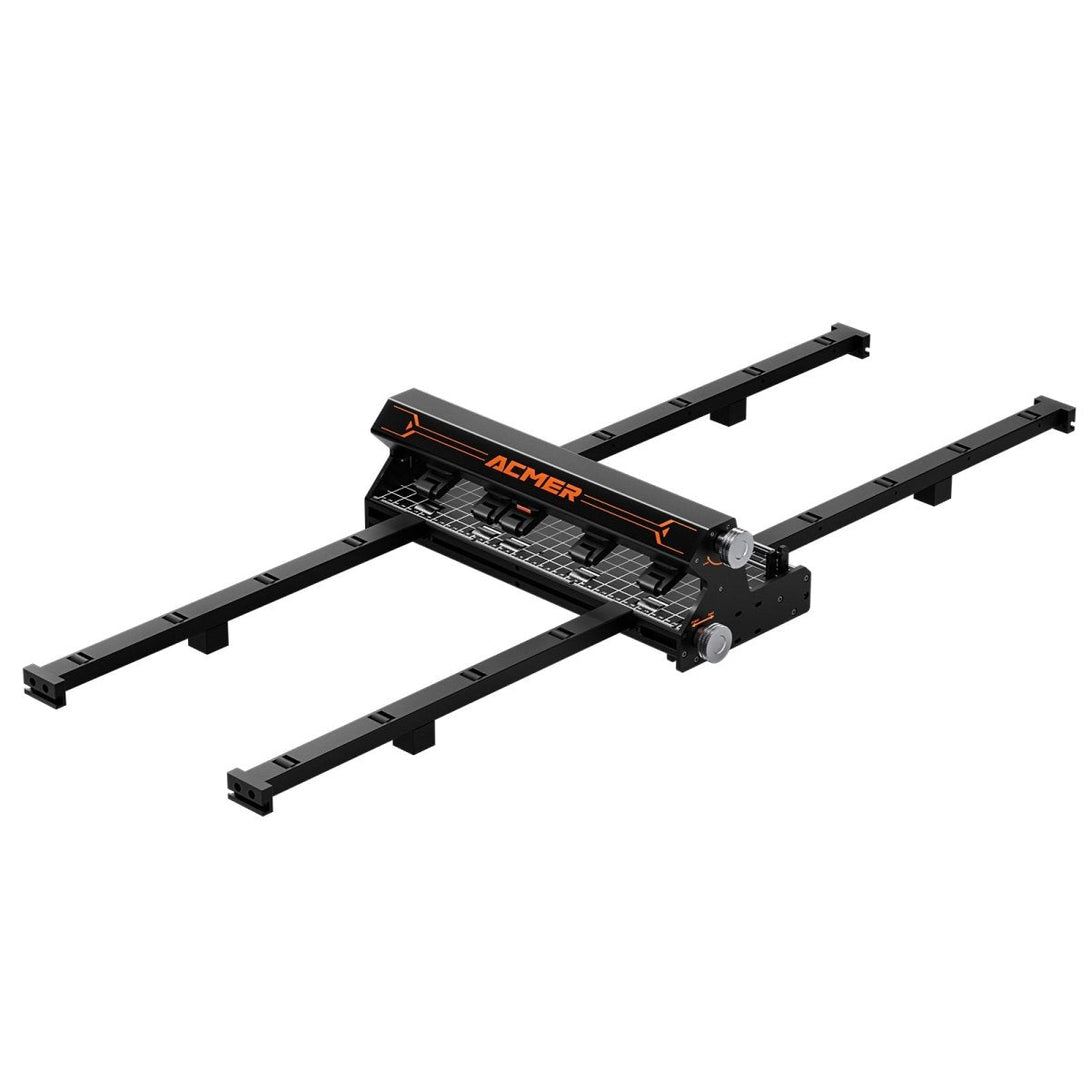

ACMER Auto Conveyor Feeder
$399.00$459.00
CF1
Specification:
| Parameter | Value |
|---|---|

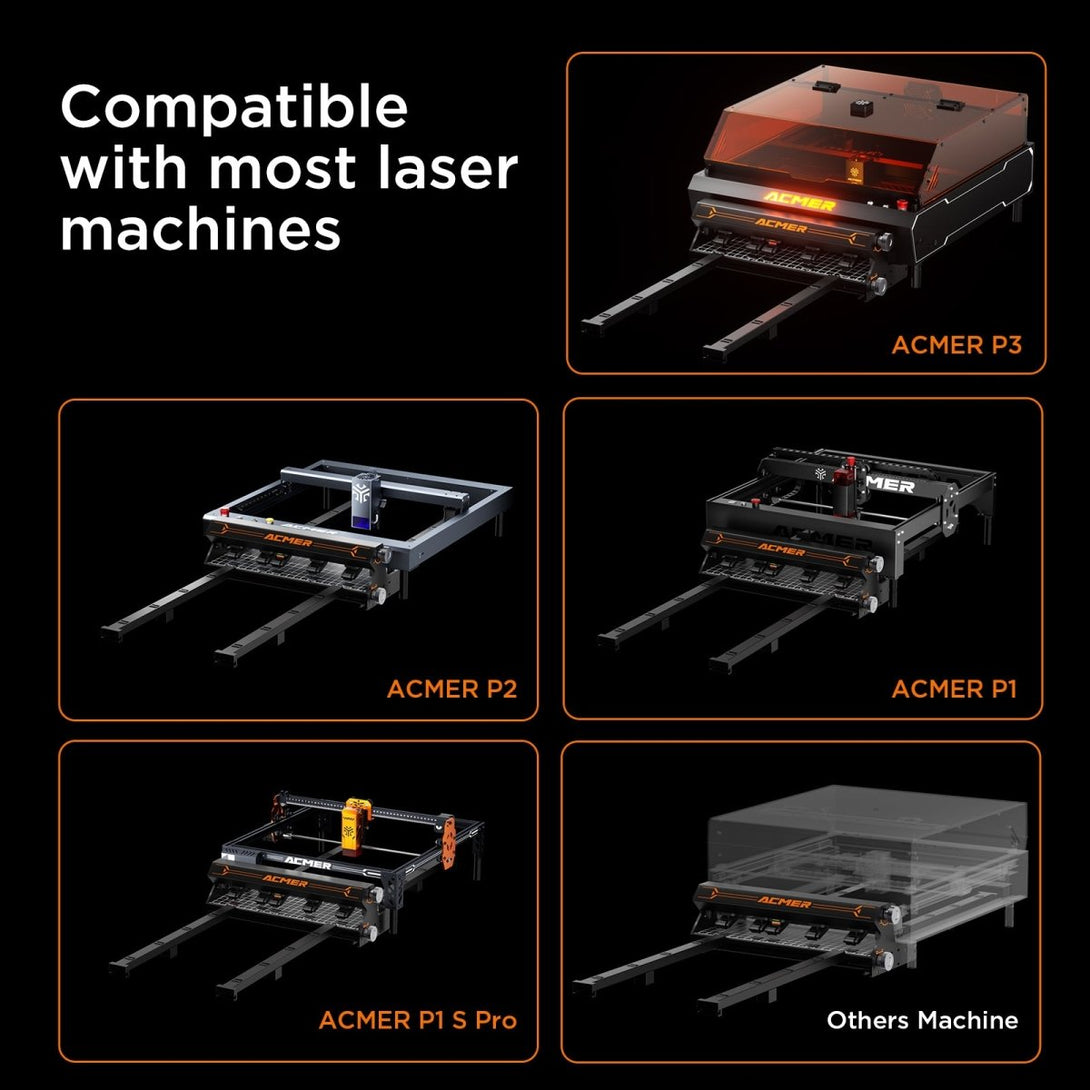

| Applicable to | ACMER machines/other brands desktop laser machines |
| Product Size | 19.5" x 7.9" x 5.9" (495*200*150mm) |
| Product Weight | 7.5kg |
| Max. Speed | 15000mm/min |

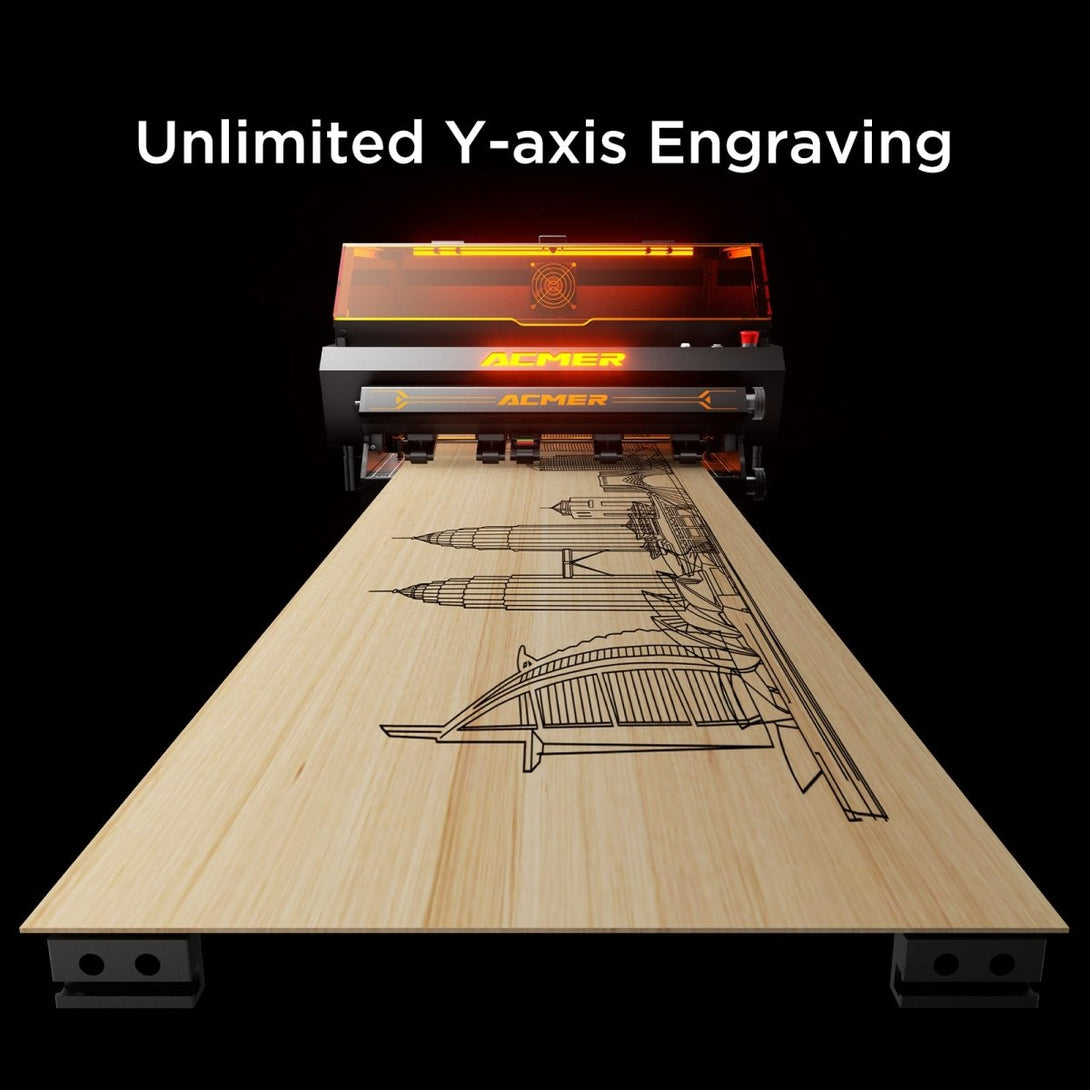

| Maximum Working Area | 15.75" x 157.48" (400 x 4000 mm) |
| Maximum Material Width | 17.3 inches (440 mm) |
| Minimum Material Width | 2.5 inches (65 mm) |
| Maximum Material Thickness | 0.55 inches (14 mm) |

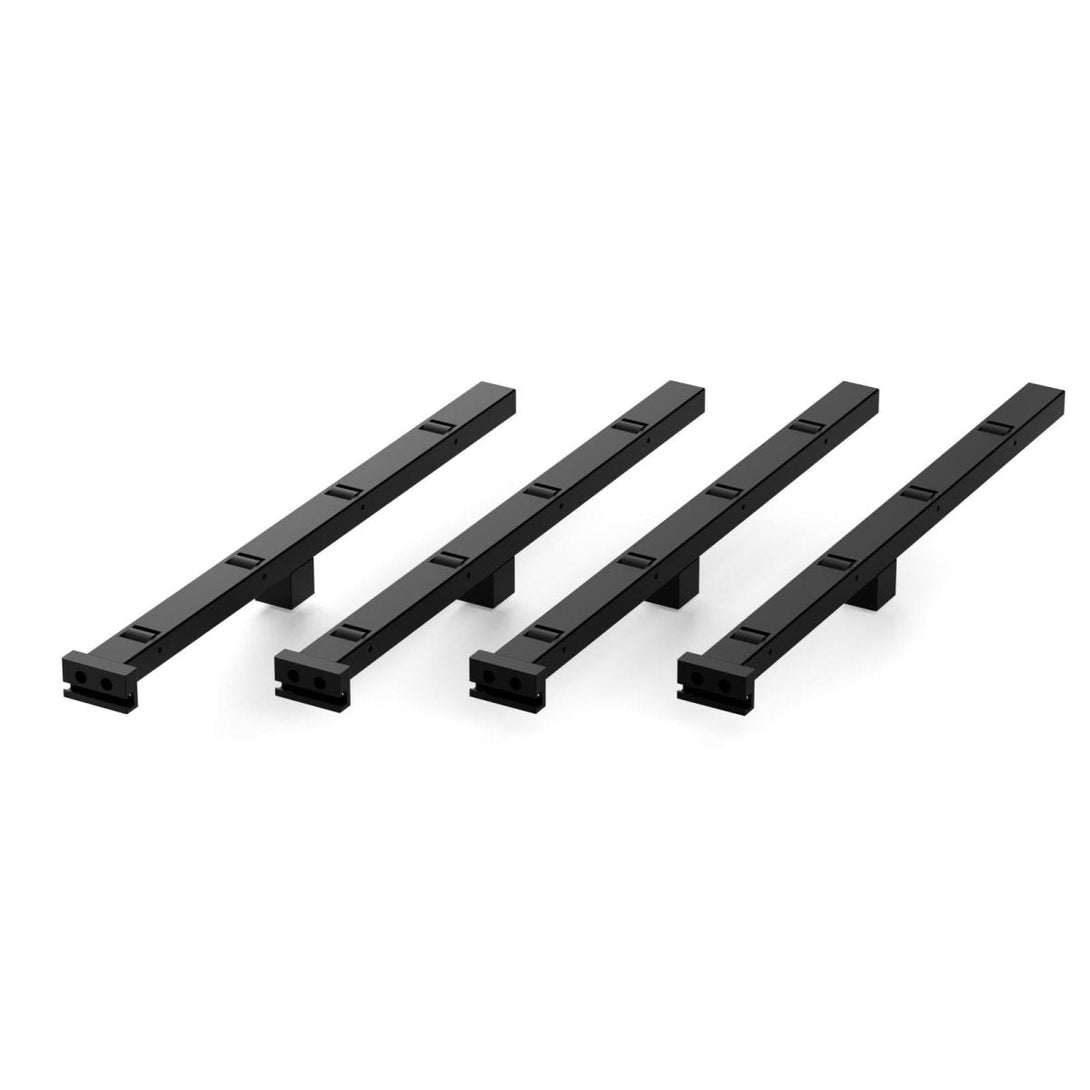

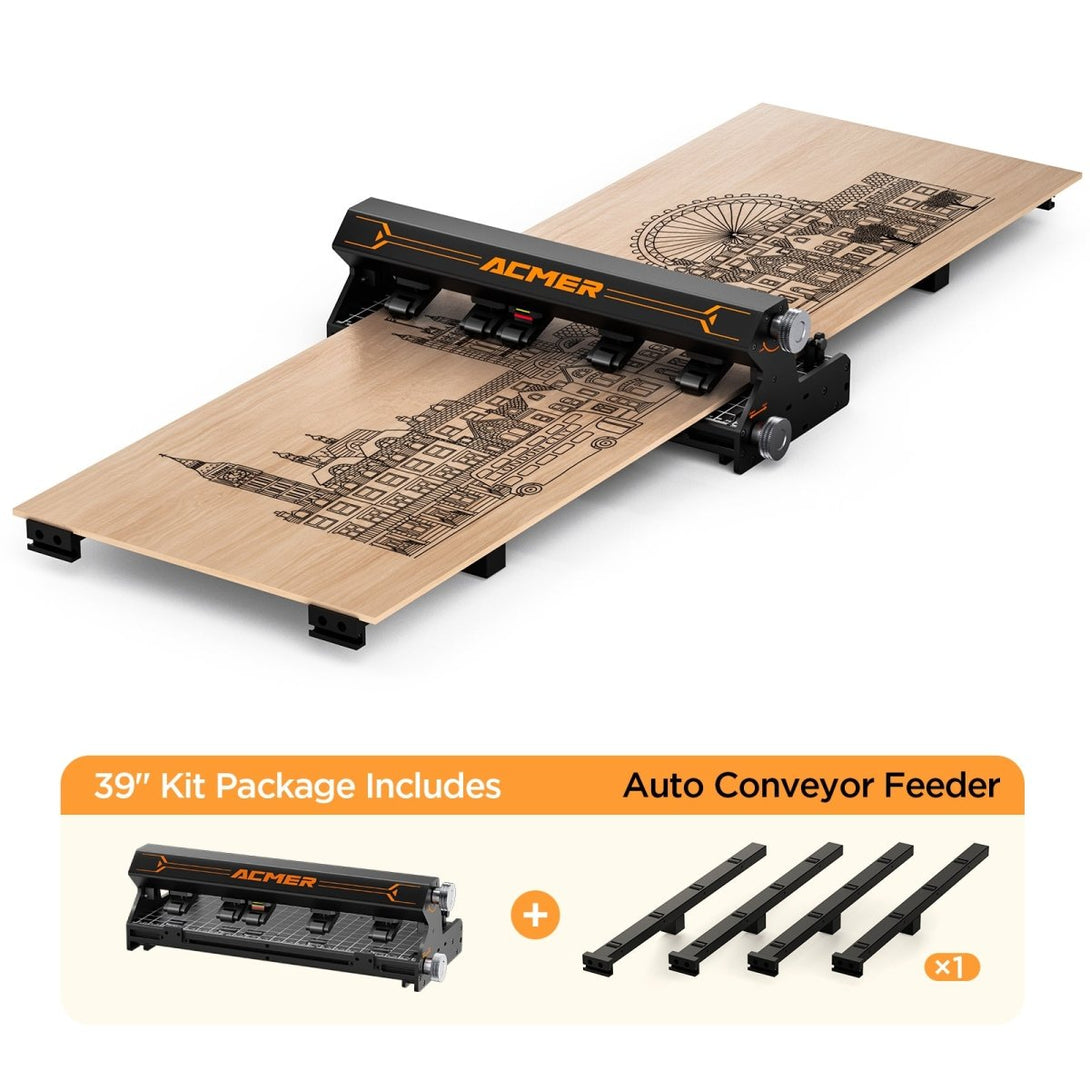

| Conveyor Rail | 39 Inches kit (4 rails), 64.5 Inches kit (8 rails), 90.5 Inches kit (12 rails), 118 Inches kit (16 rails) |
| Support Hard Material Length (including hanging in the air 30cm) | 39 Inches (1m), 64.5 Inches (1.64m), 90.5 Inches (2.3m), 118 Inches (3m) |
| Support Soft Material Length (including hanging in the air 30cm) | 34 Inches (0.85m), 58.6 Inches (1.49m), 84.6 Inches (2.15m), 112.2 Inches (2.85m) |
